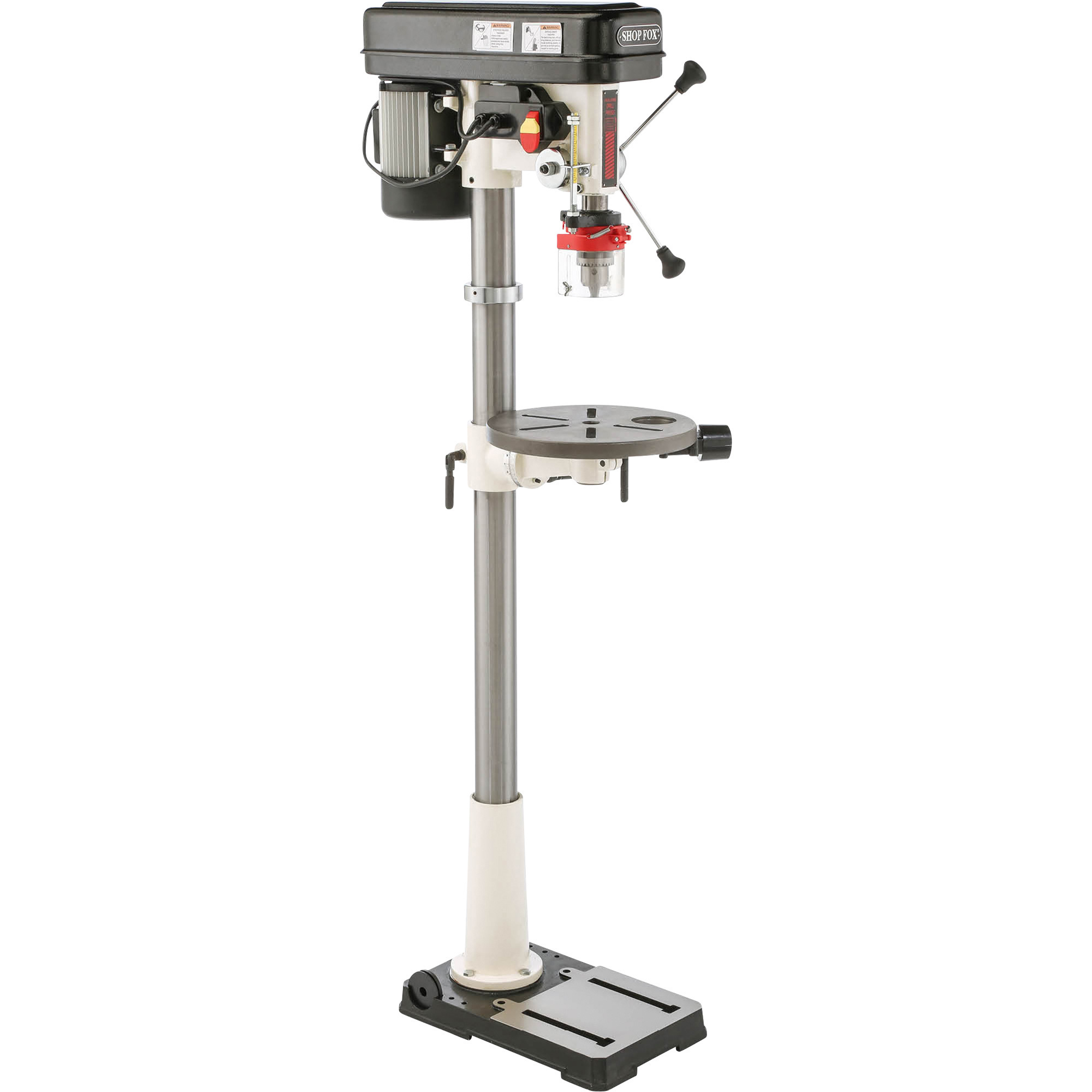

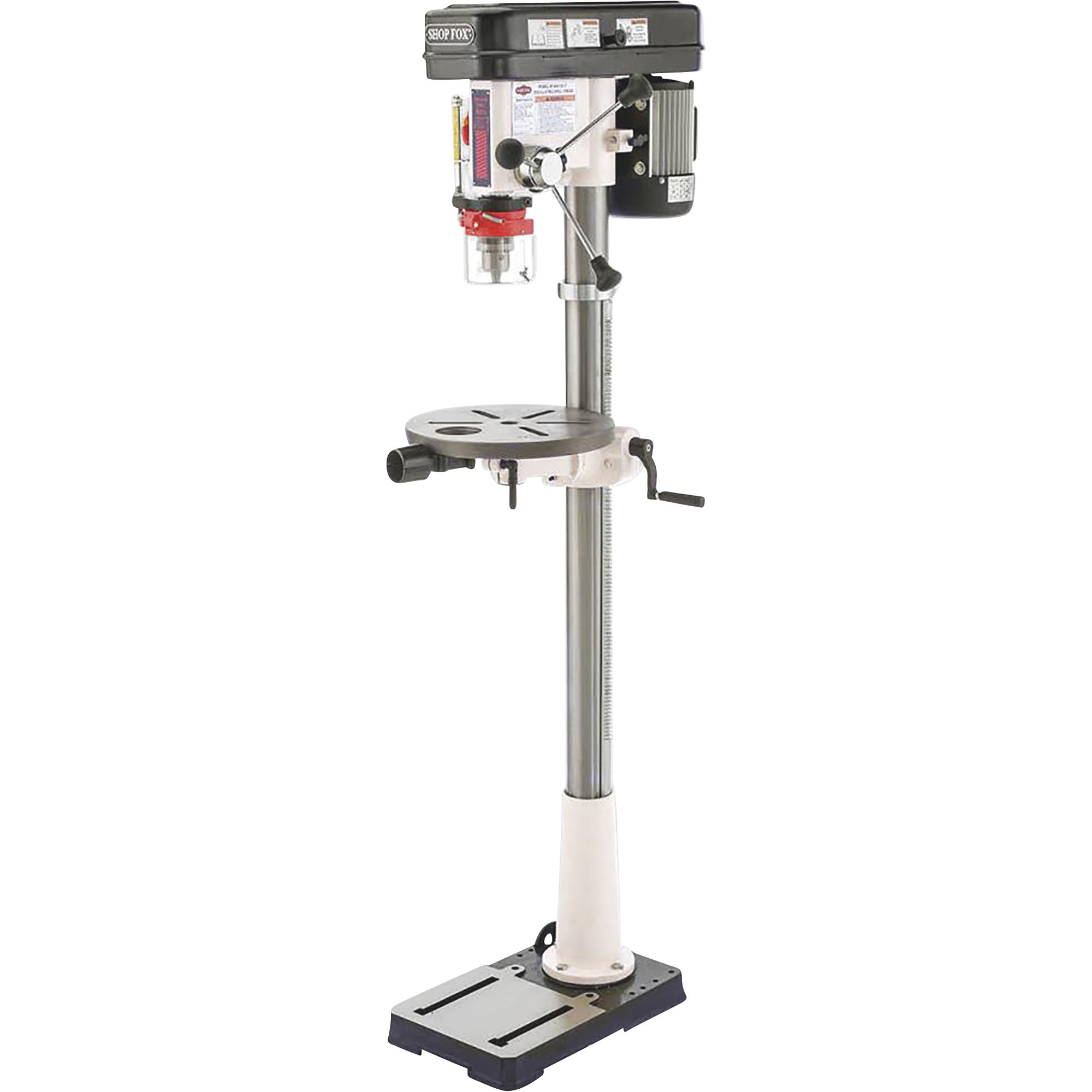

Shop Fox Oscillating Floor Standing Drill Press - 13 1/4in. Swing, 3/4 HP, 12 Speeds, 110V, Model# W1848

Item# 74245
"Shop Fox Oscillating Floor Standing Drill Press - 13 1/4in. Swing, 3/4 HP, 12 Speeds, 110V, Model# W1848"
Shop Fox Oscillating Floor Standing Drill Press - 13 1/4in. Swing, 3/4 HP, 12 Speeds, 110V, Model# W1848

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Shop Fox Oscillating Floor Standing Drill Press - 13 1/4in. Swing, 3/4 HP, 12 Speeds, 110V, Model# W1848

Click or Tap image to Zoom

$799.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Arbor: JT33
  • 3/4in. oscillating spindle
  • Spindle travel: 3 1/8in.
  • Swing: 13 1/4in.
  • Range of speeds: 250--3050 RPM

See full description

Complete Your Solution

  • Shop Fox Oscillating Floor Standing Drill Press - 13 1/4in. Swing, 3/4 HP, 12 Speeds, 110V, Model# W1848
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
  • 3M Professional-Grade Over-the-Head Hearing Protector, NRR 30dB, Model# 90565-4DC-PS
  • 3M Sanding/Drywall/Fiberglass Respirator with Valve, N95, NIOSH Approved, Model# 8511HA1-A
Price for all four:

$859.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The SHOP FOX® 12-speed Oscillating Floor Standing Drill Press features patented spindle oscillation for the quick and efficient sanding of contours. With plenty of speeds, exceptional power and high capacity, the W1848 becomes an effective tool for heavy use. Convert from drilling operations to sanding operations in a matter of seconds with just a few tool-free steps. Includes sanding kit with 1in., 1 1/2in., and 2in. drums, Mandrel washers, and 80 grit sanding sleeves. This drill press delivers the power and productivity you need in almost any application. Cannot ship to AK, CA or HI.

What's Included

    (1) Drill press (3) Sanding drums (3) Sanding sleeves (1) Mandrel

Features + Benefits

  • Arbor: JT33
  • 3/4in. oscillating spindle
  • Spindle travel: 3 1/8in.
  • Swing: 13 1/4in.
  • Range of speeds: 250--3050 RPM

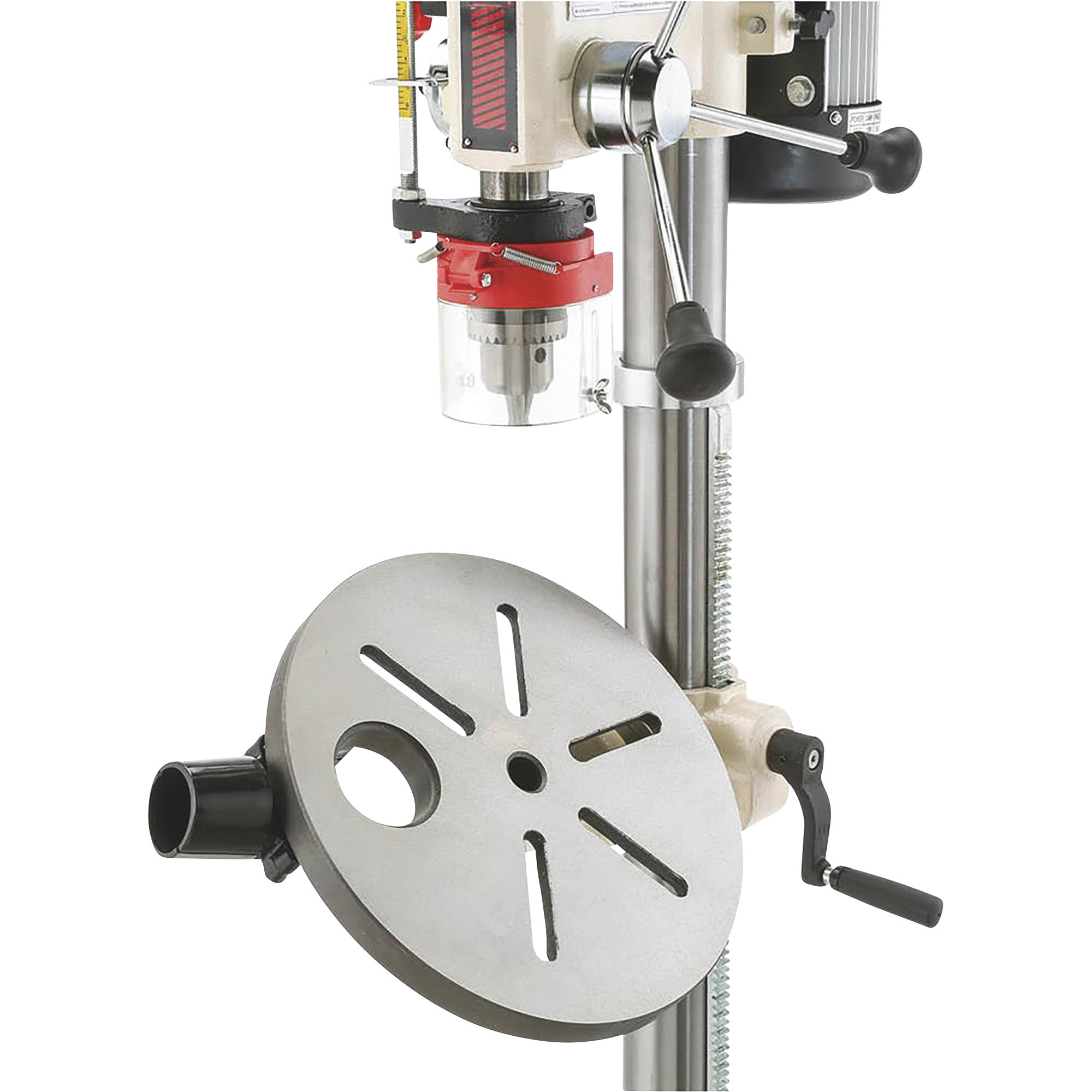

  • 12 3/8in. dia. table with 2in. dust port
  • Table Swing: 360°
  • Table tilt: 45° left, 45° right
  • Includes 3 sanding drums (1in., 1 1/2in., 2in.), each with a 80-grit sanding sleeve
  • 63in. overall height

Key Specs

AttributeSpecification

item#

74245

Brand

Shop Fox

Manufacturer's Warranty

2 year limited warranty

Ship Weight

143.0 LB

Chuck Size

0.75 in

Horsepower

0.75

Horsepower

0.75

Volts

110

Volts

110
AttributeSpecification

Amps

9

Product Type

Woodworking Drill Presses

Max. Vertical Travel

25-1/4 in

Disc Table Tilt

90 °

Chuck Size

0.75 in

Product Weight

122.0000 lb

Dimensions L x W x H (in.)

15.0 x 24.0 x 63.0 in

Product Weight

122.0000 lb

Dimensions L x W x H (in.)

15.0 x 24.0 x 63.0 in

Reviews

Questions & Answers

12 Reviews This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. Can you use mortise bits or the shopfox mortise kit set up with this drill press?

    1 answer
    Originally posted on grizzly.com

    1. Thank you for your inquiry. No, mortising bits or the Shop Fox mortise kit cannot be used with this drill press.

  2. Are there larger cast iron tables available for this drill press. Also any way to add work light or laser after market that you recommend

    1 answer
    Originally posted on grizzly.com

    1. We appreciate you reaching out. The T34639 is compatible with this machine; however, due to its size, it does not allow full 360° rotation. It must be positioned to one side to ensure the table elevation crank can be turned through its full range. While we do not offer laser accessories, we can recommend the T33680, G5683, or T33589 as suitable lighting options.

  3. The specs say the table tilts 90, but the photos show a scale only going to 45. Does the table just rotate beyond the marked scale or are the specs wrong?

    1 answer
    Originally posted on grizzly.com

    1. Thank you for getting in touch. The table rotates a full 360°, and the scale is marked for the most commonly used angles.

  4. Can you mill with this press?

    1 answer
    Originally posted on grizzly.com

    1. We appreciate your question. No, this is not a mill/drill.

  5. What is the weight?

    1 answer

    1. This standing drill press weighs 143 pounds.
