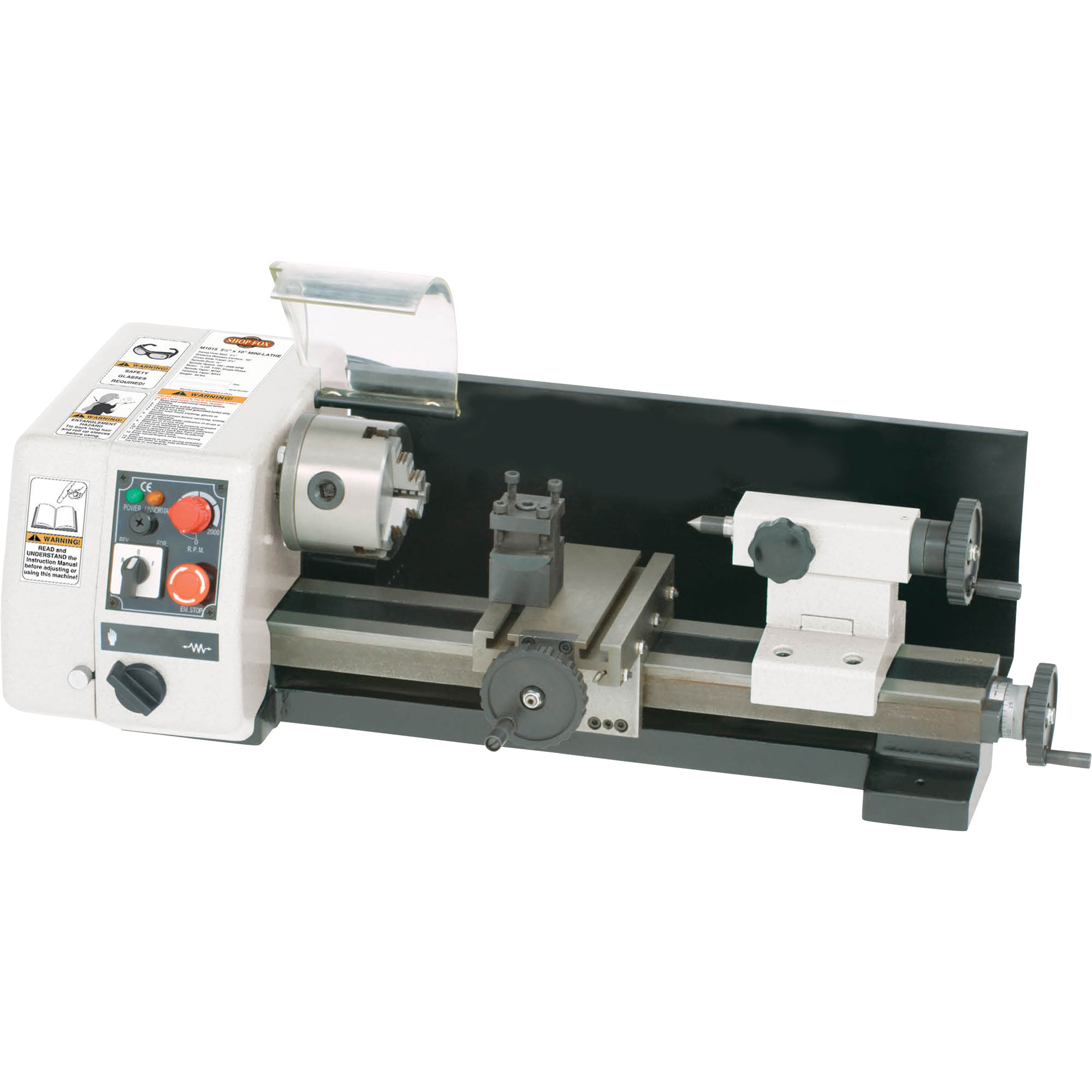

SHOP FOX Mini Metal Lathe - 6in. x 10in., 3in. Chuck, Model# M1015

Item# 334983
"SHOP FOX Mini Metal Lathe - 6in. x 10in., 3in. Chuck, Model# M1015"
SHOP FOX Mini Metal Lathe - 6in. x 10in., 3in. Chuck, Model# M1015

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

SHOP FOX Mini Metal Lathe - 6in. x 10in., 3in. Chuck, Model# M1015

Click or Tap image to Zoom

$839.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 3in. chuck with internal and external jaws
  • Swing over bed: 6in.
  • Distance between centers: 10in.
  • Cross slide travel: 2 3/8in.
  • Spindle: 1-8 TPI RH; Spindle bore: 0.375in.

See full description

Complete Your Solution

  • SHOP FOX Mini Metal Lathe - 6in. x 10in., 3in. Chuck, Model# M1015
  • Milwaukee Men's Cut 1 Nitrile Utility Gloves, Red/Black, Large, Model# 48-22-8902
Price for all two:

$844.47

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The SHOP FOX® Mini Metal Lathe is a perfect lathe for someone who wants a durable and well-designed machine that can fit in a small location. The M1015 gives model makers, toolmakers, gun hobbyists and weekend machinists a way to economically produce small precision parts, threaded parts, fittings, and dies.

Cannot ship to AK, CA or HI.

What's Included

    (1) Mini metal lathe (4) Hex wrenches (1) Double-end wrench (1) Socket-head wrench (1) Oil cup (2) T-nuts (1) Chuck key

Downloads

Product Manual

Features + Benefits

  • 3in. chuck with internal and external jaws
  • Swing over bed: 6in.
  • Distance between centers: 10in.
  • Cross slide travel: 2 3/8in.
  • Spindle: 1-8 TPI RH; Spindle bore: 0.375in.
  • Spindle taper: MT #2
  • Tailstock taper: MT #1
  • 27 3/4in.L x 11 1/2in.W x 12in.H overall size
  • Manual travel

Key Specs

AttributeSpecification

item#

334983

Brand

Shop Fox

Manufacturer's Warranty

2 year limited warranty

Ship Weight

71.0 LB

Horsepower

0.2 HP

Volts

110

Distance Between Centers

10 in

Swing Over Bed

6 in

Product Type

Mini Lathe
AttributeSpecification

Carriage Travel

10 in

Phase

Single-phase

Variable Speed

Yes

Max. Speed

2,000 rpm

Spindle Mount

No

Spindle Bore Size

0.375 in

Stand Included

No

Dimensions L x W x H (in.)

27.75 x 11.5 x 12 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–10 of 12 Questions
Sort by:

  1. What kind or threading can you do with this lathe?

    1. This SHOP FOX Mini Lathe can cut standard threads of 16,18,19,20 and 24 TPI (threads per inch).

      Helpful?

    2. The Model M1015 lathe can cut threads (standard) of 16, 18, 19, 20, and 24 threads per inch (TPI).

      Helpful?

  2. Is there a drill chuck avialable for this lathe

    1. The chuck for this is no longer available through Northern Tool. Please contact the mfg. directly for parts assistance.

      Helpful?

    2. The Shop Fox mini lathe does come with a lathe chuck, any additional chucks can be ordered through our parts department at 1-800-222-5381.

      Helpful?

  3. Is this 110 volt or 220 volt?

    1 answer

    1. The mini metal lathe is 110 volt 60 Hz AC power.

      Helpful?

  4. carriage lock?

    1 answer

    1. The Mini Metal Lathe does not have a carriage lock.

      Helpful?

  5. What is the smallest diameter rod that the chuck can clamp?

    1 answer

    1. The 3 jaw chuck on this Shop Fox lathe can work with material from 0.0 to 2 inches.

      Helpful?

  6. What are the overall dimensions of this machine? Height, width,length?

    1 answer

    1. The Shop Fox Mini Lathe has an overall length of 27.5 inches, width of 14.25 inches and a height of 13 inches.

      Helpful?

  7. Do you sell replacement chuck guards for this lathe?

    1 answer

    1. Replacement chuck guards would need to be purchased through the manufacturer.

      Helpful?

  8. Is item # 334983 a metal lathe?

    1 answer

    1. The Shop Fox mini lathe is designed to machine small metal parts.

      Helpful?

  9. What is this lathe's distance over the saddle( cross-slide)?

    1 answer

    1. The swing over the bed is 6". The distance between the centers is 10". The swing over the saddle is 5". The cross slide is 4 1/8".

      Helpful?

  10. tooling

    do you have a cutting tool kit for this lathe ????????????

    1 answer

    1. The cutting tool kit for this mini lathe can be purchased through the manufacturer.

      Helpful?
