Shop Fox Dust Collector - 1.5 HP, 1,280 CFM, 6in. Inlet, Dual 4in. Ports, Model# W1685

Item# 21693
Shop Fox Dust Collector - 1.5 HP, 1,280 CFM, 6in. Inlet, Dual 4in. Ports, Model# W1685

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Shop Fox Dust Collector - 1.5 HP, 1,280 CFM, 6in. Inlet, Dual 4in. Ports, Model# W1685

Click or Tap image to Zoom

$619.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 6in. inlet
  • Dual 4in. ports
  • Includes two 5.4 cu. ft. collector bags with 2.5 micron filtration
  • 10.1in. static pressure
  • 21 1/2in. x 33 1/2in. portable base

See full description

Complete Your Solution

  • Shop Fox Dust Collector - 1.5 HP, 1,280 CFM, 6in. Inlet, Dual 4in. Ports, Model# W1685
  • Ironton Men's High-Dexterity Utility Gloves — 3 Pairs, Assorted Colors, Large, Model# 86225IR-L3P
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
  • 3M Professional-Grade Over-the-Head Hearing Protector, NRR 30dB, Model# 90565-4DC-PS
Price for all four:

$679.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

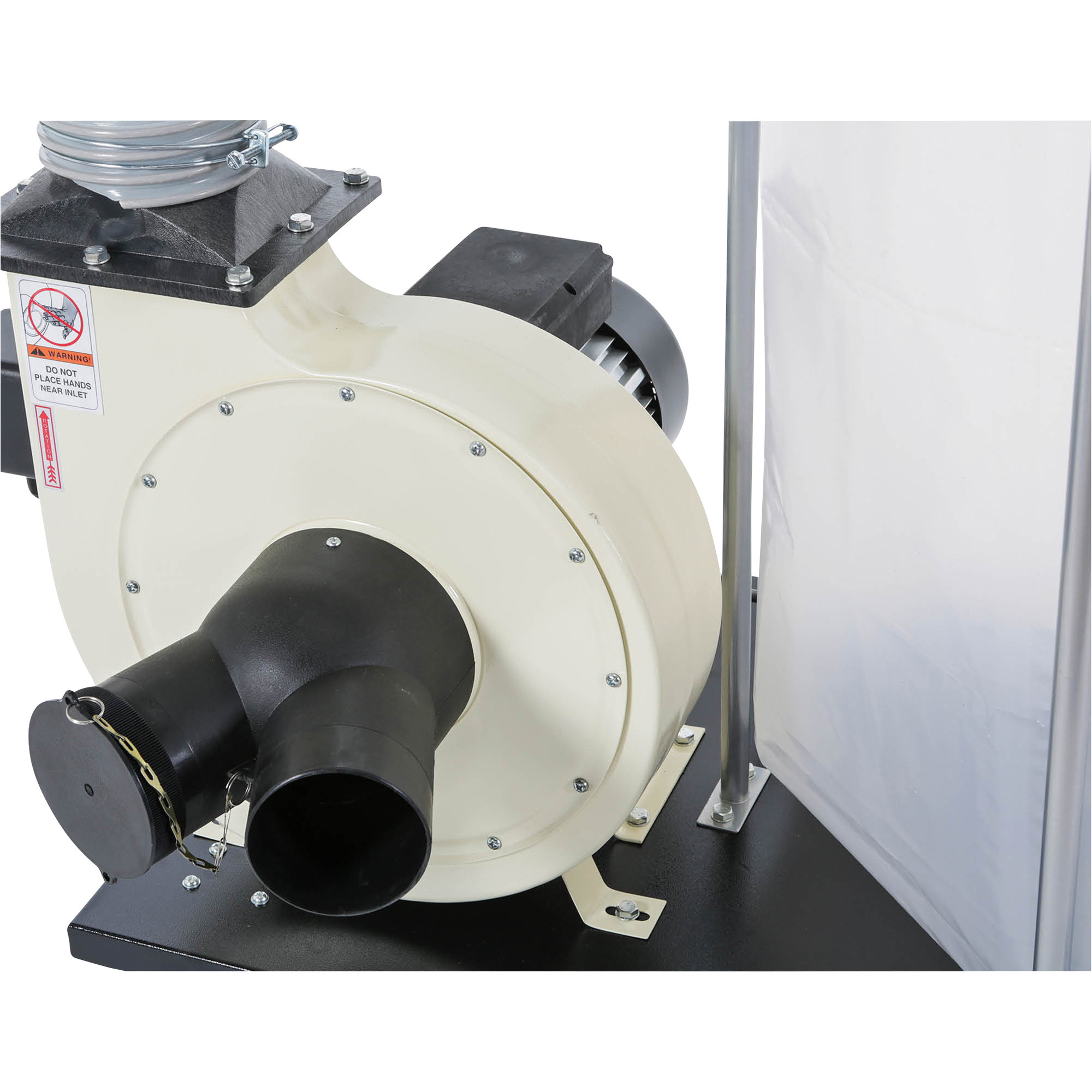

Powerful Shop Fox dust collector features a heavy-duty 12in. steel impeller and a 1.5 HP, 16 Amp 110V single phase motor that operates at 3,450 RPM. Generates 1,280 CFM air suction to capture dust and debris from any woodworking saw, planer, jointer, band saw, shaper or sander with a dust port.Cannot ship to AK, CA or HI.

What's Included

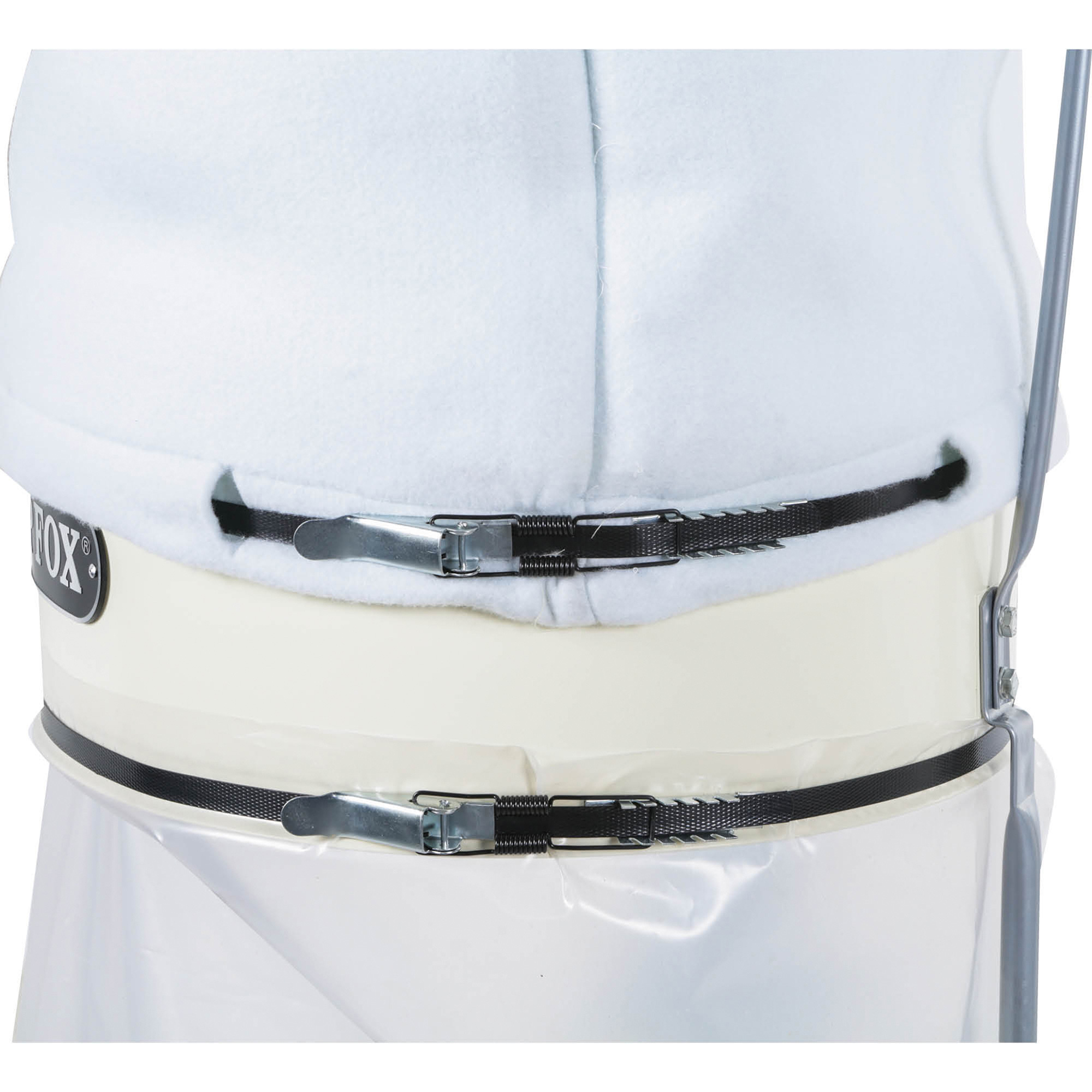

    (1) Shop Fox Dust Collector, 1.5 HP, 1,280 CFM, Model# W1685, (2) Dust collection bags and clamps

Downloads

Product Manual

Features + Benefits

  • 6in. inlet
  • Dual 4in. ports
  • Includes two 5.4 cu. ft. collector bags with 2.5 micron filtration
  • 10.1in. static pressure
  • 21 1/2in. x 33 1/2in. portable base
  • 78in.H (with bags inflated)
  • Upper and lower bags each measure 19in. dia. x 33in.L

Key Specs

AttributeSpecification

item#

21693

Brand

Shop Fox

Manufacturer's Warranty

2 year limited warranty

Ship Weight

99.0 LB

Air Flow

1,280 cfm

Horsepower

1.5 HP
AttributeSpecification

Product Type

Dust Collector

Volts

110

Filter Type

Bag

Amps

16

Dimensions L x W x H (in.)

78 H in

Reviews

Questions & Answers

22 Reviews This action will navigate to reviews.

Questions

1–10 of 21 Questions
Sort by:

  1. Can the motor be mounted on the wall?

    Want to minimize floor space, and keep the header pipe up along the ceiling. Mounting on the wall up high is preferred.

    1. This model is not suitable for wall mounting. Please view items 83114 and 81967 for wall mounted options.

      Helpful?

    2. The design for this item and all Shop Fox items is very specific. Moving the motor to be wall mounted is not recommended as it could cause a negative change in safety and efficiency. If wall mounting is the goal, item 83114 or item 81967 is recommended. Please view these options below.

      Helpful?

  2. can you order a replacement motor for the W1685

    1. The replacement motor, part# MSX1685008A, is available through our sister company Jack's Small Engines. Please visit Jackssmallengines.com for pricing and availability.

      Helpful?

    2. The replacement motor for the Shop Fox dust collector, model # W1685, would be part # X1685008A and would be available to purchase through our parts department at 1-800-657-0516.

      Helpful?

  3. Can the W1685 be converted to a suspended wall mount

    1 answer
    Originally posted on grizzly.com

    1. Thanks for reaching out. We've never tried converting this one to a wall mount, so it's not something we can recommend. G0944 has a similar CFM rating to this one and is a wall mount machine.

  4. Is it just the motor or does it come with the bags and hose?

    1 answer
    Originally posted on grizzly.com

    1. We appreciate your interest. This machine includes everything pictured in the first photo. You will still need hose to connect the dust collector to your machine.

  5. Is there a switch attachment that will turn this vac on when the tool is started?

    1 answer
    Originally posted on grizzly.com

    1. We appreciate your inquiry. We do not offer an auto-start accessory specifically for the W1685. However, we do have a remote start accessory available with the T33308.

  6. Can this be wired to run 220V?

    1 answer
    Originally posted on grizzly.com

    1. Thank you for reaching out with your question. Our W1685 1-1/2 HP Dust Collector operates on 110V, single phase, and it cannot be wired to work on 220V. However, we have a wide selection of dust collectors designed specifically for 220V that you might find suitable for your needs. Please call our Product Support team for assistance selecting the machine that will best meet your requirements.

  7. I have the W1685 and when in use the dust never goes to the bottom bag. Everything stays in the top bag until I turn the unit off.

    1 answer
    Originally posted on grizzly.com

    1. Thank you for reaching out. On the W1685 Dust Collector, if the dust is not dropping, please follow these steps: Clean the upper bag by knocking all the dust out. Ensure that the ring still has its flange and that it is pointing downward. Look for any cracks or leaks. If further assistance is needed, please contact our Product Support team.

  8. For those that have this unit, is a 20A circuit a hard requirement or is a dedicated 15A line sufficient? I have other 1.5hp devices that run fine on a 15A line, and I see other 1.5hp dust collectors that run on 15A.

    1 answer
    Originally posted on grizzly.com

    1. Thank you for contacting us. We recommend using a 20 amp breaker for the dust collector. A 15 amp breaker may trip during startup due to the initial load. You can find detailed power requirements in the specification sheet under the documents tab. If you have any further questions, please don't hesitate to reach out to our Product Support team.

  9. I’m trying to upgrade to a canister and what size canister can I put on Shop-fox W1865

    1 answer
    Originally posted on grizzly.com

    1. The canister filter compatible with the W1685 Dust Collector is the H5786.

  10. Can the filter bag be washed, or does need to be replaced when dirty?

    1 answer
    Originally posted on grizzly.com

    1. Thank you for your inquiry. The filter bags are washable but do not use detergent. Allow them to fully air dry before reuse, and over time, you may need to consider replacing them.
