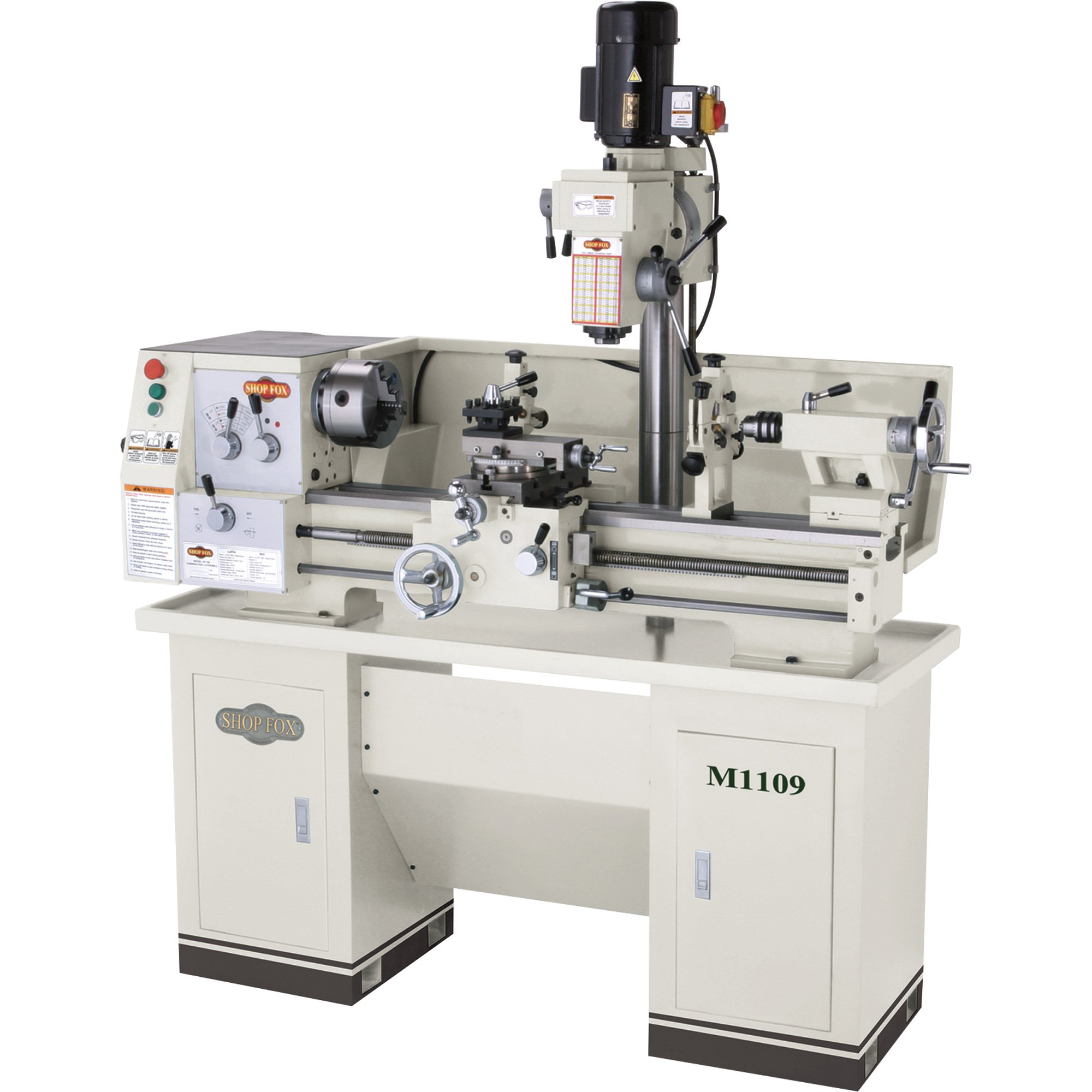

SHOP FOX Combo Lathe/Mill — 12in. x 30in., Model# M1109

Item# 426418
SHOP FOX Combo Lathe/Mill — 12in. x 30in., Model# M1109

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

SHOP FOX Combo Lathe/Mill — 12in. x 30in., Model# M1109

Click or Tap image to Zoom

  • Swing over bed: 12 1/2in.
  • Distance between centers: 29 1/2in.
  • Spindle bore: 1 1/2in.
  • Lathe spindle taper: MT #5
  • Mill/drill spindle taper: R8

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The SHOP FOX® Lathe/Mill combo features a full-size lathe with 12 speeds, 29 1/2in. distance between centers and a 12 1/2in. swing over the bed. The mill has 4-speed gearbox, 3/4 HP motor, 14 1/2in. swing, and a 17 1/4in. spindle-to-work table capacity. This combo lathe/mill provides the capabilities of a stand-alone lathe and a stand-alone mill, with the footprint of one machine.

What's Included

  • (1) Combo lathe/mill
  • (1) Stand

Features + Benefits

  • Swing over bed: 12 1/2in.
  • Distance between centers: 29 1/2in.
  • Spindle bore: 1 1/2in.
  • Lathe spindle taper: MT #5
  • Mill/drill spindle taper: R8
  • Tailstock taper: MT #3
  • Tailstock barrel travel: 3 15/16in.
  • Cross slide travel: 6 1/4in.
  • Number of mill/drill speeds: 4
  • Mill/drill speed range: 240, 600, 1100, 2700 RPM
  • Tilting headstock: 90° L & R
  • Number of lathe speeds: 12
  • Lathe speed range: 75, 110, 140, 200, 240, 350, 420, 600, 720, 1050, 1250, 1900 RPM
  • Thread range (inches): 27 @ 8 - 120 TPI
  • Thread range (metric): 18 @ 0.2 - 3.0mm
  • 8in. 4-jaw chuck
  • 6in. 3-jaw chuck w/ int. & ext. jaws
  • 1-13mm JT-33 drill chuck
  • 8in. faceplate
  • Cross slide table
  • 4-way turret tool post
  • Steel change gears
  • MT3 & MT5 dead centers
  • MT5 & MT3 adapter
  • Steady rest
  • Follow rest

Key Specs

AttributeSpecification

item#

426418

Brand

Shop Fox

Manufacturer's Warranty

24 months limited parts / No labor

Ship Weight

1169.0 LB

Horsepower

1.5 HP
AttributeSpecification

Volts

220

Thread Cutting Max. (SAE)

30 in

Thread Cutting Max.

21 mm

Stand Included

Yes
