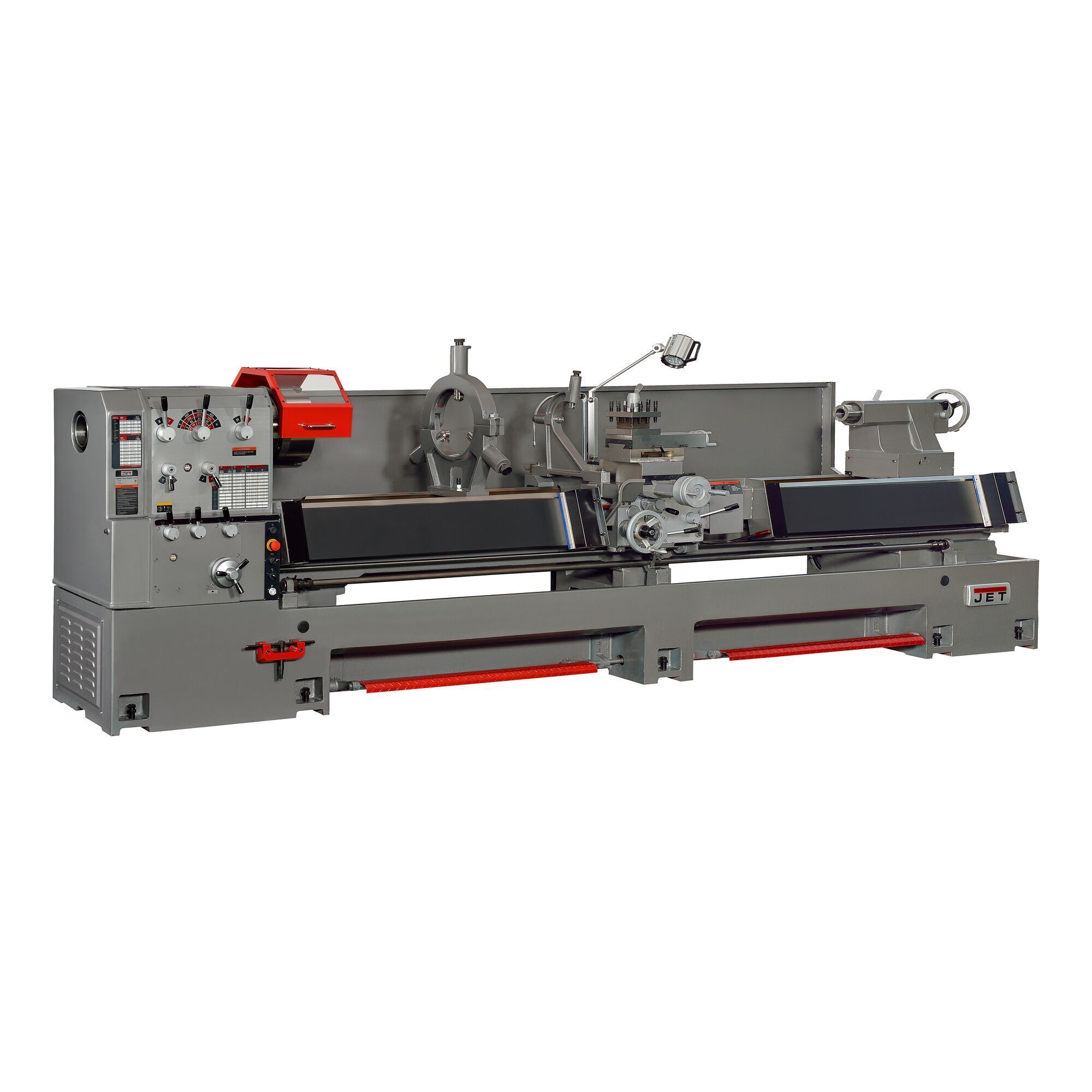

GH-2680ZH, Large Spindle Bore Gear Head Lathe w/ Newall NMS800 and Taper Attachment Kit

Item# 7074192
GH-2680ZH, Large Spindle Bore Gear Head Lathe w/ Newall NMS800 and Taper Attachment Kit

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

GH-2680ZH, Large Spindle Bore Gear Head Lathe w/ Newall NMS800 and Taper Attachment Kit

Click or Tap image to Zoom

$77,999.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 3 Jaw scroll chuck with top reversing jaws
  • Steady and follow rest with roller bearings
  • Bed ways are induction hardened and ground for durability
  • E-Stop on Carriage for added safety
  • Electronic Chuck Key Holder

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Constructed using the Certified Meehanite casting process for added durability, the JET ZH-Series 4-1/2in. Large Spindle Bore Lathes provide consistent, reliable, and precise operation. Features include a clutch operated headstock with all headstock gears hardened and ground, fully integrated coolant system, and a rapid traverse on the apron that makes the ZH-Series perfect for high-output production applications. These are the features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.

What's Included

    (1) GH-2680ZH, Large Spindle Bore Gear Head Lathe w/ Newall NMS800 and Taper Attachment Kit

Features + Benefits

  • 3 Jaw scroll chuck with top reversing jaws
  • Steady and follow rest with roller bearings
  • Bed ways are induction hardened and ground for durability
  • E-Stop on Carriage for added safety
  • Electronic Chuck Key Holder

Key Specs

AttributeSpecification

item#

7074192

Brand

JET

Manufacturer's Warranty

2 year limited warranty

Ship Weight

6724.0 LB

Horsepower

15 HP

Volts

230

Distance Between Centers

80 in

Swing Over Bed

26 in

Product Type

Other
AttributeSpecification

Carriage Travel

117.5 in

Phase

Three-phase

Variable Speed

Yes

Max. Speed

1,000 rpm

Spindle Mount

Yes

Spindle Bore Size

4.5 in

Product Weight

6724.0000 lb

Dimensions L x W x H (in.)

142.1 x 45.3 x 77.2 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
