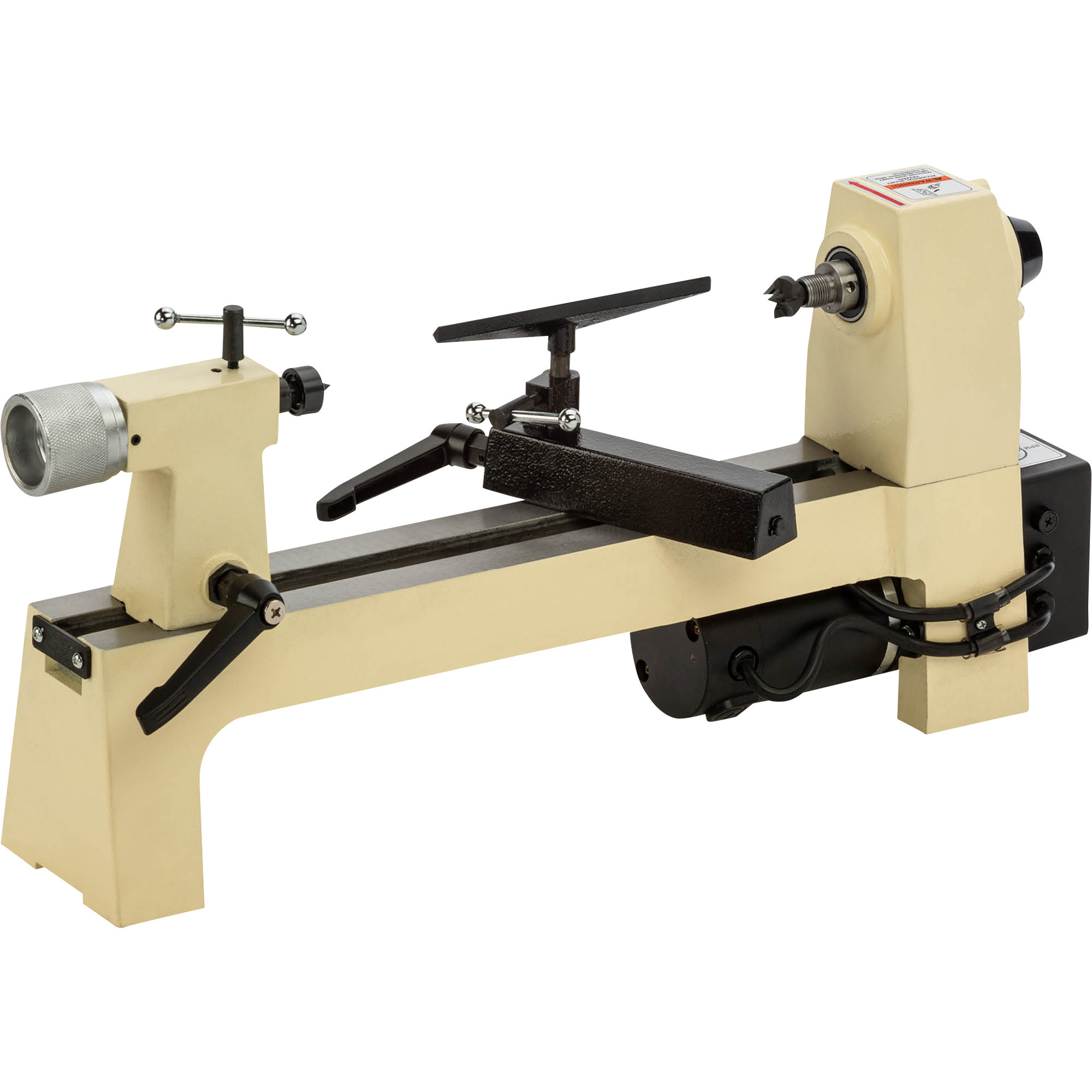

Shop Fox 8in. x 13in. Bench-Top Wood Lathe, Model# W1704

Item# 81909
Shop Fox 8in. x 13in. Bench-Top Wood Lathe, Model# W1704

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Shop Fox 8in. x 13in. Bench-Top Wood Lathe, Model# W1704

Click or Tap image to Zoom

$319.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only

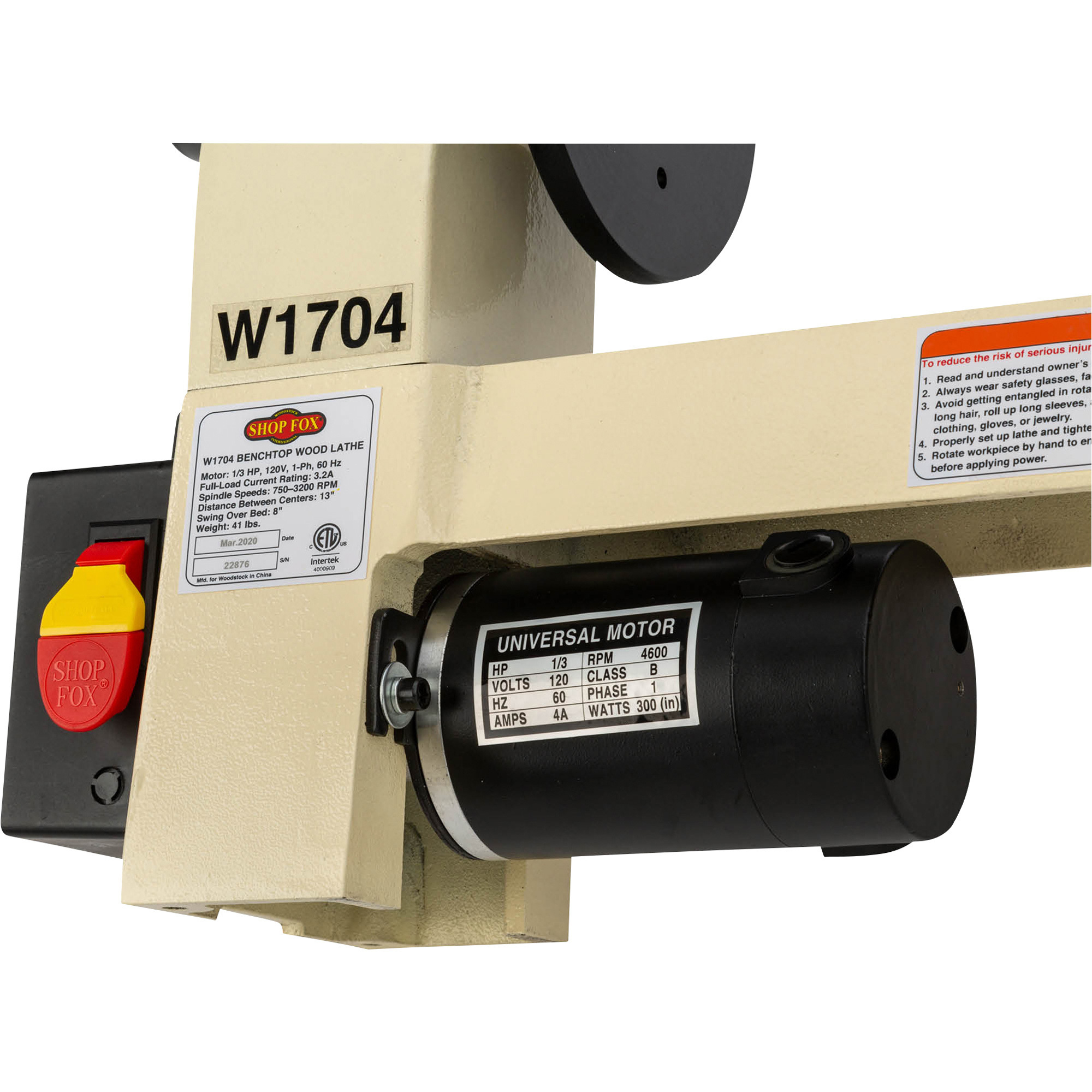

  • Motor: 1/3 HP, 110V, 4A
  • Variable-speed control
  • Spindle speed: 700-3200 RPM
  • 3/4in. x 16 TPI RH spindle
  • 13in. distance between centers

See full description

Complete Your Solution

  • Shop Fox 8in. x 13in. Bench-Top Wood Lathe, Model# W1704
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
Price for all two:

$328.99

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Ideal for pen turning and small projects, the Shop Fox 8in. x 13in. Bench-Top Wood Lathe with cast-iron construction and variable-speed spindle offers the precision and control that pen turners and miniature hobbyists demand. Includes safety paddle switch, MT#1 spur center, MT#1 live center, 4 1/4in. and 7in. tool rests, 5 3/4in. faceplate, and 3/4in. x 16 TPI RH spindle.

What's Included

    (1) Shop Fox 8in. x 13in. Bench-Top Wood Lathe, Model# W1704

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Motor: 1/3 HP, 110V, 4A
  • Variable-speed control
  • Spindle speed: 700-3200 RPM
  • 3/4in. x 16 TPI RH spindle
  • 13in. distance between centers
  • 8in. swing over bed
  • Base mounting hole size: 8mm
  • MT#1 spur center
  • MT#1 live center
  • 4 1/4in. and 7in. wide tool rests
  • 5 3/4in. faceplate
  • Includes two tool rests

Key Specs

AttributeSpecification

item#

81909

Brand

Shop Fox

Manufacturer's Warranty

2 year limited warranty

Ship Weight

52.0 LB

Distance Between Centers

13 in

Horsepower

0.33
AttributeSpecification

Swing

8 in

Min. RPM

700

Product Type

Lathe

Product Weight

lb

Dimensions L x W x H (in.)

11.5 x 36.0 x 15.0 in

Reviews

Questions & Answers

4 Reviews This action will navigate to reviews.

Questions

1–8 of 8 Questions
Sort by:

  1. Is a bed extension available for this lathe?

    1 answer
    Originally posted on grizzly.com

    1. Thank you for reaching out. We don't have a bed extension available for the W1704.

  2. Can this lathe be fastened to a work bench? Has there been any overheating problems with it?

    1 answer

    1. It is designed to be mounted to a work bench. Some work benches may require additional reinforcement to support the weight of the machine and work piece materials. The minimum workspace requirements are 36" L x 11.5" H. Do not press the workpiece to firmly with the tailstock or the bearings will bind and overheat.

      Helpful?

  3. What size screw are used for the safety cap above the speed adjustment motor? I misplaced them and cannot locate. There is a total of three in a triangle pattern.

    1 answer
    Originally posted on grizzly.com

    1. We appreciate your question. For this lathe, the screws you need are PX1704028.

  4. Is there a recommended jaw chuck for the W1704 model lathe?

    1 answer
    Originally posted on grizzly.com

    1. Thank you for reaching out. The D4103 Chuck and the H5934 Chuck will be compatible with this machine.

  5. Other than the price and the color, what is the difference between this lathe and the Grizzly T32536?

    1 answer
    Originally posted on grizzly.com

    1. Thank you for your question, John. While most of the machine specifications are identical, there are a few key differences. The Shop Fox lathe is white, manufactured by Shop Fox, and includes a two-year warranty. In contrast, the Grizzly lathe has a one-year warranty. For a detailed comparison, please refer to the "Comparison Chart" located at the bottom of our Home Page, or find it on the item page under the "Specifications & Comparisons" tab.

  6. wher can i find repair parts for for macine ?

    1 answer

    1. Please contact the manufacturer directly for assistance with parts.

      Helpful?

  7. Can you put a chuck in the tail stock like in the jet lather

    1 answer

    1. A drill chuck with an MT1 tapered arbor can be inserted in the tail stock of this lathe.

      Helpful?

  8. can this lathe turn bowls. if yes what accessories are required.

    1 answer

    1. This includes a 5-3/4-inch faceplate which threads onto the headstock spindle that can be used for turning bowls.

      Helpful?
