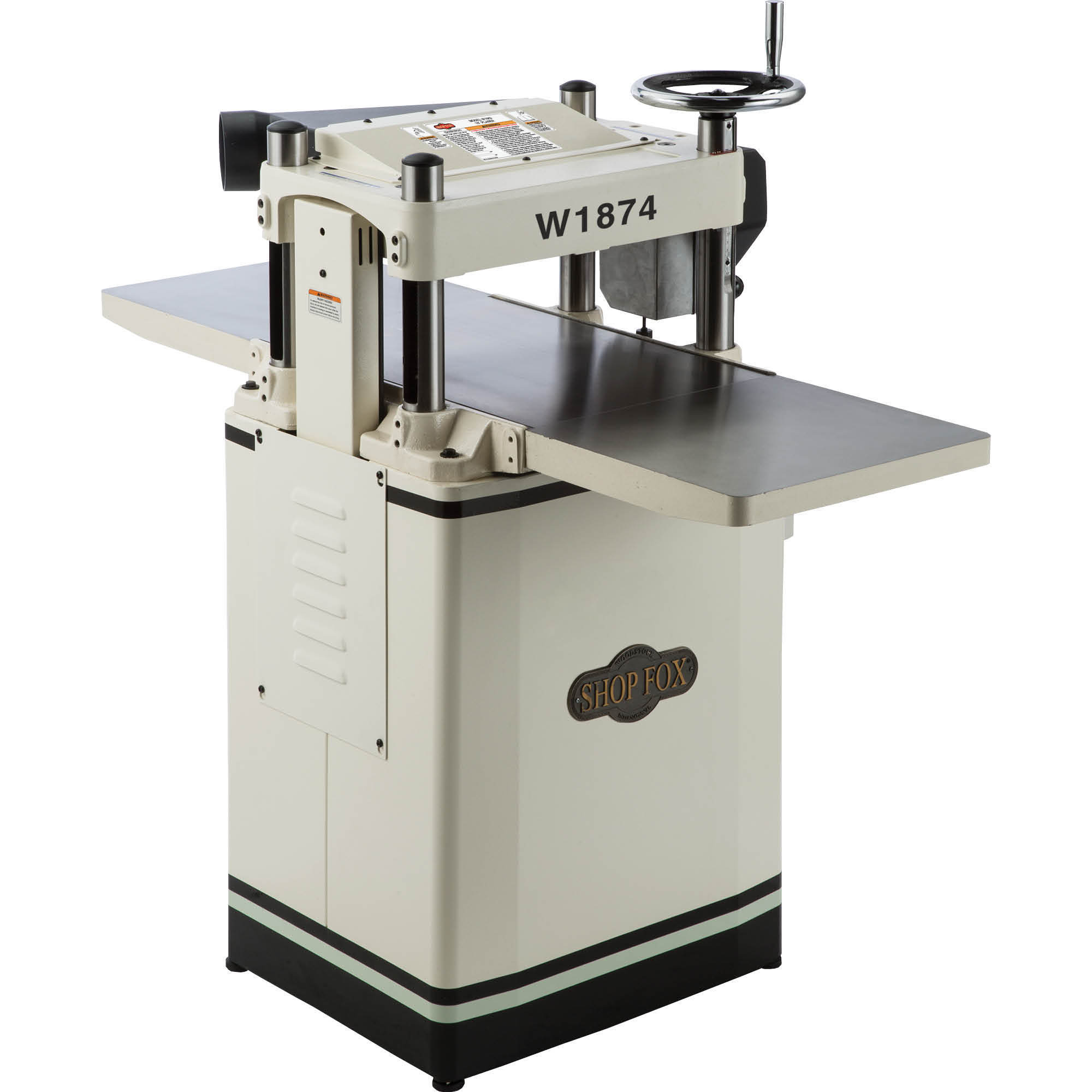

Shop Fox, 15in. 3HP Helical Fixed-Table Planer, Model# W1874

Item# 5794516
Shop Fox, 15in. 3HP Helical Fixed-Table Planer, Model# W1874

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Shop Fox, 15in. 3HP Helical Fixed-Table Planer, Model# W1874

Click or Tap image to Zoom

$2425.00

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Motor: 3 HP, 230V, single-phase
  • Table size w/cast-iron wings: 15-1/2"W x 49"L
  • Maximum cutting width: 15"
  • Maximum cutting height: 6"
  • Minimum cutting height: 3/16"

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The W1874 15in. Fixed Table Planer W/Helical Cutterhead features a powerful 3 HP motor and 5200 RPM, 4-row helical cutterhead. The fixed table height design allows for permanent infeed/outfeed roller setups for greater efficiency in production settings. Carbide inserts with 4 cutting edges make for ultra-smooth finishes in figured wood and last up to 10 times longer than conventional knives. The 2-speed gearbox allows you to choose between 16 and 28 FPM for a smooth finish or high production feed rate. Sturdy four-column supports with twin gas struts on either side make for easy headstock height adjustments.

What's Included

    (1) Planer

Features + Benefits

  • Motor: 3 HP, 230V, single-phase
  • Table size w/cast-iron wings: 15-1/2"W x 49"L
  • Maximum cutting width: 15"
  • Maximum cutting height: 6"
  • Minimum cutting height: 3/16"
  • Maximum cutting depth: 1/8"
  • Minimum length of stock: 6"
  • Feed rates: 16, 28 FPM
  • Includes 5 spare carbide inserts
  • Four heavy duty support columns
  • Fixed table height design
  • Anti-kickback fingers
  • Oil bathed 2-speed gearbox
  • Cast-iron extension wings
  • Elevation scale with both inch and metric
  • Magnetic switch
  • Poly-V belt drive
  • Cabinet-style stand
  • Large top-mounted handwheel

Key Specs

AttributeSpecification

item#

5794516

Brand

Shop Fox

Manufacturer's Warranty

2 year limited warranty

Ship Weight

377.0 LB
AttributeSpecification

Product Type

Planers

Product Weight

302.0000 lb

Dimensions L x W x H (in.)

49.0 x 25.0 x 47.5 in

Reviews

Questions & Answers

6 Reviews This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. Does the table have additional wings? It looks longer than 21 inches

    1 answer
    Originally posted on grizzly.com

    1. We appreciate your question. It includes two 14" wings that attach to the 21" bed.

  2. How is this different than the grizzly G0891

    1 answer
    Originally posted on grizzly.com

    1. Thanks for your question. The G0891 and W1874 are the same, the main difference is the color and branding. The W1874 also includes a 2 year warranty.

  3. What gear oil is used from the factory? I would rather top off with the same oil than drain and refill since some original will of course be left behind.

    1 answer
    Originally posted on grizzly.com

    1. We appreciate your inquiry. Our machines are not shipped with oil from the factory. There may be some residual oil remaining from quality control, but we do not have details about the type of oil used during testing. If you find residual oil in the gearbox, we recommend draining it and refilling with ISO 320, SAE 140 gear oil, or SAE 85W–140 multi-weight gear oil. Please avoid mixing different types of oil.

  4. What are the cutter blade angles?

    1 answer
    Originally posted on grizzly.com

    1. Thank you for getting in touch with us. For the W1874 Planer, you will need the H9893 Carbide Insert. However, we do not have information on the specific angles of the cutters or their orientation within the machine. These measurements are not required for operation, and we do not have the means to accurately measure them.

Warranty

Manufacturer's Warranty

2 year limited warranty
