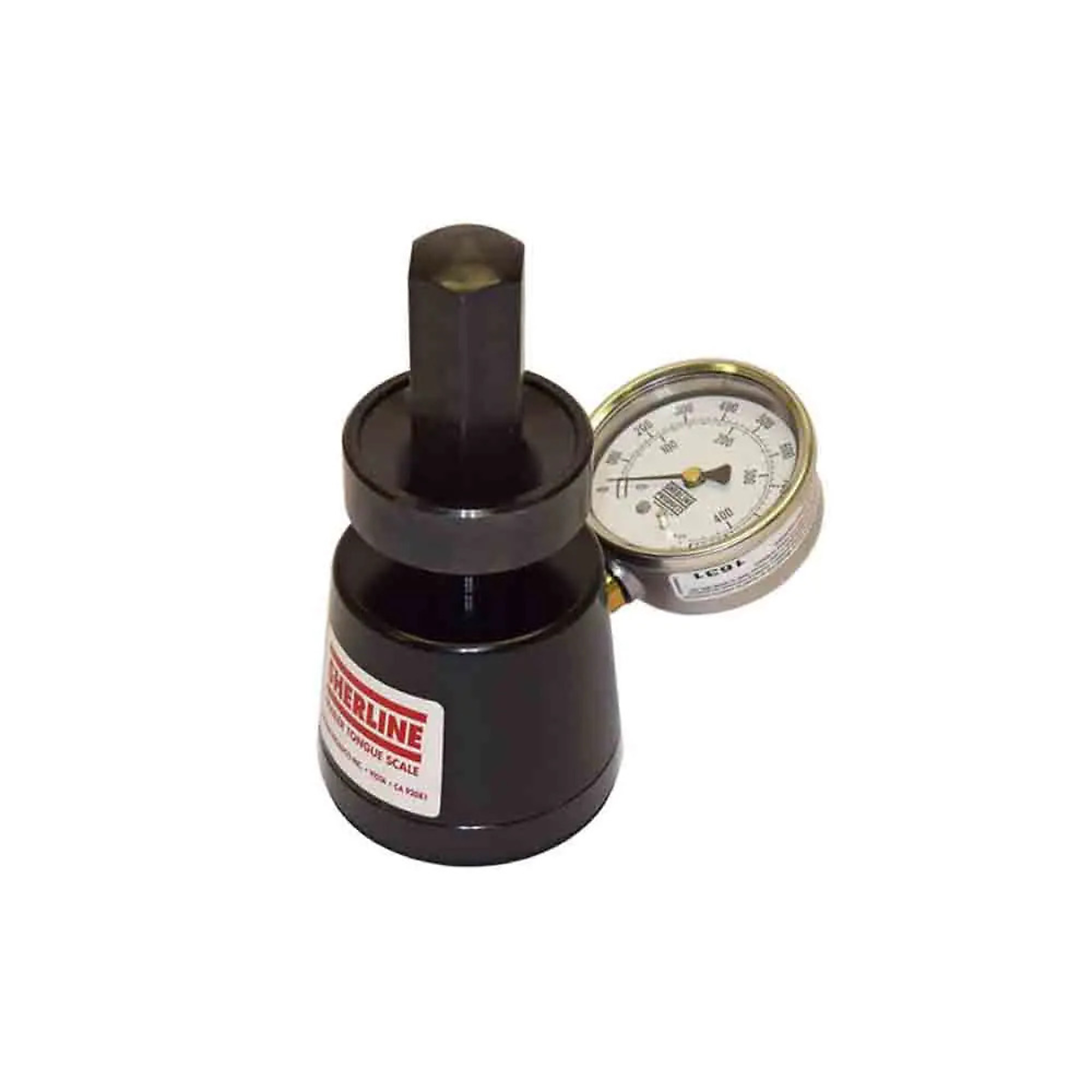

Sherline, Trailer Tongue Weight Scale, 1000 lb. Capacity, Model# LM-1000

Item# 6926189
Sherline, Trailer Tongue Weight Scale, 1000 lb. Capacity, Model# LM-1000

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Sherline, Trailer Tongue Weight Scale, 1000 lb. Capacity, Model# LM-1000

Click or Tap image to Zoom

$189.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Outer Scale: 0-1,000 lb = numbers @ 200 lb, marks @ 20 lb increments
  • Please note: Product may have red or black base.
  • Per the manufacturer - Never lift this product up by the piston, only by the base or damage may occur.
  • Scale reads in pounds
  • Perfect for smaller single/double axle trailers

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The scale uses a simple hydraulic principle to convert pressure into a reading in pounds on the gage. No delicate electronics, no batteries, and only one moving part. It is available with gages reading to 1000 lb, 2000 lb, or 5000 lb for 5th wheel trailers that typically carry a larger percentage of the overall weight on the gooseneck. Stop guessing and start towing safely. Reasonably priced for individual trailer owners. Great for travel clubs and trailer dealers too. The scale is machined from solid billet steel and aluminum. It has a 3.25in. body diameter and is about 4.5in. high without the included screw-on hitch extension. (6.75in. with extension installed.) Actual weight is 4.4 lb. Gage diameter is 2.75in.

What's Included

    (1) Tongue Scale

Features + Benefits

  • Outer Scale: 0-1,000 lb = numbers @ 200 lb, marks @ 20 lb increments
  • Please note: Product may have red or black base.
  • Per the manufacturer - Never lift this product up by the piston, only by the base or damage may occur.
  • Scale reads in pounds
  • Perfect for smaller single/double axle trailers

Key Specs

AttributeSpecification

item#

6926189

Brand

Sherline

Manufacturer's Warranty

1 year limited warranty

Ship Weight

5.0 LB
AttributeSpecification

Material

Aluminum

Max. Gross Trailer Weight

10,000 lb

Product Weight

5.0000 lb

Dimensions L x W x H (in.)

4.0 x 4.0 x 5.0 in

Reviews

Questions & Answers

Questions

  1. How is this scale used?

    1 answer

    1. The most accurate measurement of the tongue weight is achieved by measuring right where the hitch actually rests on the ball. An extension is provided that screws into the top of the cylinder so that you may support the trailer hitch in this manner. Always measure the hitch weight with the trailer level (trailer wheels must be blocked to prevent movement) and the hitch at appropriate height that it will be installed on the tow vehicle. Support the trailer tongue with the trailer jack. Using very strong secure blocks, block the scale into position under the hitch. You may also use a hydraulic floor jack and raise the scale into position. Raise the tongue jack till the full weight of the hitch is on the scale and read the weight in pounds that is listed on the gauge.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
