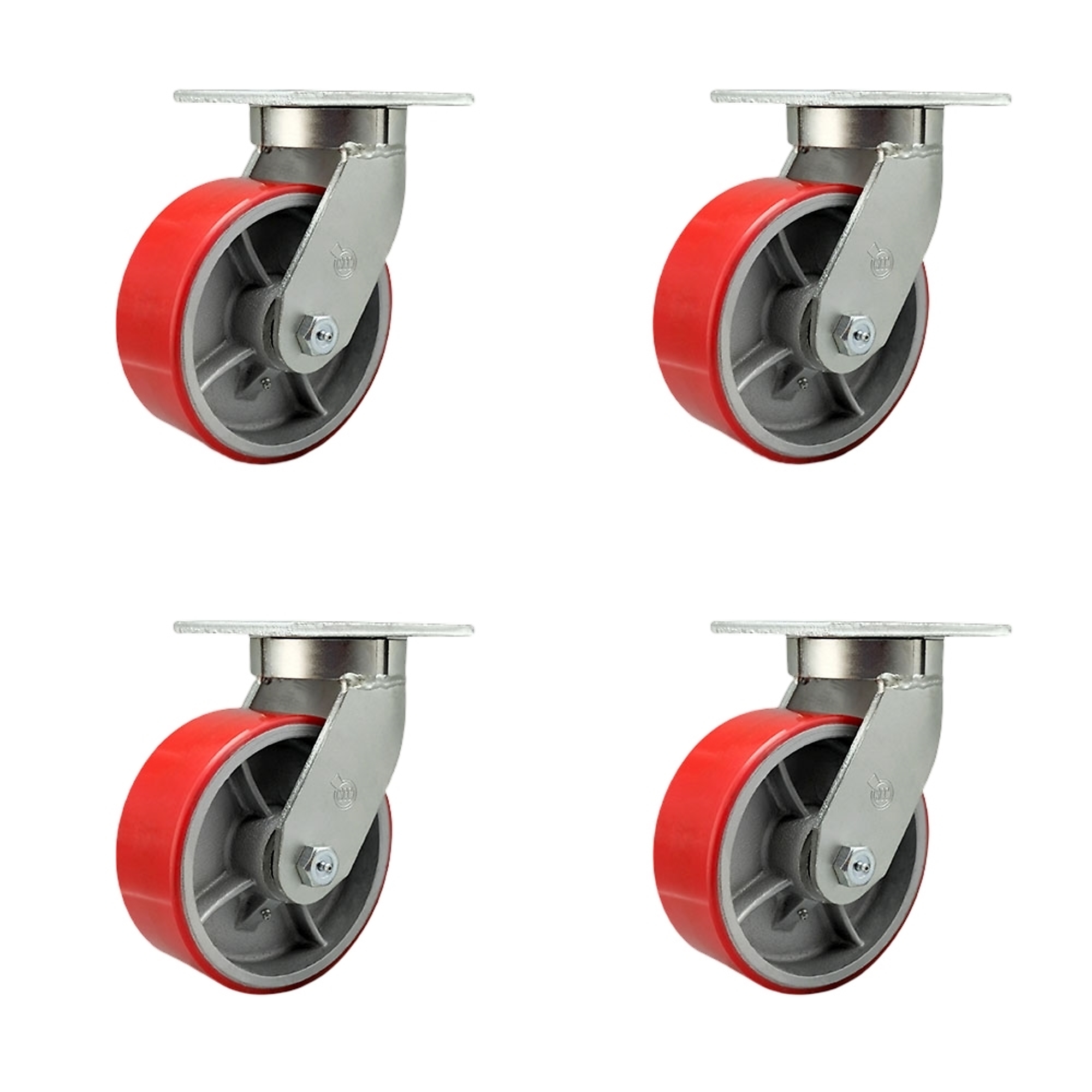

Service Caster, 8in. x 3in. Plate Casters, Wheel Diameter 8 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-KP92S830-PUR-RS-BSL-2-S-2

Item# 5493457
Service Caster, 8in. x 3in. Plate Casters, Wheel Diameter 8 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-KP92S830-PUR-RS-BSL-2-S-2

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Service Caster, 8in. x 3in. Plate Casters, Wheel Diameter 8 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-KP92S830-PUR-RS-BSL-2-S-2

Click or Tap image to Zoom

$1379.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • The Kingpinless Series 92 polyurethane casters offer various wheel sizes and mounting heights- 6” wheel (8” mounting height), 8” wheel (10-1/2” mounting height), 10” wheel (12-1/2” mounting height) and 12” wheel (15-1/2” mounting height) and are made of a non-marking, non-marring red polyurethane tread on a silver metal core which performs especially well on hard surfaces such as concrete, tile, and wood and stands up to heavier loads with a stable and secure roll.
  • Weight capacity ranges from 2000 lbs on the 6” caster, 2500 lbs on the 8”, 3000 lbs on the 10” and 3500 lbs. on the 12”.

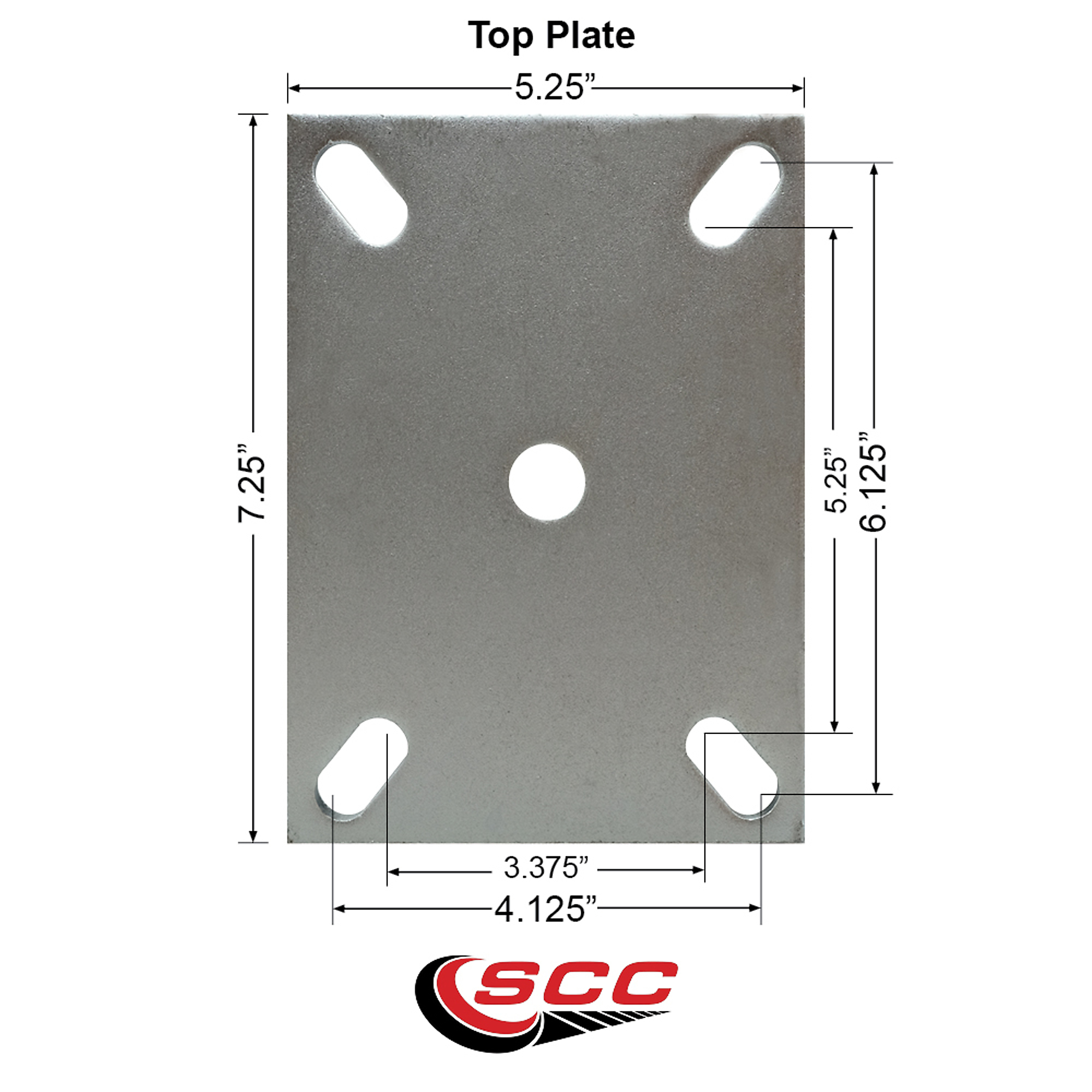

  • Top plate measures at 5-1/4" x 7-1/4" with a bolt hole pattern of 3-3/8" x 5-1/4" to 4-1/8" x 6-1/8" and can either be bolted or welded on.
  • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

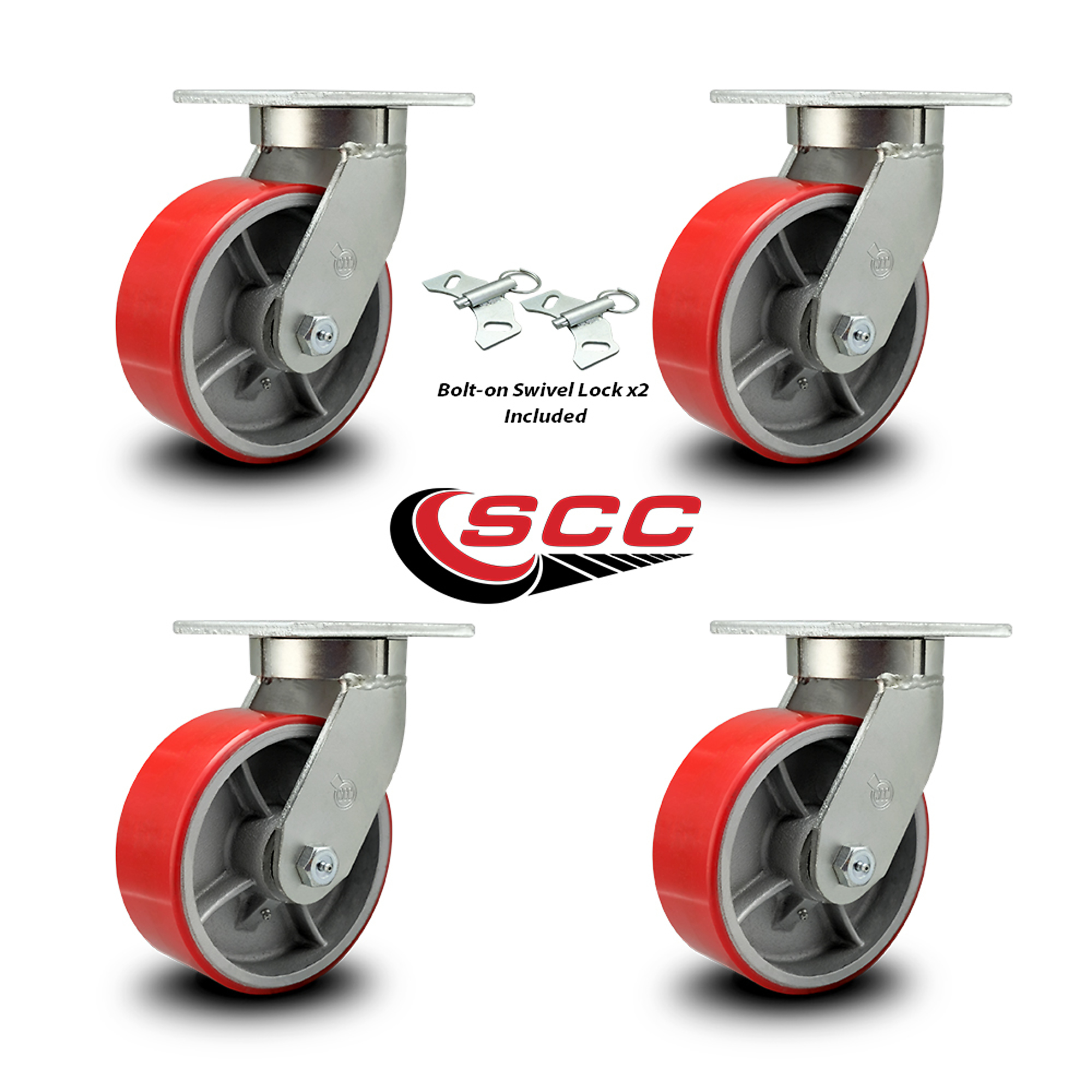

Listing is for a set of four (4) Service Caster Series #92 casters with 8in. diameter, 3in. wide red polyurethane tread on metal core wheels. Set includes two (2) Swivel casters and two (2) Swivel casters fitted with bolt on swivel locks. Supports 10,000 total pounds (lbs) at 2500 pounds (lbs) per caster.When searching for a reliable and durable solution for extra heavy duty projects, consider Service Caster’s Series 92 top plate polyurethane on metal wheel casters. The Service Caster Series #92 is ideal for material handling, carts and industrial equipment. The non-marking, non-marring polyurethane tread performs especially well on hard surfaces such as concrete, tile, and wood, while the metal core wheel stands up to heavier loads with a stable and secure roll. Featuring a Kingpinless hot forged ASTM1,045 steel design that increases caster durability and integrity, the series 92 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features 1/2” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series #92 top plate casters are finely crafted with zinc plating, grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 92, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.

What's Included

    (4) Plate Casters

Features + Benefits

  • The Kingpinless Series 92 polyurethane casters offer various wheel sizes and mounting heights- 6” wheel (8” mounting height), 8” wheel (10-1/2” mounting height), 10” wheel (12-1/2” mounting height) and 12” wheel (15-1/2” mounting height) and are made of a non-marking, non-marring red polyurethane tread on a silver metal core which performs especially well on hard surfaces such as concrete, tile, and wood and stands up to heavier loads with a stable and secure roll.
  • Weight capacity ranges from 2000 lbs on the 6” caster, 2500 lbs on the 8”, 3000 lbs on the 10” and 3500 lbs. on the 12”.
  • Top plate measures at 5-1/4" x 7-1/4" with a bolt hole pattern of 3-3/8" x 5-1/4" to 4-1/8" x 6-1/8" and can either be bolted or welded on.
  • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.

Key Specs

AttributeSpecification

item#

5493457

Brand

Service Caster

Ship Weight

108.0 LB

Wheel Diameter

8 in

Caster Type

Swivel

Package (qty.)

4

Wheel Material

Poly-on-Steel

Mount Type

Plate

Load Capacity per Caster

2,500 lb
AttributeSpecification

Wheel Width

3 in

Finish Type

Bright Zinc Plated Finish

Plate Dimensions

5.25 x 7.25

Bolt Hole Spacing

3.375 x 5.25 to 4.125 x 6.125

Foot Brake

Yes

Overall Height

10.5 in

Bearing Type

Roller

Product Weight

108.0000 lb

Dimensions L x W x H (in.)

12.0 x 12.0 x 7.5 in
