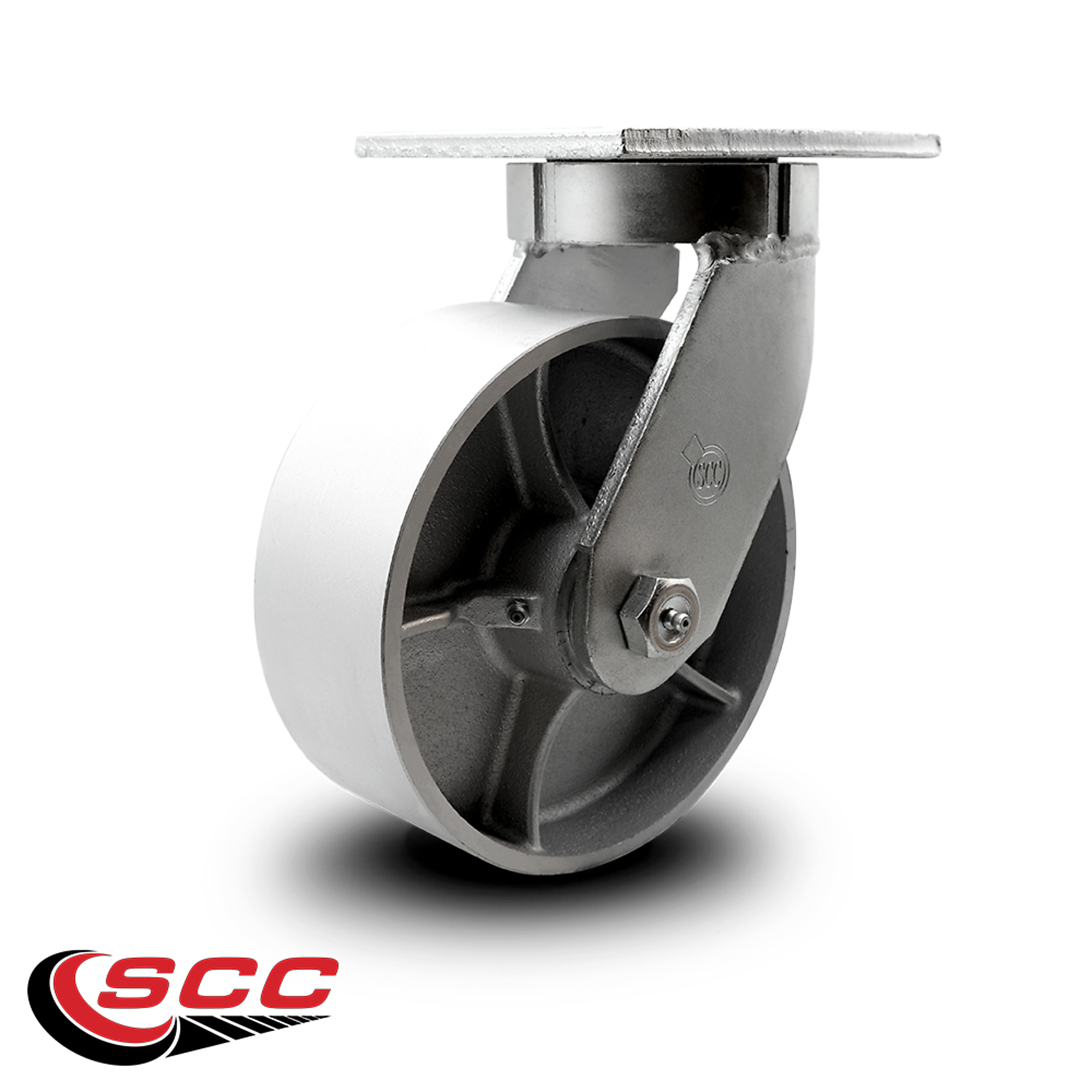

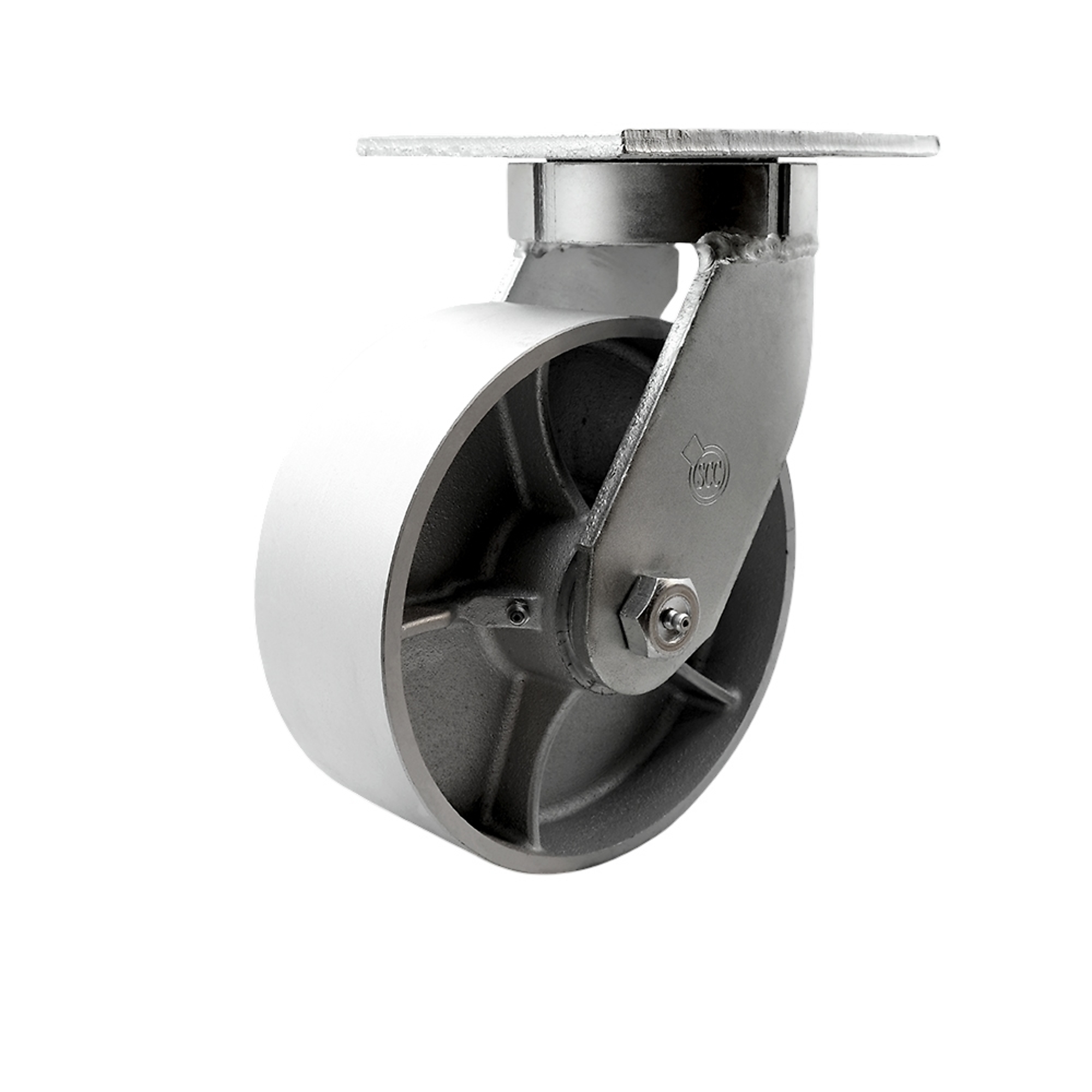

Service Caster, 8in. x 3in. Plate Caster, Wheel Diameter 8 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-KP92S830-SSR

Item# 5492770
Service Caster, 8in. x 3in. Plate Caster, Wheel Diameter 8 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-KP92S830-SSR

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Service Caster, 8in. x 3in. Plate Caster, Wheel Diameter 8 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-KP92S830-SSR

Click or Tap image to Zoom

$324.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only

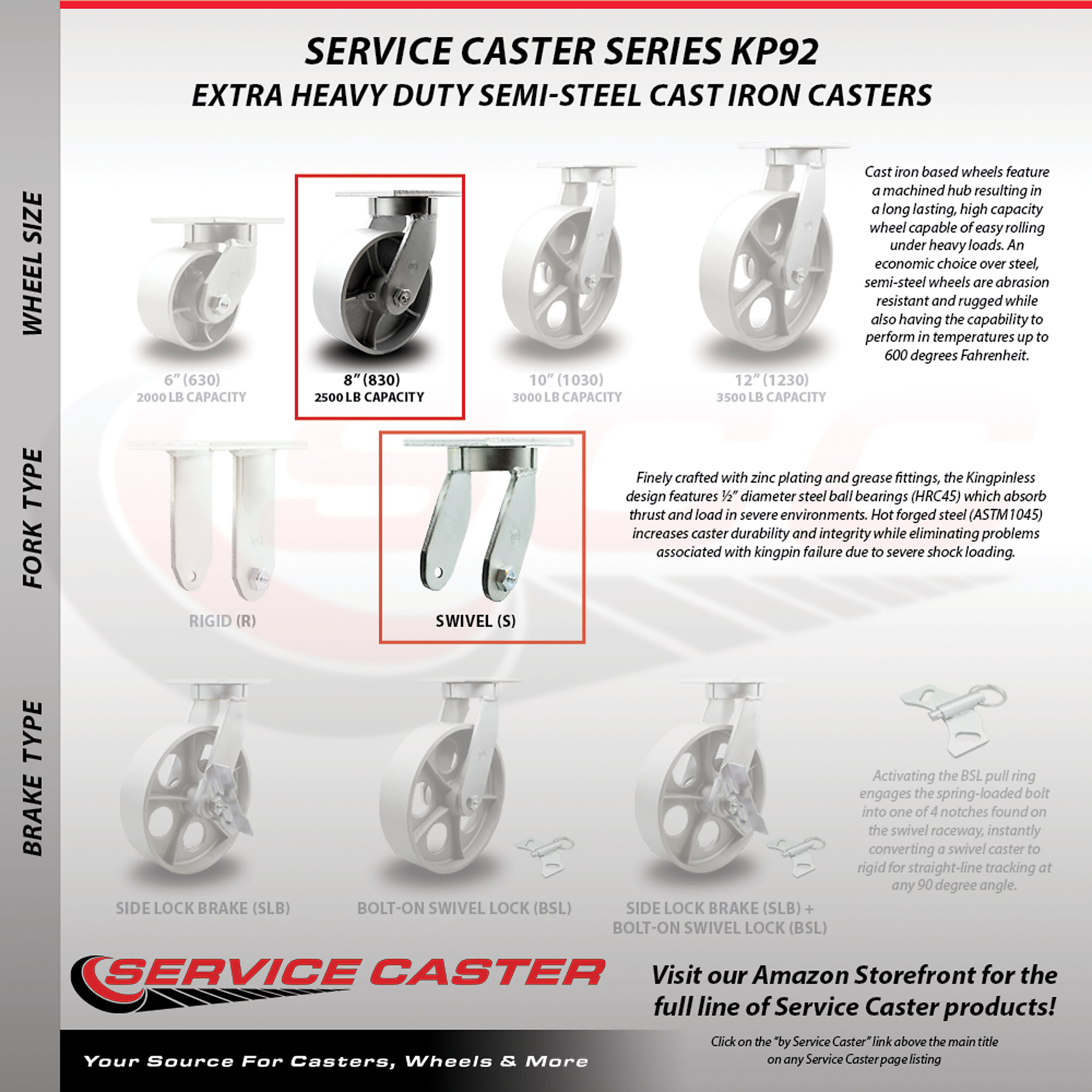

  • The Kingpinless Series 92 semi-steel cast iron casters come in these wheel sizes and mounting heights – 6” wheel (8” mounting height), 8” wheel (10-1/2” mounting height), 10” wheel (12-1/2” mounting height) and 12” wheel (15-1/2” mounting height). Machine hubbed, providing a long lasting, high capacity wheel capable of easy rolling under heavy loads. Less expensive than steel, semi-steel is abrasion resistant, rugged and performs in temperatures up to 600 degrees Fahrenheit.
  • Weight capacity ranges from 2000 lbs on the 6” caster, 2500 lbs on the 8”, 3000 lbs on the 10” and 3500 lbs. on the 12”.

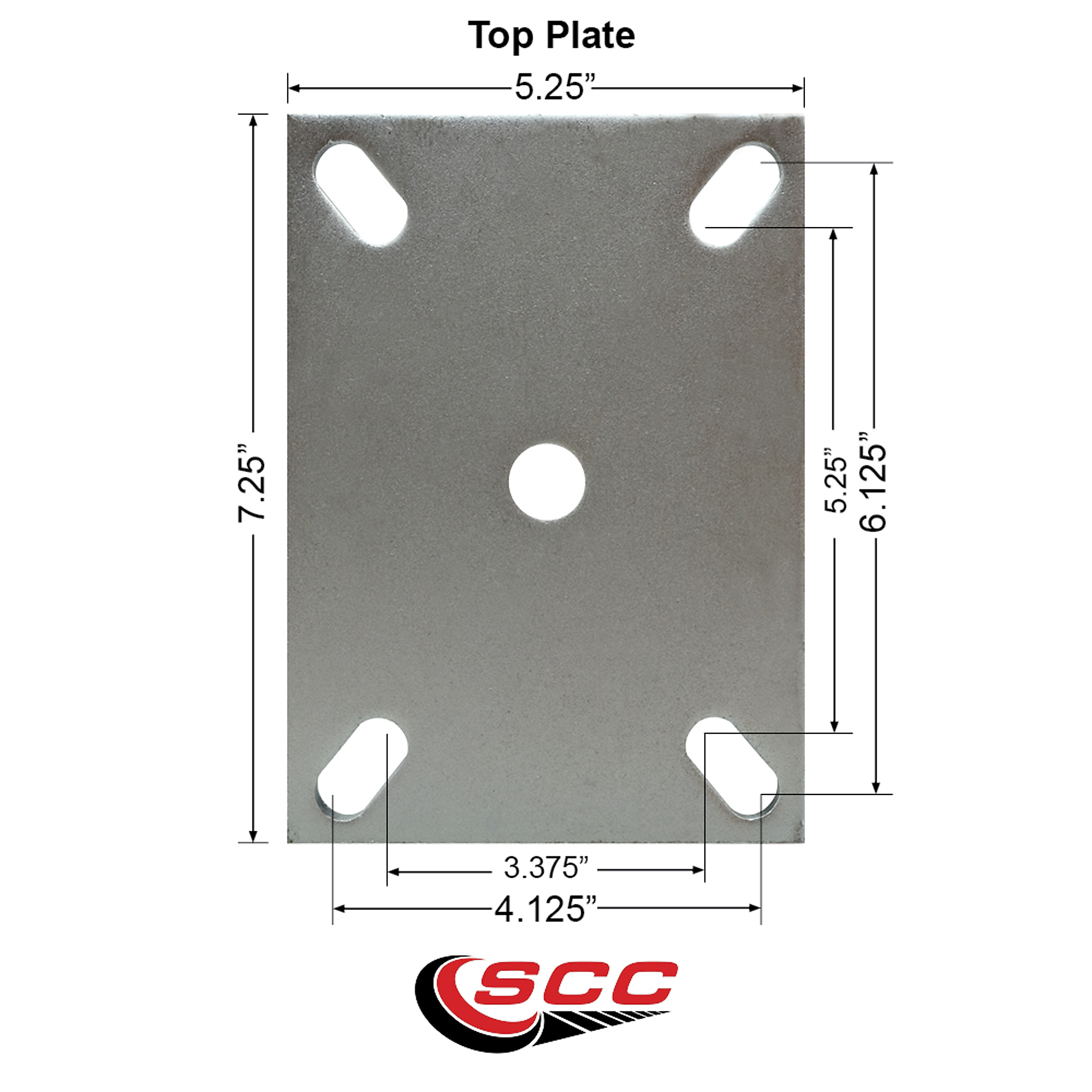

  • Top plate measures at 5-1/4" x 7-1/4" with a bolt hole pattern of 3-3/8" x 5-1/4" to 4-1/8" x 6-1/8" and can either be bolted or welded on.
  • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

Listing is for one (1) Service Caster Series #92 swivel caster with a 8in. diameter, 3in. wide semi steel cast iron wheel. Supports 2500 pounds (lbs) per caster.When searching for a reliable and durable solution for extra heavy duty projects in high temperatures, consider Service Caster’s Series 92 top plate semi-steel cast iron casters. Semi-steel cast iron provides a long lasting, high capacity wheel capable of easy rolling under heavy loads. These cast iron based wheels feature a machined hub and wheel face. An economic choice over steel, semi-steel wheels are abrasion resistant and rugged while also having the capability to perform in temperatures up to 600 degrees Fahrenheit. Featuring a Kingpinless hot forged ASTM1,045 steel design that increases caster durability and integrity, the series 92 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features 1/2” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series #92 top plate casters are finely crafted with zinc plating, grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 92, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.

What's Included

    (1) Plate Caster

Features + Benefits

  • The Kingpinless Series 92 semi-steel cast iron casters come in these wheel sizes and mounting heights – 6” wheel (8” mounting height), 8” wheel (10-1/2” mounting height), 10” wheel (12-1/2” mounting height) and 12” wheel (15-1/2” mounting height). Machine hubbed, providing a long lasting, high capacity wheel capable of easy rolling under heavy loads. Less expensive than steel, semi-steel is abrasion resistant, rugged and performs in temperatures up to 600 degrees Fahrenheit.
  • Weight capacity ranges from 2000 lbs on the 6” caster, 2500 lbs on the 8”, 3000 lbs on the 10” and 3500 lbs. on the 12”.
  • Top plate measures at 5-1/4" x 7-1/4" with a bolt hole pattern of 3-3/8" x 5-1/4" to 4-1/8" x 6-1/8" and can either be bolted or welded on.
  • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.

Key Specs

AttributeSpecification

item#

5492770

Brand

Service Caster

Ship Weight

28.0 LB

Wheel Diameter

8 in

Caster Type

Swivel

Package (qty.)

1

Wheel Material

Cast Iron

Mount Type

Plate

Load Capacity per Caster

2,500 lb
AttributeSpecification

Wheel Width

3 in

Finish Type

Bright Zinc Plated Finish

Plate Dimensions

5.25 x 7.25

Bolt Hole Spacing

3.375 x 5.25 to 4.125 x 6.125

Foot Brake

No

Overall Height

10.5 in

Bearing Type

Roller

Product Weight

28.0000 lb

Dimensions L x W x H (in.)

12.0 x 12.0 x 7.5 in
