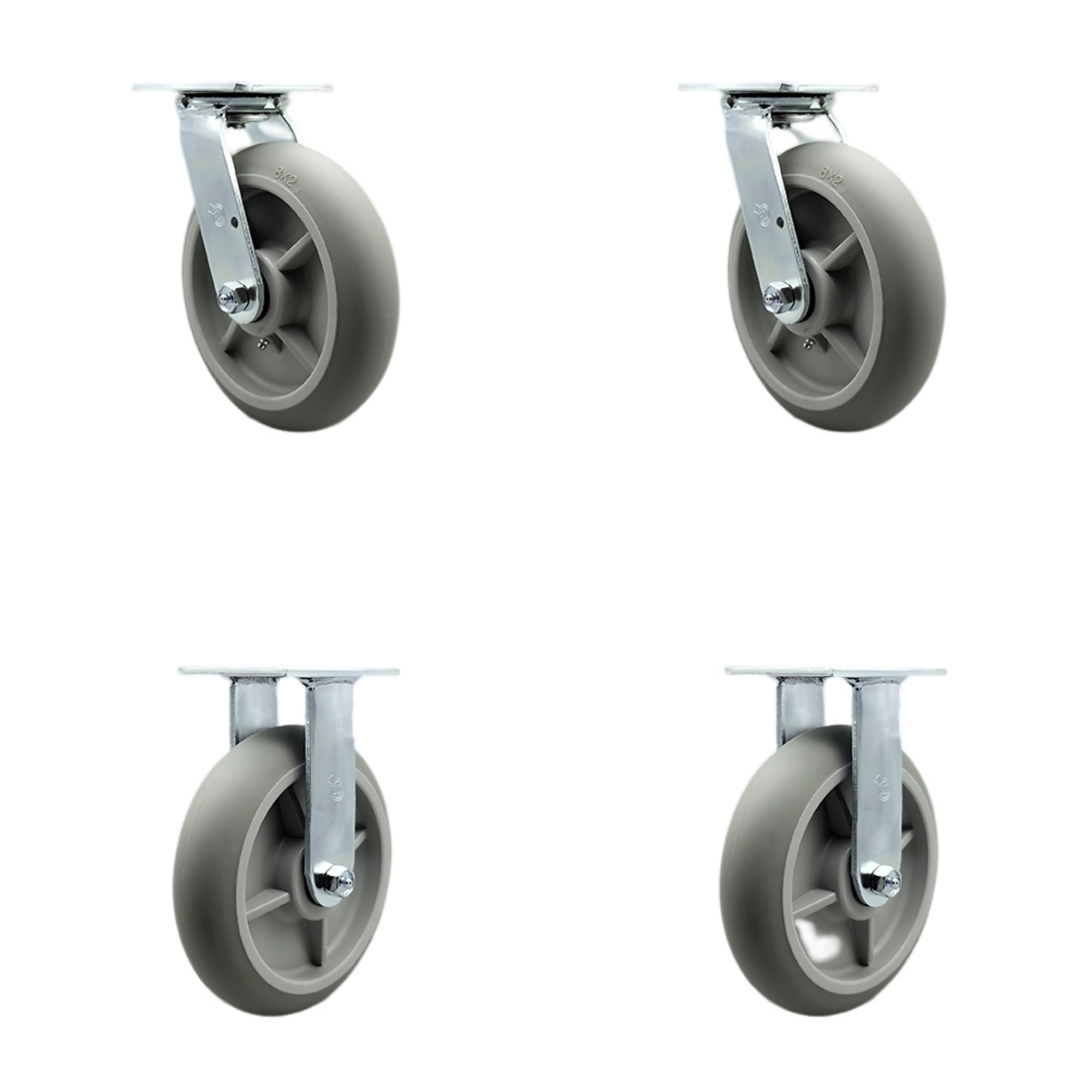

Service Caster, 8in. x 2in. Plate Casters, Wheel Diameter 8 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-SS30S820-TPRBD-2-R-2

Item# 5418828
Service Caster, 8in. x 2in. Plate Casters, Wheel Diameter 8 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-SS30S820-TPRBD-2-R-2

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Service Caster, 8in. x 2in. Plate Casters, Wheel Diameter 8 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-SS30S820-TPRBD-2-R-2

Click or Tap image to Zoom

$639.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

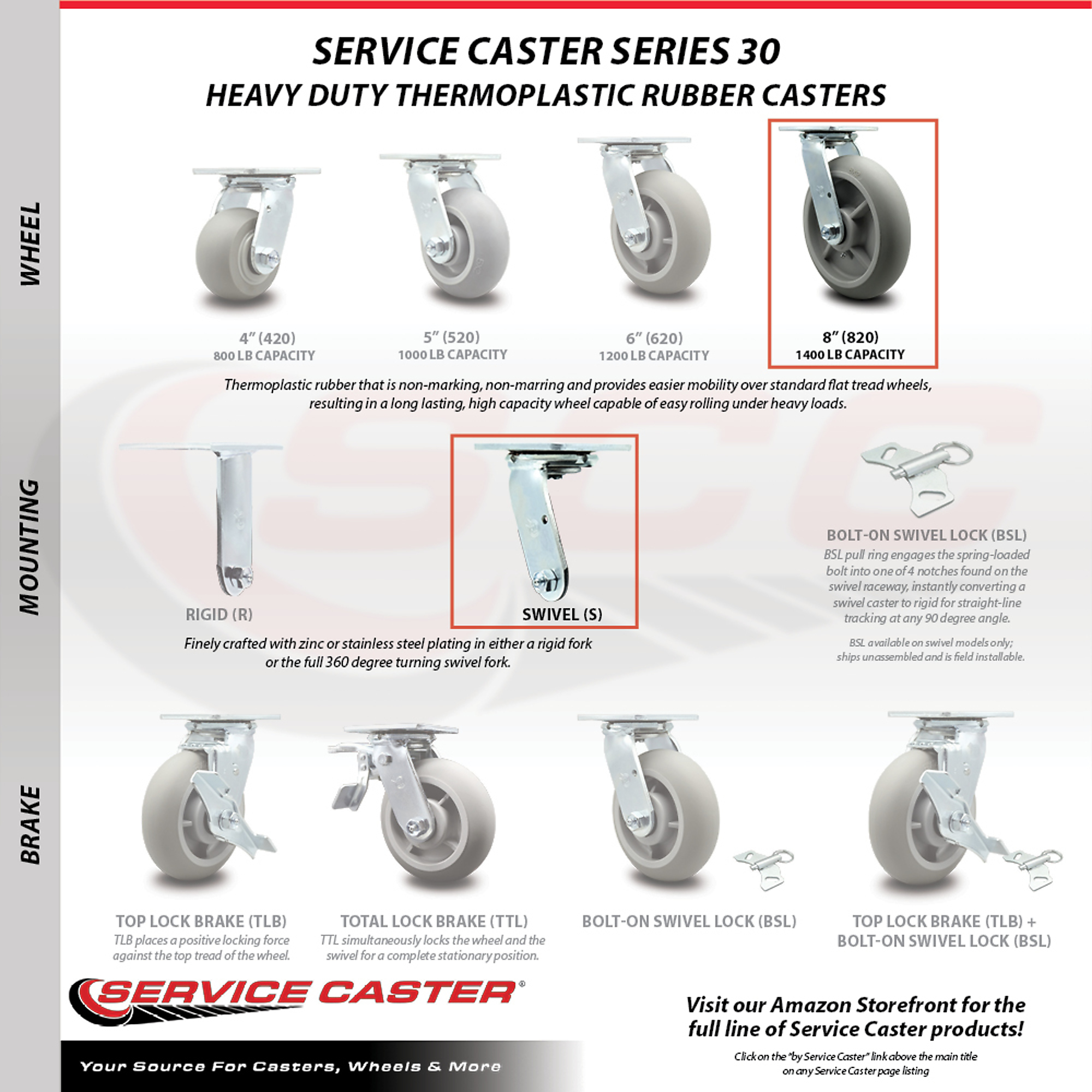

  • These Service Caster Series #30 Thermoplastic Rubber Donut Tread on Polyolefin Core casters offer various wheel sizes and mounting heights: 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height.
  • Weight Capacity: 4": 300 lbs Capacity/Caster, 5": 350 lbs Capacity/Caster, 6": 500 lbs. Capacity/Caster, and 8": 600 lbs Capacity/Caster

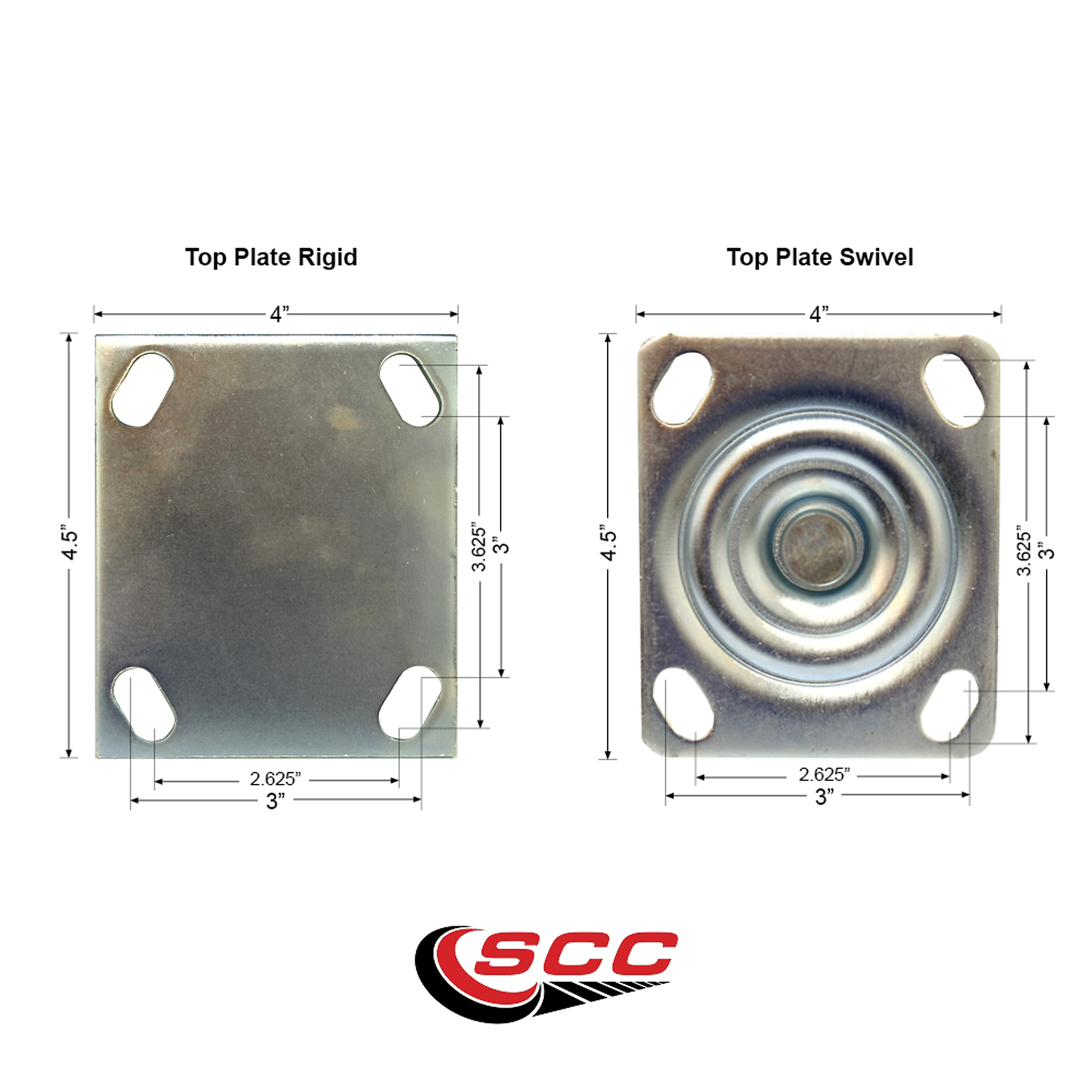

  • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.
  • Brake options include a top lock brake (TLB) and a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

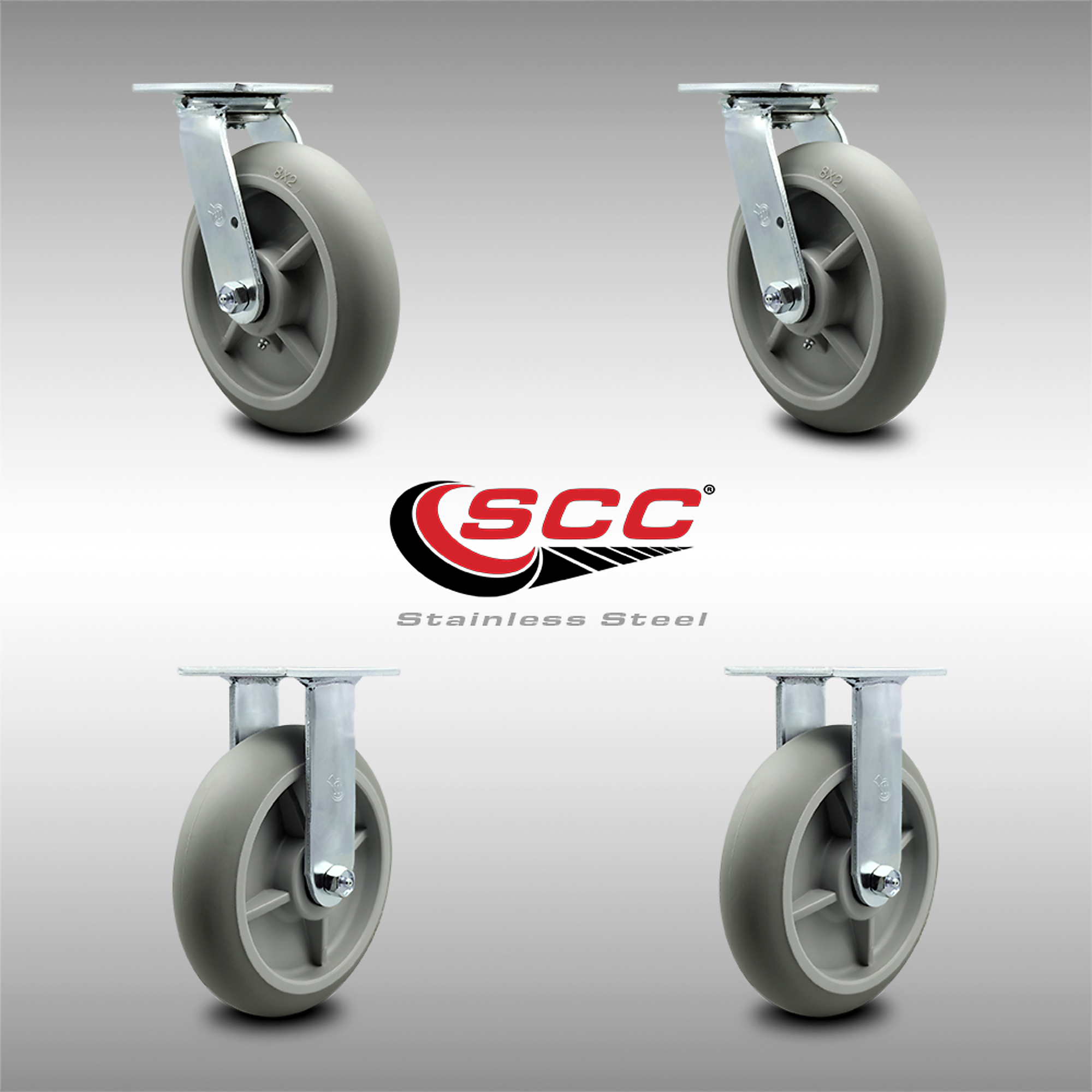

Listing is for a set of four (4) Service Caster Series #30 stainless steel casters, two (2) Swivel and two (2) Rigid casters, with 8in. diameter by 2in. wide thermoplastic rubber donut tread on polyolefin core wheel and maintenance free precision ball wheel bearings capable of supporting a total weight of 2400 lbs. (600 lbs./caster). When searching for a reliable and durable solution for medium and heavy duty projects, consider Service Caster’s Series 30 stainless steel thermoplastic rubber donut tread on polyolefin core casters. The rounded face "donut" style soft tread is made of thermoplastic rubber that is non-marking, non-marring and provides easier mobility over standard flat tread wheels, resulting in a long lasting, high capacity wheel capable of easy rolling under heavy loads. Finely crafted with double ball bearing heat treated raceways, these versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 30, keeping you moving forward. In contrast to the zinc plated caster, the luxuriously polished stainless steel finish resists rust and corrosion in indoor or outdoor applications where moisture is a factor. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.

What's Included

    (4) Plate Casters

Features + Benefits

  • These Service Caster Series #30 Thermoplastic Rubber Donut Tread on Polyolefin Core casters offer various wheel sizes and mounting heights: 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height.
  • Weight Capacity: 4": 300 lbs Capacity/Caster, 5": 350 lbs Capacity/Caster, 6": 500 lbs. Capacity/Caster, and 8": 600 lbs Capacity/Caster
  • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.
  • Brake options include a top lock brake (TLB) and a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.

Key Specs

AttributeSpecification

item#

5418828

Brand

Service Caster

Ship Weight

24.8 LB

Wheel Diameter

8 in

Caster Type

Swivel

Package (qty.)

4

Wheel Material

Thermoplastic Rubber

Mount Type

Plate

Load Capacity per Caster

600 lb
AttributeSpecification

Wheel Width

2 in

Finish Type

Polished Stainless Steel

Plate Dimensions

4 x 4.5

Bolt Hole Spacing

2.625 x 3.625 to 3 x 3

Foot Brake

No

Overall Height

9.5 in

Bearing Type

Sealed

Product Weight

24.8000 lb

Dimensions L x W x H (in.)

12.0 x 12.0 x 7.5 in

Reviews

Questions & Answers

Questions

Compare with Most Popular in 500 - 999 Lbs.

See All 500 - 999 Lbs.

See All Service Caster 500 - 999 Lbs.

Specifications

Specifications
Service Caster, 8in. x 2in. Plate Casters, Wheel Diameter 8 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-SS30S820-TPRBD-2-R-2
Vestil Rubber Swivel With Total Brake Caster 8 In. Diameter x 2 In. Width 881 Lb. Capacity Black/Gold
Vestil Rubber Swivel Caster - 5in. x 2in., 551-Lb. Capacity, Thermoplastic Rubber, Gray, Model# CST-VE-5X2TPR-S
Vestil Rubber Swivel Caster - 8in. x 2in., 705-Lb. Capacity, Thermoplastic Rubber, Gray, Model# CST-VE-8X2TPR-S
Wheel Diameter
Same

8 in

8 in

5 in

8 in

Caster Type
Same

Swivel

Swivel

Swivel

Swivel

Package (qty.)
Same

4

1

1

1

Wheel Material
Same

Thermoplastic Rubber

Rubber

Thermoplastic Rubber

Thermoplastic Rubber

Mount Type
Same

Plate

Plate

Plate

Plate

Load Capacity per Caster
Same

600 lb

881 lb

551 lb

705 lb

Wheel Width
Same

2 in

8 in

5 in

8 in

Finish Type
Same

Polished Stainless Steel

Zinc Plated

Zinc Plated

Zinc Plated

Plate Dimensions
Same

4 x 4.5

4 X 4 1/2

4 X 4 1/2

4 X 4 1/2

Bolt Hole Spacing
Same

2.625 x 3.625 to 3 x 3

-

-

-

Foot Brake
Same

No

Yes

No

No

Overall Height
Same

9.5 in

9.5 in

6.5 in

9.5 in

Bearing Type
Same

Sealed

Ball

Ball

Ball

Product Weight
Same

24.8000 lb

9.0900 lb

5.0000 lb

7.0000 lb

Dimensions L x W x H (in.)
Same

12.0 x 12.0 x 7.5 in

7.875 x 5.0 x 9.5 in

6.5 x 4.0 x 6.5 in

8.25 x 4.0 x 9.5 in

Non-Marking
Same

-

No

No

Yes

Includes Thread Guards
Same

-

No

No

No
