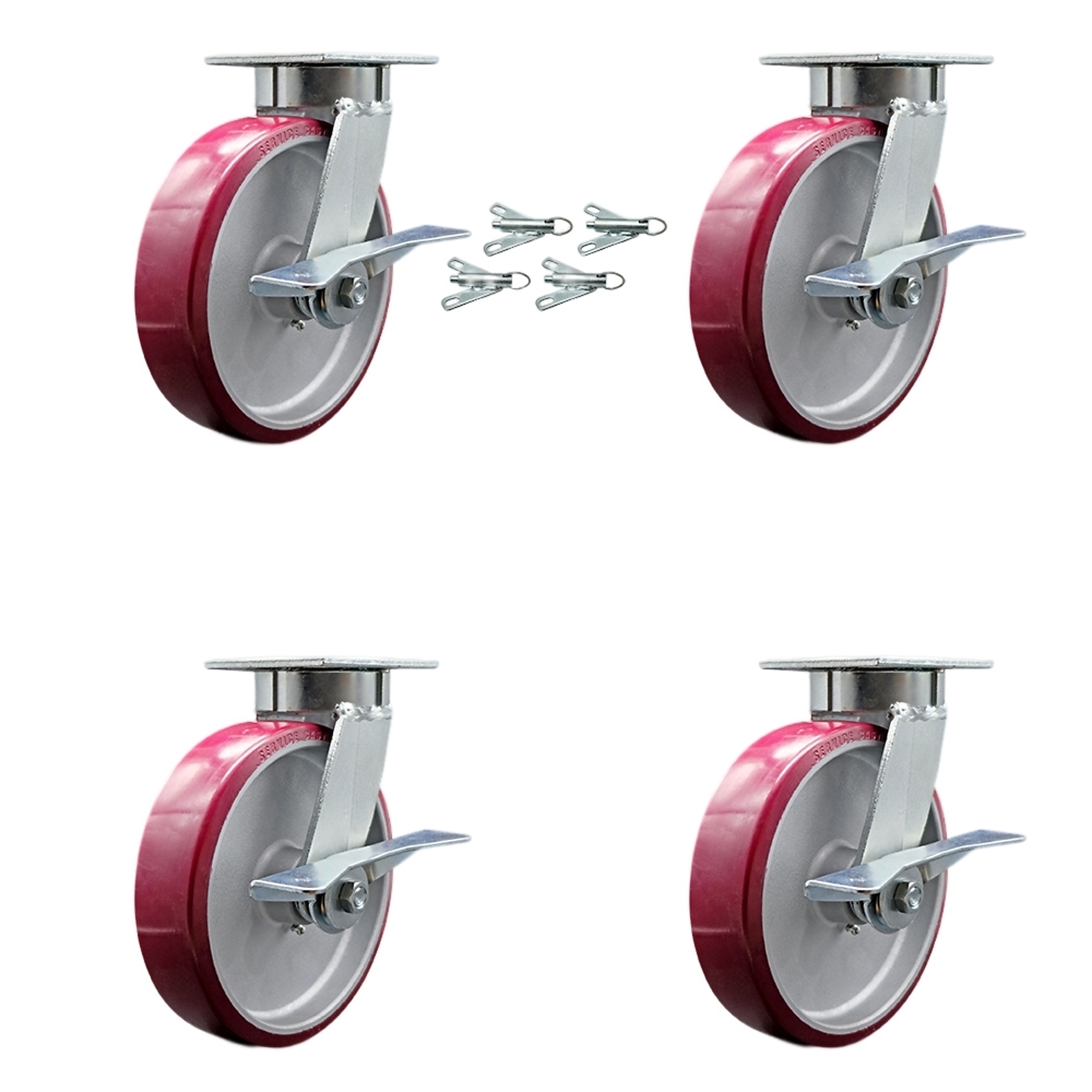

Service Caster, 8in. x 2in. Plate Casters, Wheel Diameter 8 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-KP30S820-PAR-SLB-BSL-4

Item# 5392162
Service Caster, 8in. x 2in. Plate Casters, Wheel Diameter 8 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-KP30S820-PAR-SLB-BSL-4

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Service Caster, 8in. x 2in. Plate Casters, Wheel Diameter 8 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-KP30S820-PAR-SLB-BSL-4

Click or Tap image to Zoom

$779.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only

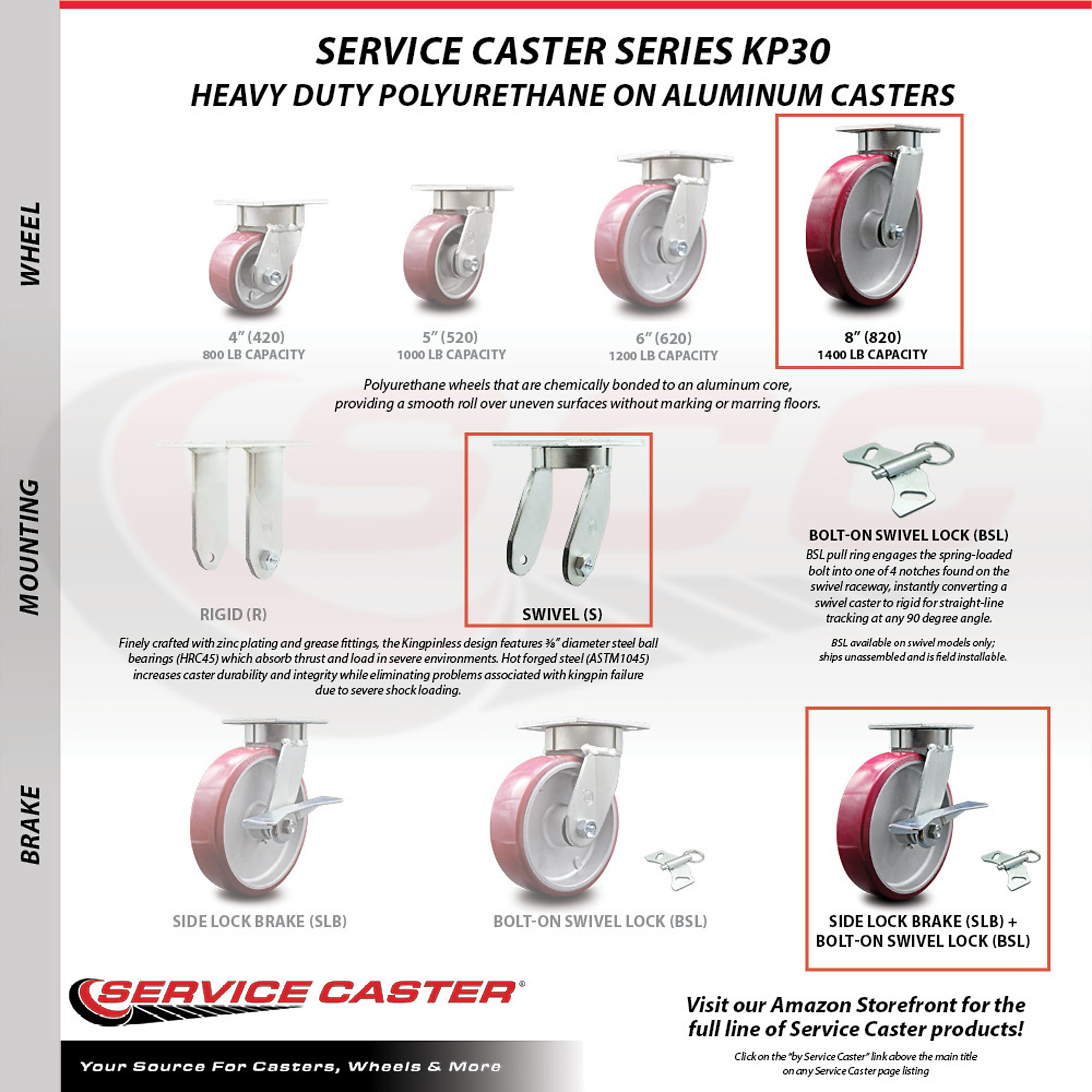

  • These Service Caster Series #KP30 Polyurethane on Aluminum casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height.
  • Weight capacity ranges from 700 lbs on the 4” caster, 900 lbs on the 5”, 1200 lbs on the 6” and 1250 lbs. on the 8”.

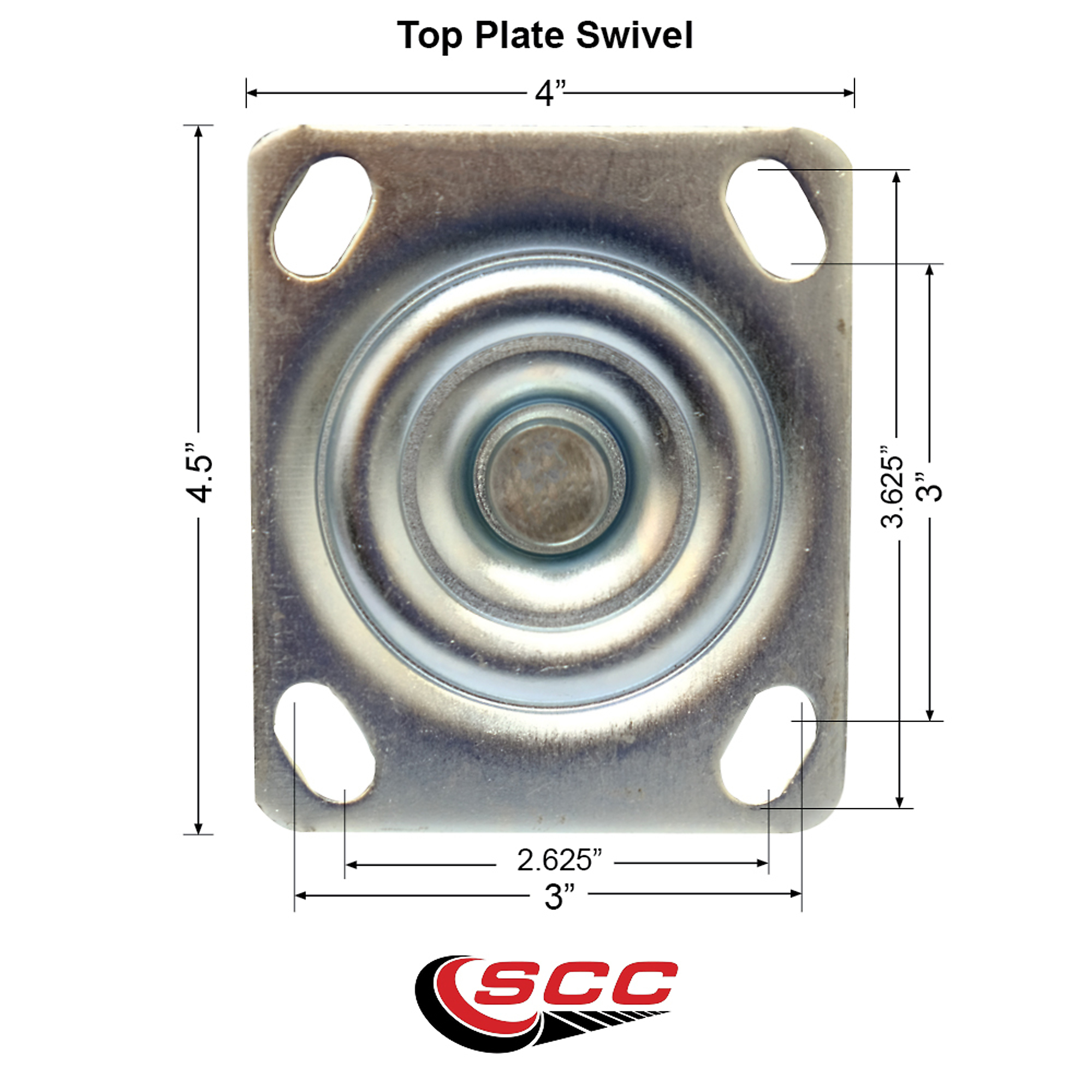

  • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.
  • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

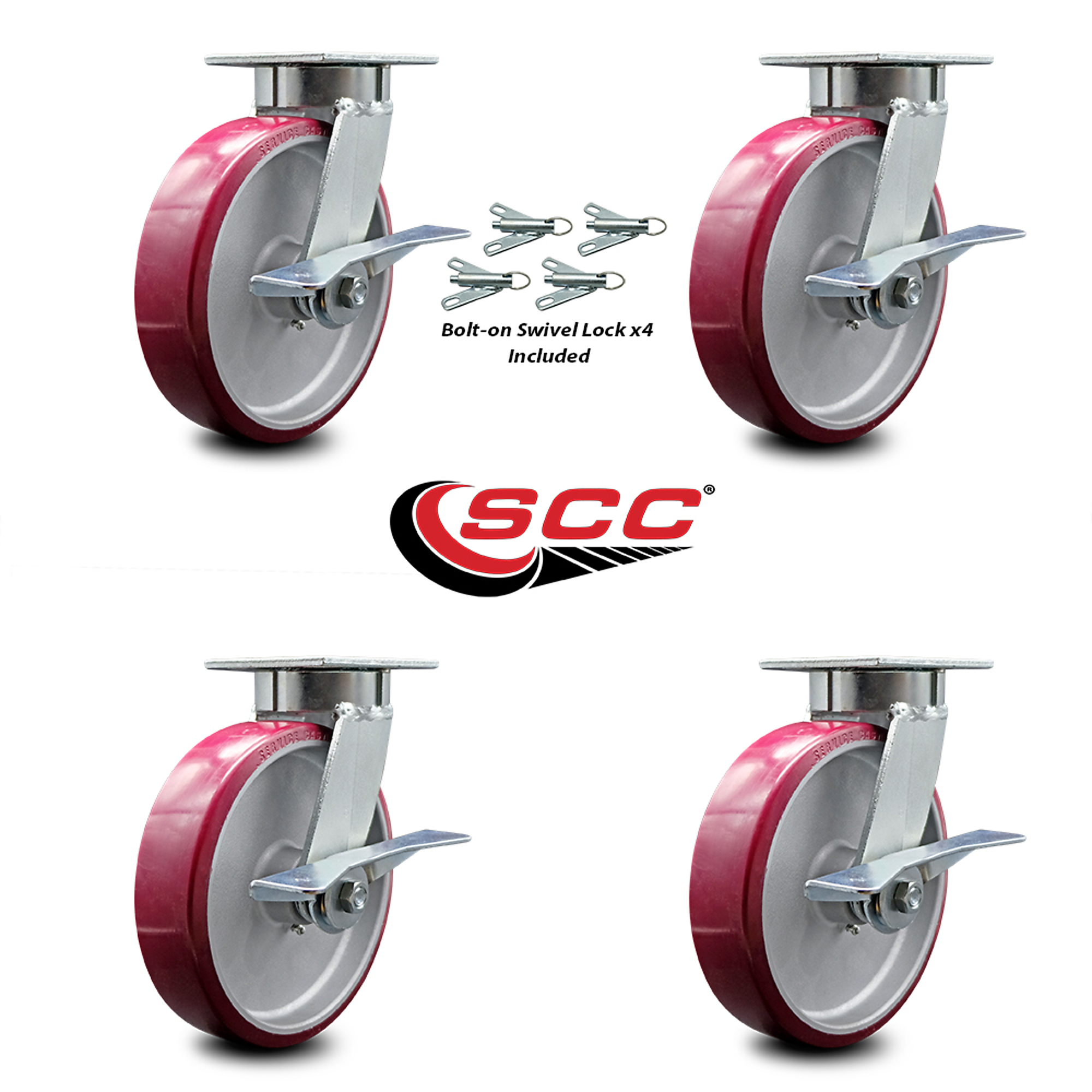

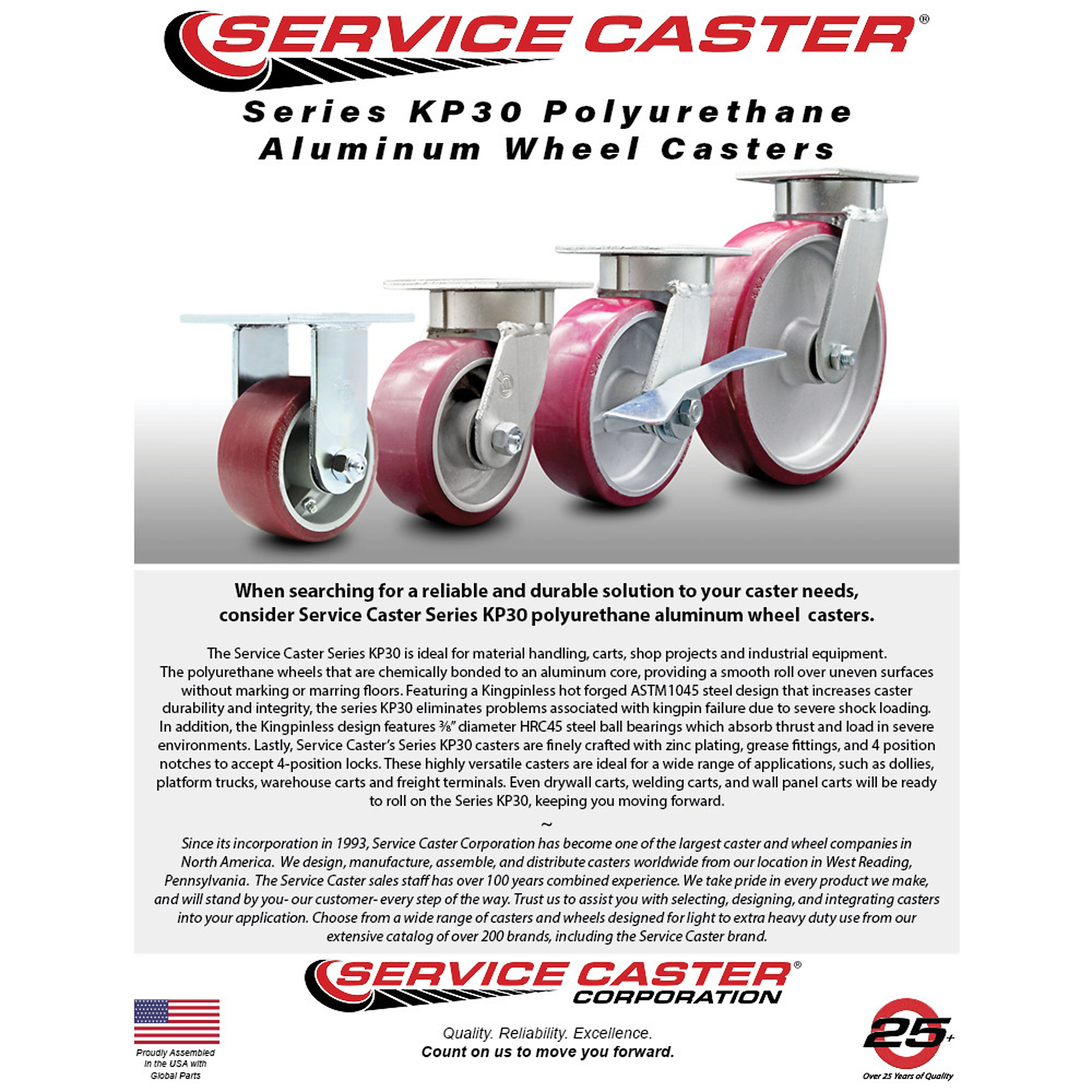

Listing is for a set of four (4) Service Caster Series #KP30 swivel casters with 8in. diameter by 2in. wide polyurethane on aluminum wheels with side lock brakes and bolt on swivel locks capable of supporting a total weight of 5000 lbs. (1,250 lbs. per caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster Series KP30 polyurethane aluminum wheel casters. The Service Caster Series KP30 is ideal for material handling, carts, shop projects and industrial equipment. The polyurethane wheels that are chemically bonded to an aluminum core, providing a smooth roll over uneven surfaces without marking or marring floors. Featuring a Kingpinless hot forged ASTM1,045 steel design that increases caster durability and integrity, the series KP30 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features 3/8” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series KP30 casters are finely crafted with zinc plating, grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series KP30, keeping you moving forward.

What's Included

    (4) Plate Casters

Features + Benefits

  • These Service Caster Series #KP30 Polyurethane on Aluminum casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height.
  • Weight capacity ranges from 700 lbs on the 4” caster, 900 lbs on the 5”, 1200 lbs on the 6” and 1250 lbs. on the 8”.
  • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.
  • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.

Key Specs

AttributeSpecification

item#

5392162

Brand

Service Caster

Ship Weight

44.0 LB

Wheel Diameter

8 in

Caster Type

Swivel

Package (qty.)

4

Wheel Material

Polyurethane

Mount Type

Plate

Load Capacity per Caster

5,000 lb
AttributeSpecification

Wheel Width

2 in

Finish Type

Bright Zinc Plated Finish

Plate Dimensions

4 x 4.5

Bolt Hole Spacing

2.625 x 3.625 to 3 x 3

Foot Brake

Yes

Overall Height

9.5 in

Bearing Type

Roller

Product Weight

35.6000 lb

Dimensions L x W x H (in.)

12.0 x 12.0 x 7.5 in
