Service Caster, 8in. x 2in. Plate Casters, Wheel Diameter 8 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-35S820-PUB-RS-2-R-2

Item# 5437252
Service Caster, 8in. x 2in. Plate Casters, Wheel Diameter 8 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-35S820-PUB-RS-2-R-2

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Service Caster, 8in. x 2in. Plate Casters, Wheel Diameter 8 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-35S820-PUB-RS-2-R-2

Click or Tap image to Zoom

$329.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • These Service Caster Series #35 Polyurethane on Cast Iron casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height.
  • Weight capacity ranges from 700 lbs on the 4” caster, 1000 lbs on the 5”, 1200 lbs on the 6” and 1250 lbs. on the 8”.

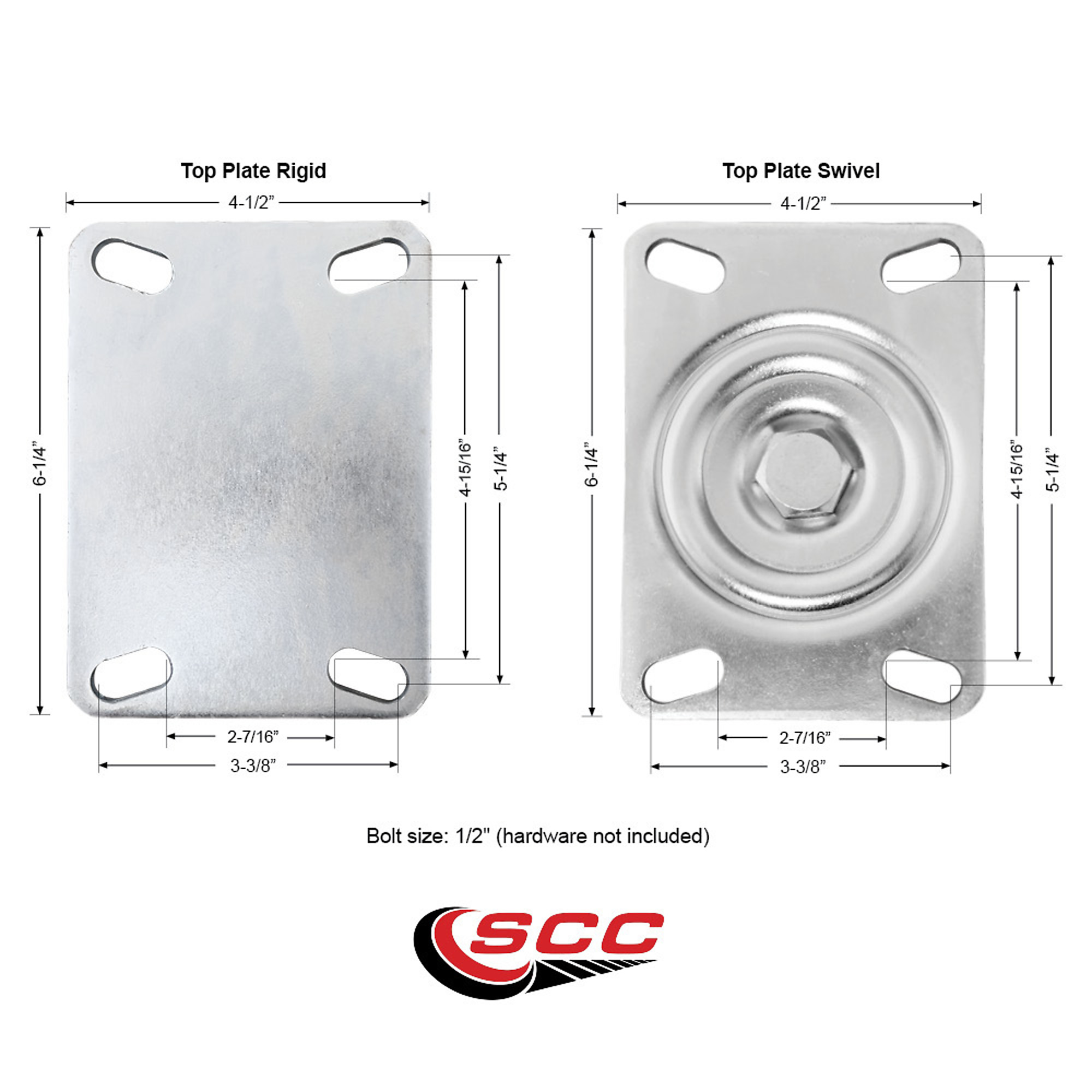

  • Top plate measures at 4-1/2" x 6-1/4" with a bolt hole pattern of 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" and can either be bolted or welded on.

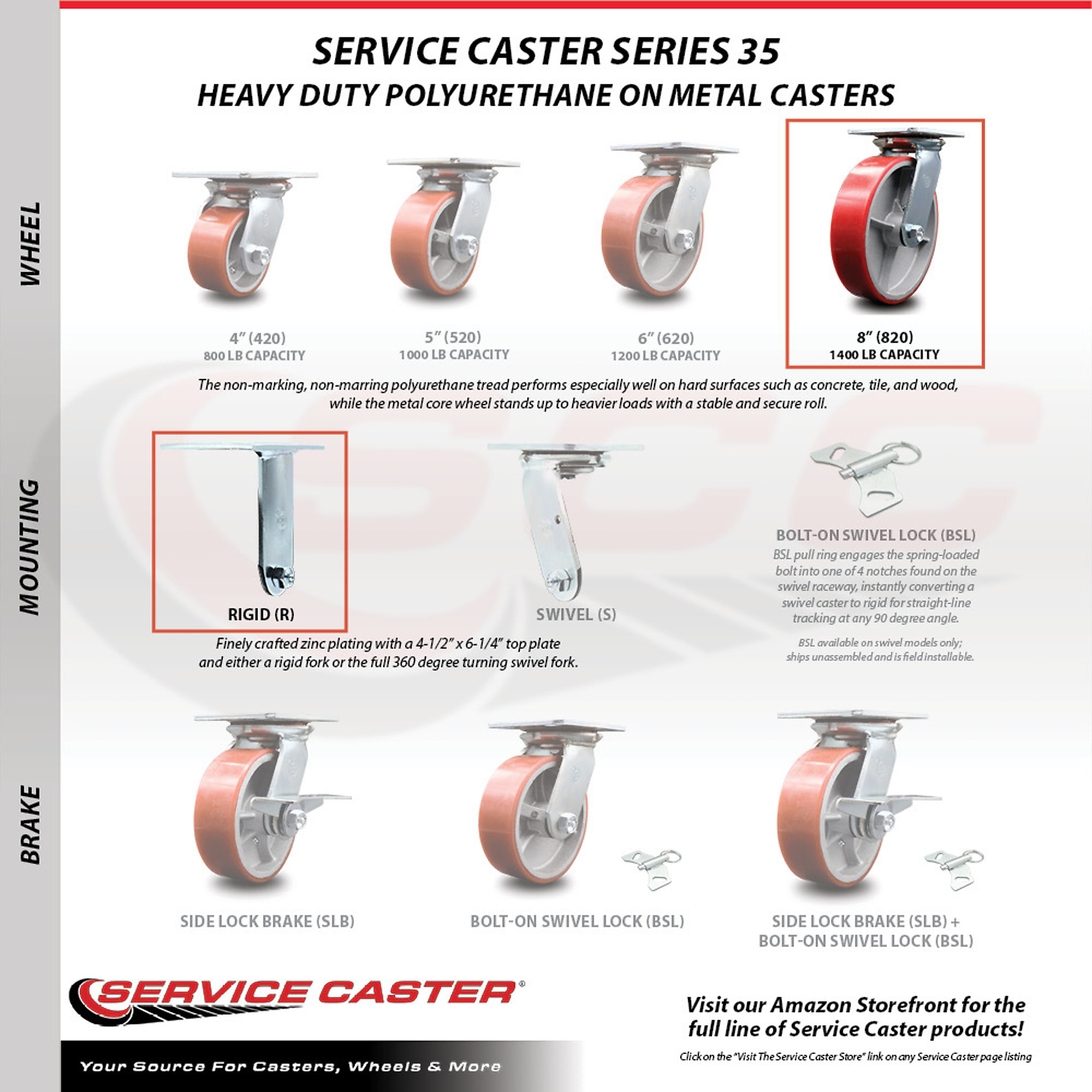

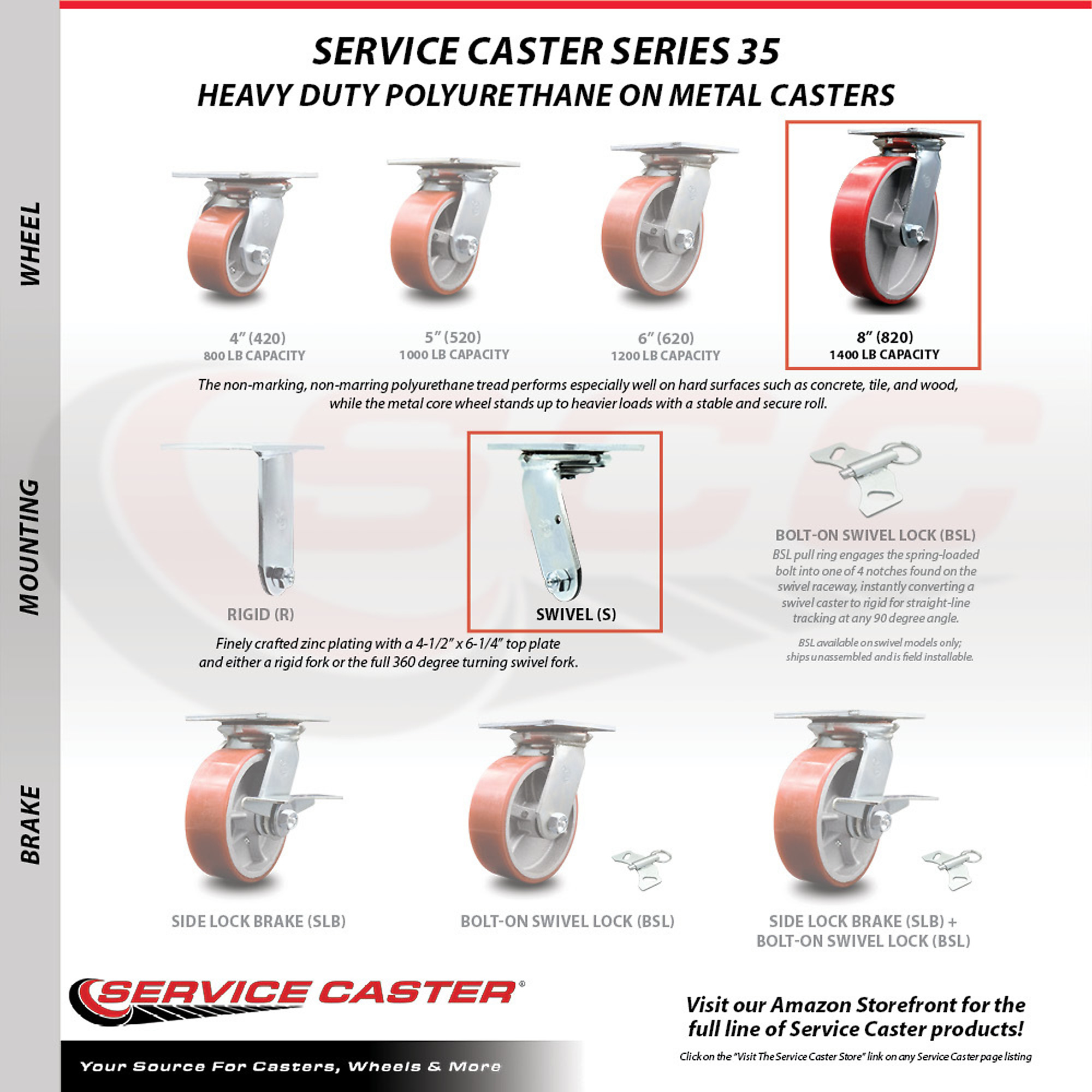

  • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

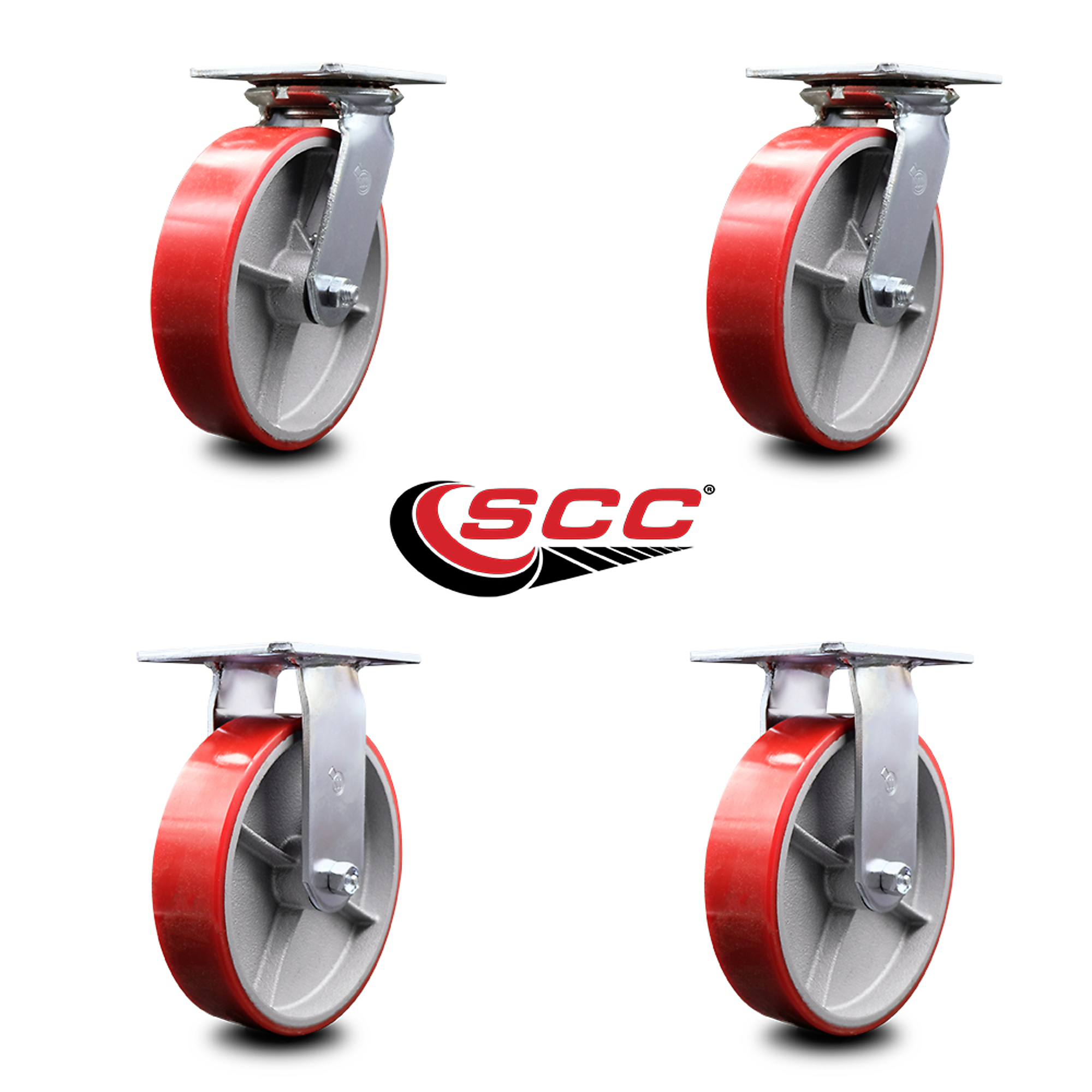

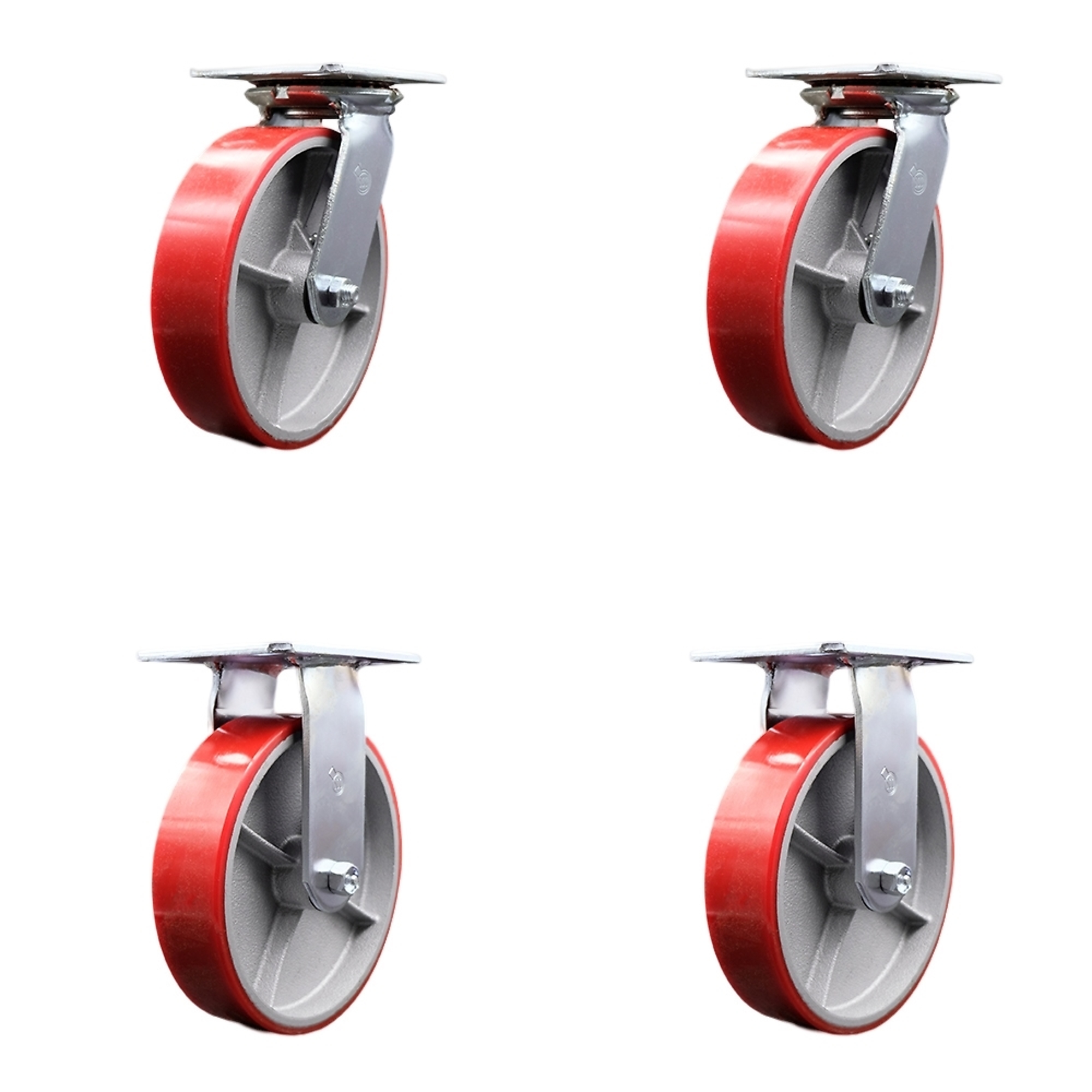

Listing is for a set of four (4) Service Caster Series #35 casters, two (2) Swivel and two (2) Rigid casters, with 8in. diameter by 2in. wide polyurethane on cast iron wheels and maintenance free precision ball wheel bearings. Capable of supporting a total weight of 5000 lbs. (1,250 lbs./caster). When searching for a reliable and durable solution for medium and heavy duty projects, consider Service Caster’s Series 35 polyurethane on metal wheel casters. The Service Caster Series #35 is ideal for material handling, carts, equipment, and shop projects. The non-marking, non-marring polyurethane tread performs especially well on hard surfaces such as concrete, tile, and wood, while the metal core wheel stands up to heavier loads with a stable and secure roll. Finely crafted with double ball bearing heat treated raceways, these versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 35, keeping you moving forward.

What's Included

    (4) Plate Casters

Features + Benefits

  • These Service Caster Series #35 Polyurethane on Cast Iron casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height.
  • Weight capacity ranges from 700 lbs on the 4” caster, 1000 lbs on the 5”, 1200 lbs on the 6” and 1250 lbs. on the 8”.
  • Top plate measures at 4-1/2" x 6-1/4" with a bolt hole pattern of 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" and can either be bolted or welded on.
  • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.

Key Specs

AttributeSpecification

item#

5437252

Brand

Service Caster

Ship Weight

53.0 LB

Wheel Diameter

8 in

Caster Type

Swivel

Capacity Class

1,500+ Pounds

Load Capacity per Caster

5,000 lb

Wheel Material

Poly-on-Steel

Package (qty.)

4

Wheel Width

2 in
AttributeSpecification

Mount Type

Plate-Mount

Finish Type

Bright Zinc Plated Finish

Foot Brake

No

Overall Height

9.5 in

Plate Dimensions

4.5 x 6.25

Bolt Hole Spacing

2.4375 x 4.9375 to 3.375 x 5.25

Bearing Type

Sealed

Product Weight

44.0000 lb

Dimensions L x W x H (in.)

12.0 x 12.0 x 7.5 in
