Service Caster, 6in. x 2in. Plate Casters, Wheel Diameter 6 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-30CS620-VGR-TLB-BSL-4

Item# 5386580
Service Caster, 6in. x 2in. Plate Casters, Wheel Diameter 6 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-30CS620-VGR-TLB-BSL-4

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Service Caster, 6in. x 2in. Plate Casters, Wheel Diameter 6 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-30CS620-VGR-TLB-BSL-4

Click or Tap image to Zoom

$464.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only

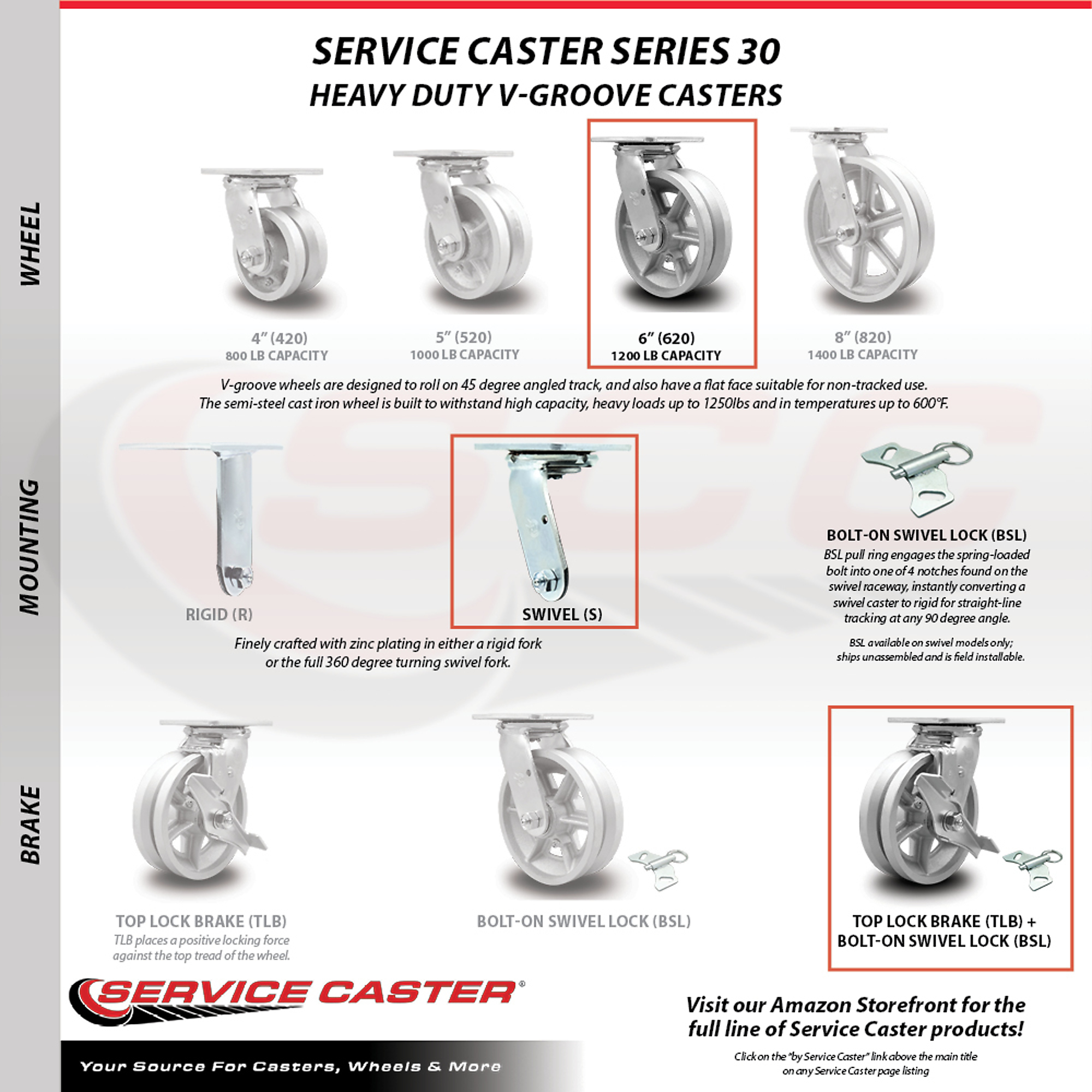

  • These Service Caster Series #30 V Groove Semi Steel casters offer various wheel sizes and mounting heights: 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height.
  • Weight Capacity: 4": 800 lbs Capacity/Caster, 5": 1,100 lbs Capacity/Caster, 6": 1,200 lbs. Capacity/Caster, and 8": 1,250 lbs Capacity/Caster

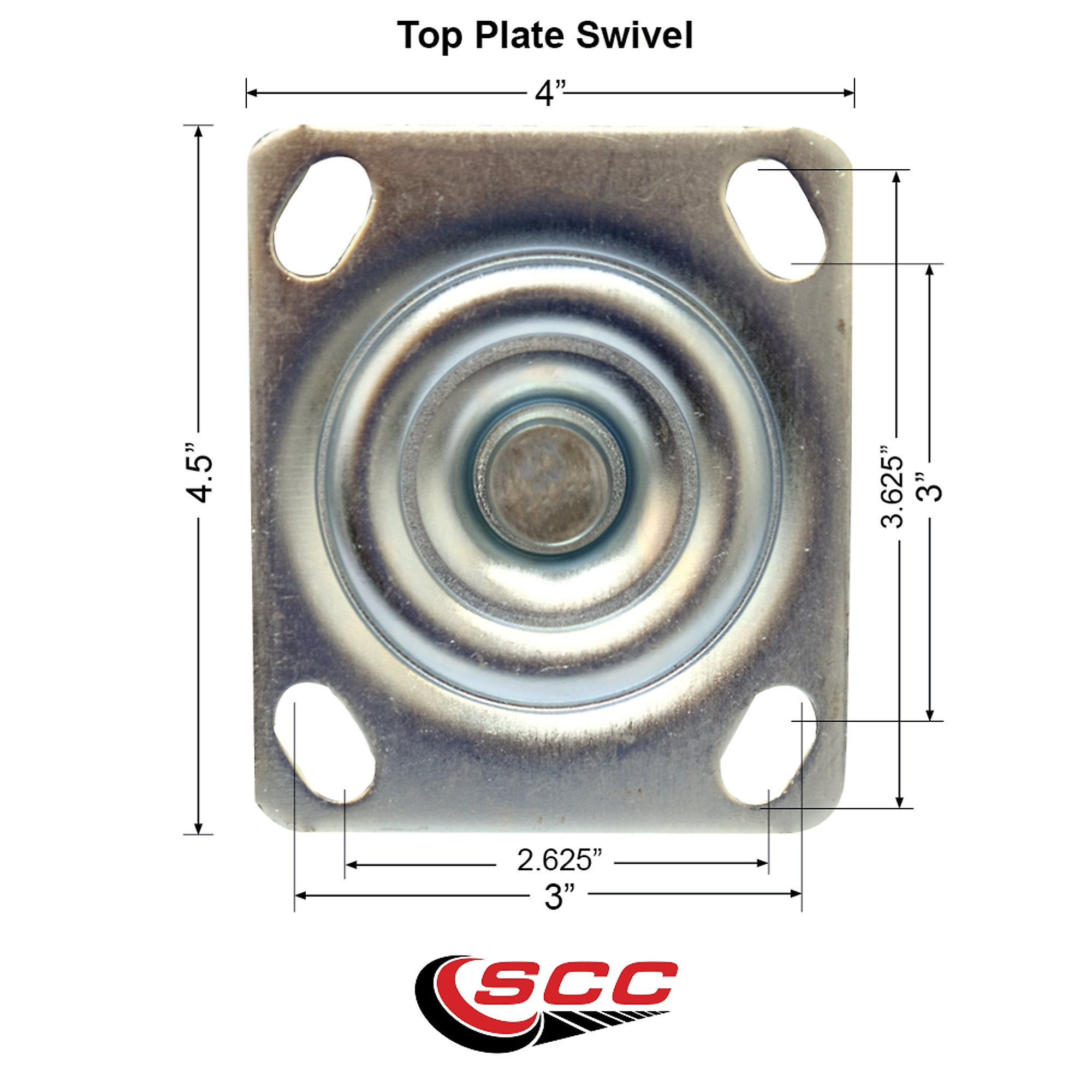

  • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.
  • Brake options include a top lock brake (TLB), or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

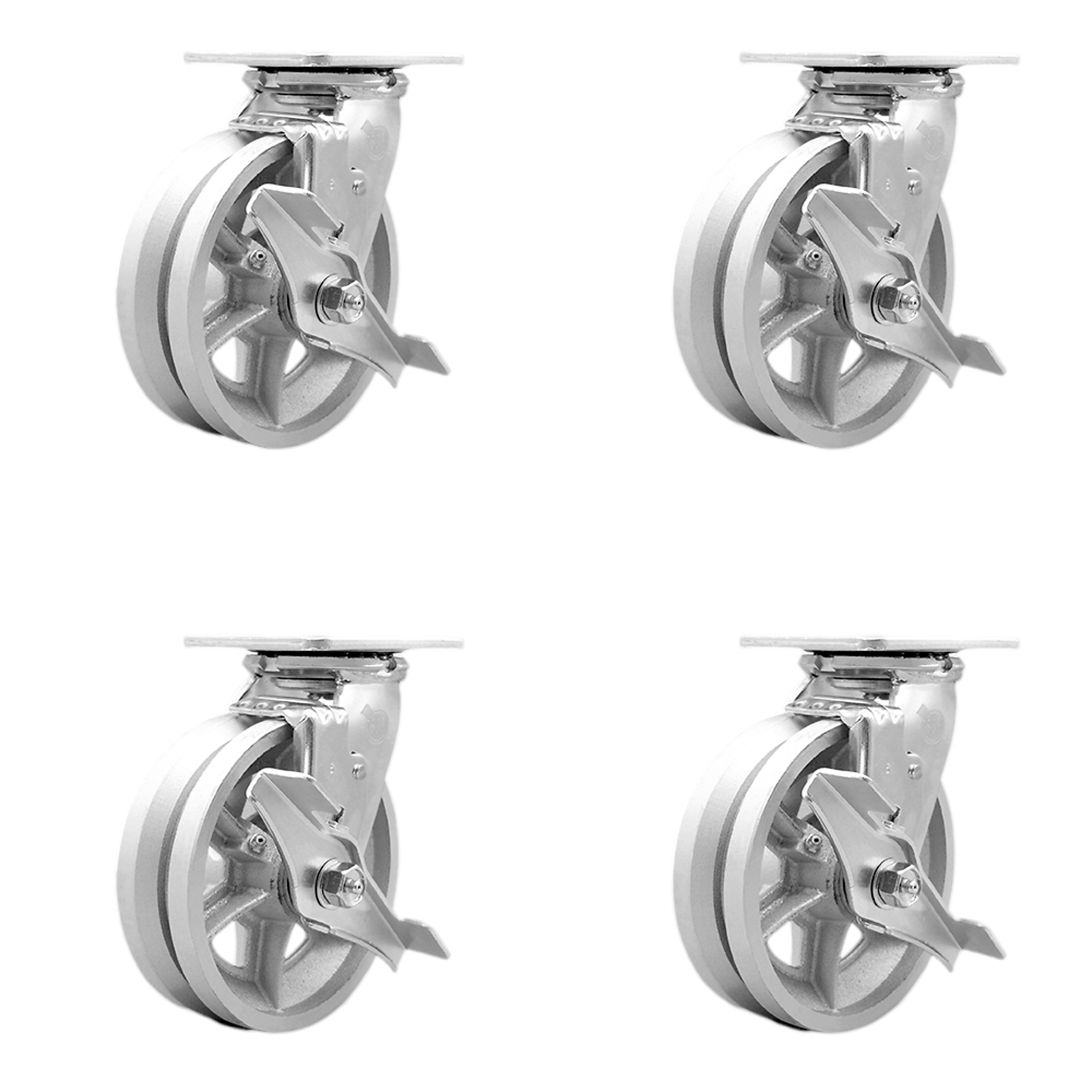

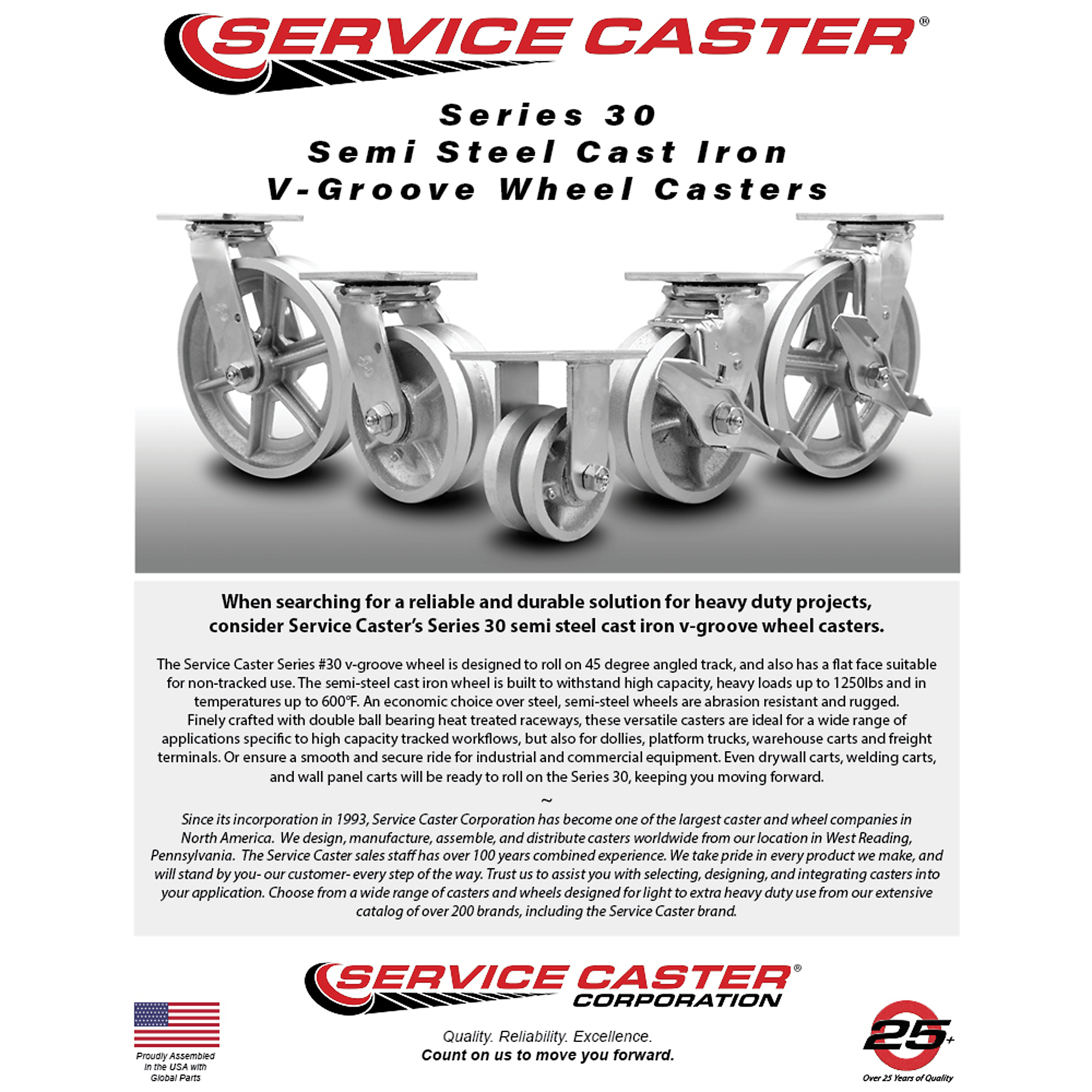

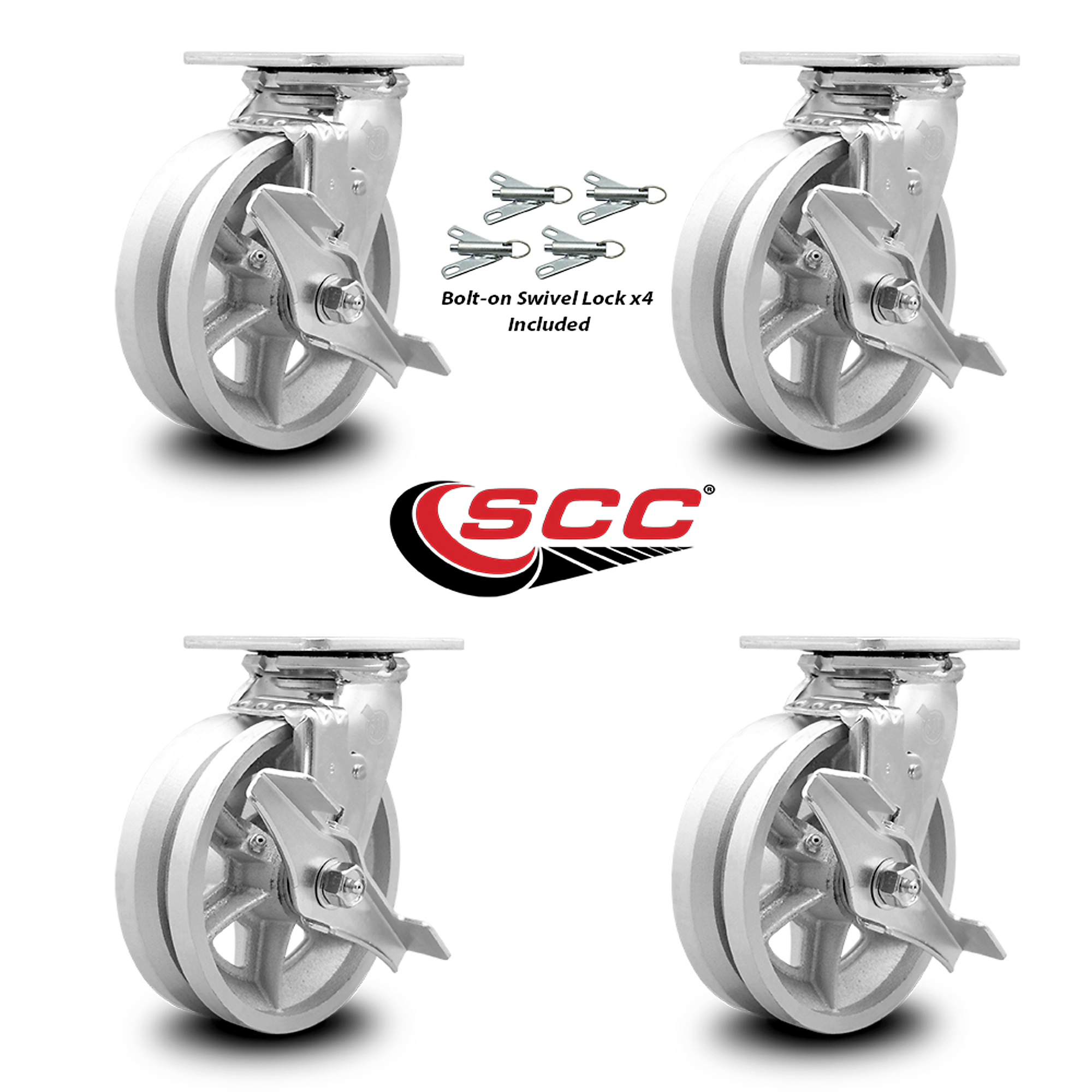

Listing is for a set of four (4) Service Caster Series #30 swivel casters with 6in. diameter by 2in. wide v-groove semi steel wheels with top lock brakes and bolt on swivel locks capable of supporting a total weight of 4800 lbs. (1,200 lbs. per caster). When searching for a reliable and durable solution for heavy duty projects, consider Service Caster’s Series 30 top plate semi steel cast iron v-groove wheel casters. The Service Caster Series #30 v-groove wheel is designed to roll on 45 degree angled track, and also has a flat face suitable for non-tracked use. The semi-steel cast iron wheel is built to withstand high capacity, heavy loads up to 1250lbs and in temperatures up to 600°F. An economic choice over steel, semi-steel wheels are abrasion resistant and rugged. Finely crafted with double ball bearing heat treated raceways, these versatile casters are ideal for a wide range of applications specific to high capacity tracked workflows, but also for dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 30, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.

What's Included

    (4) Plate Casters

Features + Benefits

  • These Service Caster Series #30 V Groove Semi Steel casters offer various wheel sizes and mounting heights: 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height.
  • Weight Capacity: 4": 800 lbs Capacity/Caster, 5": 1,100 lbs Capacity/Caster, 6": 1,200 lbs. Capacity/Caster, and 8": 1,250 lbs Capacity/Caster
  • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.
  • Brake options include a top lock brake (TLB), or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.

Key Specs

AttributeSpecification

item#

5386580

Brand

Service Caster

Ship Weight

33.0 LB

Wheel Diameter

6 in

Caster Type

Swivel

Package (qty.)

4

Wheel Material

Cast Iron

Mount Type

Plate

Load Capacity per Caster

4,800 lb
AttributeSpecification

Wheel Width

2 in

Finish Type

Bright Zinc Plated Finish

Plate Dimensions

4 x 4.5

Bolt Hole Spacing

2.625 x 3.625 to 3 x 3

Foot Brake

Yes

Overall Height

7.5 in

Bearing Type

Roller

Product Weight

24.8000 lb

Dimensions L x W x H (in.)

12.0 x 12.0 x 7.5 in
