Service Caster, 6in. x 2in. Plate Casters, Wheel Diameter 6 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-30CS620-PUR-RS-BSL-2-R-2

Item# 5541105
Service Caster, 6in. x 2in. Plate Casters, Wheel Diameter 6 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-30CS620-PUR-RS-BSL-2-R-2

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Service Caster, 6in. x 2in. Plate Casters, Wheel Diameter 6 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-30CS620-PUR-RS-BSL-2-R-2

Click or Tap image to Zoom

$334.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Service Caster’s Red Polyurethane on Silver Cast Iron core wheels come in four sizes – 6" x 3", 8” x 3", 10” x 3", and 12” x 3".
  • Weight capacity ranges from 2000 lbs. on the 6" wheel, 2500 lbs. on the 8”, 3000 lbs. on the 10”, and 3500 lbs. on the 12”.
  • All wheel sizes have a 3/4" axle bore and a 3-1/2" hub length. When the spanner bushing is removed, all wheel sizes can be used on a 1" axle. Please keep in mind, the hub length is the widest point of the wheel, so it is important to ensure you can accommodate this width before purchasing.
  • Brake options include a top lock brake (TLB), a total lock brake (TTL), or a side lock brake (SLB). The TLB places a positive locking force against the wheel tread, locking the wheel only. The SLB places a positive locking force against the wheel hub, locking the wheel only. The TTL also places a positive locking force against the wheel tread, but the TTL simultaneously locks the wheel and the swivel for a complete stationary position.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

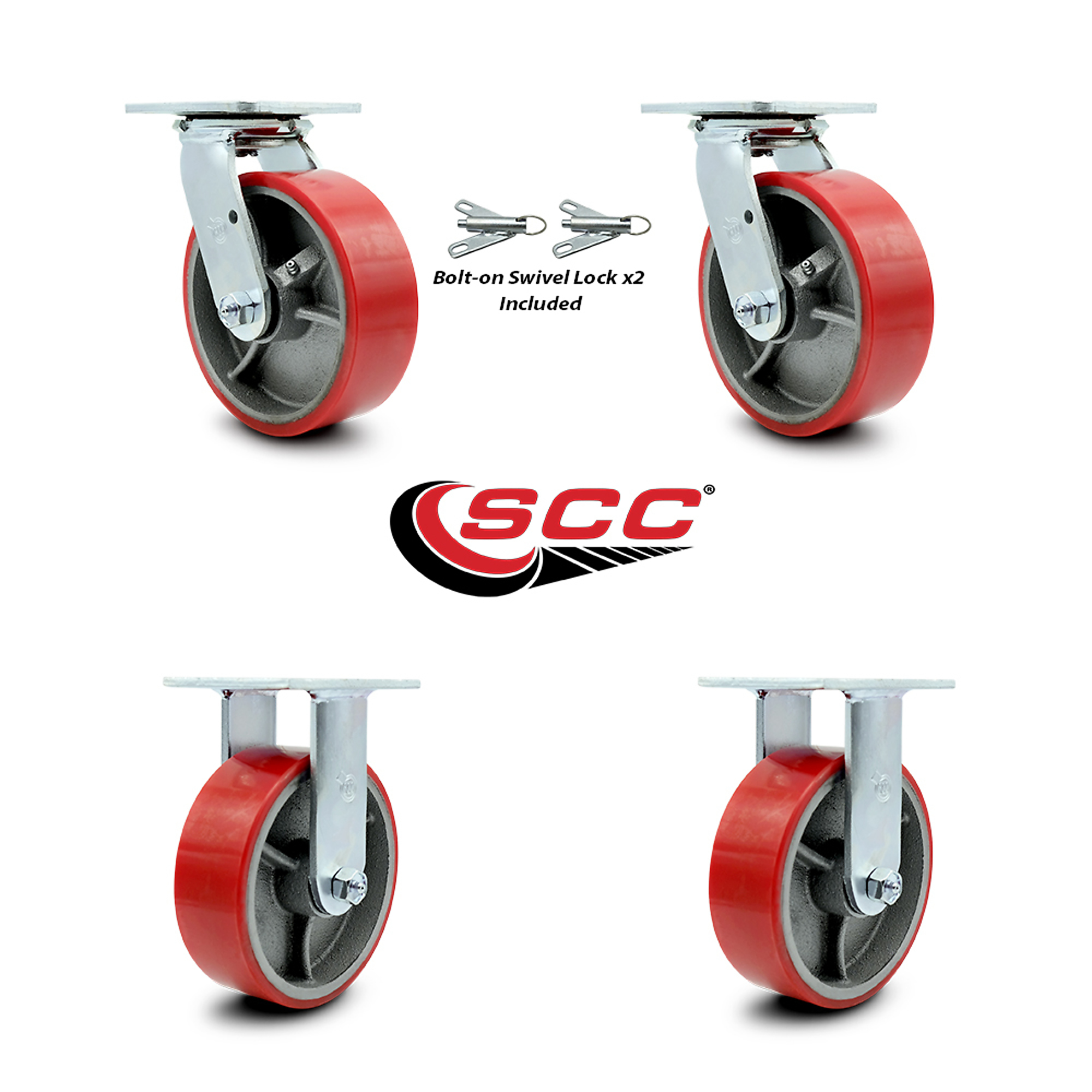

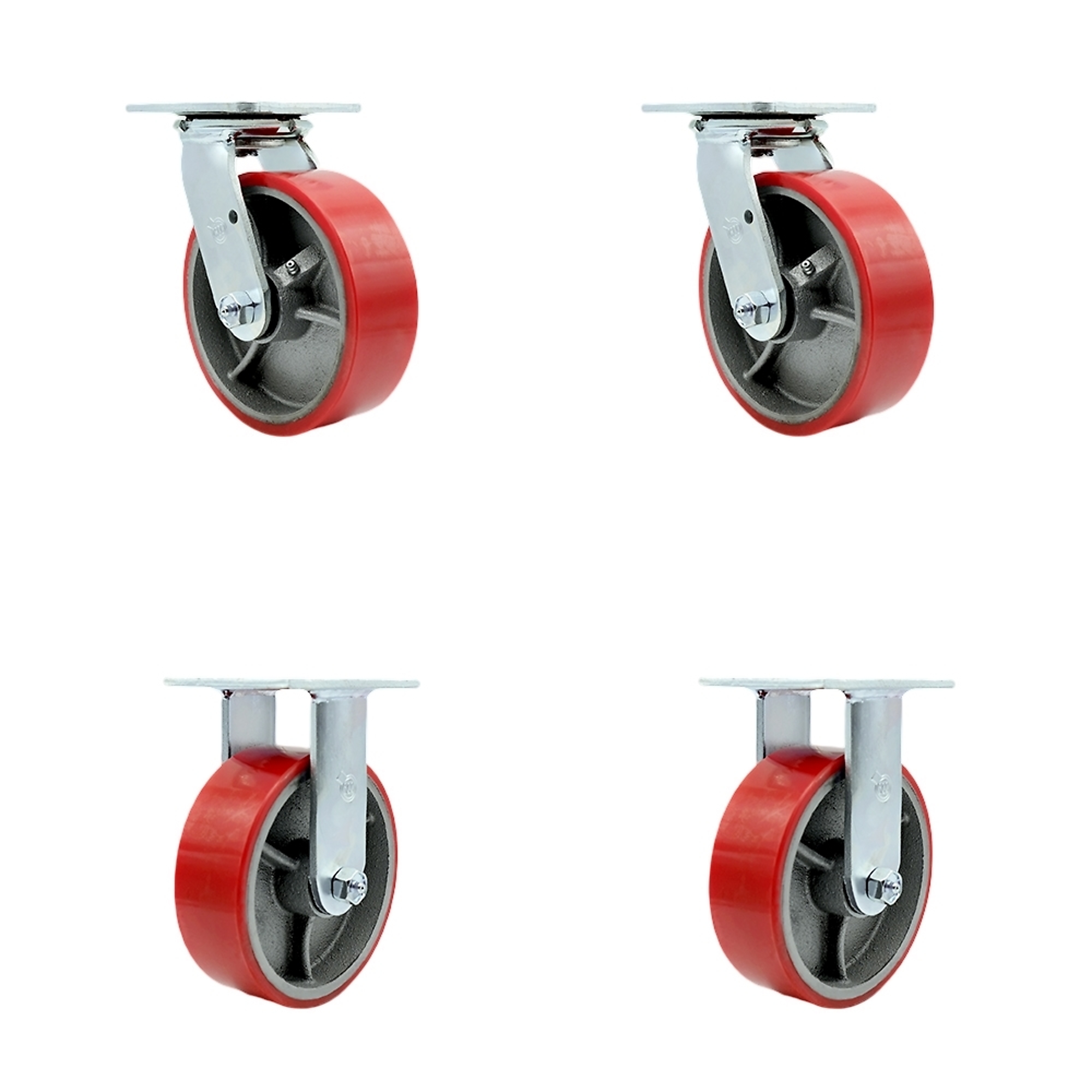

Listing is for a set of four (4) Service Caster Series #30 casters, two (2) Swivel casters with bolt on swivel locks and two (2) Rigid casters, with 6in. diameter by 2in. wide red polyurethane on cast iron wheels capable of supporting a total weight of 4800 lbs. (1,200 lbs./caster).When searching for a reliable and durable solution for medium and heavy duty projects, consider Service Caster’s Series 30 polyurethane on metal wheel casters. The Service Caster Series #30 is ideal for material handling, carts, equipment, and shop projects. The non-marking, non-marring polyurethane tread performs especially well on hard surfaces such as concrete, tile, and wood, while the metal core wheel stands up to heavier loads with a stable and secure roll. Finely crafted with double ball bearing heat treated raceways, these versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for food service carts, hotel housekeeping carts and industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 30, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.

What's Included

    (4) Plate Casters

Features + Benefits

  • Service Caster’s Red Polyurethane on Silver Cast Iron core wheels come in four sizes – 6" x 3", 8” x 3", 10” x 3", and 12” x 3".
  • Weight capacity ranges from 2000 lbs. on the 6" wheel, 2500 lbs. on the 8”, 3000 lbs. on the 10”, and 3500 lbs. on the 12”.
  • All wheel sizes have a 3/4" axle bore and a 3-1/2" hub length. When the spanner bushing is removed, all wheel sizes can be used on a 1" axle. Please keep in mind, the hub length is the widest point of the wheel, so it is important to ensure you can accommodate this width before purchasing.
  • Brake options include a top lock brake (TLB), a total lock brake (TTL), or a side lock brake (SLB). The TLB places a positive locking force against the wheel tread, locking the wheel only. The SLB places a positive locking force against the wheel hub, locking the wheel only. The TTL also places a positive locking force against the wheel tread, but the TTL simultaneously locks the wheel and the swivel for a complete stationary position.

Key Specs

AttributeSpecification

item#

5541105

Brand

Service Caster

Ship Weight

30.5 LB

Wheel Diameter

6 in

Caster Type

Swivel

Package (qty.)

4

Wheel Material

Poly-on-Steel

Mount Type

Plate

Load Capacity per Caster

1,200 lb
AttributeSpecification

Wheel Width

2 in

Finish Type

Bright Zinc Plated Finish

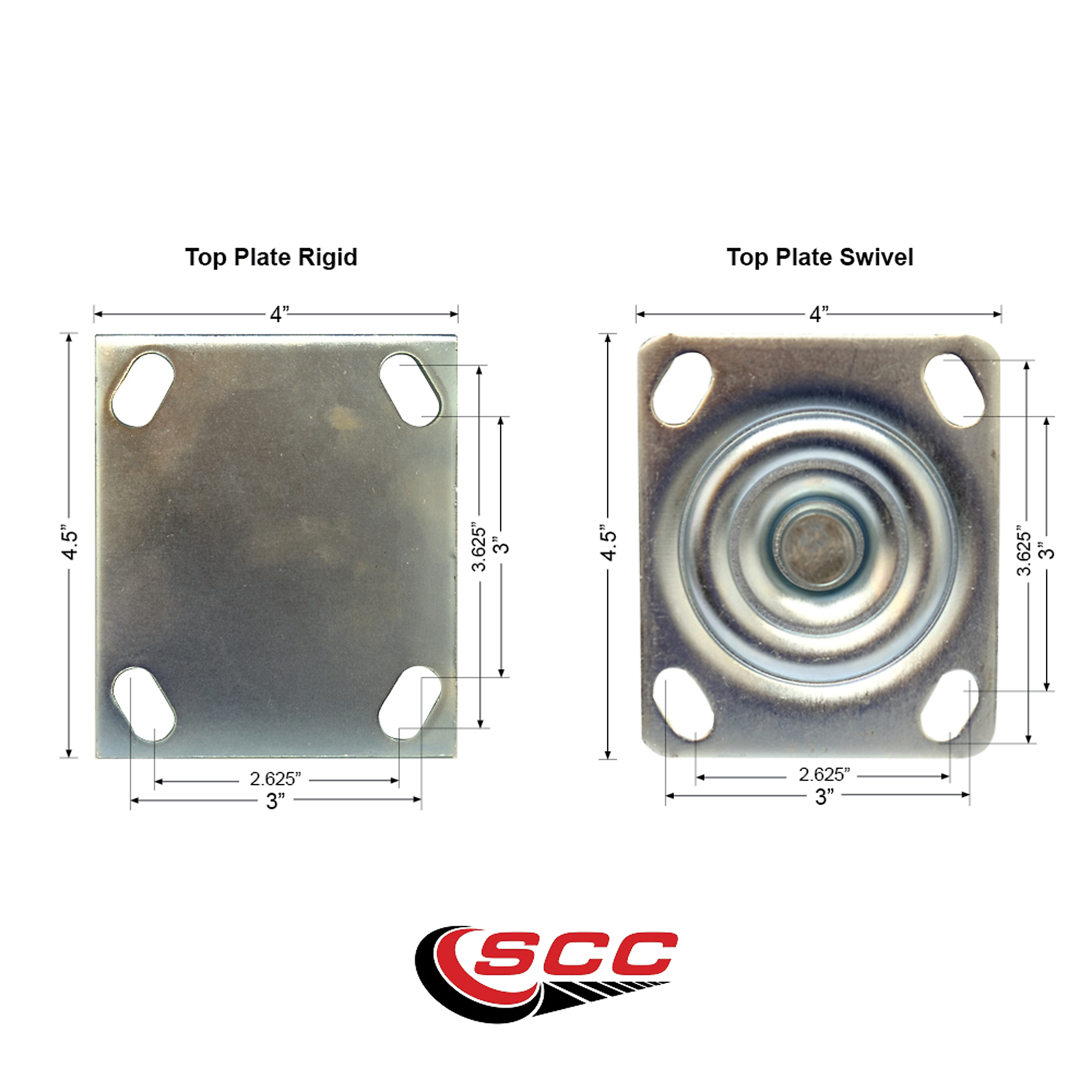

Plate Dimensions

4 x 4.5

Bolt Hole Spacing

2.625 x 3.625 to 3 x 3

Foot Brake

Yes

Overall Height

7.5 in

Bearing Type

Roller

Product Weight

30.5000 lb

Dimensions L x W x H (in.)

12.0 x 12.0 x 7.5 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

Compare with Most Popular in 1,000 - 1,499 Lbs.

See All 1,000 - 1,499 Lbs.

See All Service Caster 1,000 - 1,499 Lbs.

Specifications

Specifications
Service Caster, 6in. x 2in. Plate Casters, Wheel Diameter 6 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-30CS620-PUR-RS-BSL-2-R-2
Service Caster, 4in. x 2in. Plate Casters, Wheel Diameter 4 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-30CS420-TPRRF-TLB-4
Service Caster, 4in. x 2in. Plate Casters, Wheel Diameter 4 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-30CS420-TPRRD-TLB-4
Service Caster, 5in. x 2in. Plate Casters, Wheel Diameter 5 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-30CS520-TPRRF-TLB-4
Wheel Diameter
Same

6 in

4 in

4 in

5 in

Caster Type
Same

Swivel

Swivel

Swivel

Swivel

Package (qty.)
Same

4

4

4

4

Wheel Material
Same

Poly-on-Steel

Thermoplastic Rubber

Thermoplastic Rubber

Thermoplastic Rubber

Mount Type
Same

Plate

Plate

Plate

Plate

Load Capacity per Caster
Same

1,200 lb

1,200 lb

1,200 lb

1,400 lb

Wheel Width
Same

2 in

2 in

2 in

2 in

Finish Type
Same

Bright Zinc Plated Finish

Bright Zinc Plated Finish

Bright Zinc Plated Finish

Bright Zinc Plated Finish

Plate Dimensions
Same

4 x 4.5

4 x 4.5

4 x 4.5

4 x 4.5

Bolt Hole Spacing
Same

2.625 x 3.625 to 3 x 3

2.625 x 3.625 to 3 x 3

2.625 x 3.625 to 3 x 3

2.625 x 3.625 to 3 x 3

Foot Brake
Same

Yes

Yes

Yes

Yes

Overall Height
Same

7.5 in

5.625 in

5.625 in

6.5 in

Bearing Type
Same

Roller

Roller

Roller

Roller

Product Weight
Same

30.5000 lb

18.4000 lb

18.4000 lb

21.0000 lb

Dimensions L x W x H (in.)
Same

12.0 x 12.0 x 7.5 in

12.0 x 12.0 x 7.5 in

12.0 x 12.0 x 7.5 in

12.0 x 12.0 x 7.5 in
