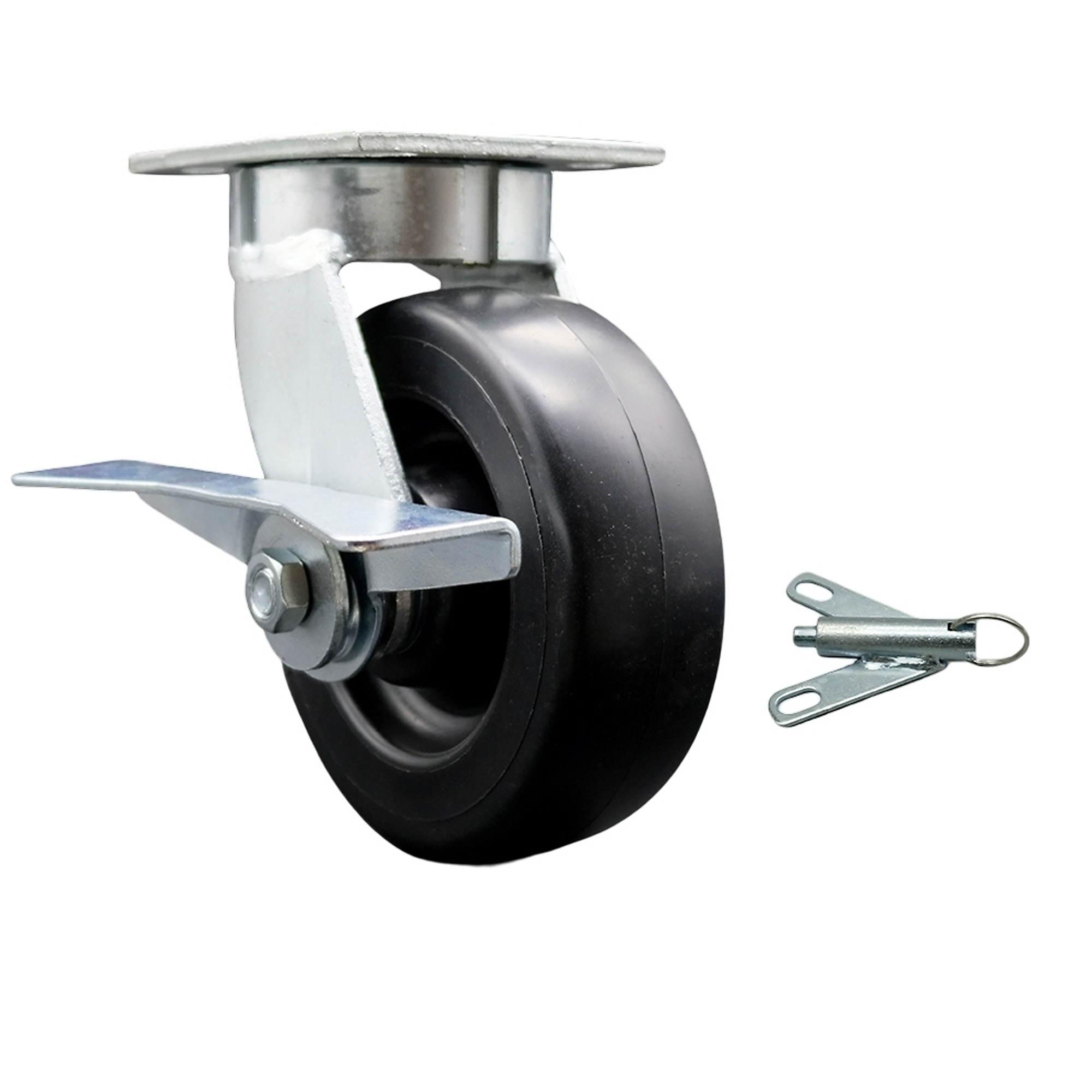

Service Caster, 6in. x 2in. Plate Caster, Wheel Diameter 6 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-KP30S620-POR-SLB-BSL

Item# 5394002
Service Caster, 6in. x 2in. Plate Caster, Wheel Diameter 6 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-KP30S620-POR-SLB-BSL

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Service Caster, 6in. x 2in. Plate Caster, Wheel Diameter 6 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-KP30S620-POR-SLB-BSL

Click or Tap image to Zoom

$154.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • These Service Caster Series #KP30 Polyolefin casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height.
  • Weight capacity ranges from 500 lbs on the 4” caster, 650 lbs on the 5”, 700 lbs on the 6” and 900 lbs. on the 8”.

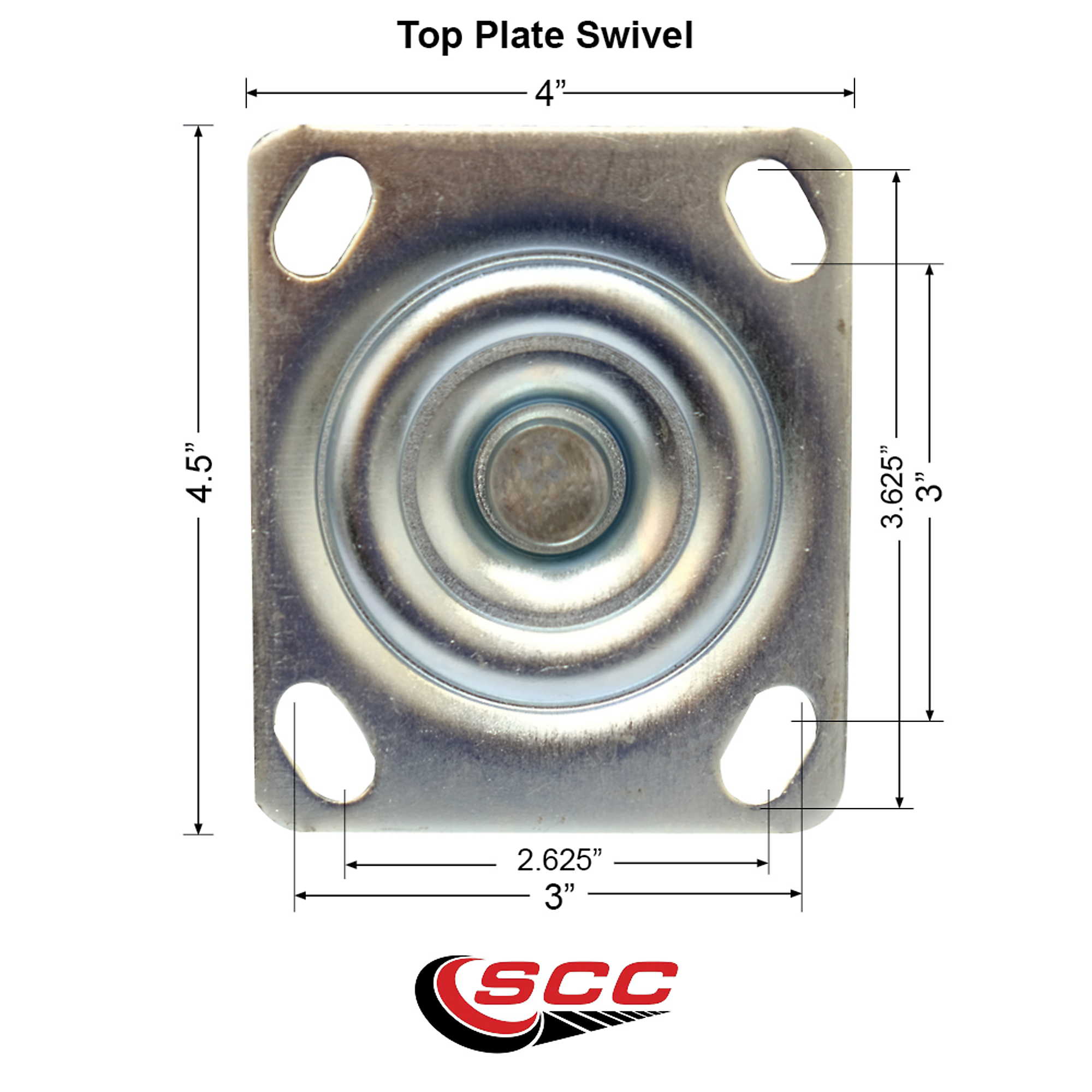

  • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.

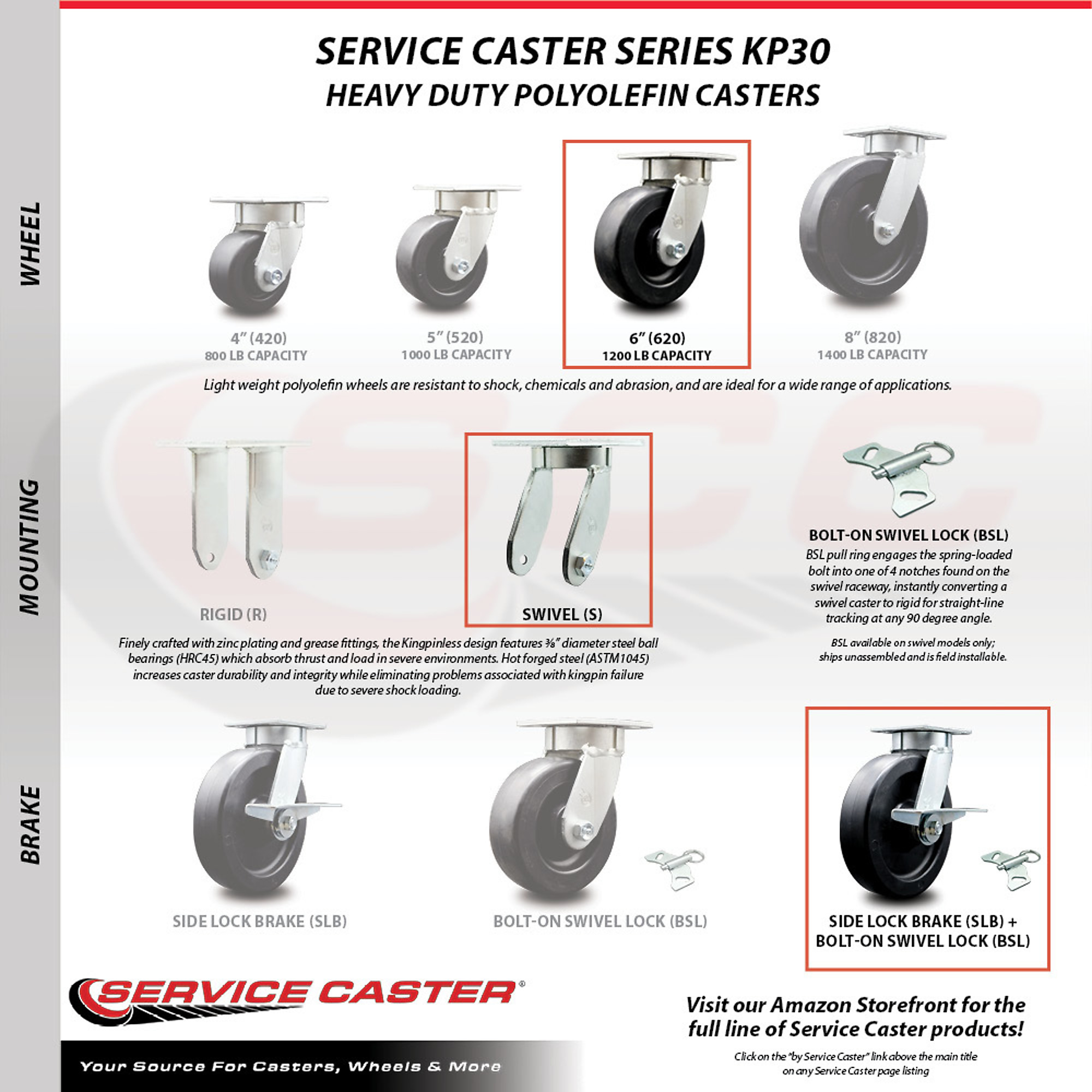

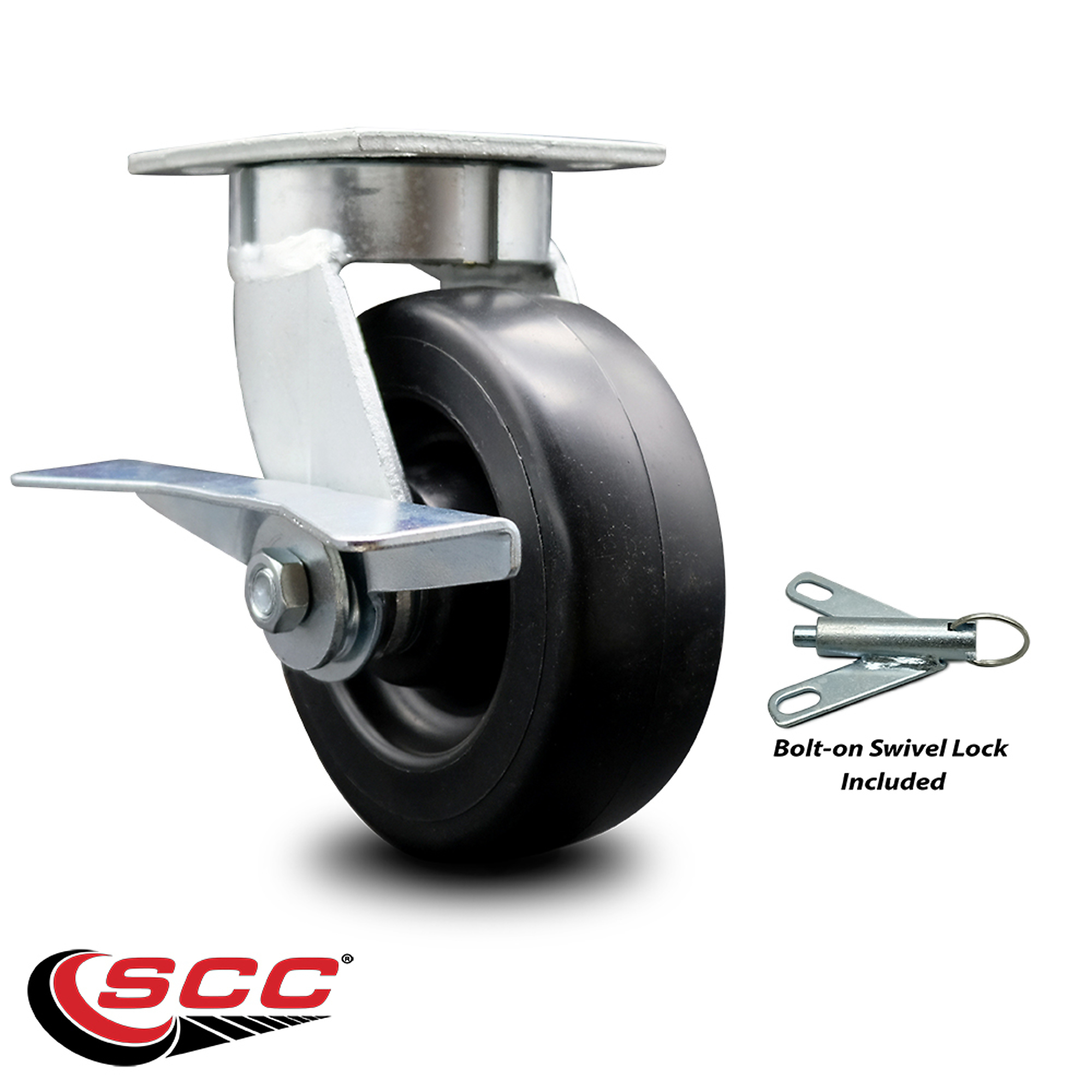

  • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

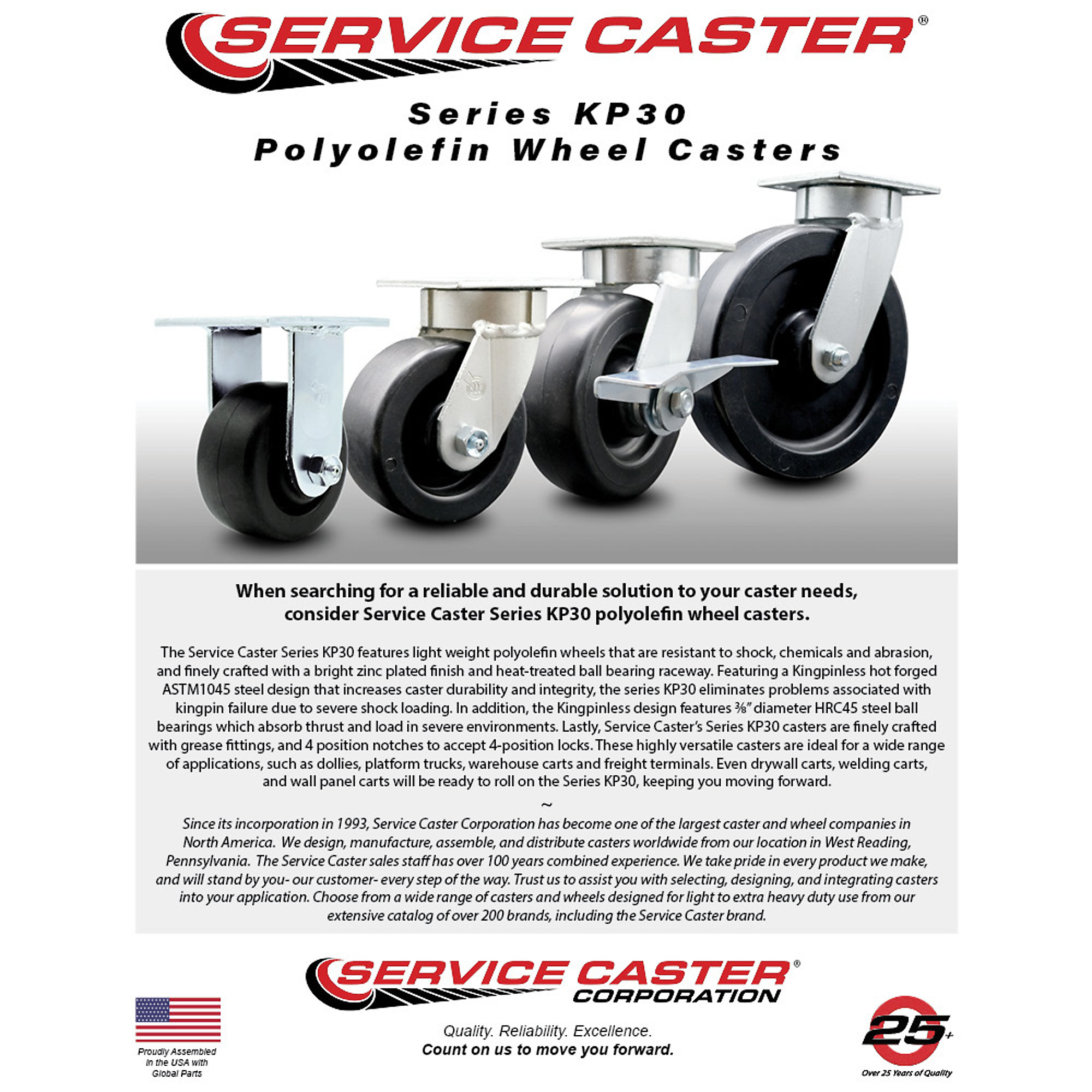

Listing is for one (1) Service Caster Series #KP30 swivel caster with a 6in. diameter by 2in. wide polyolefin wheel with a side lock brake bolt on swivel lock capable of supporting 700 lbs./caster. When searching for a reliable and durable solution to your caster needs, consider Service Caster Series KP30 polyolefin wheel casters. The Service Caster Series KP30 features light weight polyolefin wheels that are resistant to shock, chemicals and abrasion, and finely crafted with a bright zinc plated finish and heat-treated ball bearing raceway. Featuring a Kingpinless hot forged STM1,045 steel design that increases caster durability and integrity, the series KP30 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features 3/8” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series KP30 casters are finely crafted with grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series KP30, keeping you moving forward.

What's Included

    (1) Plate Caster

Features + Benefits

  • These Service Caster Series #KP30 Polyolefin casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height.
  • Weight capacity ranges from 500 lbs on the 4” caster, 650 lbs on the 5”, 700 lbs on the 6” and 900 lbs. on the 8”.
  • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.
  • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.

Key Specs

AttributeSpecification

item#

5394002

Brand

Service Caster

Ship Weight

9.0 LB

Wheel Diameter

6 in

Caster Type

Swivel

Package (qty.)

1

Wheel Material

Polyolefin

Mount Type

Plate

Load Capacity per Caster

700 lb
AttributeSpecification

Wheel Width

2 in

Finish Type

Bright Zinc Plated Finish

Plate Dimensions

4 x 4.5

Bolt Hole Spacing

2.625 x 3.625 to 3 x 3

Foot Brake

Yes

Overall Height

7.5 in

Bearing Type

Roller

Product Weight

7.4500 lb

Dimensions L x W x H (in.)

12.0 x 12.0 x 7.5 in

Reviews

Questions & Answers

Questions

Compare with Most Popular in 500 - 999 Lbs.

See All 500 - 999 Lbs.

See All Service Caster 500 - 999 Lbs.

Specifications

Specifications
Service Caster, 6in. x 2in. Plate Caster, Wheel Diameter 6 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-KP30S620-POR-SLB-BSL
Vestil Rubber Swivel With Total Brake Caster 8 In. Diameter x 2 In. Width 881 Lb. Capacity Black/Gold
Vestil Rubber Swivel Caster - 5in. x 2in., 551-Lb. Capacity, Thermoplastic Rubber, Gray, Model# CST-VE-5X2TPR-S
Vestil Rubber Swivel Caster - 8in. x 2in., 705-Lb. Capacity, Thermoplastic Rubber, Gray, Model# CST-VE-8X2TPR-S
Wheel Diameter
Same

6 in

8 in

5 in

8 in

Caster Type
Same

Swivel

Swivel

Swivel

Swivel

Package (qty.)
Same

1

1

1

1

Wheel Material
Same

Polyolefin

Rubber

Thermoplastic Rubber

Thermoplastic Rubber

Mount Type
Same

Plate

Plate

Plate

Plate

Load Capacity per Caster
Same

700 lb

881 lb

551 lb

705 lb

Wheel Width
Same

2 in

8 in

5 in

8 in

Finish Type
Same

Bright Zinc Plated Finish

Zinc Plated

Zinc Plated

Zinc Plated

Plate Dimensions
Same

4 x 4.5

4 X 4 1/2

4 X 4 1/2

4 X 4 1/2

Bolt Hole Spacing
Same

2.625 x 3.625 to 3 x 3

-

-

-

Foot Brake
Same

Yes

Yes

No

No

Overall Height
Same

7.5 in

9.5 in

6.5 in

9.5 in

Bearing Type
Same

Roller

Ball

Ball

Ball

Product Weight
Same

7.4500 lb

9.0900 lb

5.0000 lb

7.0000 lb

Dimensions L x W x H (in.)
Same

12.0 x 12.0 x 7.5 in

7.875 x 5.0 x 9.5 in

6.5 x 4.0 x 6.5 in

8.25 x 4.0 x 9.5 in

Non-Marking
Same

-

No

No

Yes

Includes Thread Guards
Same

-

No

No

No
