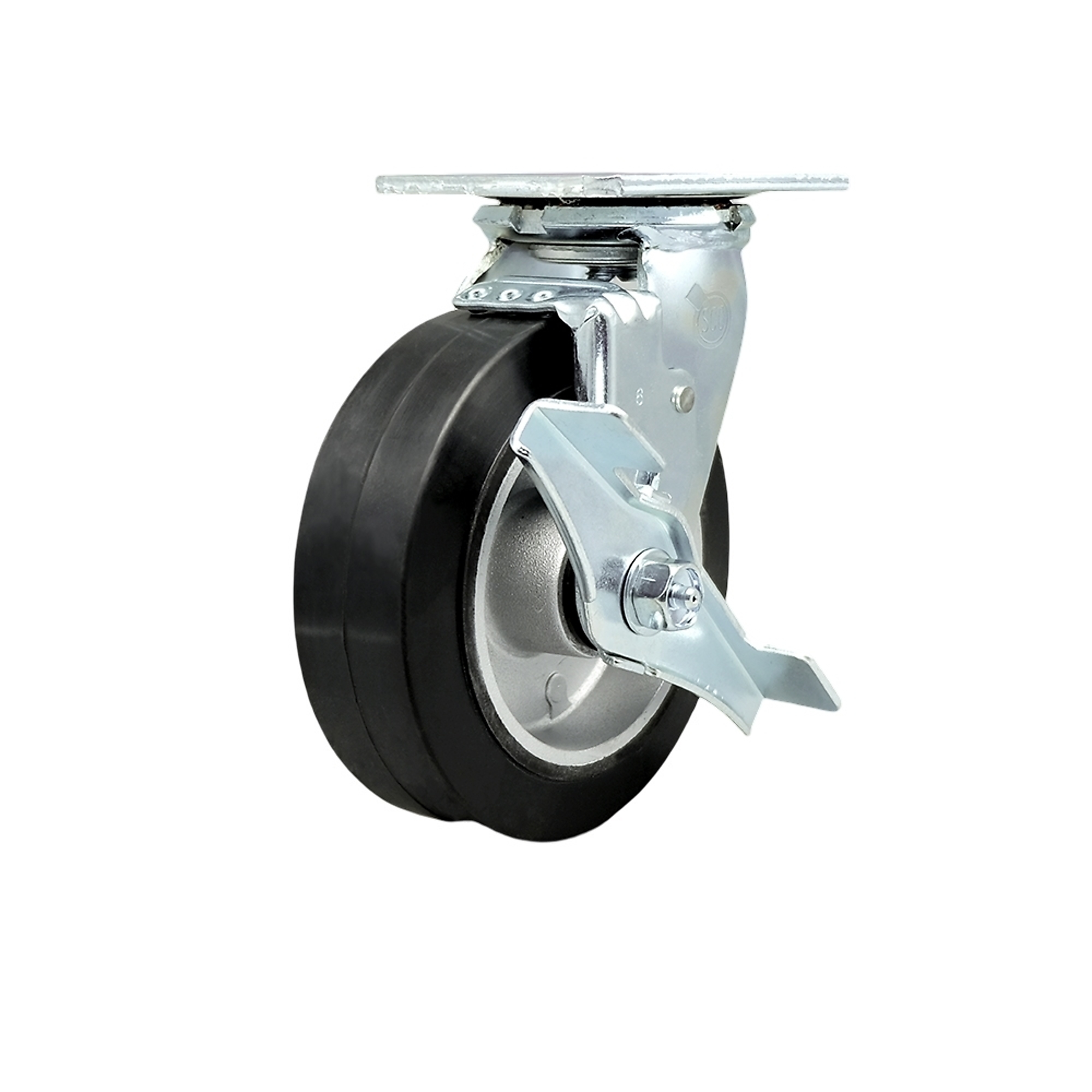

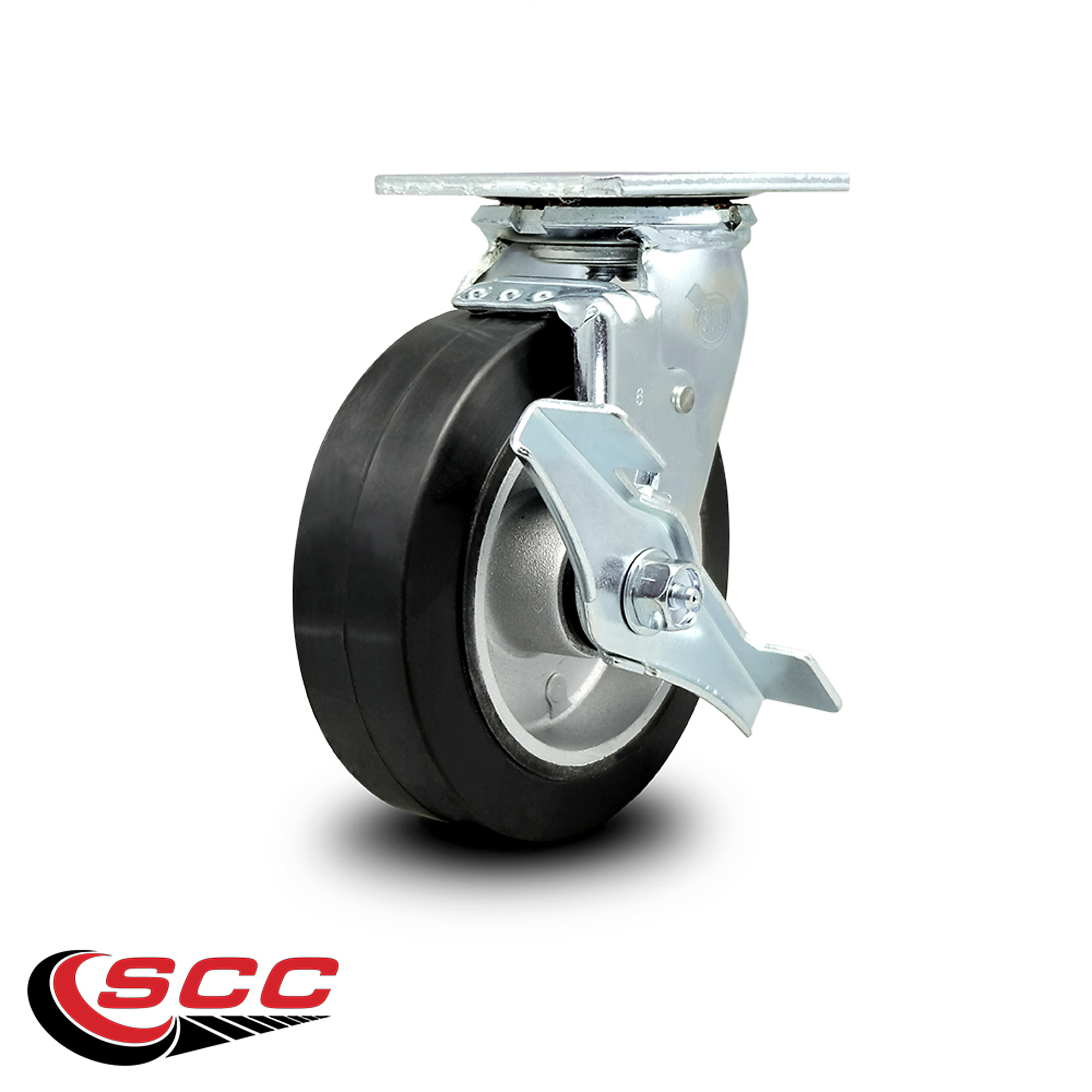

Service Caster, 6in. x 2in. Plate Caster, Wheel Diameter 6 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-30CS620-RAB-TLB

Item# 5412709
Service Caster, 6in. x 2in. Plate Caster, Wheel Diameter 6 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-30CS620-RAB-TLB

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Service Caster, 6in. x 2in. Plate Caster, Wheel Diameter 6 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-30CS620-RAB-TLB

Click or Tap image to Zoom

$97.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only

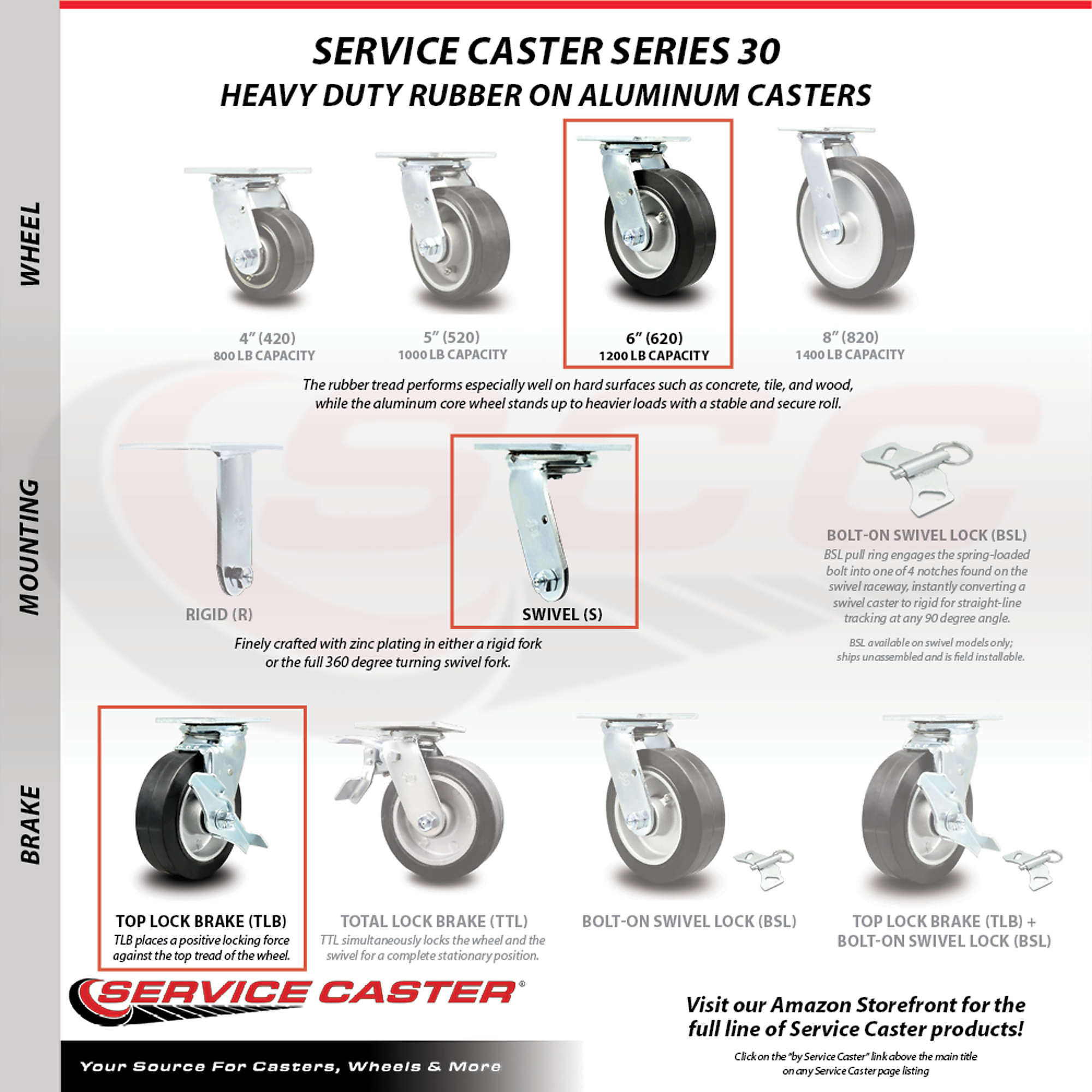

  • These Service Caster Series #30 Rubber on Aluminum casters offer various wheel sizes and mounting heights: 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height.
  • Weight Capacity: 4": 400 lbs Capacity/Caster, 5": 500 lbs Capacity/Caster, 6": 550 lbs. Capacity/Caster, and 8": 600 lbs Capacity/Caster

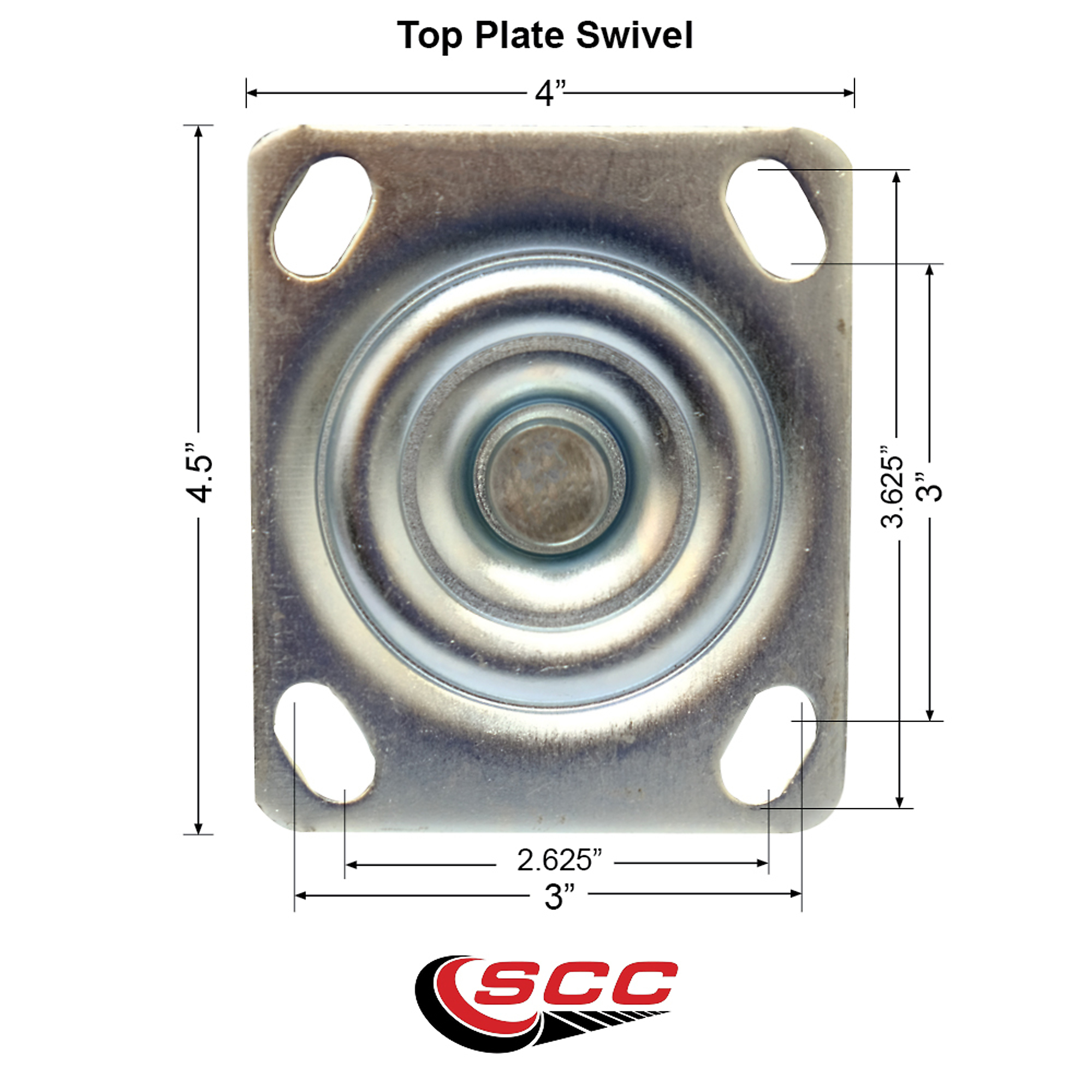

  • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.
  • Brake options include a top lock brake (TLB), or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

Listing is for one (1) Service Caster Series #30 swivel caster with a 6in. diameter, 2in. wide moldon rubber tread set on a aluminum core wheel and maintenance free precision ball wheel bearings fitted with a top locking brake. Supports 550 pounds (lbs) per caster. When searching for a reliable and durable solution for medium and heavy duty projects, consider Service Caster’s Series 30 top plate rubber on aluminum wheel casters. The Service Caster Series #30 is ideal for material handling, carts, equipment, and shop projects. The rubber tread performs especially well on hard surfaces such as concrete, tile, and wood, while the aluminum core wheel stands up to heavier loads with a stable and secure roll. Finely crafted with double ball bearing heat treated raceways, these versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 30, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.

What's Included

    (1) Plate Caster

Features + Benefits

  • These Service Caster Series #30 Rubber on Aluminum casters offer various wheel sizes and mounting heights: 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height.
  • Weight Capacity: 4": 400 lbs Capacity/Caster, 5": 500 lbs Capacity/Caster, 6": 550 lbs. Capacity/Caster, and 8": 600 lbs Capacity/Caster
  • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.
  • Brake options include a top lock brake (TLB), or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.

Key Specs

AttributeSpecification

item#

5412709

Brand

Service Caster

Ship Weight

8.0 LB

Wheel Diameter

6 in

Caster Type

Swivel

Package (qty.)

1

Wheel Material

Rubber

Mount Type

Plate

Load Capacity per Caster

550 lb
AttributeSpecification

Wheel Width

2 in

Finish Type

Bright Zinc Plated Finish

Plate Dimensions

4 x 4.5

Bolt Hole Spacing

2.625 x 3.625 to 3 x 3

Foot Brake

Yes

Overall Height

7.5 in

Bearing Type

Sealed

Product Weight

8.0000 lb

Dimensions L x W x H (in.)

8.0 x 8.0 x 8.0 in
