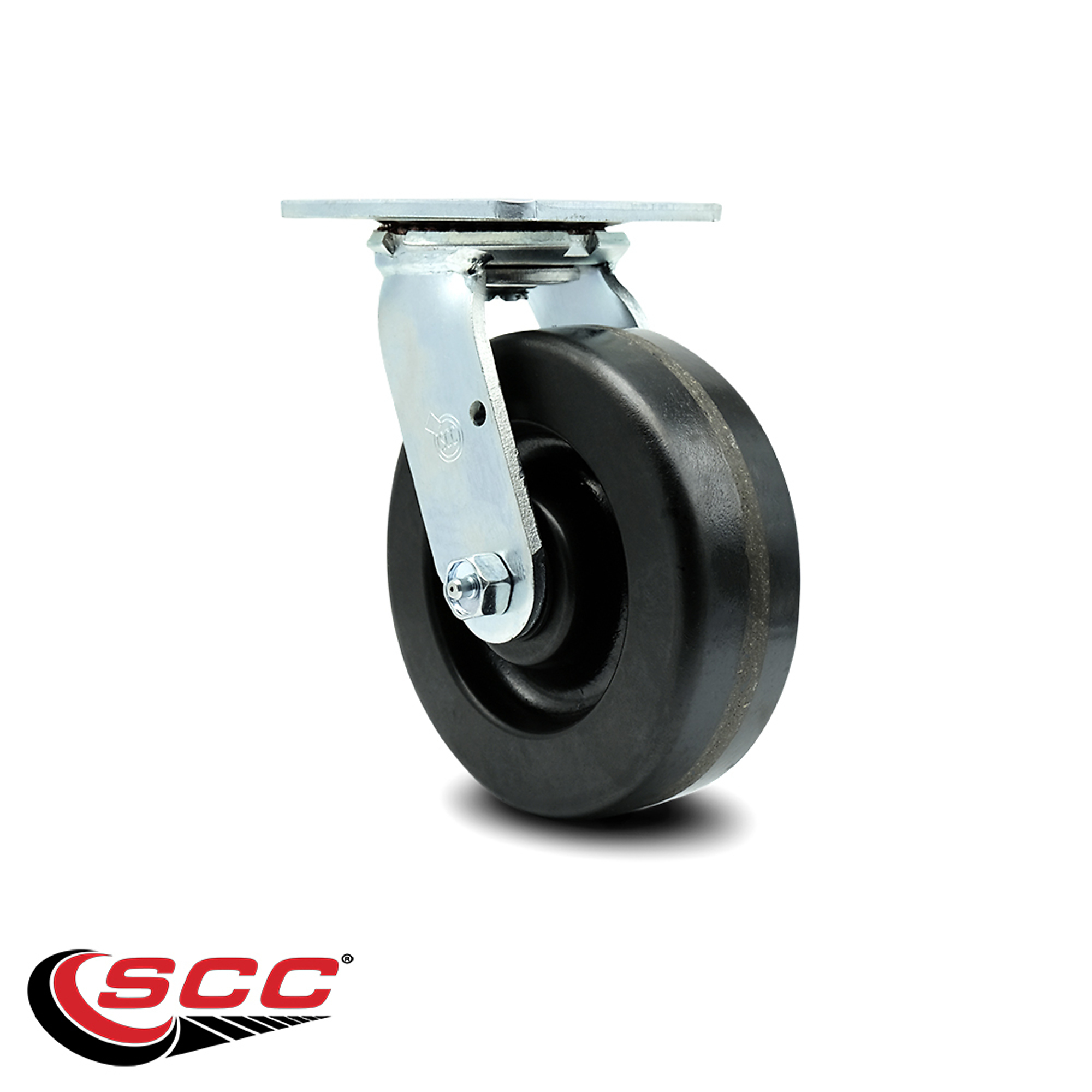

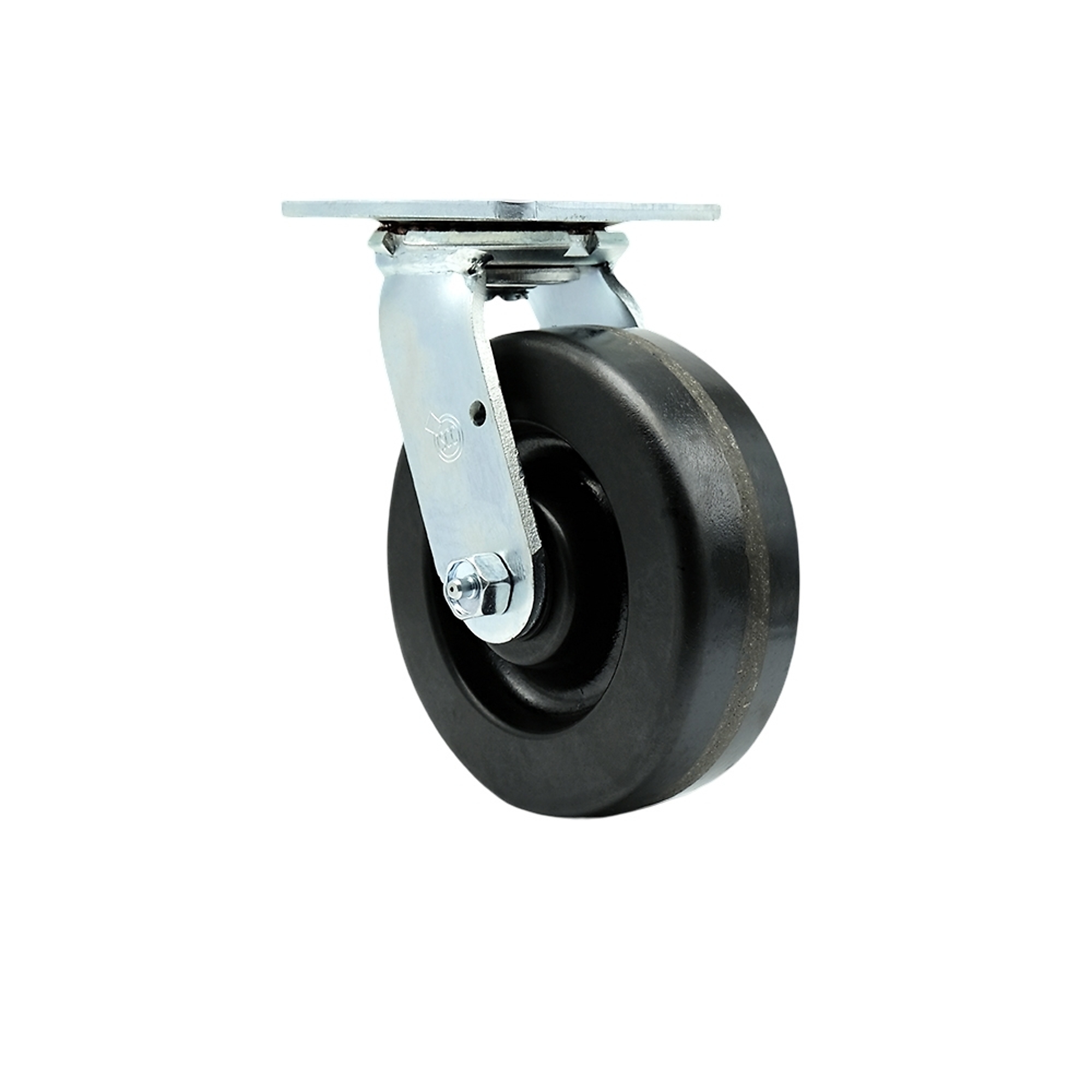

Service Caster, 6in. x 2in. Plate Caster, Wheel Diameter 6 in, Caster Type Swivel, Package (qty.) 1, Model# BAS-SCC-30CS620-PHR

Item# 5597213
Service Caster, 6in. x 2in. Plate Caster, Wheel Diameter 6 in, Caster Type Swivel, Package (qty.) 1, Model# BAS-SCC-30CS620-PHR

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Service Caster, 6in. x 2in. Plate Caster, Wheel Diameter 6 in, Caster Type Swivel, Package (qty.) 1, Model# BAS-SCC-30CS620-PHR

Click or Tap image to Zoom

$39.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Mounting Height: 7-1/2"
  • Ideal for industrial or clear commercial settings were materials may be stationary for long periods and there are no floor obstructions
  • Weight Capacity: 1200 lbs.
  • Overall Top Plate Dimensions: 4" x 4-1/2"; Mounting Hole Dimensions: 2-5/8" x 3-5/8" to 3" x 3"

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

High quality replacement swivel caster for a Bassick Casters 6AS8-7. Listing is for one (1) Service Caster Series #30 swivel caster and 6in. diameter by 2in. wide phenolic wheel. Supports 1200 pounds (lbs.) per caster. When searching for a reliable and durable solution to your caster needs, rely on Service Caster Series 30 top plate phenolic wheel casters. The Service Caster Series #30 is ideal for medium and heavy duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition, and the phenolic resin wheels are highly resistant to impact damage, providing protection for floors in commercial and industrial settings. Not only are they resistant to water, oil, and grease, but because they are non-metallic, these wheels are spark proof, keeping you safely moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.

What's Included

    (1) Plate Caster

Features + Benefits

  • Mounting Height: 7-1/2"
  • Ideal for industrial or clear commercial settings were materials may be stationary for long periods and there are no floor obstructions
  • Weight Capacity: 1200 lbs.
  • Overall Top Plate Dimensions: 4" x 4-1/2"; Mounting Hole Dimensions: 2-5/8" x 3-5/8" to 3" x 3"

Key Specs

AttributeSpecification

item#

5597213

Brand

Service Caster

Ship Weight

10.0 LB

Wheel Diameter

6 in

Caster Type

Swivel

Capacity Class

1,000-1,499 Pounds

Load Capacity per Caster

1,200 lb

Wheel Material

Phenolic

Package (qty.)

1

Wheel Width

2 in
AttributeSpecification

Mount Type

Plate-Mount

Finish Type

Bright Zinc Plated Finish

Foot Brake

No

Overall Height

7.5 in

Plate Dimensions

4 x 4.5

Bolt Hole Spacing

2.625 x 3.625 to 3 x 3

Bearing Type

Roller

Product Weight

8.0000 lb

Dimensions L x W x H (in.)

8.0 x 8.0 x 8.0 in
