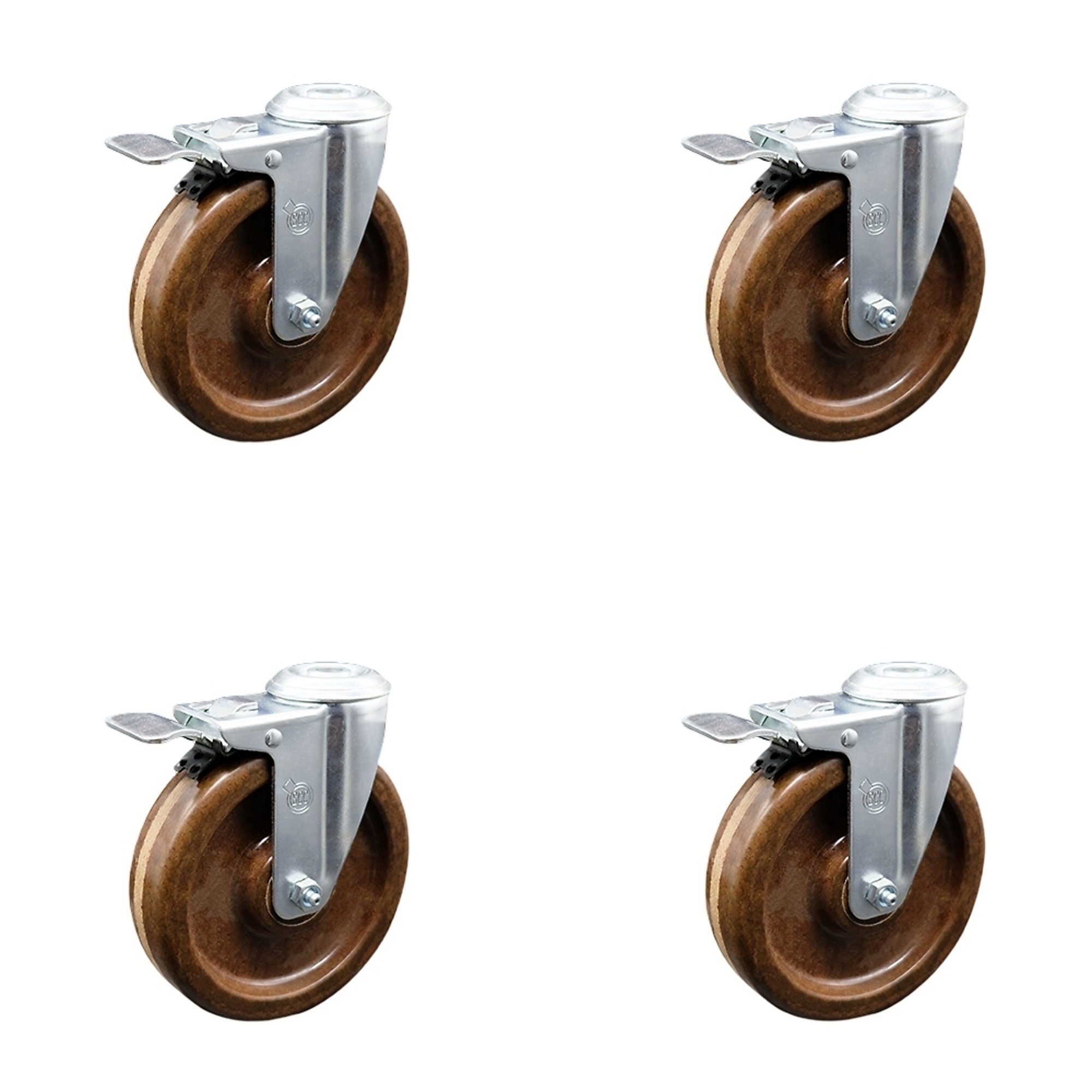

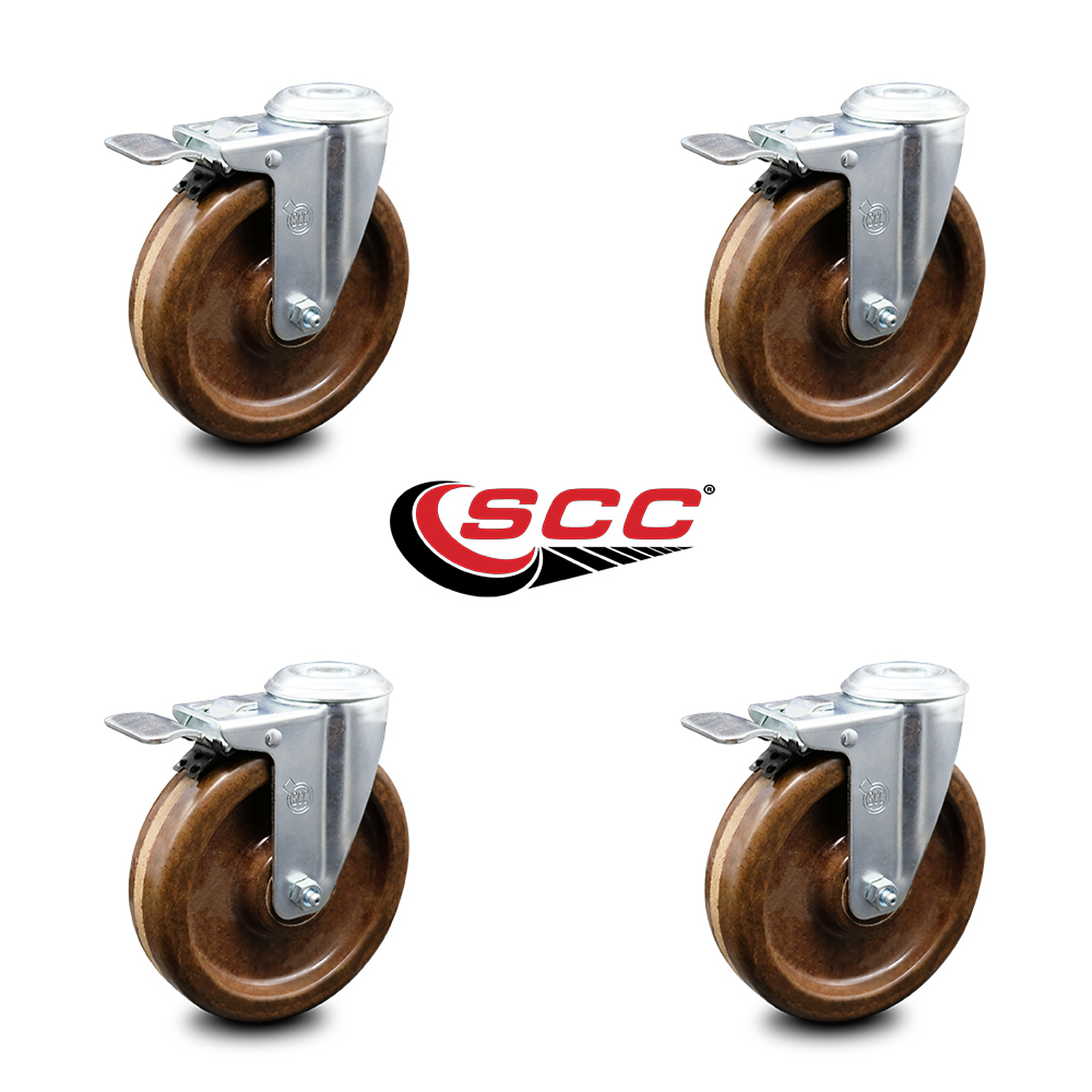

Service Caster, 6in. x 1 1/2in. Stem Casters, Wheel Diameter 6 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-BHTTL20S615-PHRHT-4

Item# 5370924
Service Caster, 6in. x 1 1/2in. Stem Casters, Wheel Diameter 6 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-BHTTL20S615-PHRHT-4

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Service Caster, 6in. x 1 1/2in. Stem Casters, Wheel Diameter 6 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-BHTTL20S615-PHRHT-4

Click or Tap image to Zoom

$434.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • These Service Caster Series #20 High Temperature Phenolic casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height; 6" wheel: 7-1/8" mounting height.
  • Weight Capacity: 3", 4", 5", and 6": 300 lbs Capacity/Caster

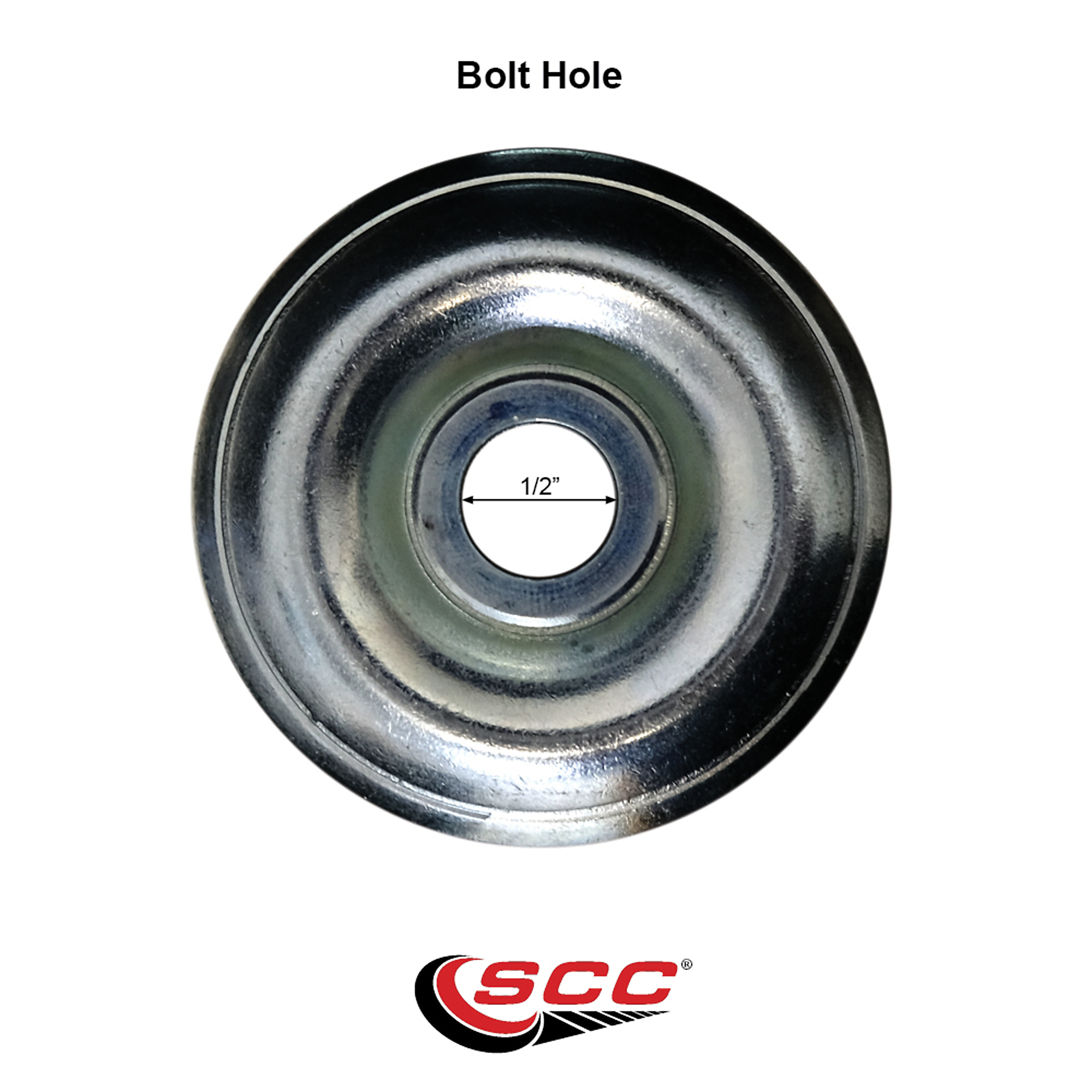

  • All casters feature a 1/2” diameter bolt hole. Bolt hole casters have a hole in the rivet which can accept a bolt or a customized stem for any type of mounting requirement.
  • Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

Listing is for a set of four (4) Service Caster Series #20 casters, four (4) Swivel bolt hole casters with total lock brakes, 6” diameter by 1-1/2” wide high temperature phenolic wheels. Supports a total weight of 1200lbs (300lbs/per caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 roller bearing high temperature phenolic casters. The Service Caster Series #20 is ideal for bakery racks, light and medium duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition, and the high temp phenolic wheels- quieter than comparable steel wheels- have a high resistance to impact damage, providing protection for floors in commercial and industrial settings. The roller bearing is capable of carrying greater loads while also providing smoother rolling motion. It has a split outer race shell into which the roller assembly is inserted. Combination seal/thrust retainer washers protect the bearing from dirt, water, and chemicals. They also help absorb thrust friction (Note: roller bearing must be used with hardened spanner bushing or hardened shaft). This caster is ideal for use in high temperatures associated with baking, performing consistently in temperature ratings of 475°F continuous usage to 525°F intermittent usage. Not only are they resistant to water, oil, and grease, but because they are non-metallic, these wheels are spark proof, keeping you safely moving forward. Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.

What's Included

    (4) Stem Casters

Features + Benefits

  • These Service Caster Series #20 High Temperature Phenolic casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height; 6" wheel: 7-1/8" mounting height.
  • Weight Capacity: 3", 4", 5", and 6": 300 lbs Capacity/Caster
  • All casters feature a 1/2” diameter bolt hole. Bolt hole casters have a hole in the rivet which can accept a bolt or a customized stem for any type of mounting requirement.
  • Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.

Key Specs

AttributeSpecification

item#

5370924

Brand

Service Caster

Ship Weight

13.0 LB

Wheel Diameter

6 in

Caster Type

Swivel

Capacity Class

300-499 Pounds

Load Capacity per Caster

300 lb

Wheel Material

Phenolic

Package (qty.)

4
AttributeSpecification

Wheel Width

1.5 in

Mount Type

Bolt-hole

Finish Type

Bright Zinc Plated Finish

Foot Brake

Yes

Overall Height

7.125 in

Bearing Type

Roller

Product Weight

11.2000 lb

Dimensions L x W x H (in.)

8.0 x 8.0 x 8.0 in
