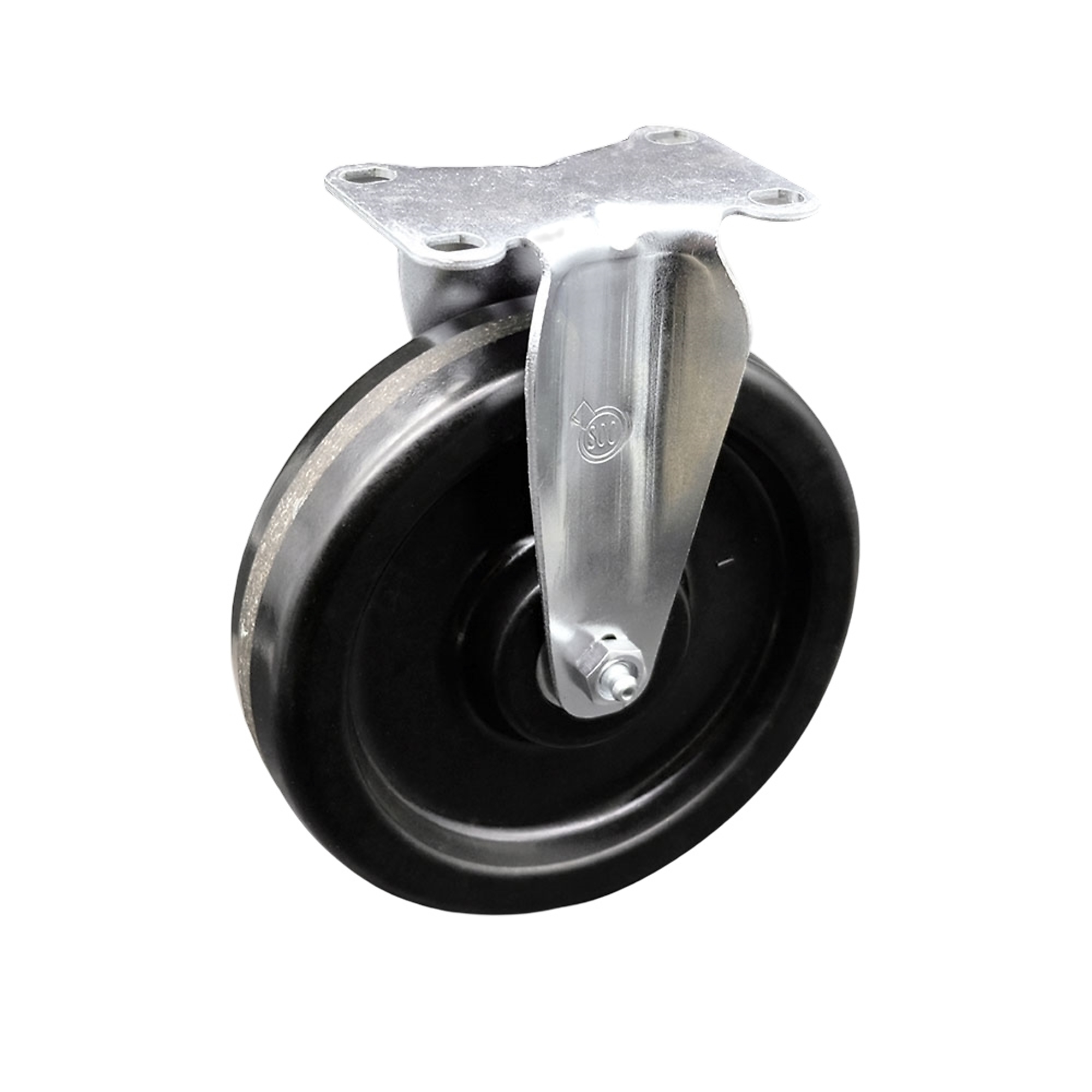

Service Caster, 6in. x 1-1/2in. Plate Caster, Wheel Diameter 6 in, Caster Type Rigid, Package (qty.) 1, Model# SCC-20R615-PHR

Item# 5238691
Service Caster, 6in. x 1-1/2in. Plate Caster, Wheel Diameter 6 in, Caster Type Rigid, Package (qty.) 1, Model# SCC-20R615-PHR

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Service Caster, 6in. x 1-1/2in. Plate Caster, Wheel Diameter 6 in, Caster Type Rigid, Package (qty.) 1, Model# SCC-20R615-PHR

Click or Tap image to Zoom

$44.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only

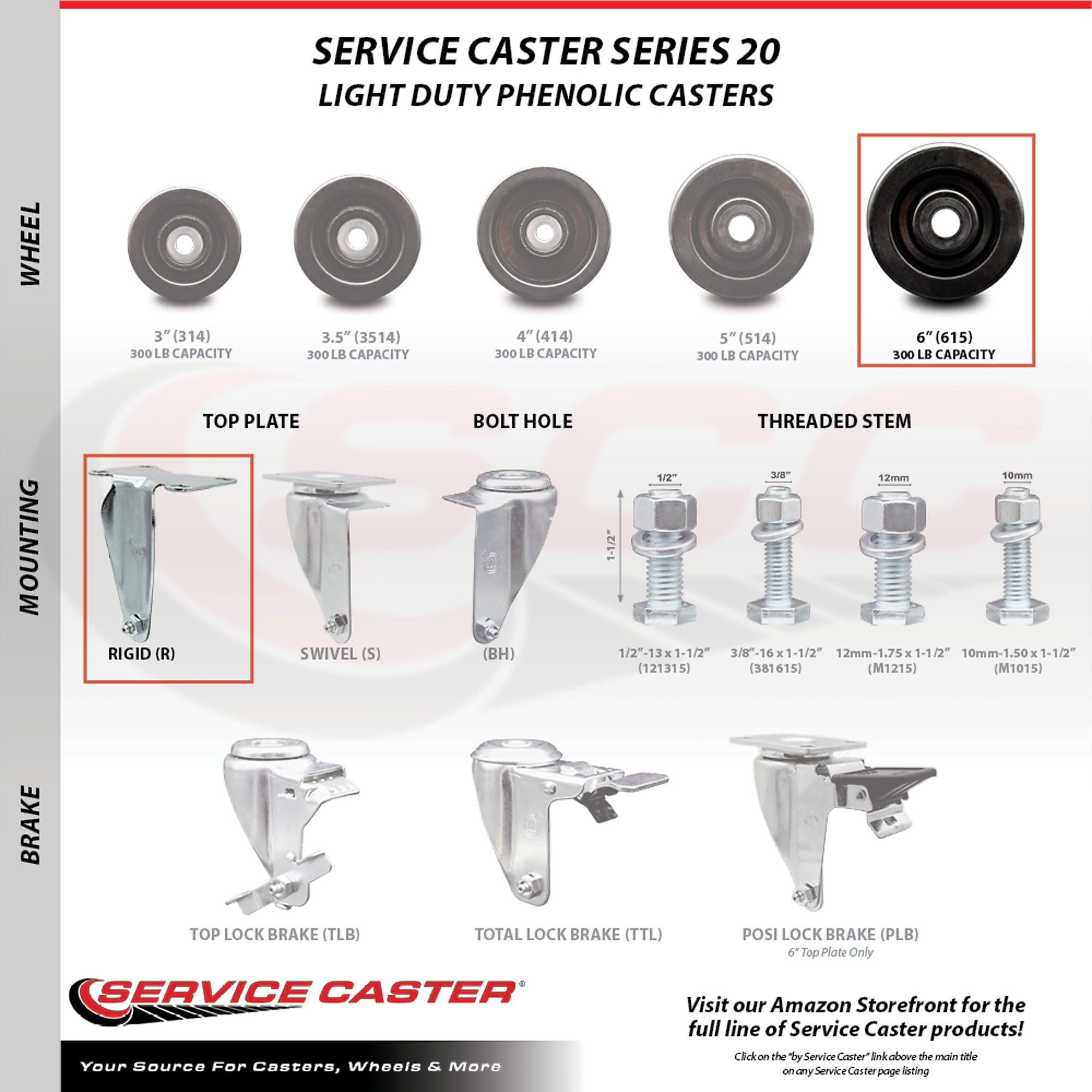

  • These Service Caster Series #20 Phenolic casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height; 6" wheel: 7-1/8" mounting height.
  • Weight Capacity: 3",3.5", 4", 5", and 6": 300 lbs Capacity/Caster

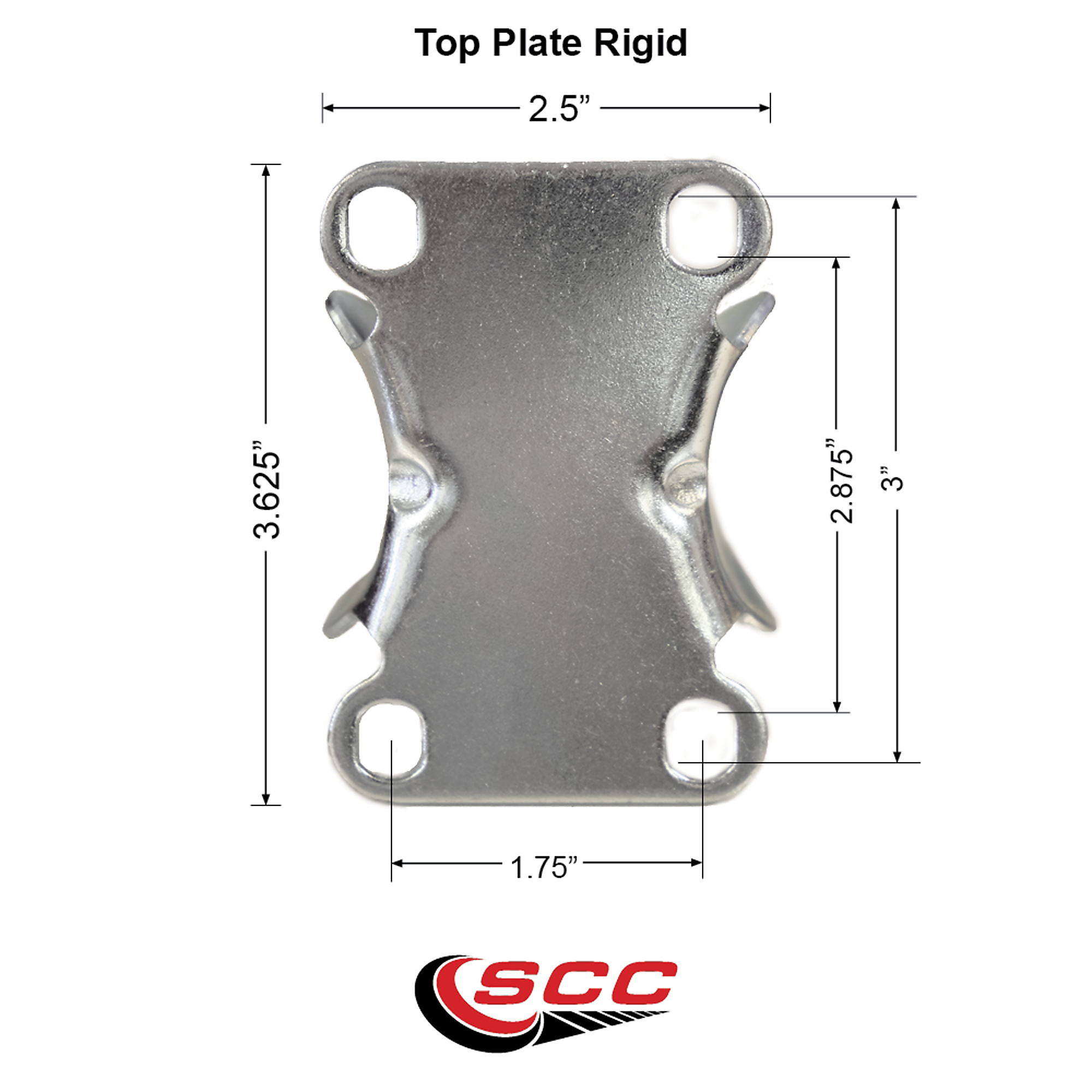

  • Top plate measures at 2-1/2" x 3-5/8" with a bolt hole pattern of 1-3/4" x 2-7/8" to 3" and can either be bolted or welded on.
  • Brake options include a posi lock brake (PLB) or a total lock brake (TTL). The posi lock brake (PLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
  • Bolt Size: 5/16" (hardware not included)

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

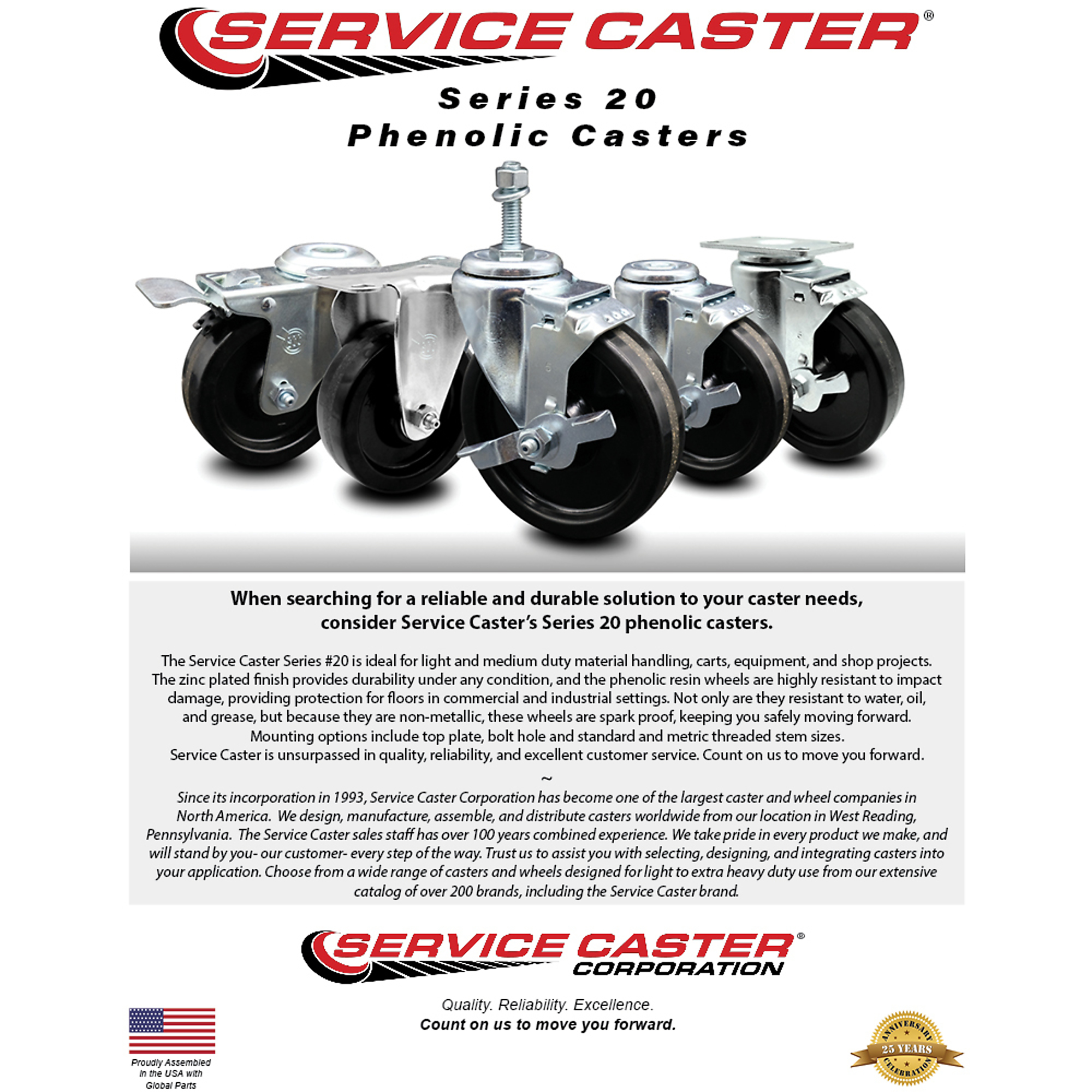

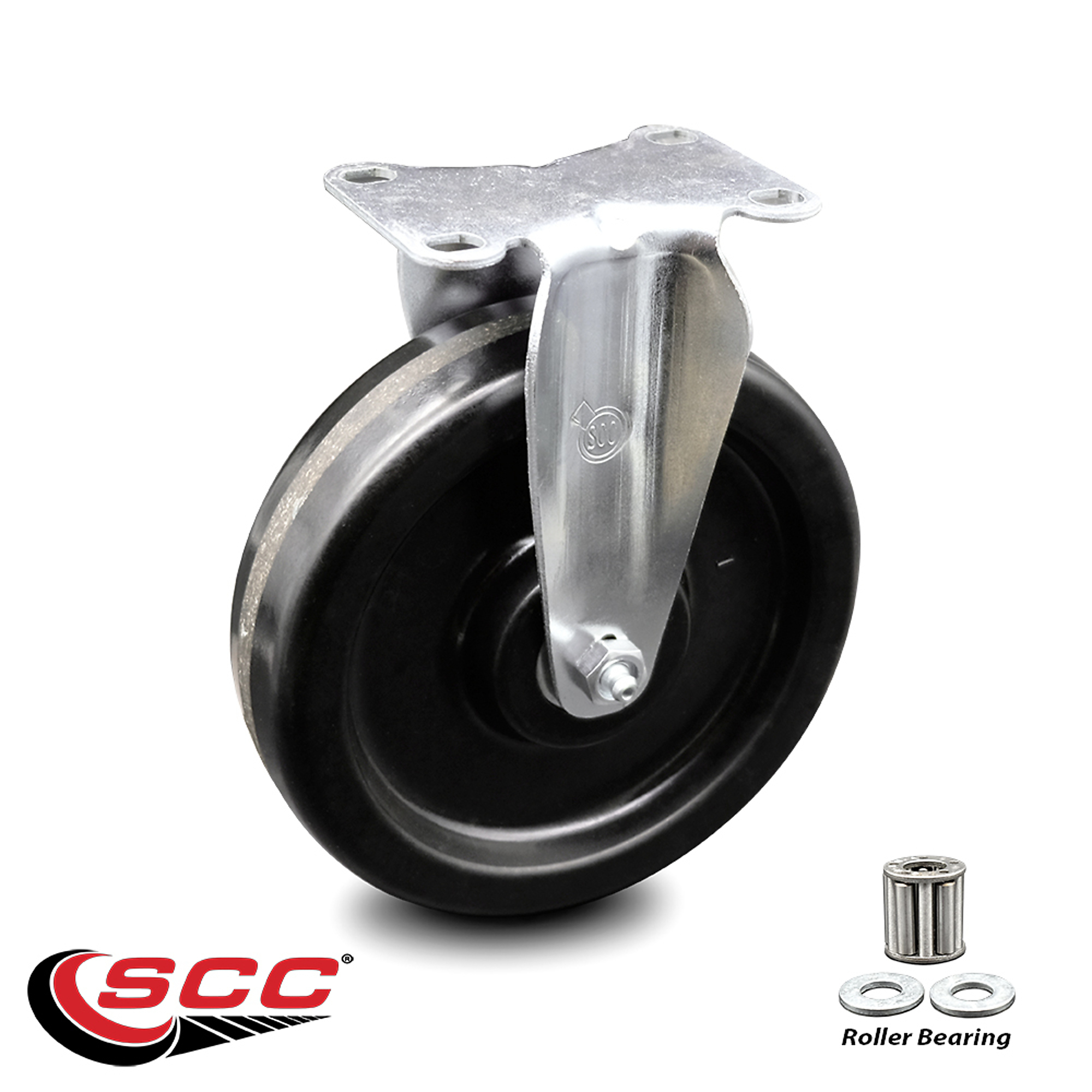

Listing is for one (1) Service Caster Series #20 rigid caster with a 6in. diameter by 1-1/2in. wide phenolic wheel capable of supporting 300lbs./caster.When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 phenolic casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The phenolic wheels have a high resistance to impact damage while providing protection for floors in commercial and industrial settings. Phenolic wheels not only provide higher load capacities and impact resistance than comparable wheels, but are also resistant to most chemicals and oils. Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. All rolling on a finely crafted ball bearing design and zinc plated finish that provides durability under any condition and keeps you safely moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.

What's Included

    (1) Casters

Features + Benefits

  • These Service Caster Series #20 Phenolic casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height; 6" wheel: 7-1/8" mounting height.
  • Weight Capacity: 3",3.5", 4", 5", and 6": 300 lbs Capacity/Caster
  • Top plate measures at 2-1/2" x 3-5/8" with a bolt hole pattern of 1-3/4" x 2-7/8" to 3" and can either be bolted or welded on.
  • Brake options include a posi lock brake (PLB) or a total lock brake (TTL). The posi lock brake (PLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
  • Bolt Size: 5/16" (hardware not included)

Key Specs

AttributeSpecification

item#

5238691

Brand

Service Caster

Ship Weight

2.3 LB

Wheel Diameter

6 in

Caster Type

Rigid

Capacity Class

300-499 Pounds

Load Capacity per Caster

300 lb

Wheel Material

Phenolic

Package (qty.)

1

Wheel Width

1.5 in
AttributeSpecification

Mount Type

Plate-Mount

Finish Type

Bright Zinc Plated Finish

Foot Brake

No

Overall Height

7.125 in

Plate Dimensions

2.5 x 3.625

Bolt Hole Spacing

1.75 x 2.875 to 3

Bearing Type

Roller

Product Weight

2.3000 lb

Dimensions L x W x H (in.)

8.0 x 8.0 x 8.0 in
