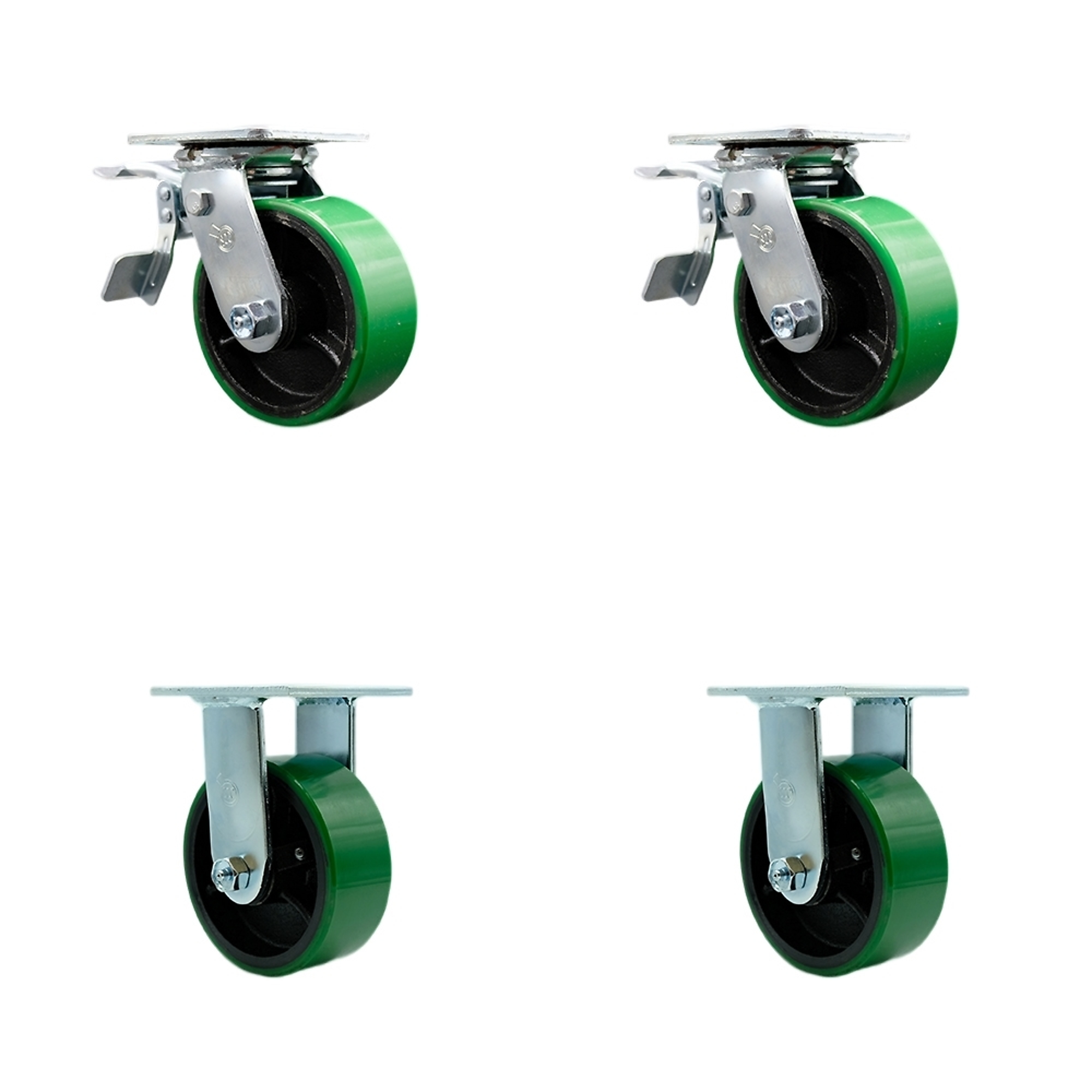

Service Caster, 5in. x 2in. Plate Casters, Wheel Diameter 5 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-TTL30S520-PUR-GB-2-R-2

Item# 5670636
Service Caster, 5in. x 2in. Plate Casters, Wheel Diameter 5 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-TTL30S520-PUR-GB-2-R-2

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Service Caster, 5in. x 2in. Plate Casters, Wheel Diameter 5 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-TTL30S520-PUR-GB-2-R-2

Click or Tap image to Zoom

$334.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • These Service Caster Series #30 Polyurethane on Cast Iron casters offer various wheel sizes and mounting heights: 3-1/4” Wheel: 4-1/4” mounting height; 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height.
  • Weight Capacity: 3.25": 600 lbs Capacity/Caster, 4": 700 lbs Capacity/Caster, 5": 1000 lbs Capacity/Caster, 6": 1200 lbs. Capacity/Caster, and 8": 1250 lbs Capacity/Caster
  • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.
  • Brake options include a top lock brake (TLB), a total lock brake (TTL), or a side lock brake (SLB). The TLB places a positive locking force against the wheel tread, locking the wheel only. The SLB places a positive locking force against the wheel hub, locking the wheel only. The TTL also places a positive locking force against the wheel tread, but the TTL simultaneously locks the wheel and the swivel for a complete stationary position.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

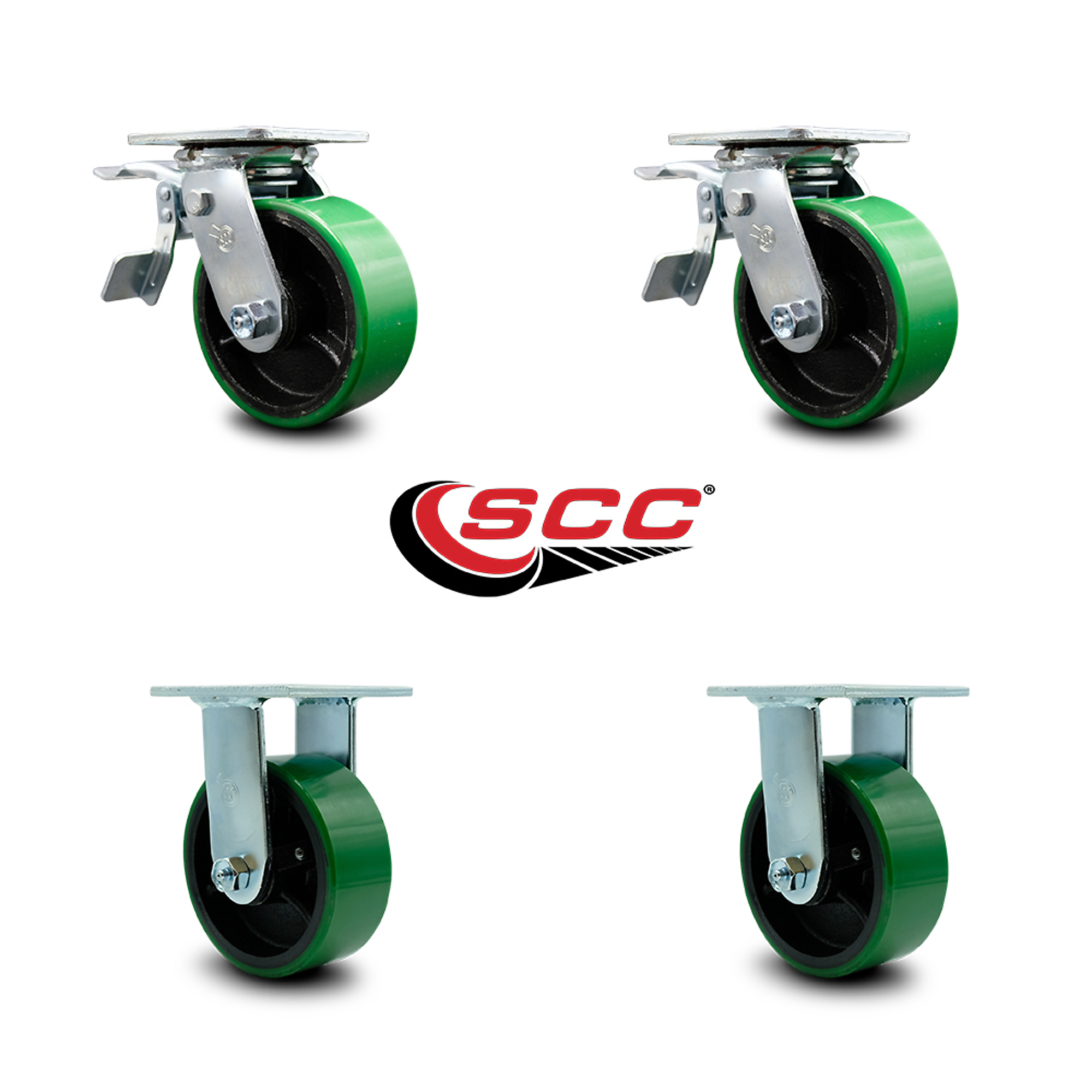

Listing is for a set of four (4) Service Caster Series #30 casters, two (2) Swivel with total lock brakes and two (2) Rigid casters, with 5in. diameter by 2in. wide polyurethane on cast iron wheels capable of supporting a total weight of 4000 lbs. (1,000 lbs./caster).When searching for a reliable and durable solution for medium and heavy duty projects, consider Service Caster’s Series 30 polyurethane on metal wheel casters. The Service Caster Series #30 is ideal for material handling, carts, equipment, and shop projects. The non-marking, non-marring polyurethane tread performs especially well on hard surfaces such as concrete, tile, and wood, while the metal core wheel stands up to heavier loads with a stable and secure roll. Finely crafted with double ball bearing heat treated raceways, these versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for food service carts, hotel housekeeping carts and industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 30, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.

What's Included

    (4) Plate Casters

Features + Benefits

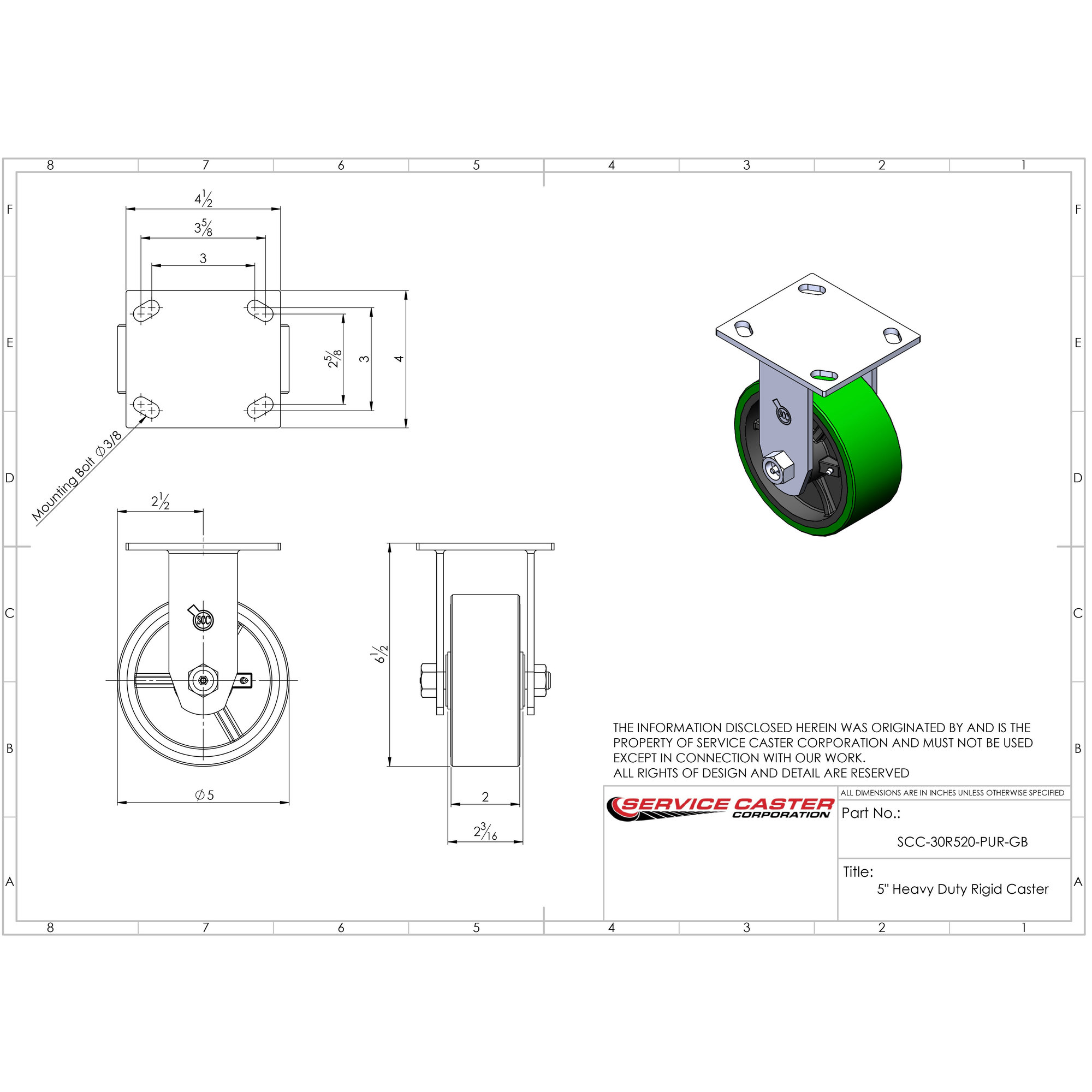

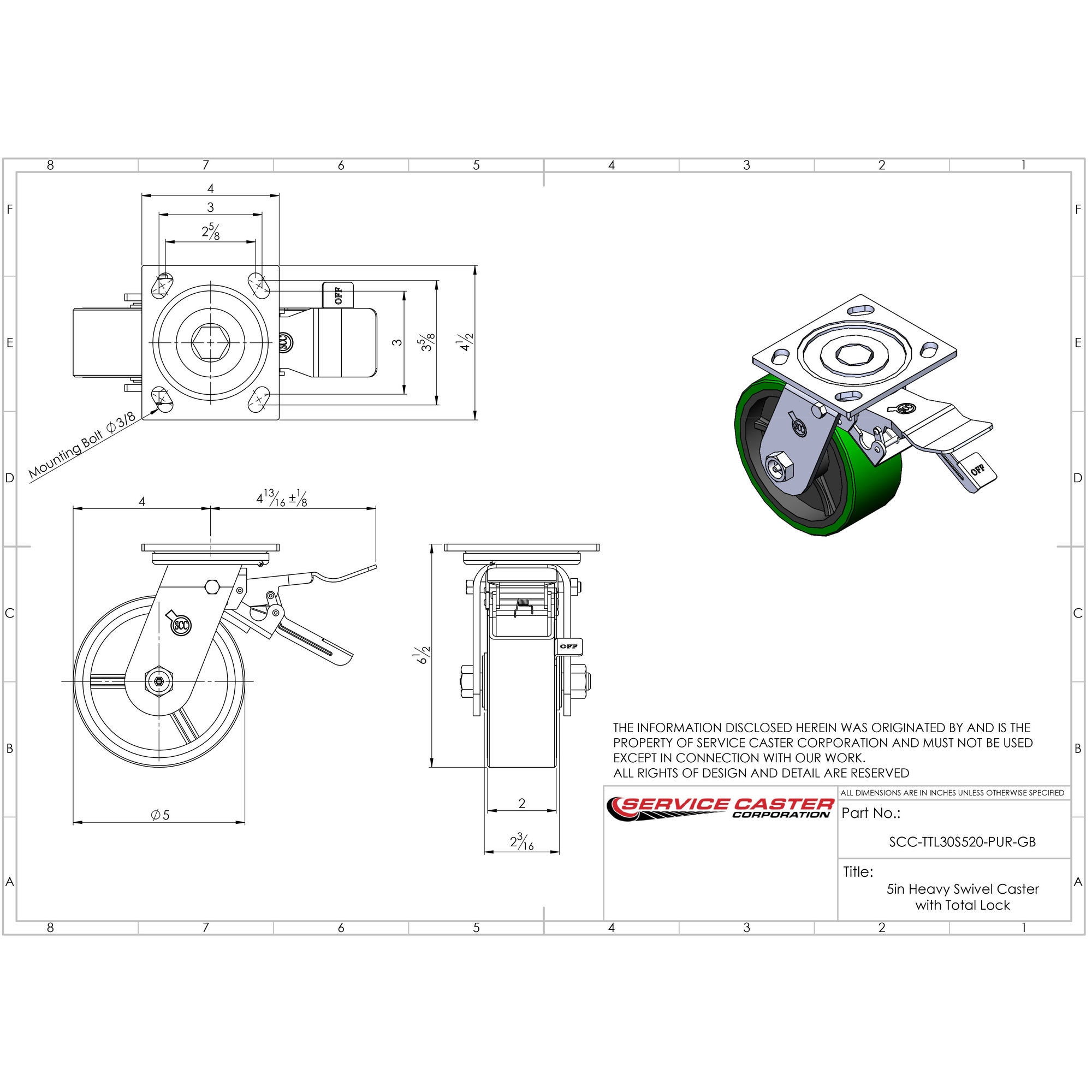

  • These Service Caster Series #30 Polyurethane on Cast Iron casters offer various wheel sizes and mounting heights: 3-1/4” Wheel: 4-1/4” mounting height; 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height.
  • Weight Capacity: 3.25": 600 lbs Capacity/Caster, 4": 700 lbs Capacity/Caster, 5": 1000 lbs Capacity/Caster, 6": 1200 lbs. Capacity/Caster, and 8": 1250 lbs Capacity/Caster

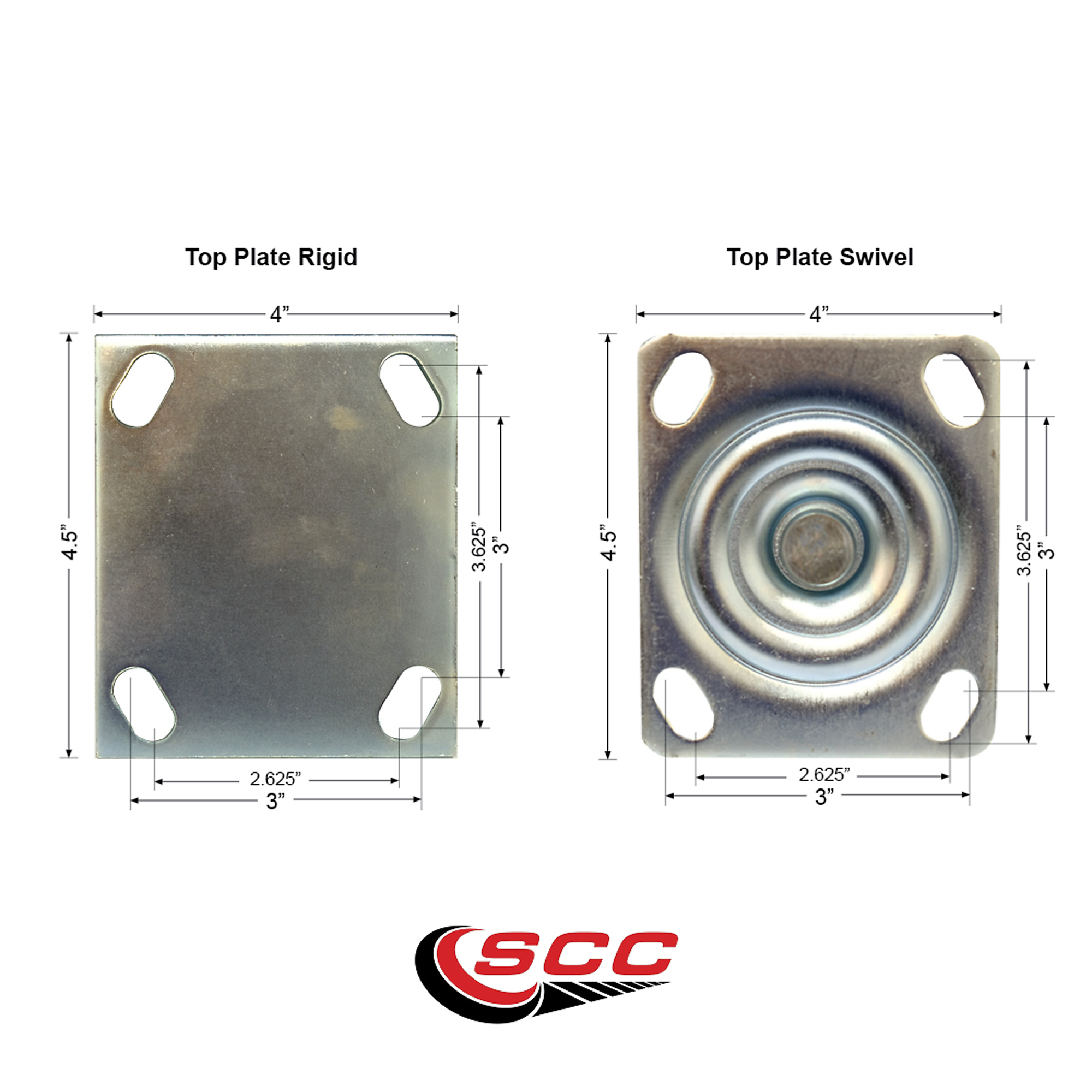

  • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.
  • Brake options include a top lock brake (TLB), a total lock brake (TTL), or a side lock brake (SLB). The TLB places a positive locking force against the wheel tread, locking the wheel only. The SLB places a positive locking force against the wheel hub, locking the wheel only. The TTL also places a positive locking force against the wheel tread, but the TTL simultaneously locks the wheel and the swivel for a complete stationary position.

Key Specs

AttributeSpecification

item#

5670636

Brand

Service Caster

Ship Weight

27.5 LB

Wheel Diameter

5 in

Caster Type

Swivel

Package (qty.)

4

Wheel Material

Poly-on-Steel

Mount Type

Plate

Load Capacity per Caster

1,000 lb
AttributeSpecification

Wheel Width

2 in

Finish Type

Bright Zinc Plated Finish

Plate Dimensions

4 x 4.5

Bolt Hole Spacing

2.625 x 3.625 to 3 x 3

Foot Brake

Yes

Overall Height

6.5 in

Bearing Type

Roller

Product Weight

27.5000 lb

Dimensions L x W x H (in.)

12.0 x 12.0 x 7.5 in
