Service Caster, 5in. x 1 1/4in. Stem Casters, Wheel Diameter 5 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-GR20S514-GFNSHT-TLB-716138-4

Item# 5625341
Service Caster, 5in. x 1 1/4in. Stem Casters, Wheel Diameter 5 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-GR20S514-GFNSHT-TLB-716138-4

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Service Caster, 5in. x 1 1/4in. Stem Casters, Wheel Diameter 5 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-GR20S514-GFNSHT-TLB-716138-4

Click or Tap image to Zoom

$229.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • These Service Caster Series #20 High Temperature Glass Filled Nylon casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height.
  • Weight Capacity: 350 lbs Capacity/Caster

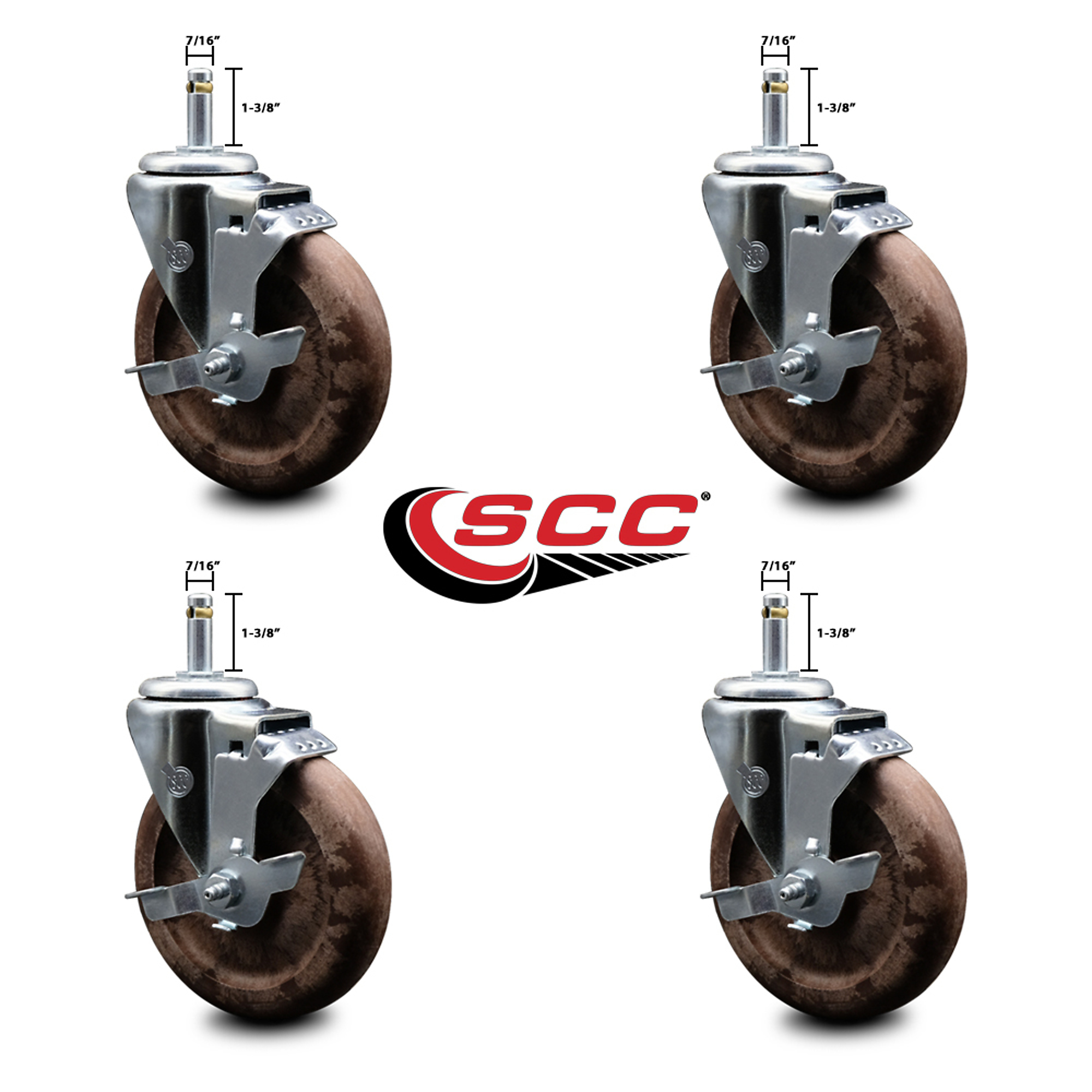

  • All casters feature a 7/16” diameter by 1-3/8” long grip ring stem. Service Caster recommends using a drill or hardware gauge, a 7/16” wrench, or our paper wrap method to ensure the grip ring stem diameter needed is 7/16”. Paper Wrap Method: take a small strip of paper and wrap it around the stem. Mark the paper with a pen where it overlaps, keep the wrap tight. Measure the strip from the start of the wrap to the mark. The ruler should measure 1-3/8". Don’t see the size you need? Call us!
  • Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB), which is featured on 3", 3-1/2", 4", and 5" wheel sizes, places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL), which is featured on all wheel sizes, also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

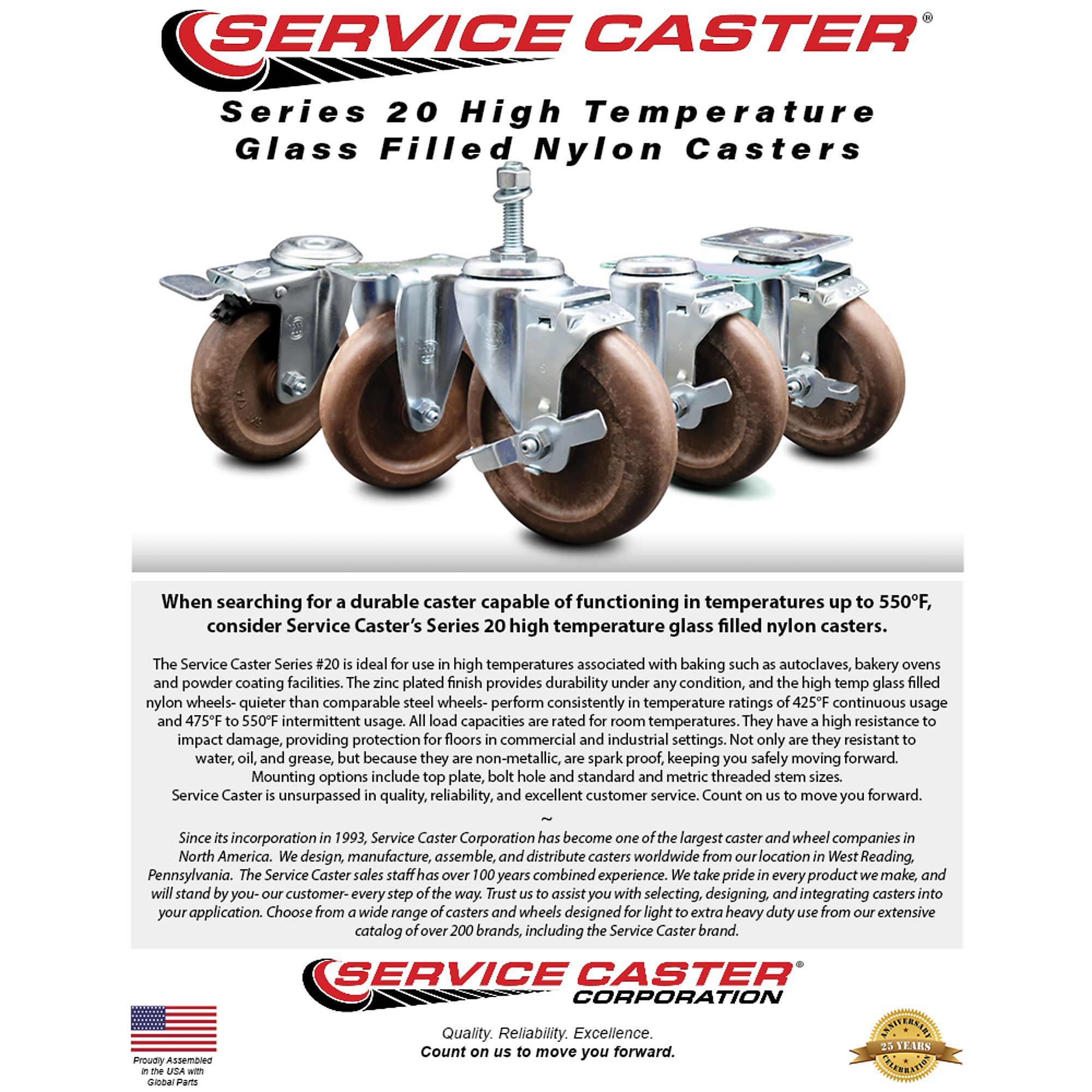

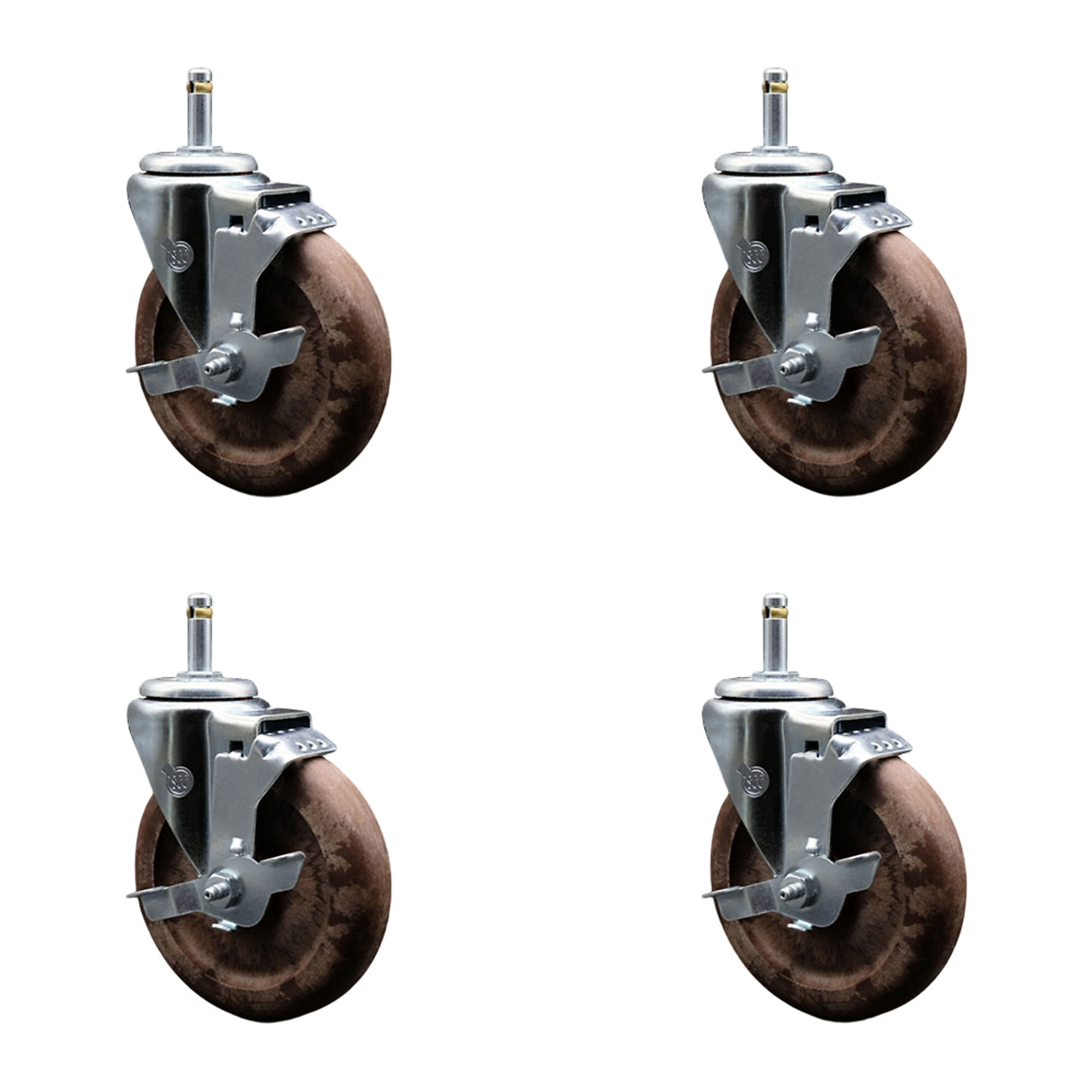

Listing is for a set of four (4) Service Caster Series #20 swivel casters, four (4) Swivel 7/16in. grip ring stem casters with top lock brakes, 5” diameter by 1-1/4” wide high temp glass filled nylon wheels. Supports a total weight of 1400lbs (350lbs/per caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster Series 20 grip ring stem high temp glass filled nylon wheel casters. The Service Caster Series #20 is ideal for autoclaves, bakery ovens and powder coating facilities. The zinc plated finish provides durability under any condition, and the high temp glass filled nylon wheels- quieter than comparable steel wheels- have a high resistance to impact damage, providing protection for floors in commercial and industrial settings. This caster is ideal for use in high temperatures associated with baking, performing consistently in temperature ratings of 475°F continuous usage to 550°F intermittent usage. Not only are they resistant to water, oil, and grease, but because they are non-metallic, these wheels are spark proof, keeping you safely moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.

What's Included

    (4) Stem Casters

Features + Benefits

  • These Service Caster Series #20 High Temperature Glass Filled Nylon casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height.
  • Weight Capacity: 350 lbs Capacity/Caster
  • All casters feature a 7/16” diameter by 1-3/8” long grip ring stem. Service Caster recommends using a drill or hardware gauge, a 7/16” wrench, or our paper wrap method to ensure the grip ring stem diameter needed is 7/16”. Paper Wrap Method: take a small strip of paper and wrap it around the stem. Mark the paper with a pen where it overlaps, keep the wrap tight. Measure the strip from the start of the wrap to the mark. The ruler should measure 1-3/8". Don’t see the size you need? Call us!
  • Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB), which is featured on 3", 3-1/2", 4", and 5" wheel sizes, places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL), which is featured on all wheel sizes, also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.

Key Specs

AttributeSpecification

item#

5625341

Brand

Service Caster

Ship Weight

10.0 LB

Wheel Diameter

5 in

Caster Type

Swivel

Package (qty.)

4

Wheel Material

Glass Filled Nylon

Mount Type

Stem

Load Capacity per Caster

1,400 lb
AttributeSpecification

Wheel Width

1.25 in

Finish Type

Bright Zinc Plated Finish

Foot Brake

Yes

Overall Height

6.125 in

Stem Length

1.375 in

Stem Diameter

0.4375 in

Bearing Type

Plain

Product Weight

2.1000 lb

Dimensions L x W x H (in.)

8.0 x 8.0 x 8.0 in
