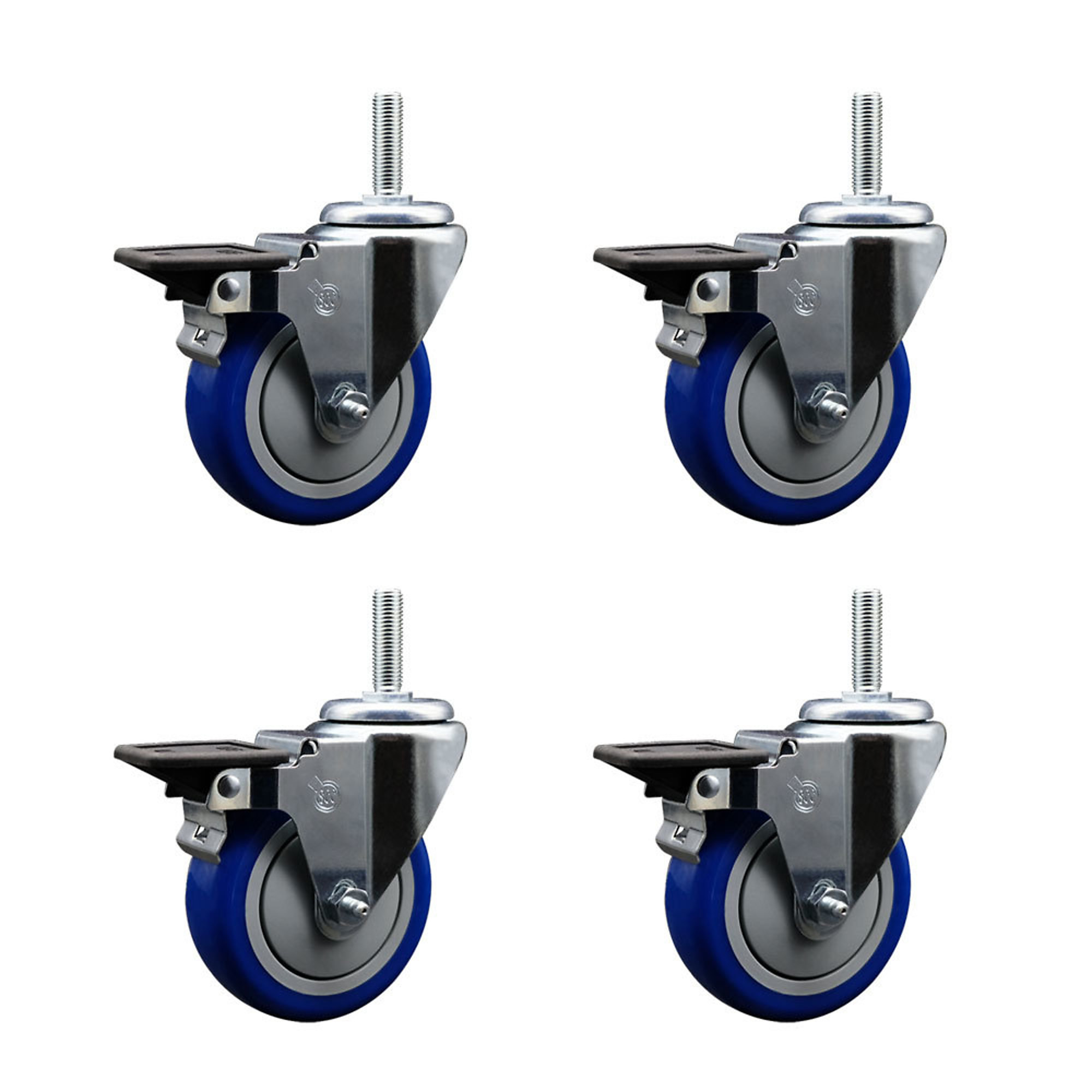

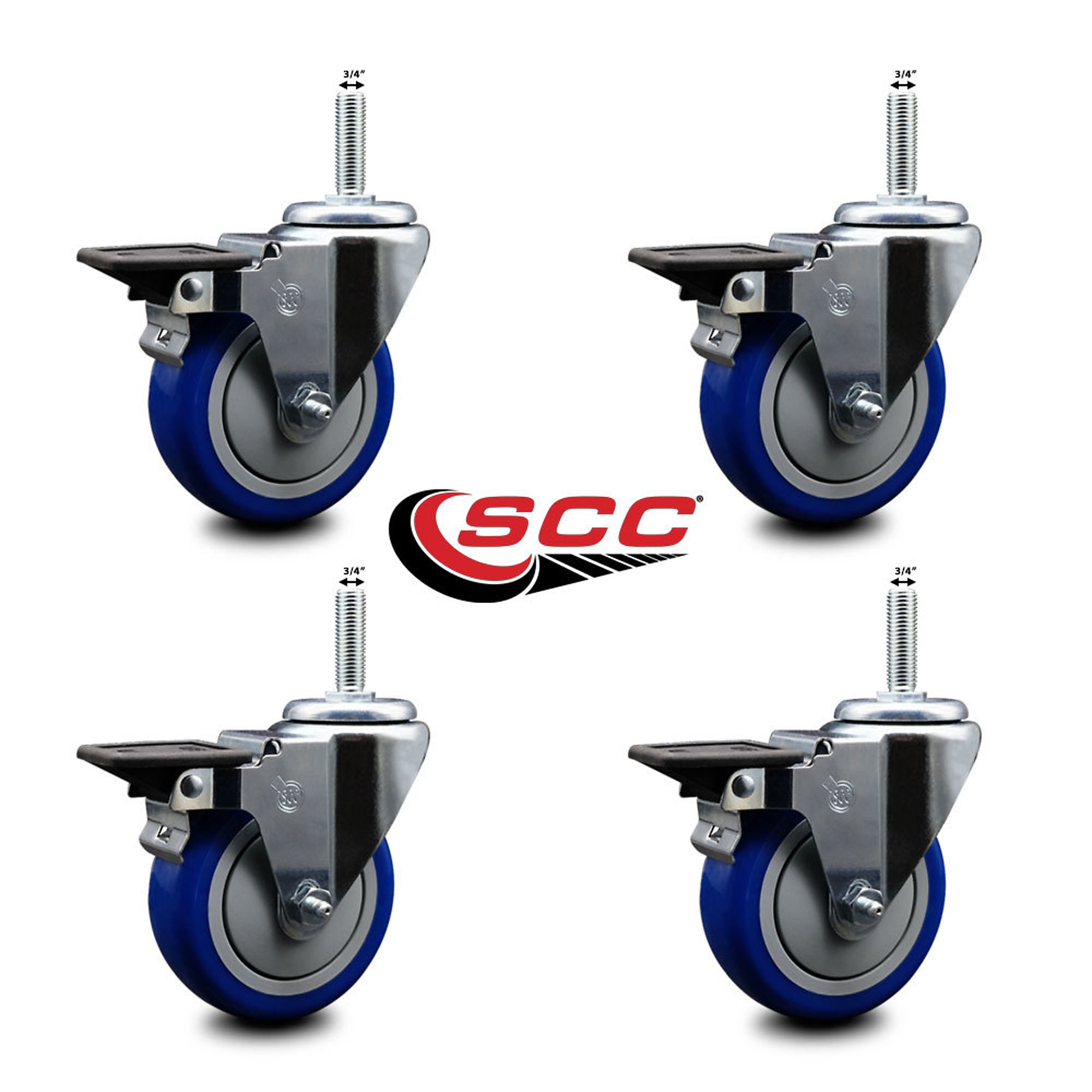

Service Caster, 5in. x 1 1/4in. Stem Casters, Wheel Diameter 4 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-TS20S414-PPUB-BLUE-PLB-34212-4
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom

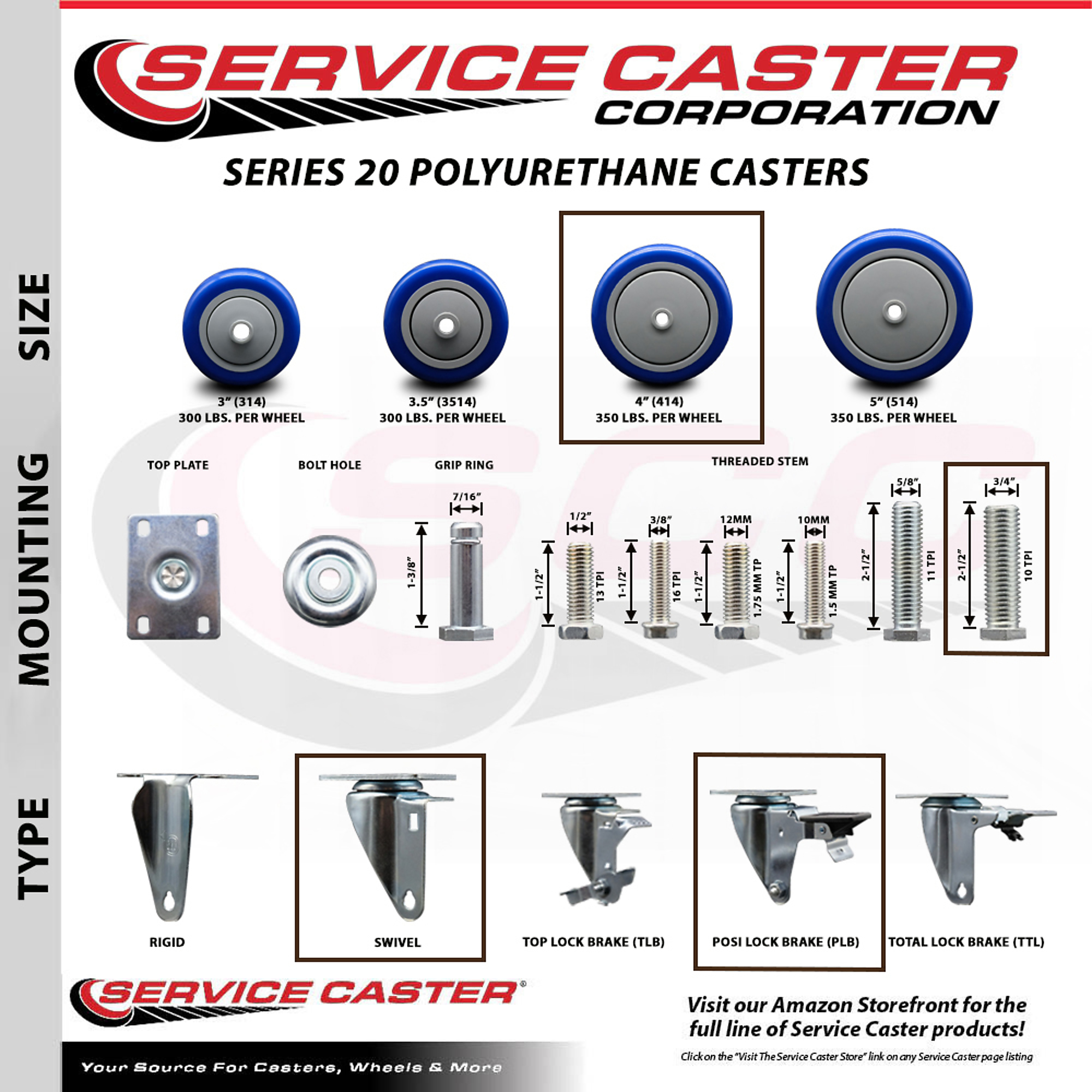

- These Service Caster Series #20 Polyurethane casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height; 6” wheel: 7-1/8” mounting height. Wheels are offered in five different colors – Gray, Blue, Black, Maroon, and Red.
- Weight Capacity: 3" and 3.5": 300 lbs Capacity/Caster; 4", 5", and 6": 350 lbs Capacity/Caster
- All casters feature a 3/4" diameter (10 TPI x 2-1/2”) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button.
- Brake options include a top lock brake, a total lock brake, or a posi lock brake. The top lock brake places a positive locking force against the wheel tread locking the wheel only. The total lock brake simultaneously locks the wheel and the swivel for a complete stationary position. The posi lock brake places a positive locking force against the wheel tread similar to the top lock brake, but the pedal is located above the wheel tread rather than on the side of the wheel.
See full description
See All 1,000 - 1,499 Lbs.
See All Service Caster 1,000 - 1,499 Lbs.
Currently Viewing This Product
Specifications
4 in
8 in
6 in
8 in
Swivel
Swivel
Swivel
Swivel
4
1
1
1
Non-Marking Poly-on-Poly
Polyurethane
Polyurethane
Polyurethane
Stem
Plate
Plate
Plate
1,400 lb
1,474 lb
1,210 lb
1,474 lb
1.25 in
8 in
6 in
8 in
Bright Zinc Plated Finish
Zinc Plated
White Zinc
Zinc Plated
Yes
Yes
Yes
Yes
5.125 in
9.5 in
7.5 in
9.5 in
2.5 in
-
-
-
0.75 in
-
-
-
Sealed
Ball
Ball
Ball
16.0000 lb
11.0000 lb
9.0000 lb
10.0000 lb
8.0 x 8.0 x 8.0 in
8.75 x 4.0 x 9.5 in
8.0 x 4.0 x 7.5 in
8.75 x 5.0 x 9.5 in
-
4 X 4 1/2
4 X 4 1/2
4 X 4 1/2
-
No
No
No
-
No
No
No
-
-
3 x 3
-
