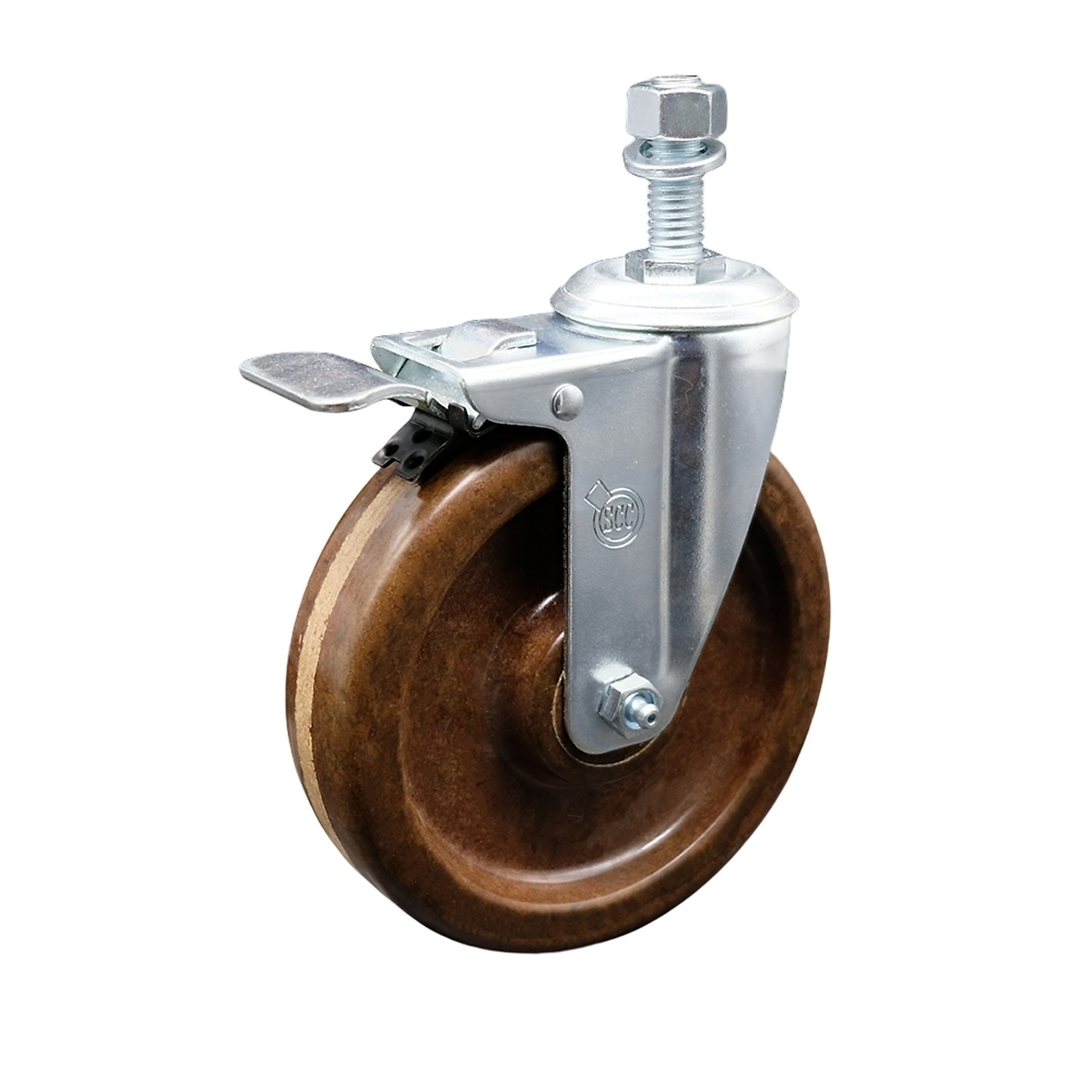

Service Caster, 5in. x 1 1/4in. Stem Caster, Wheel Diameter 5 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-SSTSTTL20S514-PHSHT-M1215

Item# 5529704
Service Caster, 5in. x 1 1/4in. Stem Caster, Wheel Diameter 5 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-SSTSTTL20S514-PHSHT-M1215

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Service Caster, 5in. x 1 1/4in. Stem Caster, Wheel Diameter 5 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-SSTSTTL20S514-PHSHT-M1215

Click or Tap image to Zoom

$134.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only

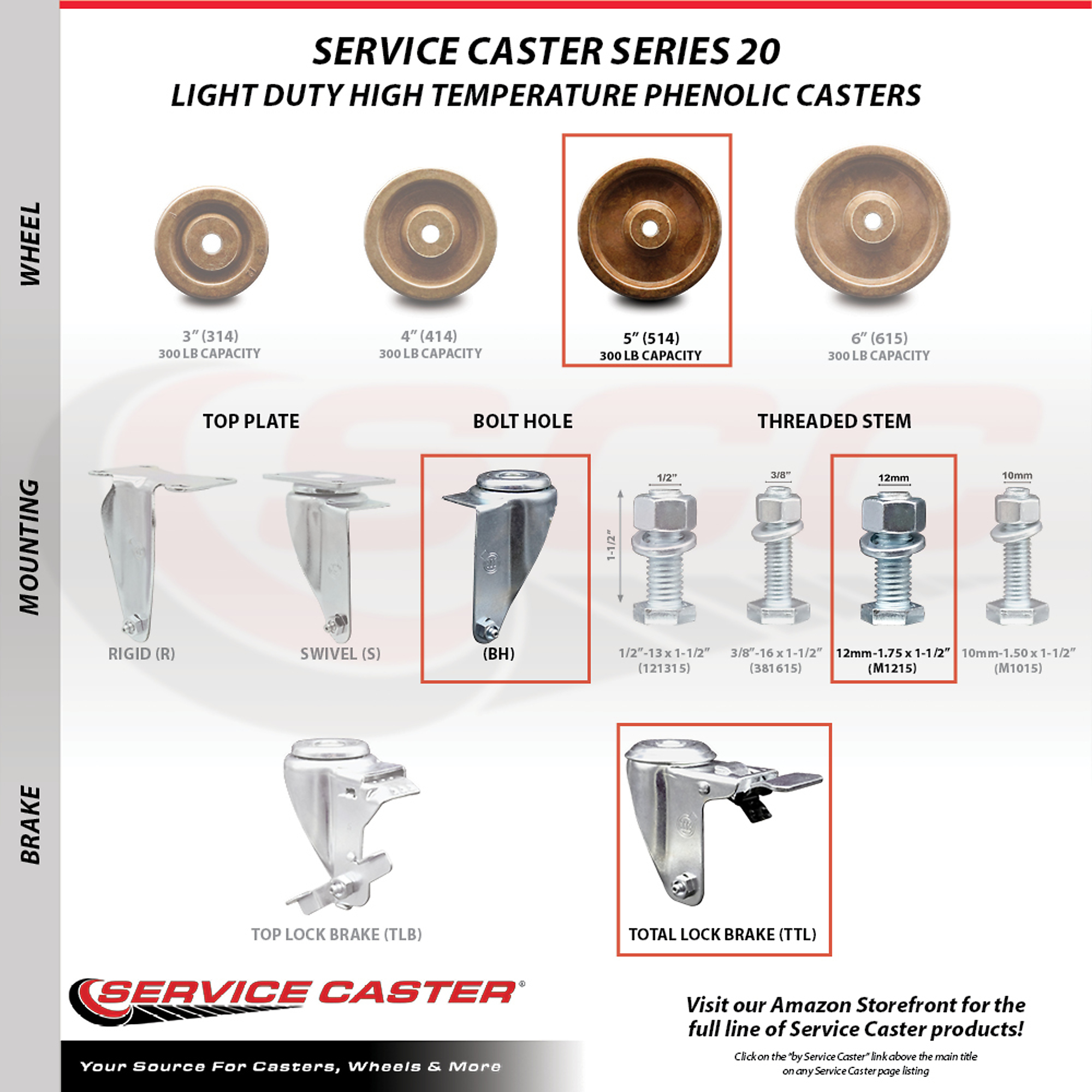

  • These Service Caster Series #20 High Temperature Phenolic casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height.
  • Weight Capacity: 300 lbs Capacity/Caster

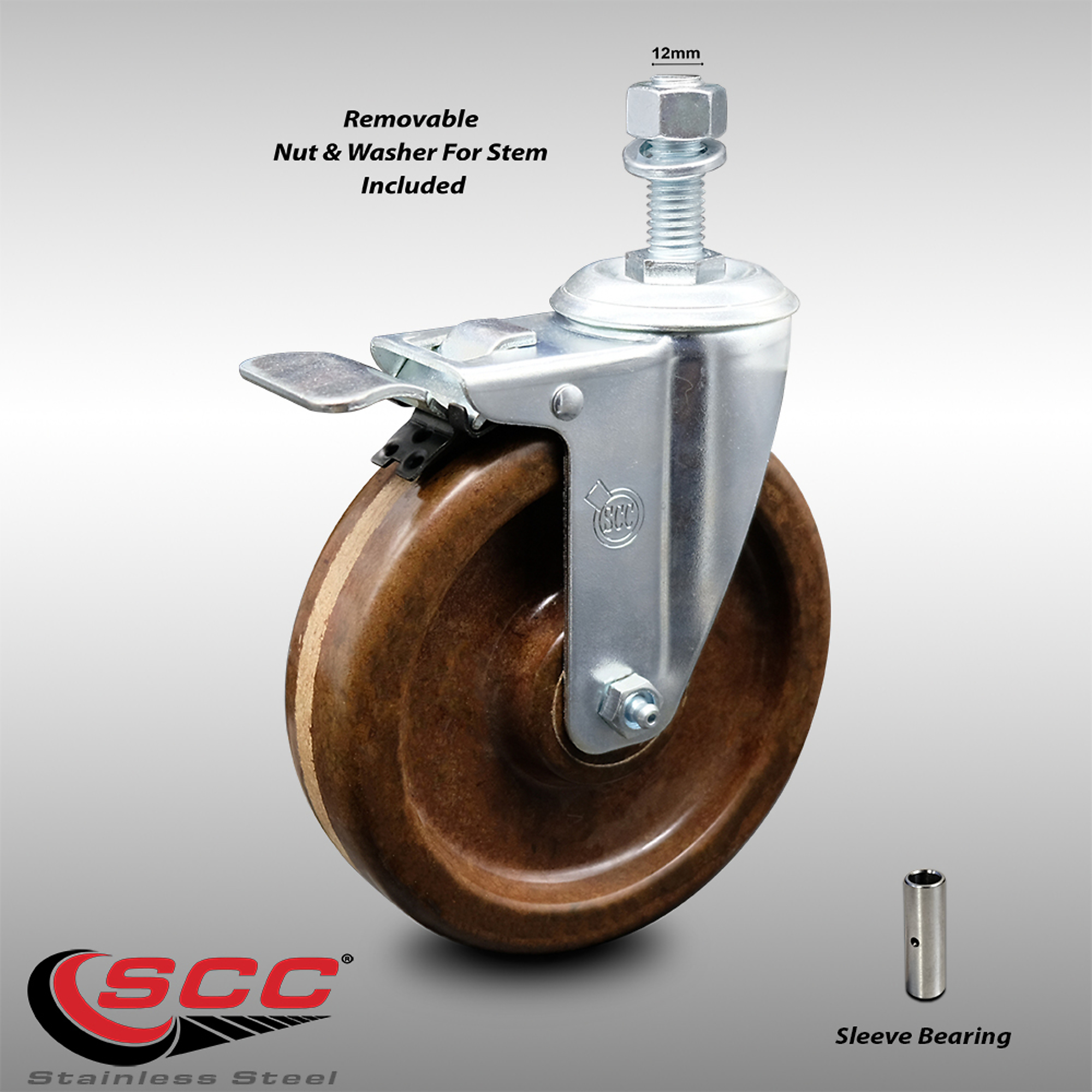

  • All casters feature a 12mm diameter (1.75 TPI x 1-1/2”) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button.
  • Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

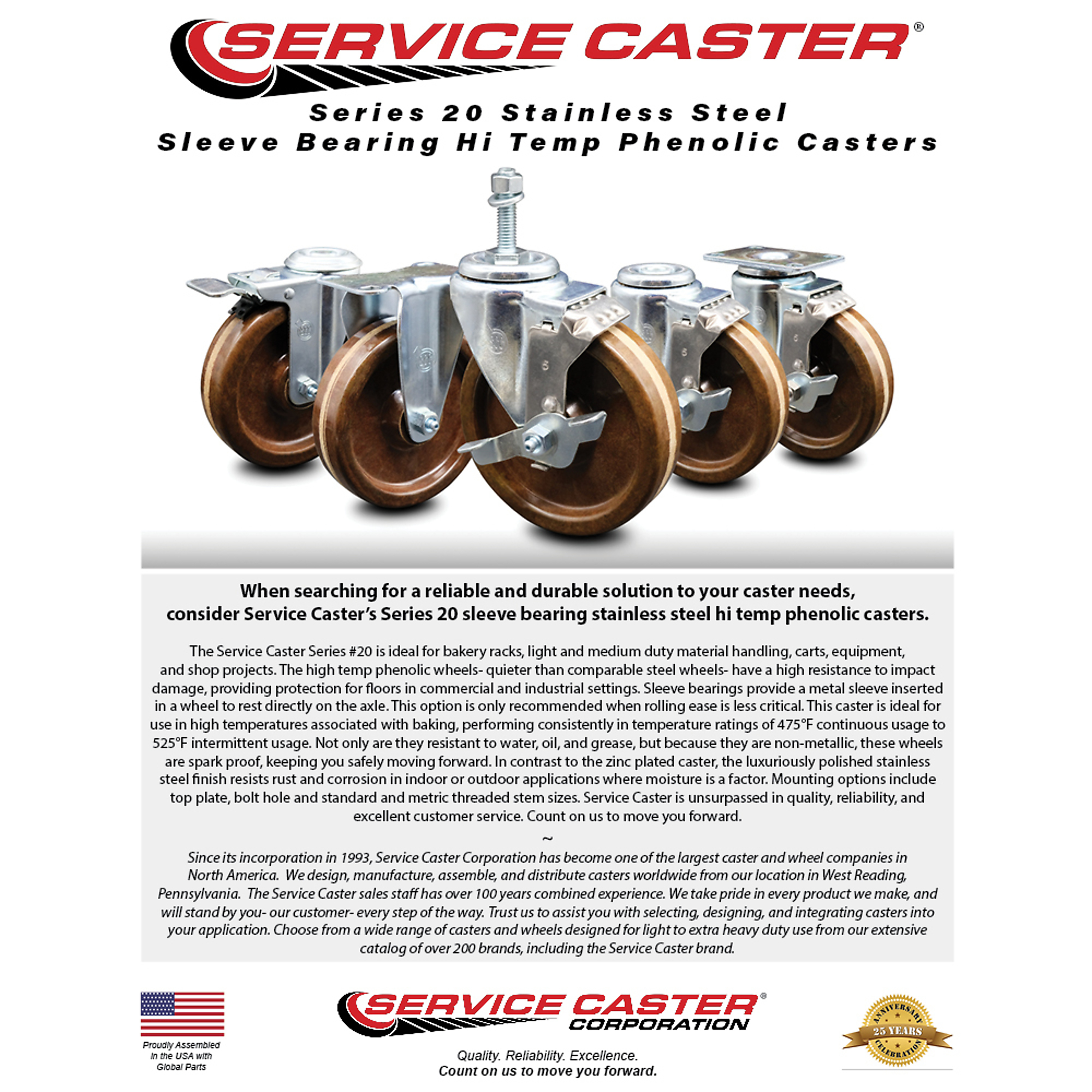

Listing is for one (1) Service Caster Series #20 stainless steel swivel caster with a 5in. diameter by 1-1/4in. wide high temp phenolic wheel and a 12mm-1.75 X 1-1/2in. metric threaded stem with total lock brake capable of supporting 300 lbs./caster.When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 sleeve bearing stainless steel hi temp phenolic casters. The Service Caster Series #20 is ideal for bakery racks, light and medium duty material handling, carts, equipment, and shop projects. The high temp phenolic wheels- quieter than comparable steel wheels- have a high resistance to impact damage, providing protection for floors in commercial and industrial settings. Sleeve bearings provide a metal sleeve inserted in a wheel to rest directly on the axle. This option is only recommended when rolling ease is less critical. This caster is ideal for use in high temperatures associated with baking, performing consistently in temperature ratings of 475°F continuous usage to 525°F intermittent usage. Not only are they resistant to water, oil, and grease, but because they are non-metallic, these wheels are spark proof, keeping you safely moving forward. In contrast to the zinc plated caster, the luxuriously polished stainless steel finish resists rust and corrosion in indoor or outdoor applications where moisture is a factor. Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.

What's Included

    (1) Stem Caster

Features + Benefits

  • These Service Caster Series #20 High Temperature Phenolic casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height.
  • Weight Capacity: 300 lbs Capacity/Caster
  • All casters feature a 12mm diameter (1.75 TPI x 1-1/2”) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button.
  • Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.

Key Specs

AttributeSpecification

item#

5529704

Brand

Service Caster

Ship Weight

2.05 LB

Wheel Diameter

5 in

Caster Type

Swivel

Package (qty.)

1

Wheel Material

Phenolic

Mount Type

Stem

Load Capacity per Caster

300 lb
AttributeSpecification

Wheel Width

1.25 in

Finish Type

Polished Stainless Steel

Foot Brake

Yes

Overall Height

6.125 in

Stem Length

1.5 in

Stem Diameter

12MM in

Bearing Type

Plain

Product Weight

2.0500 lb

Dimensions L x W x H (in.)

5.0 x 5.0 x 5.0 in
