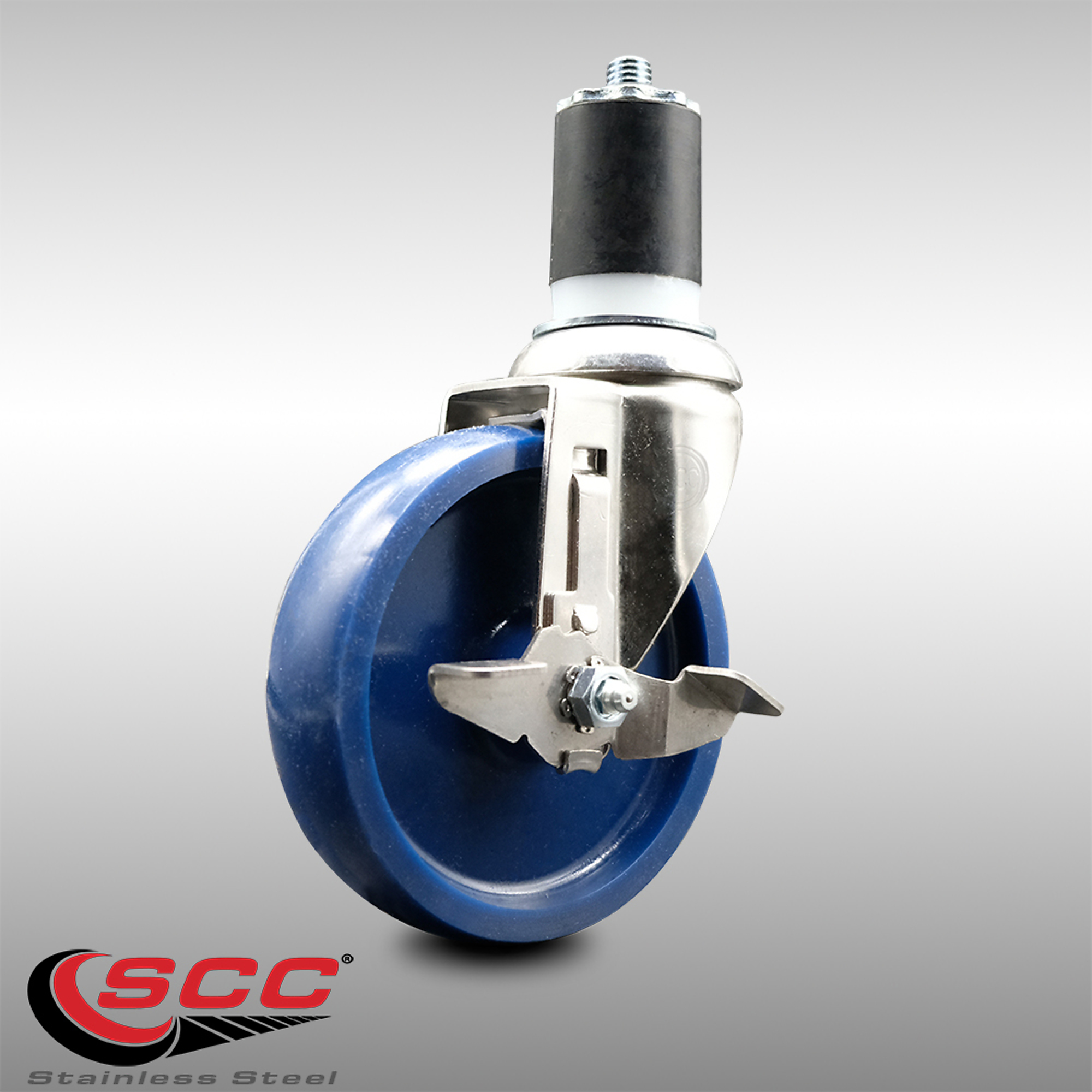

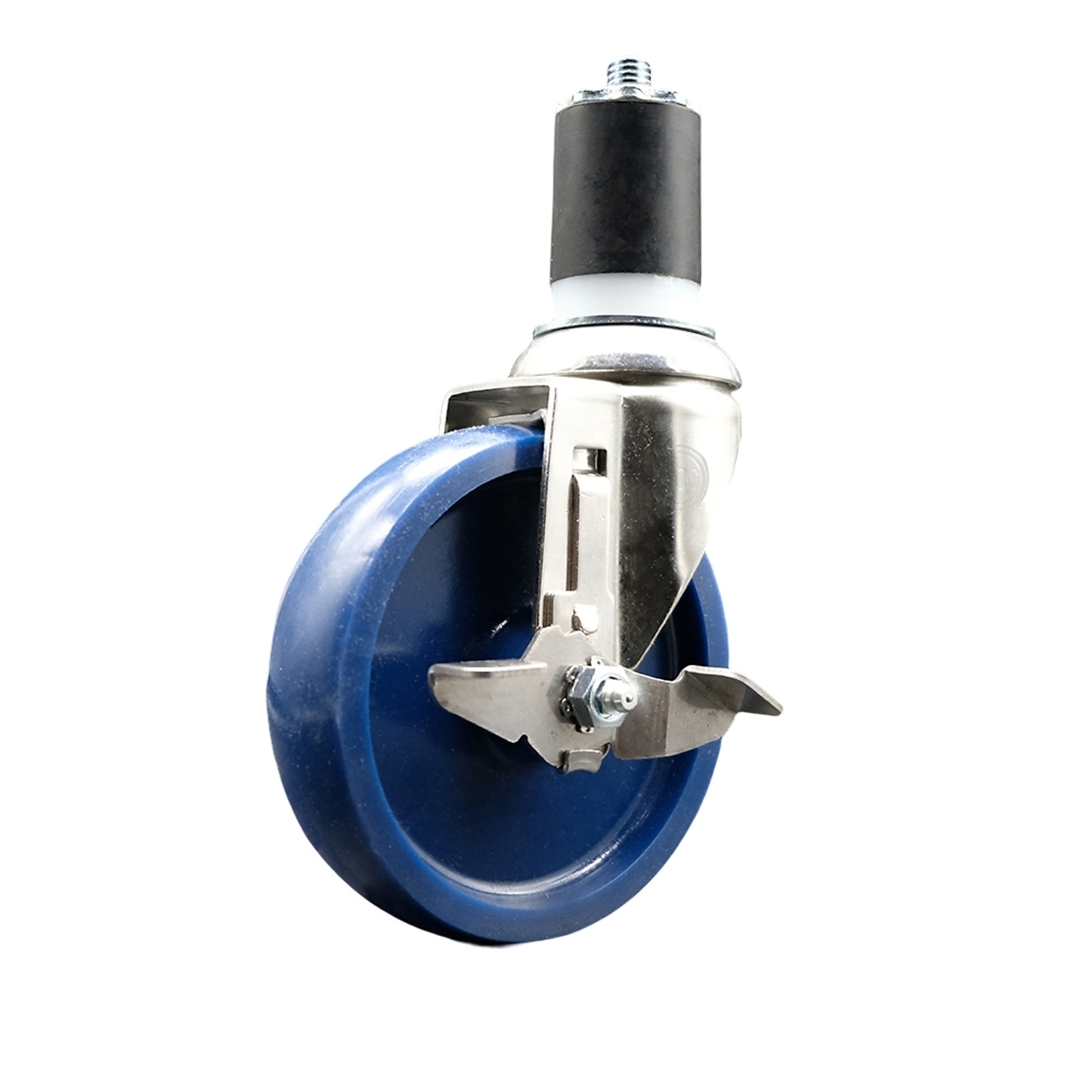

Service Caster, 5in. x 1 1/4in. Stem Caster, Wheel Diameter 5 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-SS316EX20S514-SPUS-TLB-178
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom

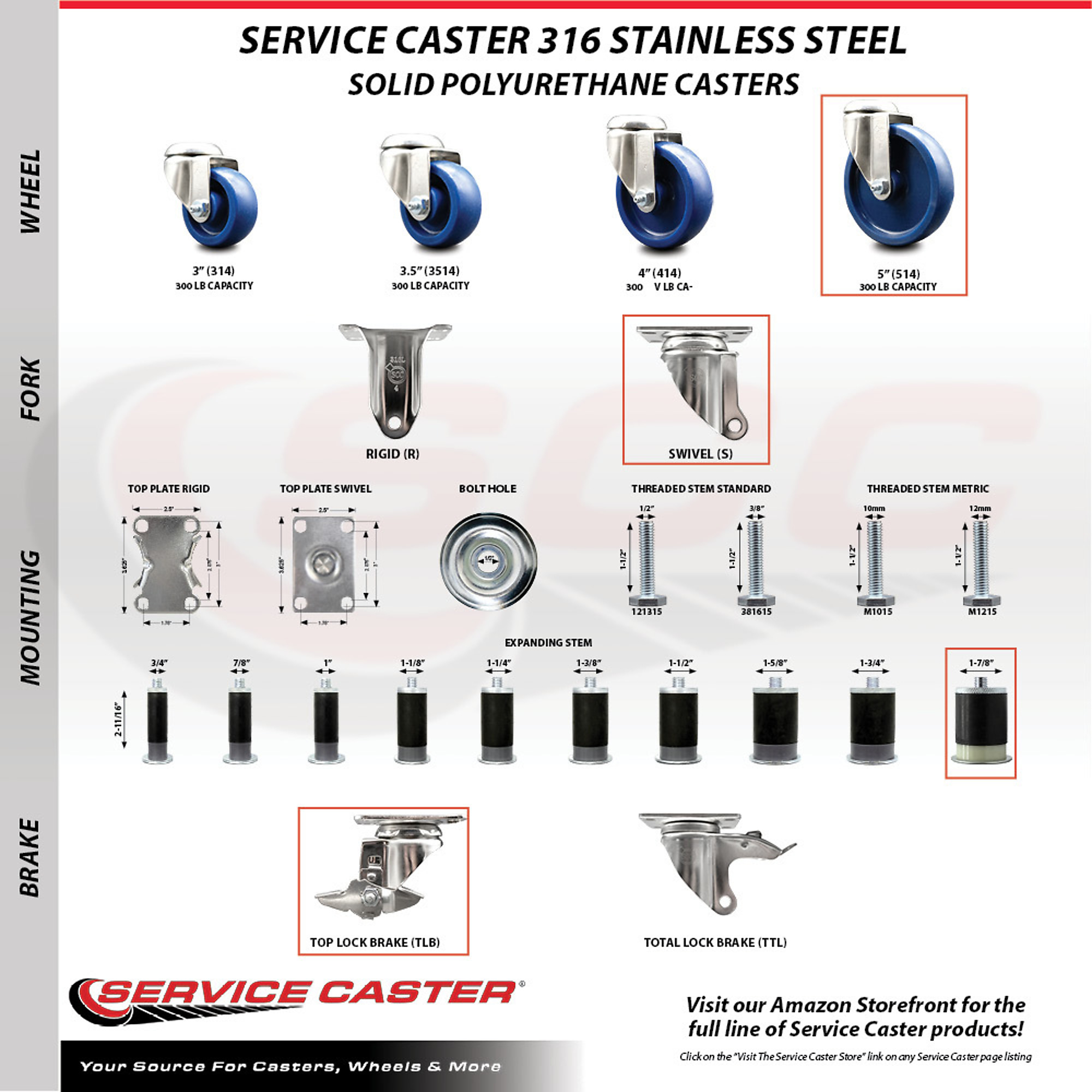

- These Service Caster Series #20 Solid Polyurethane casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height.
- Weight Capacity: 3", 3.5", 4",and 5": 300 lbs Capacity/Caster
- All casters feature an expanding stem that is 2-11/16” in length. The expanding stem comes in 10 different diameters: (3/4”, 7/8”, 1”, 1-1/8”, 1-1/4”, 1-3/8”, 1-1/2”, 1-5/8”, 1-3/4”, and 1-7/8”). Before ordering, Service Caster recommends measuring the inside diameter of your tubing- this measurement will determine the corresponding expanding stem diameter needed. Not sure how to measure or don't see the size you need? Call us or send us a message.
- Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB), which is featured on 3", 3-1/2", 4", and 5" wheel sizes, places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL), which is featured on all wheel sizes, also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
See full description
See All 300 - 499 Lbs.
See All Service Caster 300 - 499 Lbs.
Currently Viewing This Product
Specifications
5 in
4 in
5 in
4 in
Swivel
Swivel
Swivel
Swivel
1
1
1
1
Polyurethane
Thermoplastic Rubber
Rubber
Rubber
Stem
Plate
Plate
Plate
300 lb
485 lb
440 lb
396 lb
1.25 in
4 in
5 in
4 in
316 Polished Stainless Steel
Zinc Plated
Zinc Plated
Zinc Plated
Yes
No
No
No
6.125 in
5.5 in
6.5 in
6.5 in
2.6875 in
-
-
-
1.875 in
-
-
-
Plain
Ball
Roller
Roller
1.9500 lb
5.0000 lb
7.0000 lb
5.0000 lb
8.0 x 8.0 x 8.0 in
5.625 x 4.0 x 5.5 in
6.5 x 4.0 x 6.5 in
5.0 x 4.0 x 6.5 in
-
4 X 4 1/2
4 X 4 1/2
4 X 4 1/2
-
No
No
No
-
No
No
No
