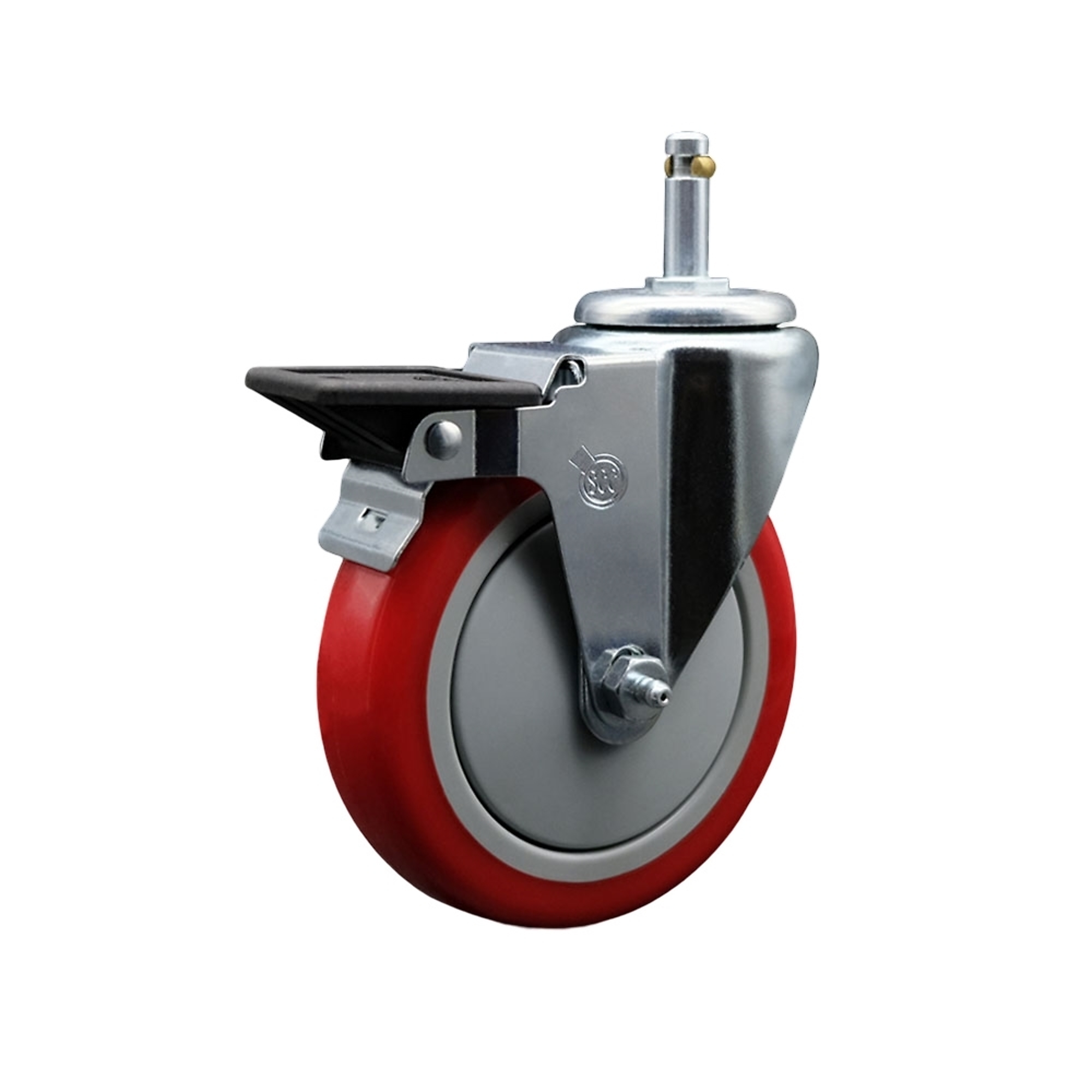

Service Caster, 5in. x 1 1/4in. Stem Caster, Wheel Diameter 5 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-GR20S514-PPUB-RED-PLB-716138
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- These Service Caster Series #20 Polyurethane casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height; 6” wheel: 7-1/8” mounting height. Wheels are offered in five different colors – Gray, Blue, Black, Maroon, and Red.
- Weight Capacity: 3" and 3.5": 300 lbs Capacity/Caster; 4", 5", and 6": 350 lbs Capacity/Caster

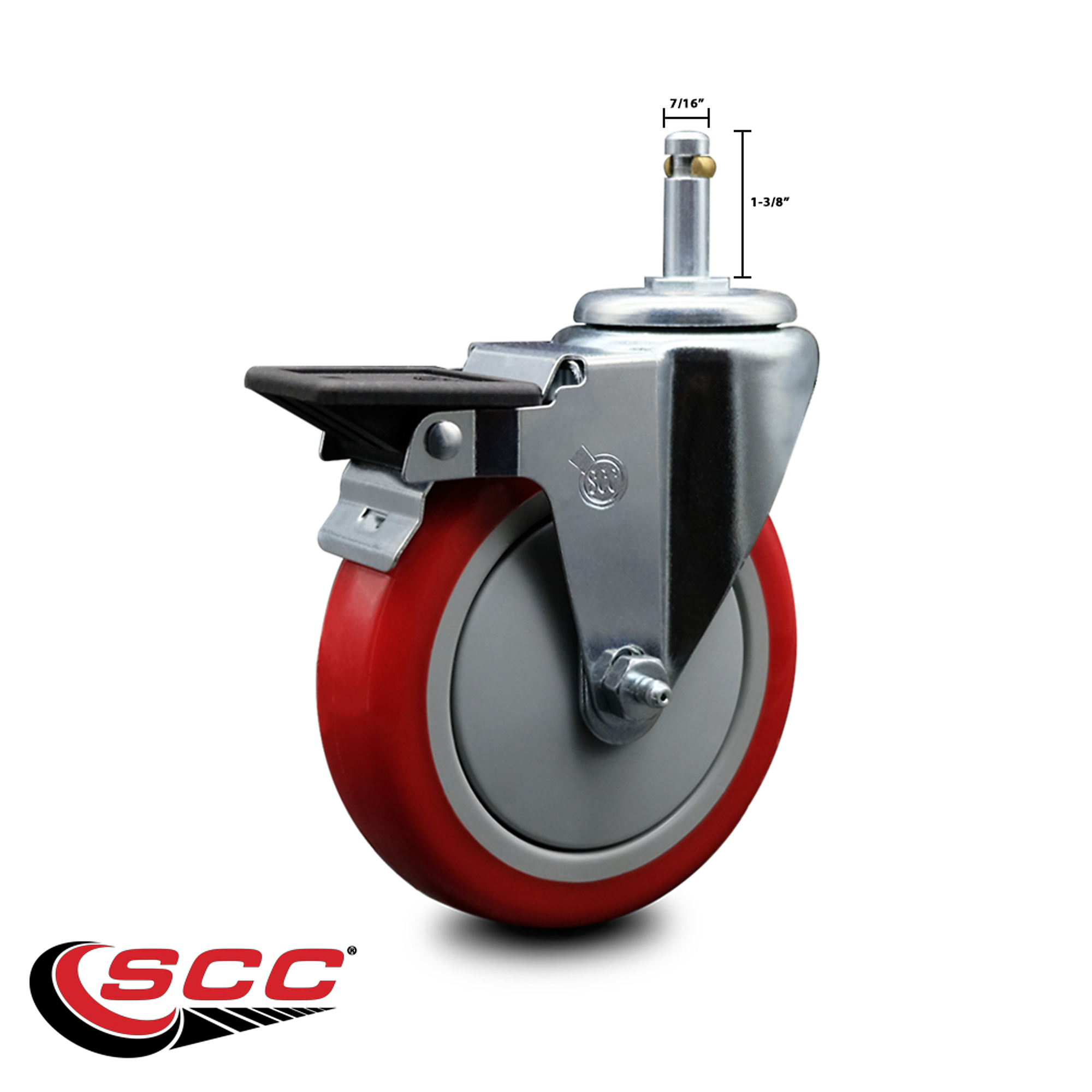

- All casters feature a 7/16” diameter by 1-3/8” long grip ring stem. Service Caster recommends using a drill or hardware gauge, a 7/16” wrench, or our paper wrap method to ensure the grip ring stem diameter needed is 7/16”. Paper Wrap Method: take a small strip of paper and wrap it around the stem. Mark the paper with a pen where it overlaps, keep the wrap tight. Measure the strip from the start of the wrap to the mark. The ruler should measure 1-3/8". Don’t see the size you need? Call us!
- Brake options include a top lock brake, a total lock brake, or a posi lock brake. The top lock brake places a positive locking force against the wheel tread locking the wheel only. The total lock brake simultaneously locks the wheel and the swivel for a complete stationary position. The posi lock brake places a positive locking force against the wheel tread similar to the top lock brake, but the pedal is located above the wheel tread rather than on the side of the wheel.
See full description
See All 300 - 499 Lbs.
See All Service Caster 300 - 499 Lbs.
Currently Viewing This Product
Specifications
5 in
4 in
5 in
4 in
Swivel
Swivel
Swivel
Swivel
1
1
1
1
Non-Marking Poly-on-Poly
Thermoplastic Rubber
Rubber
Rubber
Stem
Plate
Plate
Plate
350 lb
485 lb
440 lb
396 lb
1.25 in
4 in
5 in
4 in
Bright Zinc Plated Finish
Zinc Plated
Zinc Plated
Zinc Plated
Yes
No
No
No
6.125 in
5.5 in
6.5 in
6.5 in
1.375 in
-
-
-
0.4375 in
-
-
-
Sealed
Ball
Roller
Roller
1.8500 lb
5.0000 lb
7.0000 lb
5.0000 lb
5.0 x 5.0 x 5.0 in
5.625 x 4.0 x 5.5 in
6.5 x 4.0 x 6.5 in
5.0 x 4.0 x 6.5 in
-
4 X 4 1/2
4 X 4 1/2
4 X 4 1/2
-
No
No
No
-
No
No
No
