Service Caster, 5in. x 1 1/4in. Plate Caster, Wheel Diameter 5 in, Caster Type Rigid, Package (qty.) 1, Model# SCC-20R514-PPUB-BLK-TP2

Item# 5601489
Service Caster, 5in. x 1 1/4in. Plate Caster, Wheel Diameter 5 in, Caster Type Rigid, Package (qty.) 1, Model# SCC-20R514-PPUB-BLK-TP2

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Service Caster, 5in. x 1 1/4in. Plate Caster, Wheel Diameter 5 in, Caster Type Rigid, Package (qty.) 1, Model# SCC-20R514-PPUB-BLK-TP2

Click or Tap image to Zoom

$34.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only

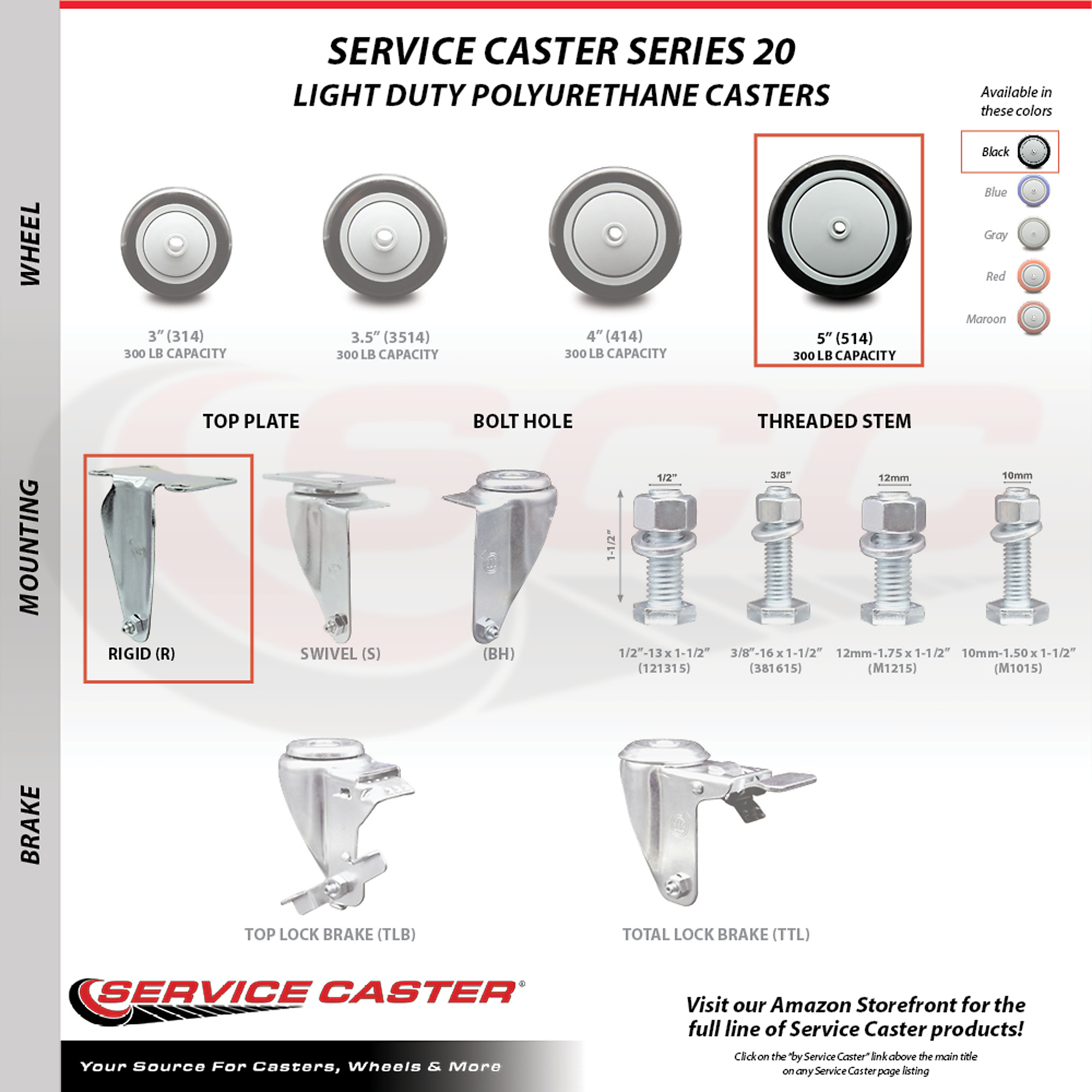

  • These Service Caster Series #20 Polyurethane casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height.
  • Weight Capacity: 3" and 3.5": 300 lbs Capacity/Caster; 4" and 5": 350 lbs Capacity/Caster

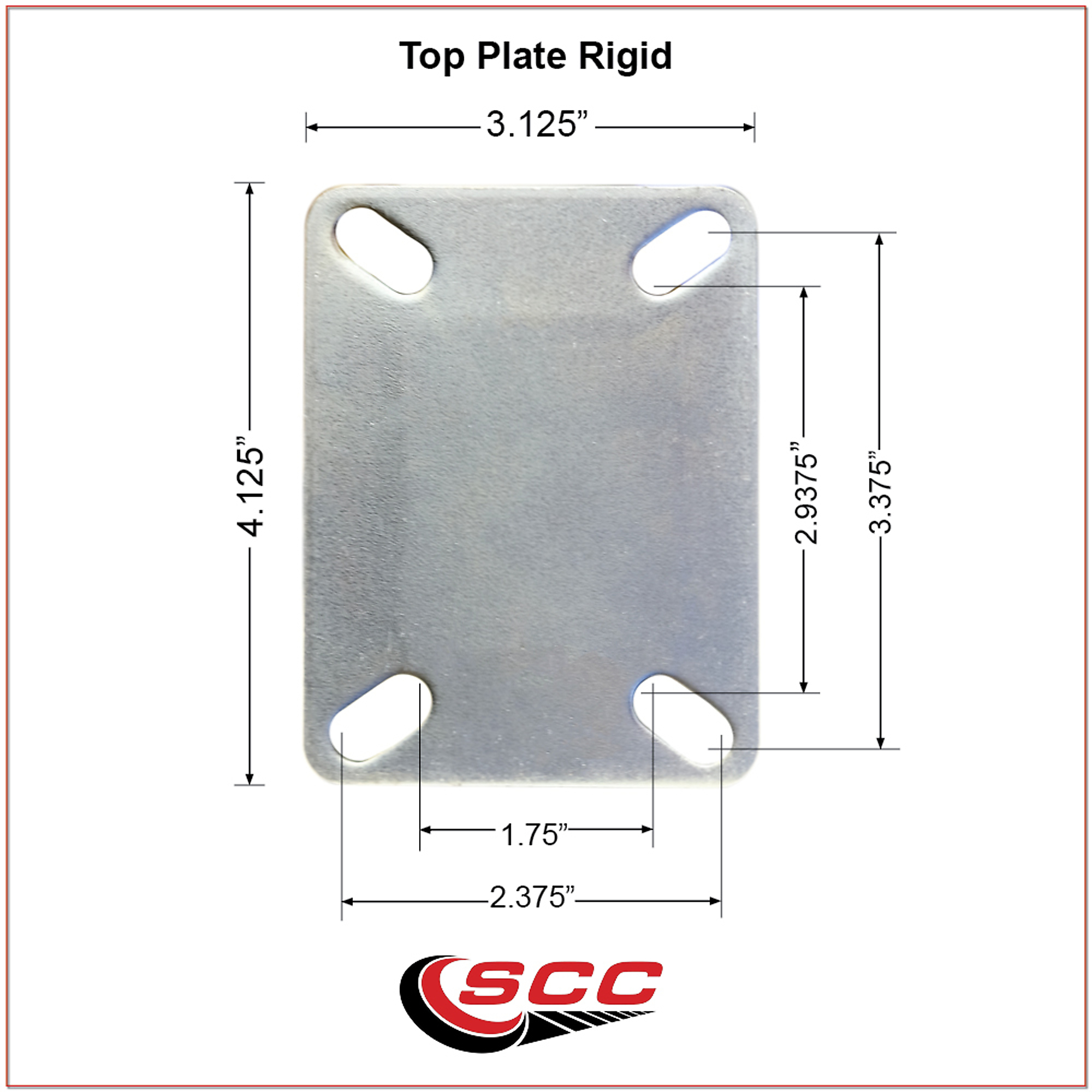

  • Top plate measures at 3-1/8" x 4-1/8" with a bolt hole pattern of 1-3/4" x 2-15/16" to 2-3/8" x 3-3/8" and can either be bolted or welded on.
  • Brake options include a top lock brake (TLB). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

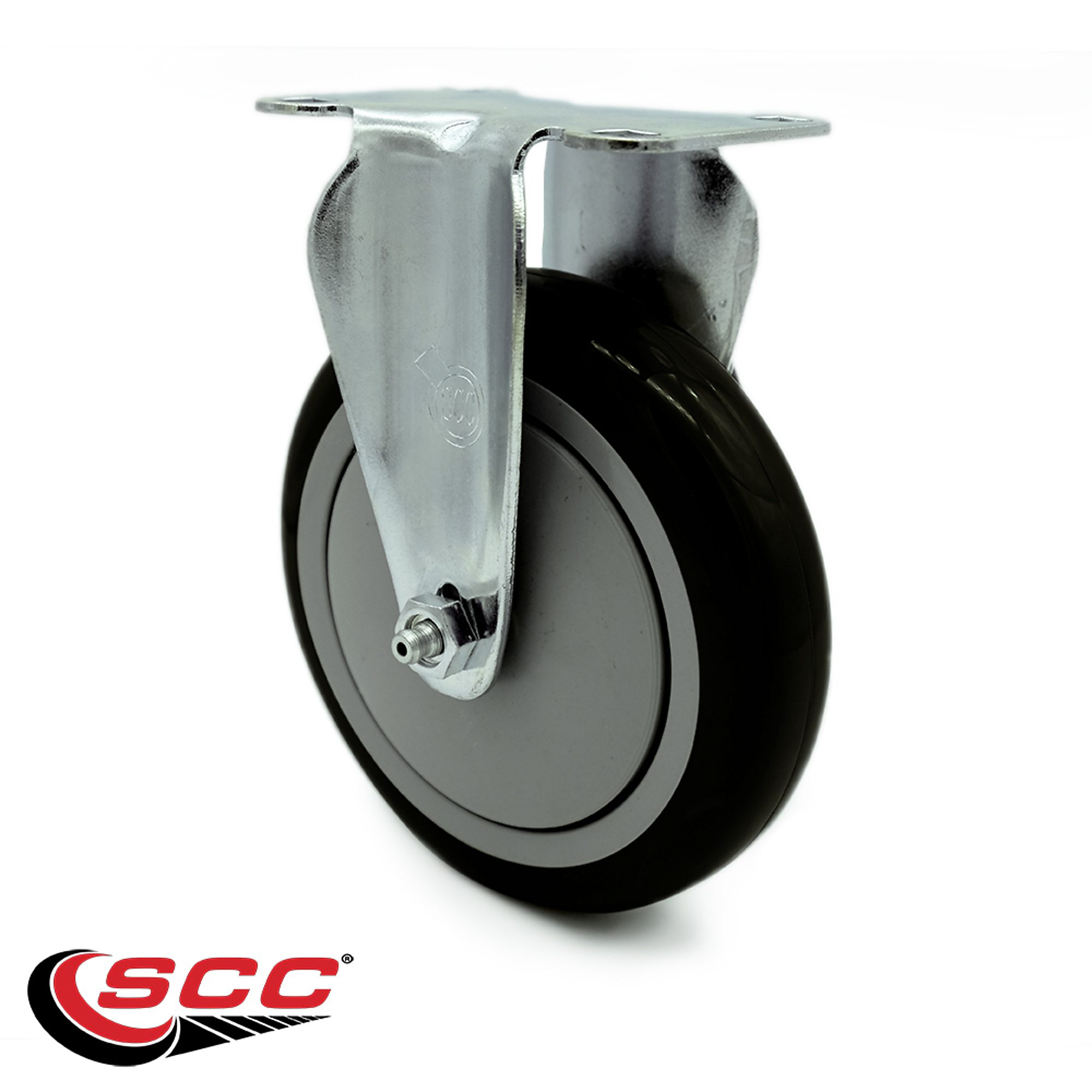

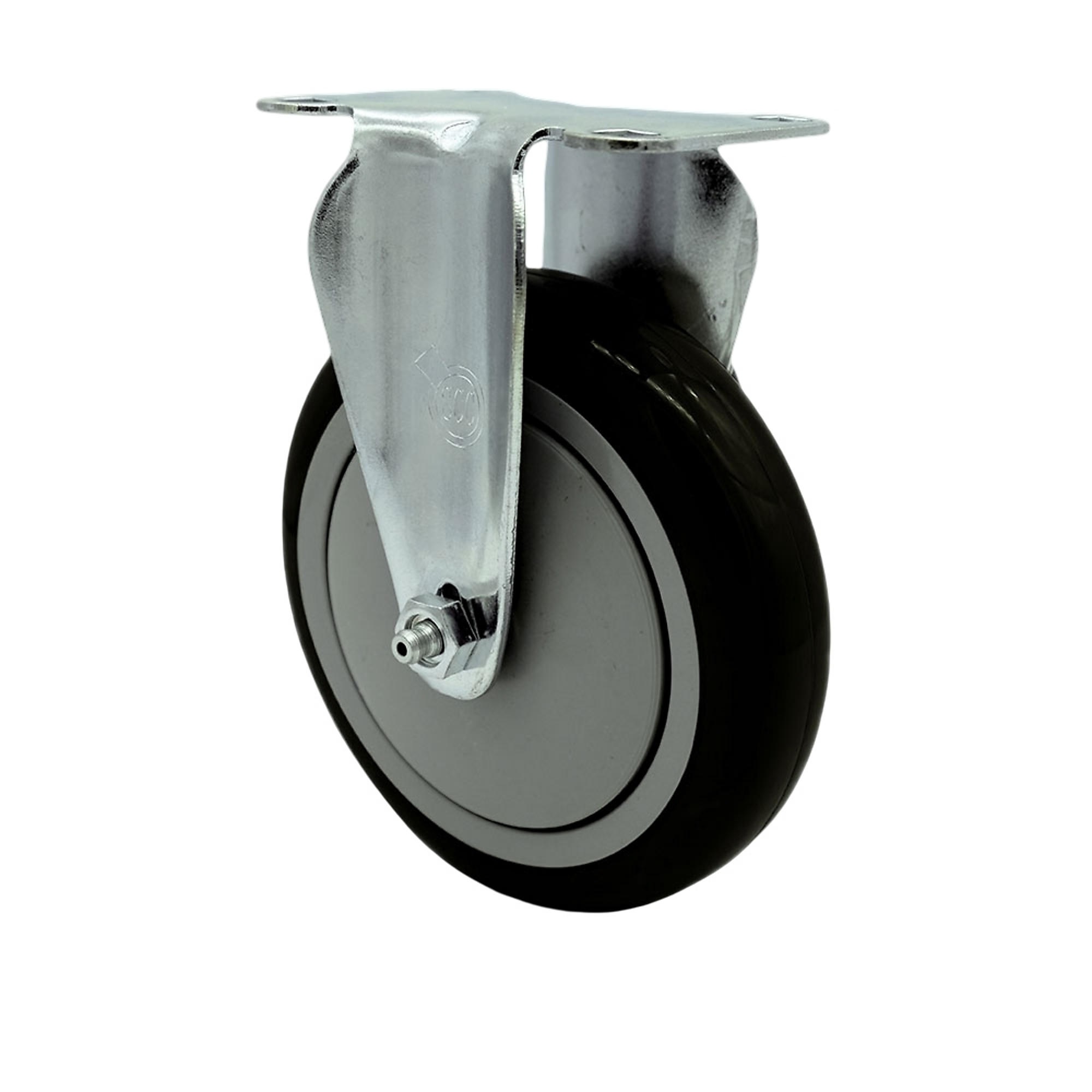

Listing is for one (1) Service Caster Series #20 rigid caster with a 5in. diameter by 1-1/4in. wide black polyurethane wheel capable of supporting 350lbs./caster. When searching for a reliable and durable solution to your caster needs, look no further than the Service Caster Series 20 top plate polyurethane casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition, while the non-marking, non-marring polyurethane wheels perform especially well on hard surfaces such as concrete, tile, and wood- rolling on a finely crafted ball bearing design that keeps you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.

What's Included

    (1) Plate Caster

Features + Benefits

  • These Service Caster Series #20 Polyurethane casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height.
  • Weight Capacity: 3" and 3.5": 300 lbs Capacity/Caster; 4" and 5": 350 lbs Capacity/Caster
  • Top plate measures at 3-1/8" x 4-1/8" with a bolt hole pattern of 1-3/4" x 2-15/16" to 2-3/8" x 3-3/8" and can either be bolted or welded on.
  • Brake options include a top lock brake (TLB). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only.

Key Specs

AttributeSpecification

item#

5601489

Brand

Service Caster

Ship Weight

4.0 LB

Wheel Diameter

5 in

Caster Type

Rigid

Package (qty.)

1

Wheel Material

Non-Marking Poly-on-Poly

Mount Type

Plate

Load Capacity per Caster

350 lb
AttributeSpecification

Wheel Width

1.25 in

Finish Type

Bright Zinc Plated Finish

Plate Dimensions

3.125 x 4.125

Bolt Hole Spacing

1.75 x 2.9375 to 2.375 x 3.375

Foot Brake

No

Overall Height

6.125 in

Bearing Type

Sealed

Product Weight

2.1500 lb

Dimensions L x W x H (in.)

8.0 x 8.0 x 8.0 in

Reviews

Questions & Answers

Compare with Most Popular in 300 - 499 Lbs.

See All 300 - 499 Lbs.

See All Service Caster 300 - 499 Lbs.

Specifications

Specifications
Service Caster, 5in. x 1 1/4in. Plate Caster, Wheel Diameter 5 in, Caster Type Rigid, Package (qty.) 1, Model# SCC-20R514-PPUB-BLK-TP2
Vestil Rubber Swivel Caster - 4in. x 2in., 485-Lb. Capacity, Thermoplastic Rubber, Gray, Model# CST-VE-4X2TPR-S
Vestil Mold On Rubber Caster - 4in. Wheel Diameter, Aluminum Core, Zinc Plated, Model# CST-VE-4X2MR-S
Vestil Rubber Swivel Caster with Brake - 5in. x 2in., 440 Lb. Capacity, Model# CST-VE-5X2MR-SWB
Wheel Diameter
Same

5 in

4 in

4 in

5 in

Caster Type
Same

Rigid

Swivel

Swivel

Swivel

Package (qty.)
Same

1

1

1

1

Wheel Material
Same

Non-Marking Poly-on-Poly

Thermoplastic Rubber

Rubber

Rubber

Mount Type
Same

Plate

Plate

Plate

Plate

Load Capacity per Caster
Same

350 lb

485 lb

396 lb

440 lb

Wheel Width
Same

1.25 in

4 in

4 in

5 in

Finish Type
Same

Bright Zinc Plated Finish

Zinc Plated

Zinc Plated

Zinc Plated

Plate Dimensions
Same

3.125 x 4.125

4 X 4 1/2

4 X 4 1/2

4 X 4 1/2

Bolt Hole Spacing
Same

1.75 x 2.9375 to 2.375 x 3.375

-

-

-

Foot Brake
Same

No

No

No

Yes

Overall Height
Same

6.125 in

5.5 in

6.5 in

6.5 in

Bearing Type
Same

Sealed

Ball

Roller

Roller

Product Weight
Same

2.1500 lb

5.0000 lb

5.0000 lb

7.0000 lb

Dimensions L x W x H (in.)
Same

8.0 x 8.0 x 8.0 in

5.625 x 4.0 x 5.5 in

5.0 x 4.0 x 6.5 in

6.5 x 5.0 x 6.5 in

Non-Marking
Same

-

No

No

No

Includes Thread Guards
Same

-

No

No

No
