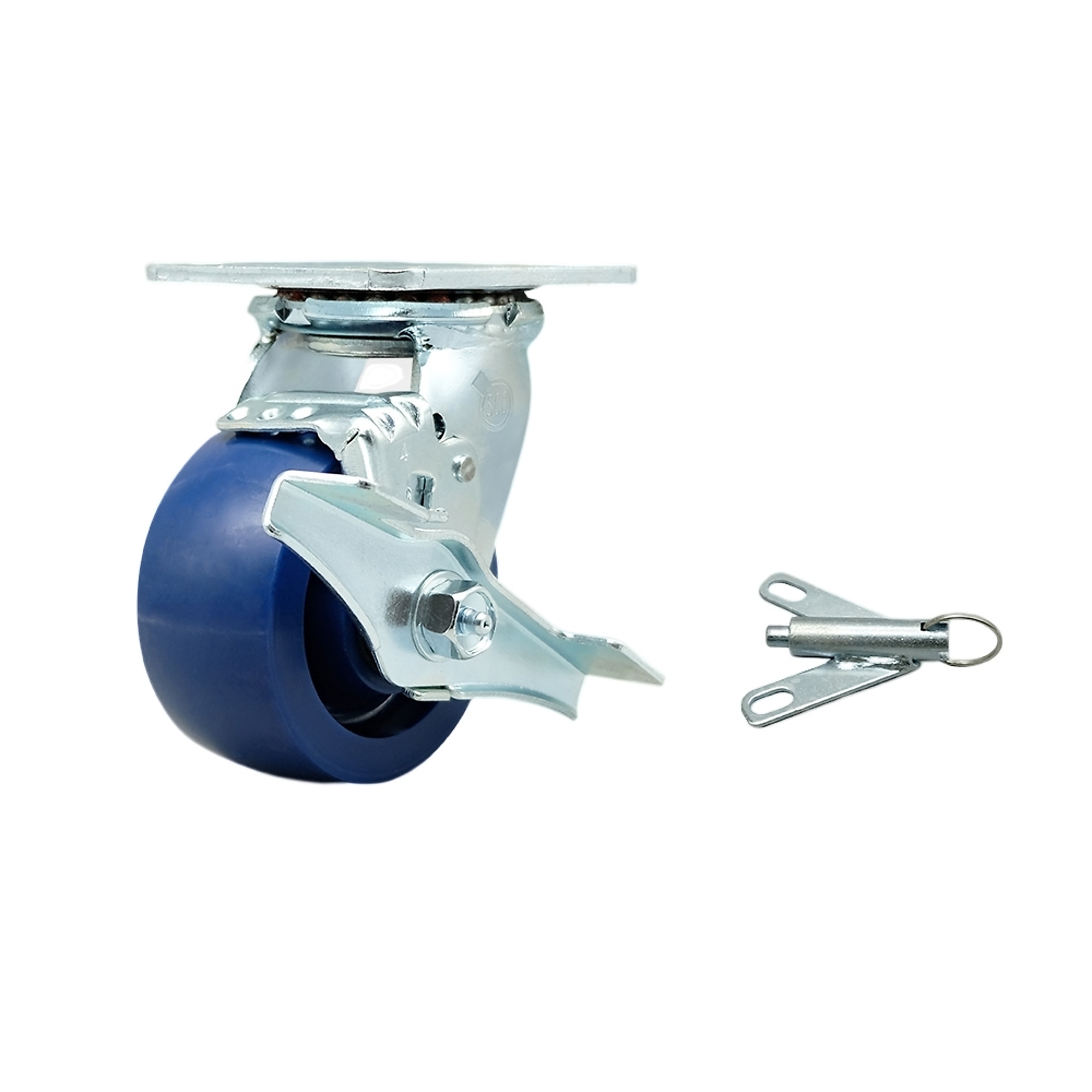

Service Caster, 4in. x 2in. Plate Caster, Wheel Diameter 4 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-SS30S420-SPUR-TLB-BSL

Item# 5542159
Service Caster, 4in. x 2in. Plate Caster, Wheel Diameter 4 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-SS30S420-SPUR-TLB-BSL

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Service Caster, 4in. x 2in. Plate Caster, Wheel Diameter 4 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-SS30S420-SPUR-TLB-BSL

Click or Tap image to Zoom

$274.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

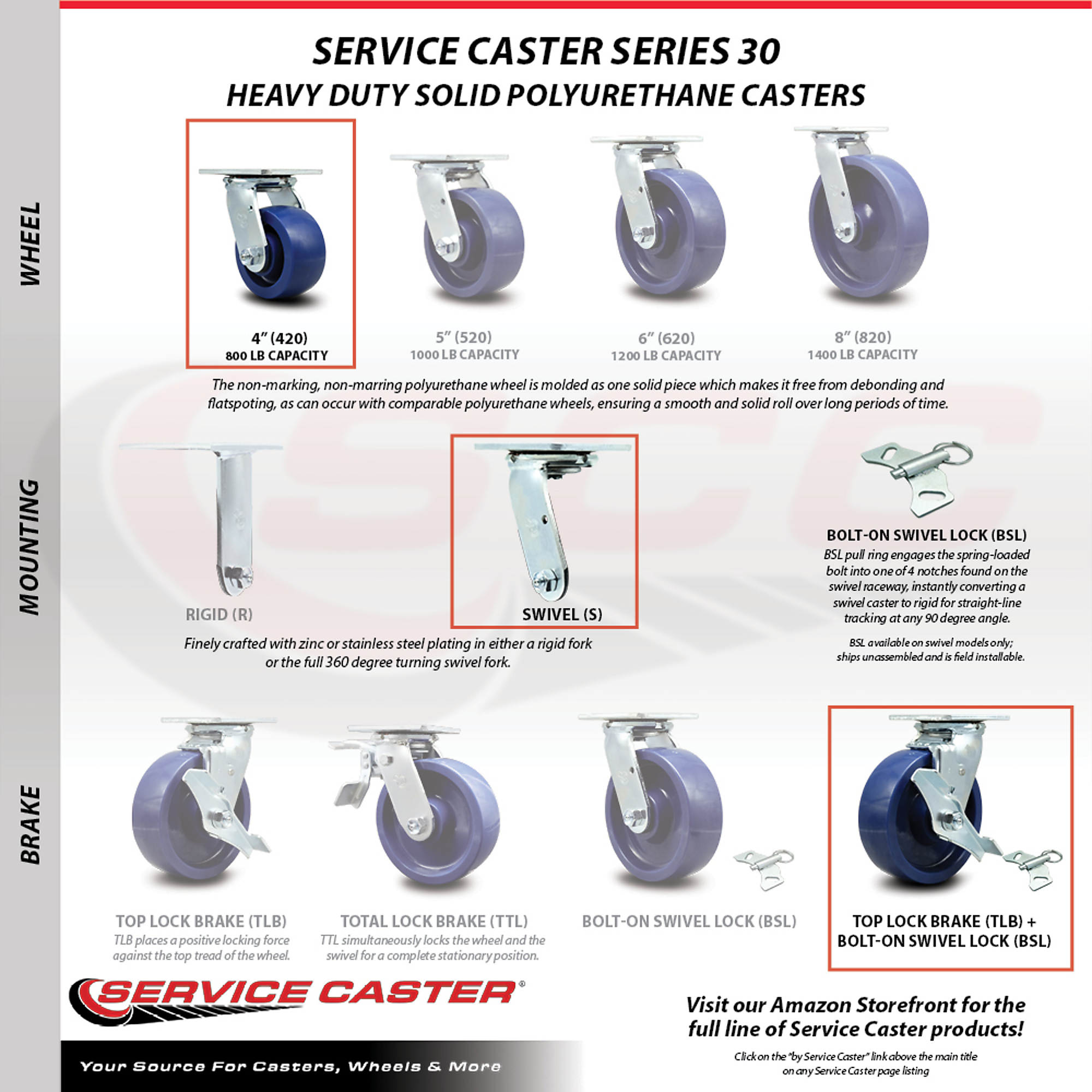

  • These Service Caster Series #30 Solid Polyurethane casters offer various wheel sizes and mounting heights: 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height.
  • Weight Capacity: 4": 700 lbs Capacity/Caster, 5": 1000 lbs Capacity/Caster, 6": 1200 lbs. Capacity/Caster, and 8": 1200 lbs Capacity/Caster

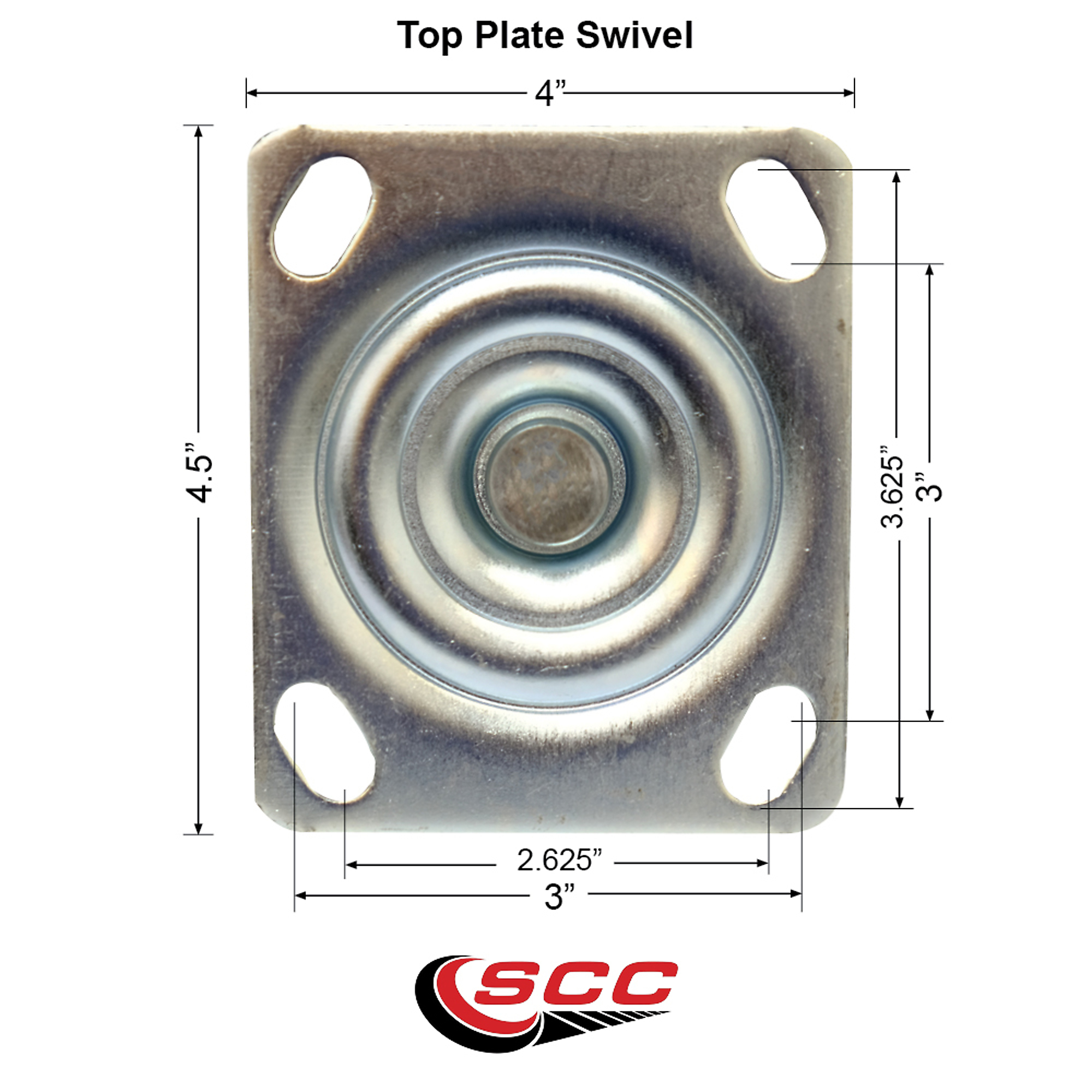

  • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.
  • Brake options include a top lock brake (TLB) and a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

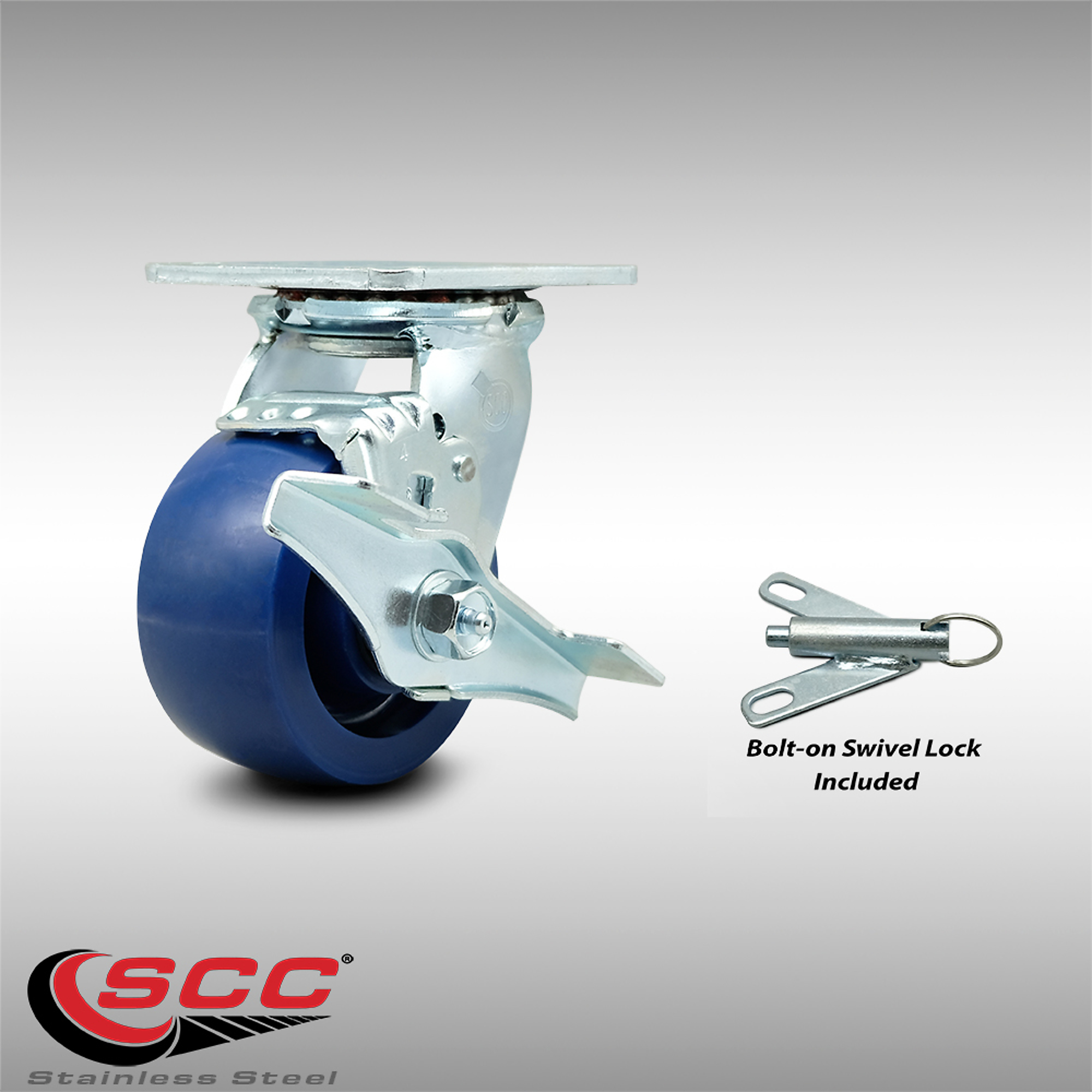

Listing is for one (1) Service Caster Series #30 stainless steel swivel caster with a 4in. diameter by 2in. wide solid polyurethane wheel with a side lock brake bolt on swivel lock capable of supporting 700 lbs./caster.When searching for a reliable and durable solution to your caster needs, consider Service Caster's Series 30 stainless steel solid polyurethane wheel casters. The Service Caster Series #30 features a non-marking, non-marring polyurethane wheel. Molded as one solid piece, this wheel is free from debonding, and will not flatspot, as can occur with comparable polyurethane wheels, ensuring a smooth and solid roll over long periods of time. These versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 30, keeping you moving forward. In contrast to the zinc plated caster, the luxuriously polished stainless steel finish resists rust and corrosion in indoor or outdoor applications where moisture is a factor. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.

What's Included

    (1) Plate Caster

Features + Benefits

  • These Service Caster Series #30 Solid Polyurethane casters offer various wheel sizes and mounting heights: 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height.
  • Weight Capacity: 4": 700 lbs Capacity/Caster, 5": 1000 lbs Capacity/Caster, 6": 1200 lbs. Capacity/Caster, and 8": 1200 lbs Capacity/Caster
  • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.
  • Brake options include a top lock brake (TLB) and a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.

Key Specs

AttributeSpecification

item#

5542159

Brand

Service Caster

Ship Weight

5.05 LB

Wheel Diameter

4 in

Caster Type

Swivel

Capacity Class

500-999 Pounds

Load Capacity per Caster

700 lb

Wheel Material

Polyurethane

Package (qty.)

1

Wheel Width

2 in
AttributeSpecification

Mount Type

Plate-Mount

Finish Type

Polished Stainless Steel

Foot Brake

Yes

Overall Height

5.625 in

Plate Dimensions

4 x 4.5

Bolt Hole Spacing

2.625 x 3.625 to 3 x 3

Bearing Type

Roller

Product Weight

5.0500 lb

Dimensions L x W x H (in.)

8.0 x 8.0 x 8.0 in
