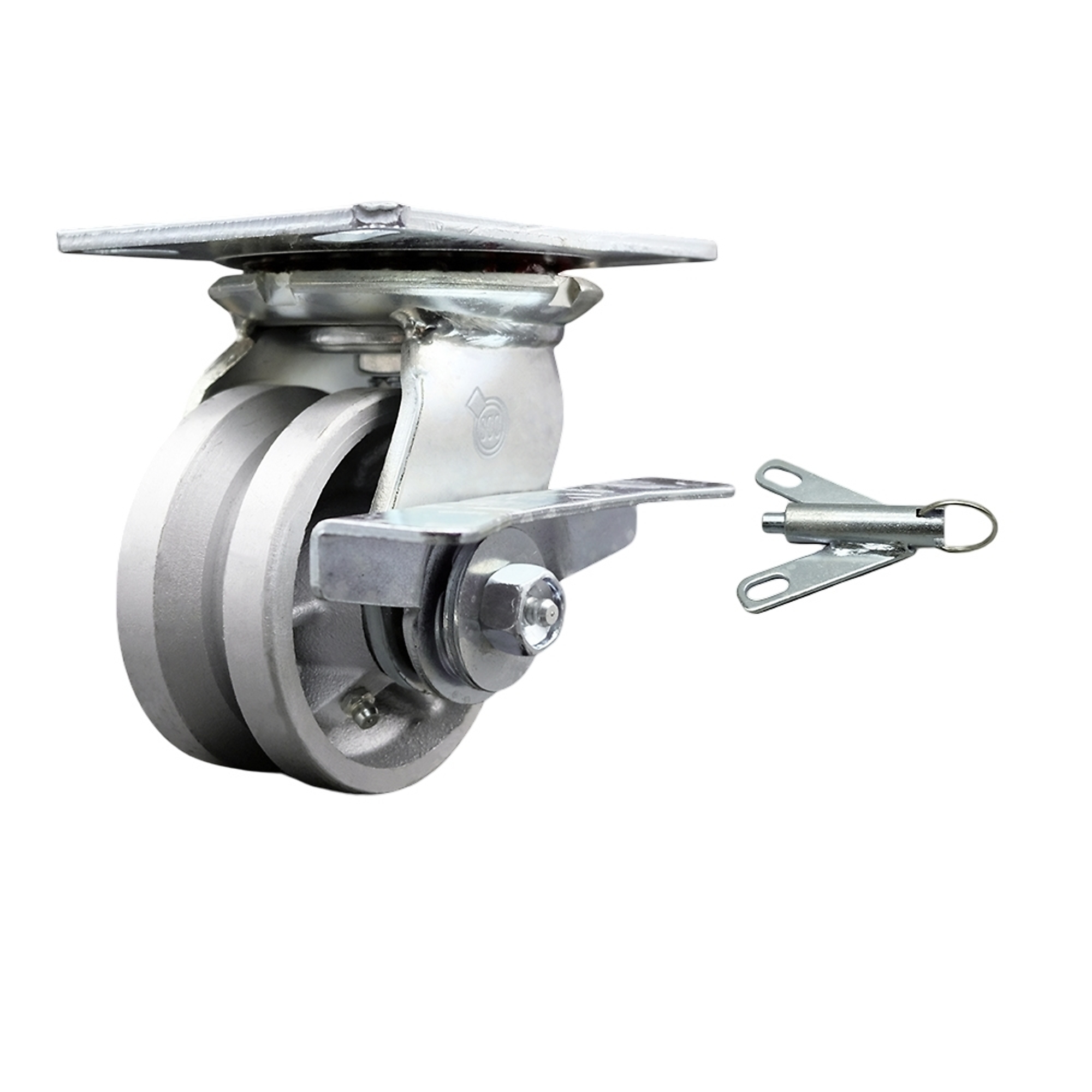

Service Caster, 4in. x 2in. Plate Caster, Wheel Diameter 4 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-35S420-VGR-SLB-BSL

Item# 5430907
Service Caster, 4in. x 2in. Plate Caster, Wheel Diameter 4 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-35S420-VGR-SLB-BSL

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Service Caster, 4in. x 2in. Plate Caster, Wheel Diameter 4 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-35S420-VGR-SLB-BSL

Click or Tap image to Zoom

$97.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only

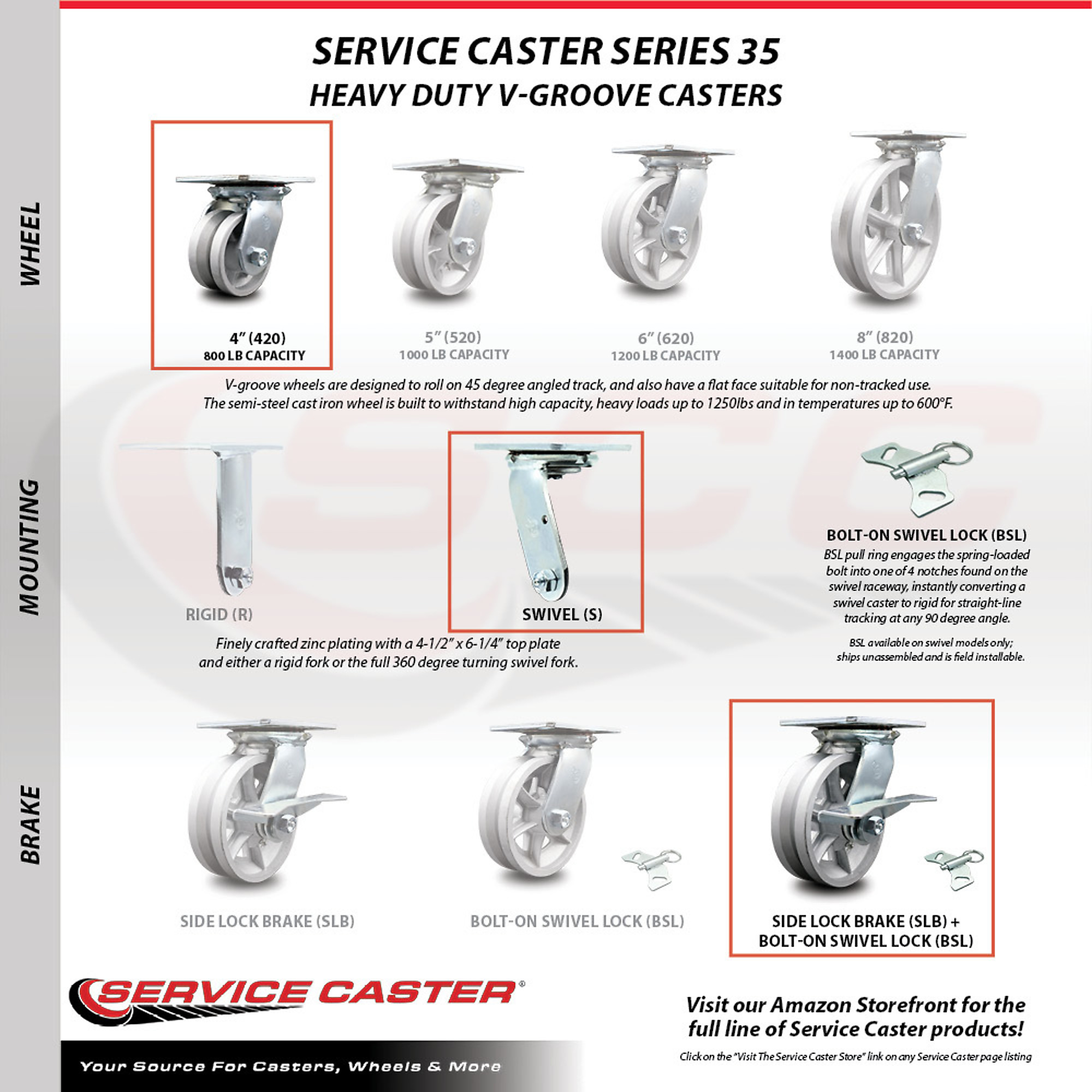

  • These Service Caster Series #35 V Groove Semi Steel casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height.
  • Weight capacity ranges from 800 lbs on the 4” caster, 1100 lbs on the 5”, 1200 lbs on the 6” and 1250 lbs. on the 8”.

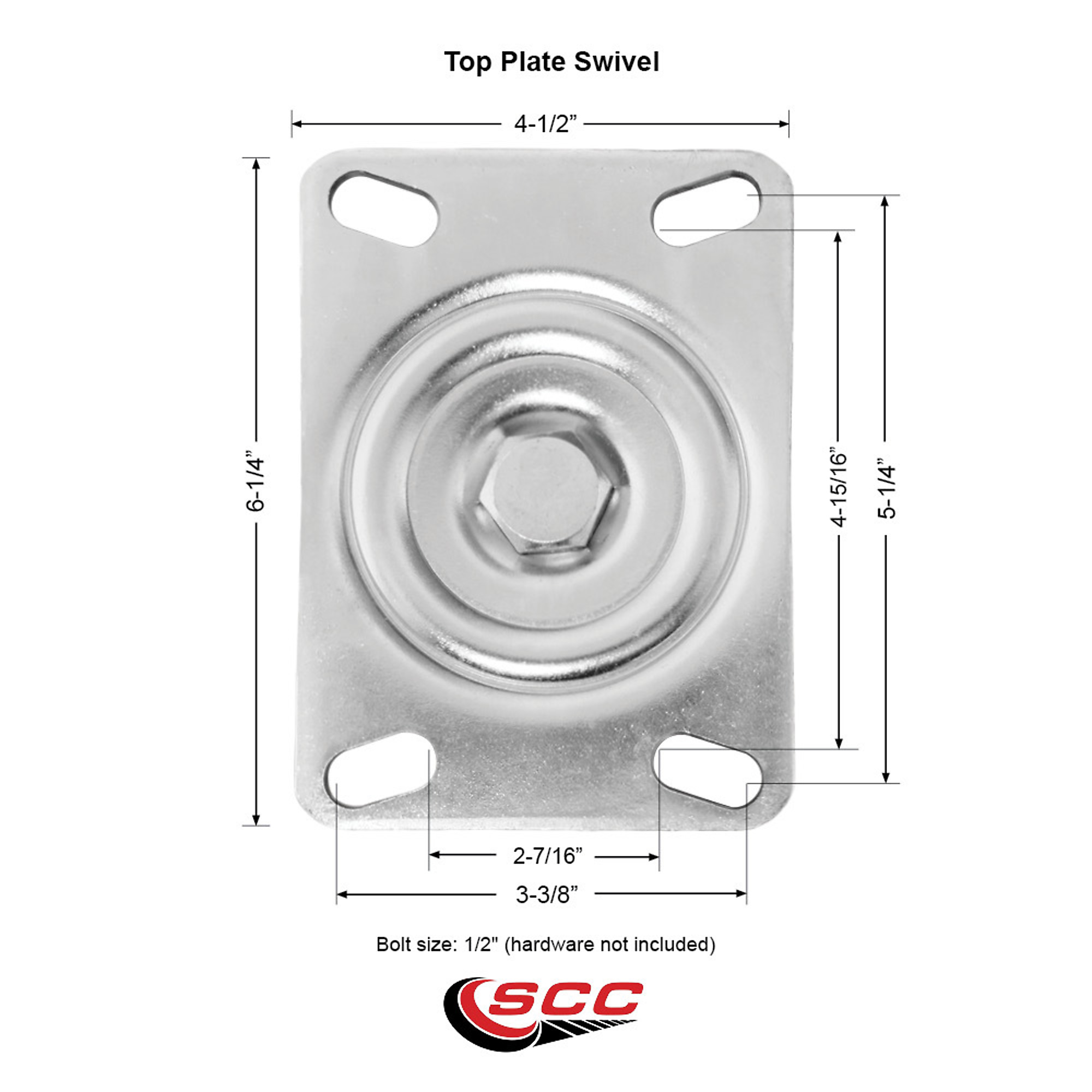

  • Top plate measures at 4-1/2" x 6-1/4" with a bolt hole pattern of 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" and can either be bolted or welded on.

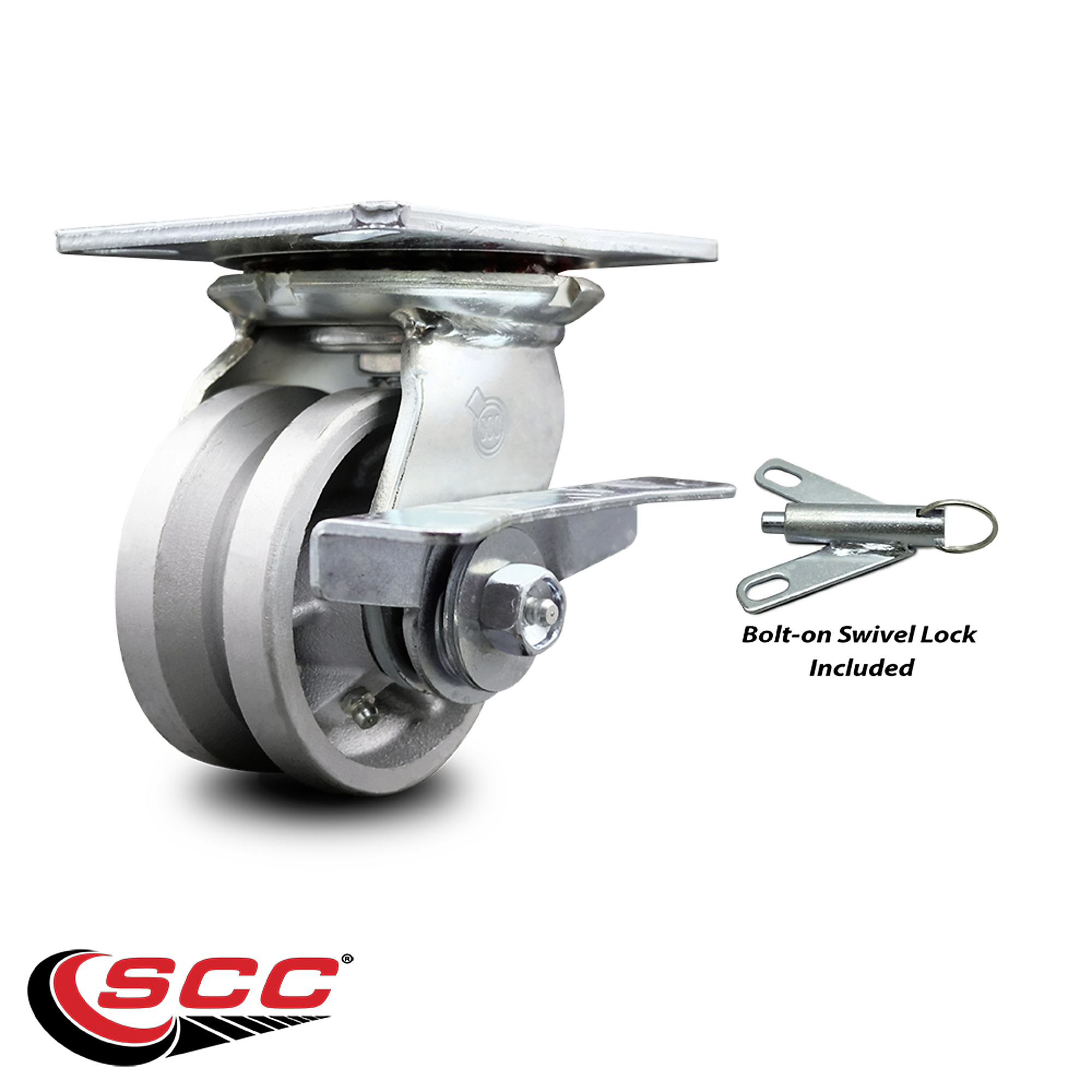

  • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

Listing is for one (1) Service Caster Series #35 swivel caster with a 4in. diameter by 2in. wide v-groove cast iron wheel with a side lock brake bolt on swivel lock capable of supporting 800 lbs./caster. When searching for a reliable and durable solution for heavy duty projects, consider Service Caster’s Series 35 semi steel cast iron v-groove wheel casters. The Service Caster Series #35 v-groove wheel is designed to roll on 45 degree angled track, and also has a flat face suitable for non-tracked use. The semi-steel cast iron wheel is built to withstand high capacity, heavy loads up to 1250lbs and in temperatures up to 600°F. An economic choice over steel, semi-steel wheels are abrasion resistant and rugged. Finely crafted with double ball bearing heat treated raceways, these versatile casters are ideal for a wide range of applications specific to high capacity tracked workflows, but also for dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 35, keeping you moving forward.

What's Included

    (1) Plate Caster

Features + Benefits

  • These Service Caster Series #35 V Groove Semi Steel casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height.
  • Weight capacity ranges from 800 lbs on the 4” caster, 1100 lbs on the 5”, 1200 lbs on the 6” and 1250 lbs. on the 8”.
  • Top plate measures at 4-1/2" x 6-1/4" with a bolt hole pattern of 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" and can either be bolted or welded on.
  • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.

Key Specs

AttributeSpecification

item#

5430907

Brand

Service Caster

Ship Weight

11.0 LB

Wheel Diameter

4 in

Caster Type

Swivel

Package (qty.)

1

Wheel Material

Cast Iron

Mount Type

Plate

Load Capacity per Caster

800 lb
AttributeSpecification

Wheel Width

2 in

Finish Type

Bright Zinc Plated Finish

Plate Dimensions

4.5 x 6.25

Bolt Hole Spacing

2.4375 x 4.9375 to 3.375 x 5.25

Foot Brake

Yes

Overall Height

5.625 in

Bearing Type

Roller

Product Weight

8.7500 lb

Dimensions L x W x H (in.)

12.0 x 12.0 x 7.5 in

Reviews

Questions & Answers

Questions

Compare with Most Popular in 500 - 999 Lbs.

See All 500 - 999 Lbs.

See All Service Caster 500 - 999 Lbs.

Specifications

Specifications
Service Caster, 4in. x 2in. Plate Caster, Wheel Diameter 4 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-35S420-VGR-SLB-BSL
Vestil Rubber Swivel With Total Brake Caster 8 In. Diameter x 2 In. Width 881 Lb. Capacity Black/Gold
Vestil Rubber Swivel Caster - 5in. x 2in., 551-Lb. Capacity, Thermoplastic Rubber, Gray, Model# CST-VE-5X2TPR-S
Vestil Rubber Swivel Caster - 8in. x 2in., 705-Lb. Capacity, Thermoplastic Rubber, Gray, Model# CST-VE-8X2TPR-S
Wheel Diameter
Same

4 in

8 in

5 in

8 in

Caster Type
Same

Swivel

Swivel

Swivel

Swivel

Package (qty.)
Same

1

1

1

1

Wheel Material
Same

Cast Iron

Rubber

Thermoplastic Rubber

Thermoplastic Rubber

Mount Type
Same

Plate

Plate

Plate

Plate

Load Capacity per Caster
Same

800 lb

881 lb

551 lb

705 lb

Wheel Width
Same

2 in

8 in

5 in

8 in

Finish Type
Same

Bright Zinc Plated Finish

Zinc Plated

Zinc Plated

Zinc Plated

Plate Dimensions
Same

4.5 x 6.25

4 X 4 1/2

4 X 4 1/2

4 X 4 1/2

Bolt Hole Spacing
Same

2.4375 x 4.9375 to 3.375 x 5.25

-

-

-

Foot Brake
Same

Yes

Yes

No

No

Overall Height
Same

5.625 in

9.5 in

6.5 in

9.5 in

Bearing Type
Same

Roller

Ball

Ball

Ball

Product Weight
Same

8.7500 lb

9.0900 lb

5.0000 lb

7.0000 lb

Dimensions L x W x H (in.)
Same

12.0 x 12.0 x 7.5 in

7.875 x 5.0 x 9.5 in

6.5 x 4.0 x 6.5 in

8.25 x 4.0 x 9.5 in

Non-Marking
Same

-

No

No

Yes

Includes Thread Guards
Same

-

No

No

No
