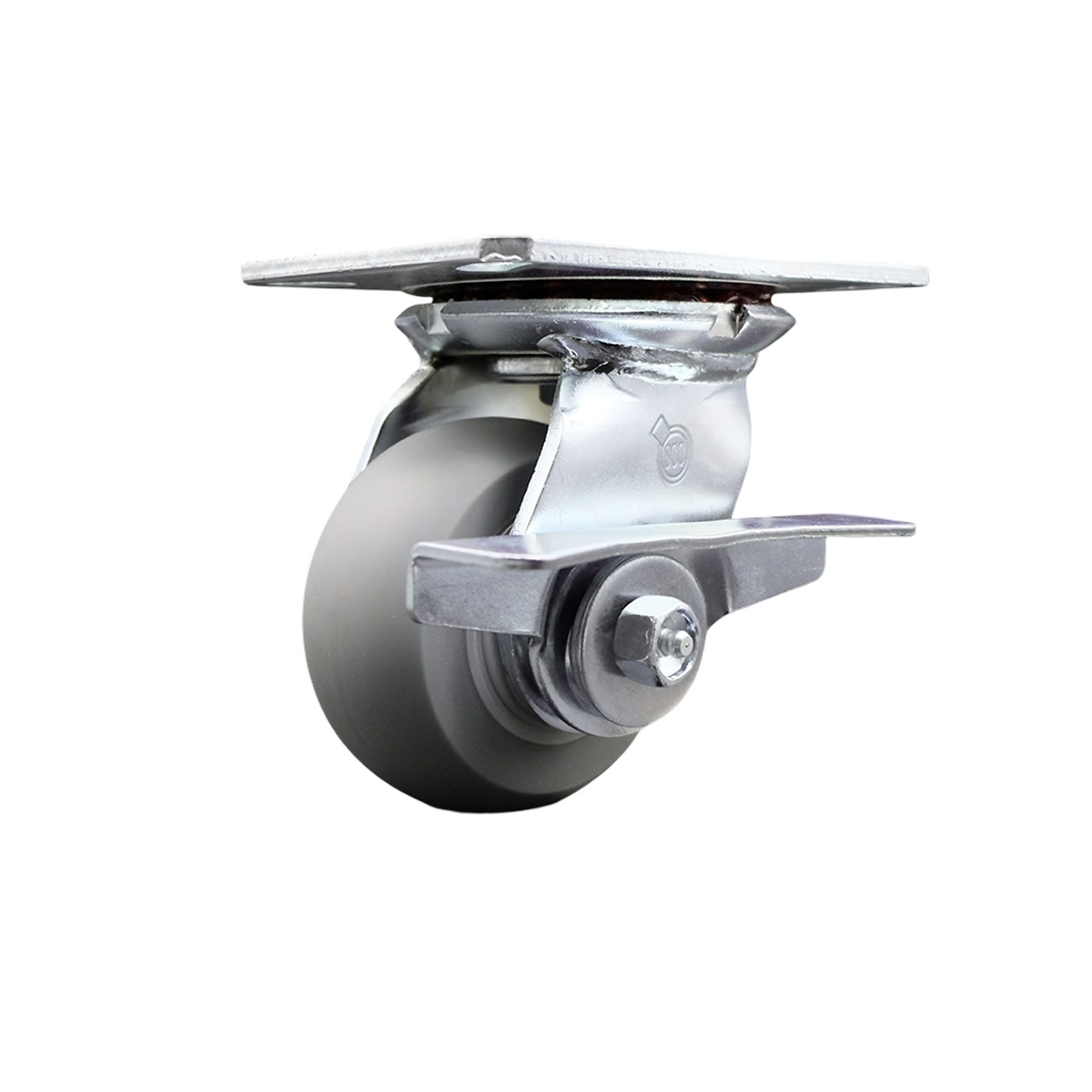

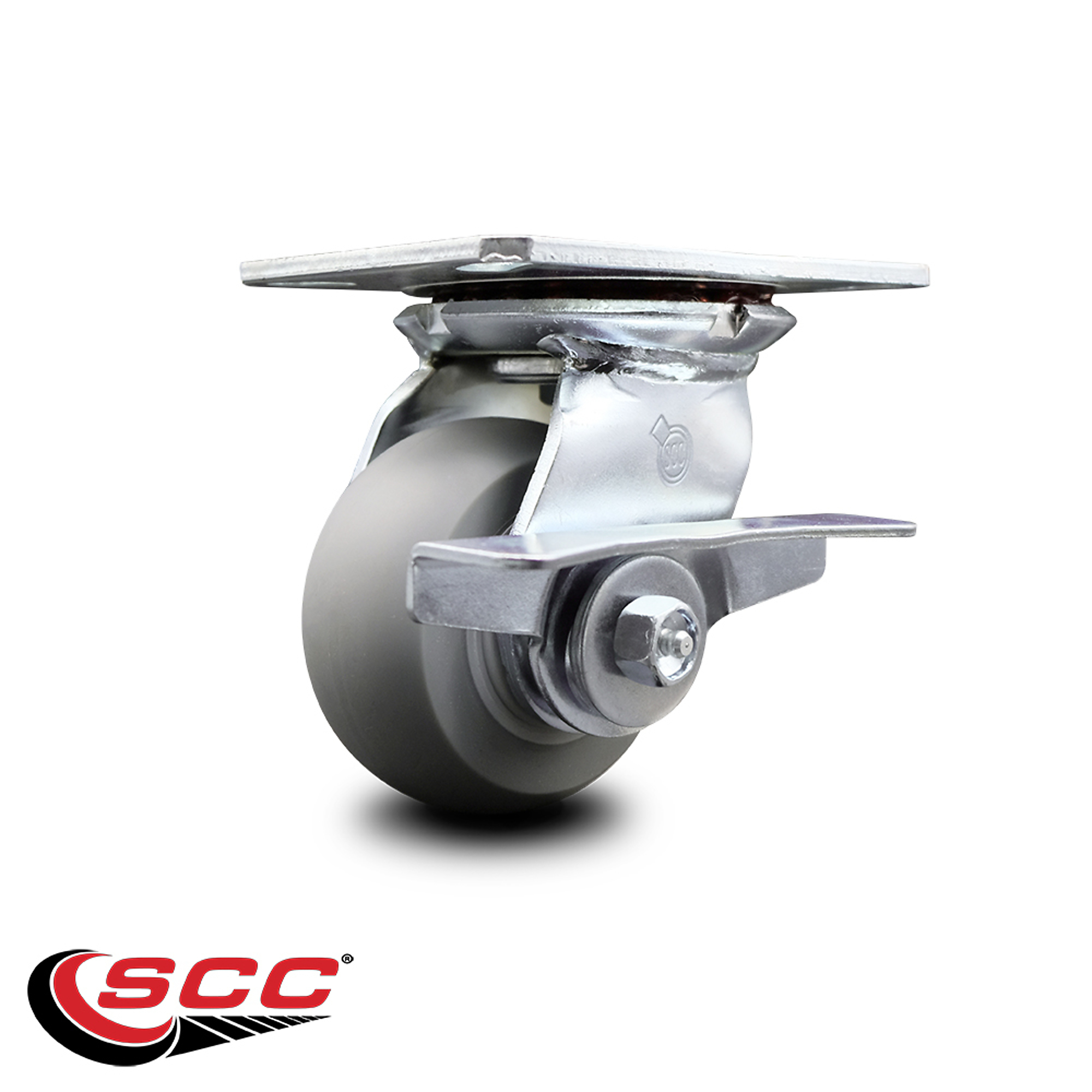

Service Caster, 4in. x 2in. Plate Caster, Wheel Diameter 4 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-35S420-TPRBD-SLB

Item# 5439901
Service Caster, 4in. x 2in. Plate Caster, Wheel Diameter 4 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-35S420-TPRBD-SLB

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Service Caster, 4in. x 2in. Plate Caster, Wheel Diameter 4 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-35S420-TPRBD-SLB

Click or Tap image to Zoom

$74.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only

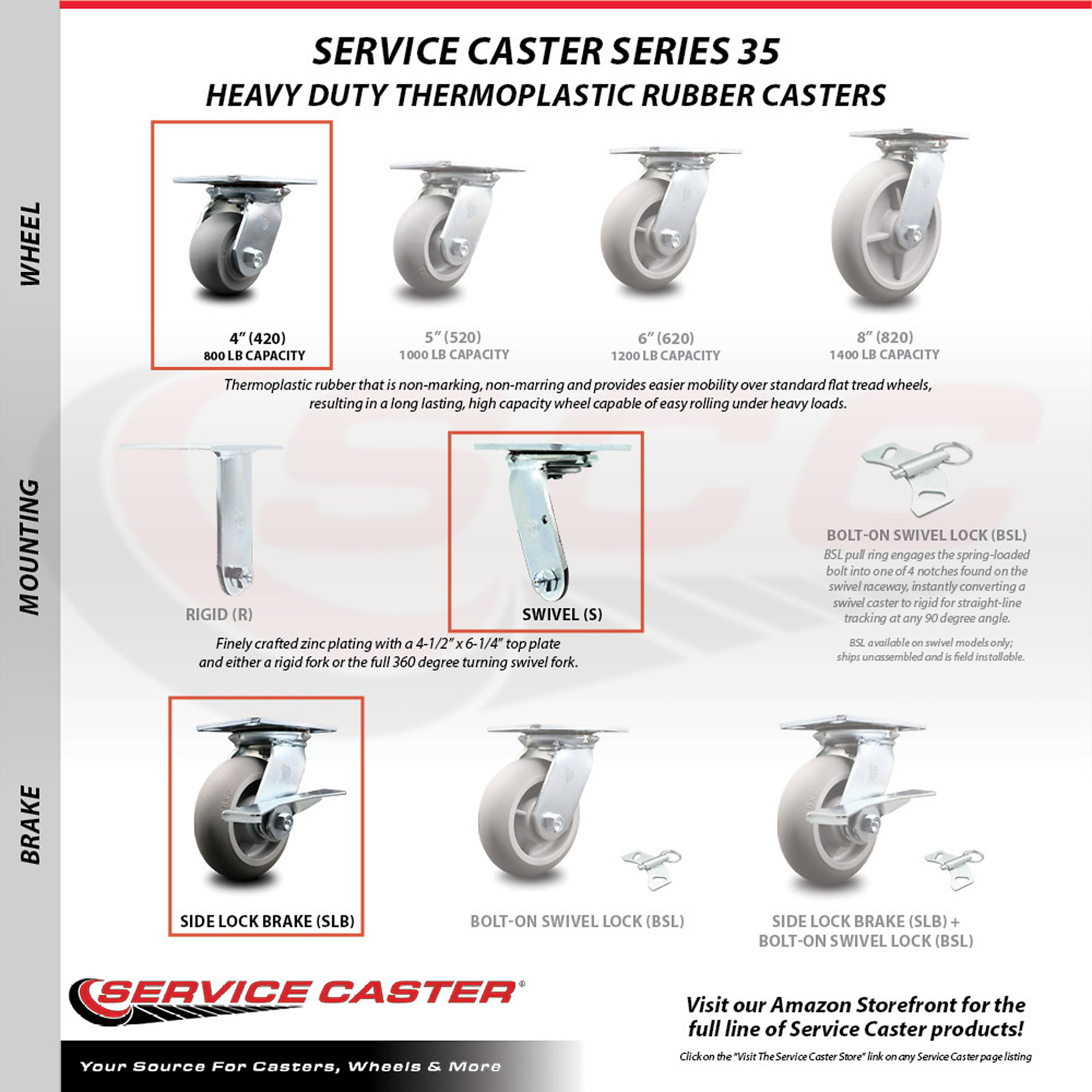

  • These Service Caster Series #35 Thermoplastic Rubber Donut Tread casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height.
  • Weight capacity ranges from 300 lbs on the 4” caster, 350 lbs on the 5”, 500 lbs on the 6” and 600 lbs. on the 8”.

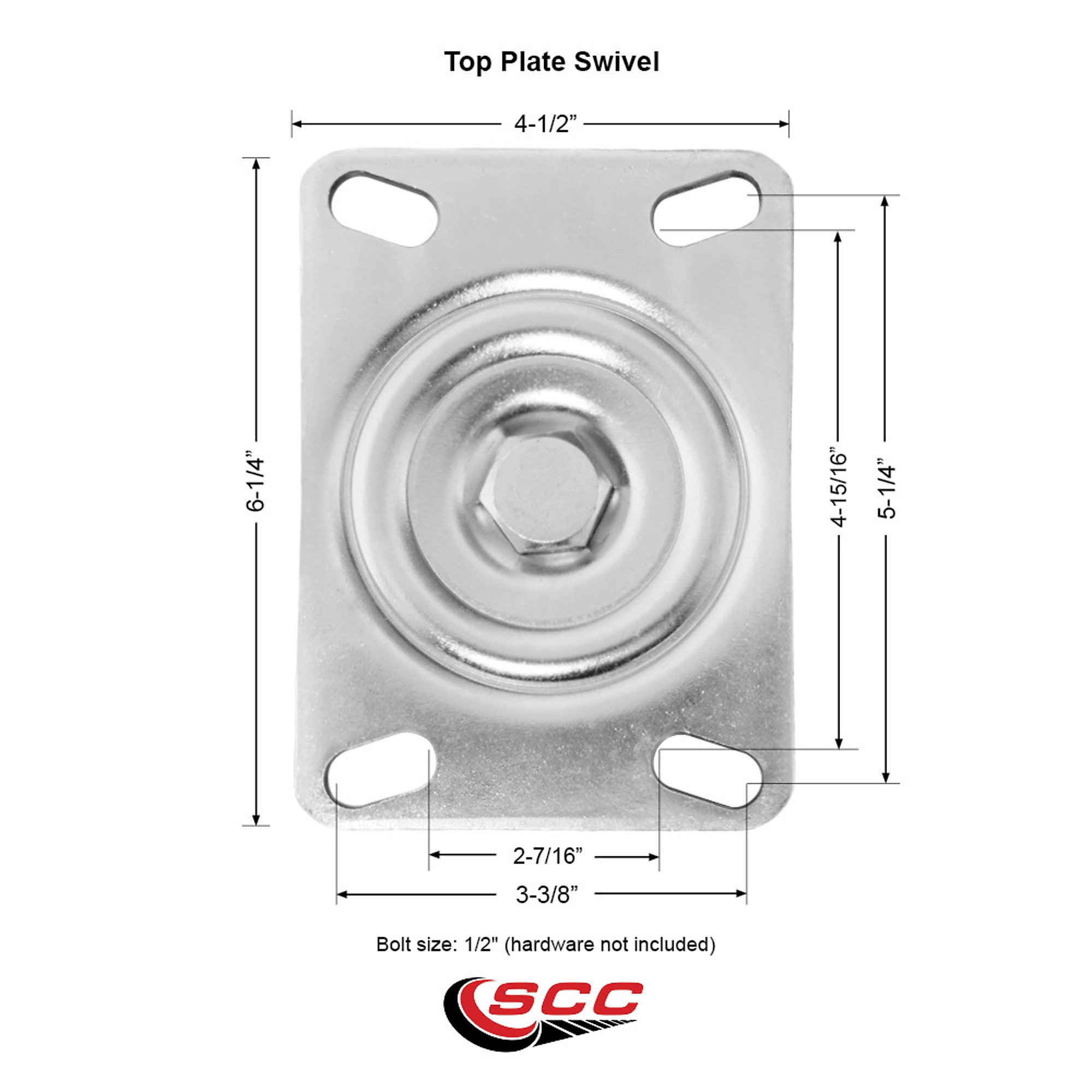

  • Top plate measures at 4-1/2" x 6-1/4" with a bolt hole pattern of 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" and can either be bolted or welded on.
  • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

Listing is for one (1) Service Caster Series #35 swivel caster with a 4in. diameter by 2in. wide thermoplastic rubber donut tread wheel and a side lock brake and maintenance free precision ball wheel bearings. Capable of supporting 300 lbs./caster. When searching for a reliable and durable solution for medium and heavy duty projects, consider Service Caster’s Series 35 thermoplastic rubber donut tread on polyolefin core casters. The rounded face “donut” style soft tread is made of thermoplastic rubber that is non-marking, non-marring and provides easier mobility over standard flat tread wheels, resulting in a long lasting, high capacity wheel capable of easy rolling under heavy loads. Finely crafted with double ball bearing heat treated raceways, these versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 35, keeping you moving forward.

What's Included

    (1) Plate Caster

Features + Benefits

  • These Service Caster Series #35 Thermoplastic Rubber Donut Tread casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height.
  • Weight capacity ranges from 300 lbs on the 4” caster, 350 lbs on the 5”, 500 lbs on the 6” and 600 lbs. on the 8”.
  • Top plate measures at 4-1/2" x 6-1/4" with a bolt hole pattern of 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" and can either be bolted or welded on.
  • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.

Key Specs

AttributeSpecification

item#

5439901

Brand

Service Caster

Ship Weight

8.0 LB

Wheel Diameter

4 in

Caster Type

Swivel

Package (qty.)

1

Wheel Material

Thermoplastic Rubber

Mount Type

Plate

Load Capacity per Caster

300 lb
AttributeSpecification

Wheel Width

2 in

Finish Type

Bright Zinc Plated Finish

Plate Dimensions

4.5 x 6.25

Bolt Hole Spacing

2.4375 x 4.9375 to 3.375 x 5.25

Foot Brake

Yes

Overall Height

5.625 in

Bearing Type

Sealed

Product Weight

6.3000 lb

Dimensions L x W x H (in.)

12.0 x 12.0 x 7.5 in
