Service Caster, 4in. x 2in. Plate Caster, Wheel Diameter 4 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-30CS420-POB-BSL-2-TLB-2

Item# 5408291
Service Caster, 4in. x 2in. Plate Caster, Wheel Diameter 4 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-30CS420-POB-BSL-2-TLB-2

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Service Caster, 4in. x 2in. Plate Caster, Wheel Diameter 4 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-30CS420-POB-BSL-2-TLB-2

Click or Tap image to Zoom

$259.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • These Service Caster Series #30 Polyolefin casters offer various wheel sizes and mounting heights: 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height.
  • Weight Capacity: 4": 500 lbs Capacity/Caster, 5": 650 lbs Capacity/Caster, 6": 700 lbs. Capacity/Caster, and 8": 900 lbs Capacity/Caster

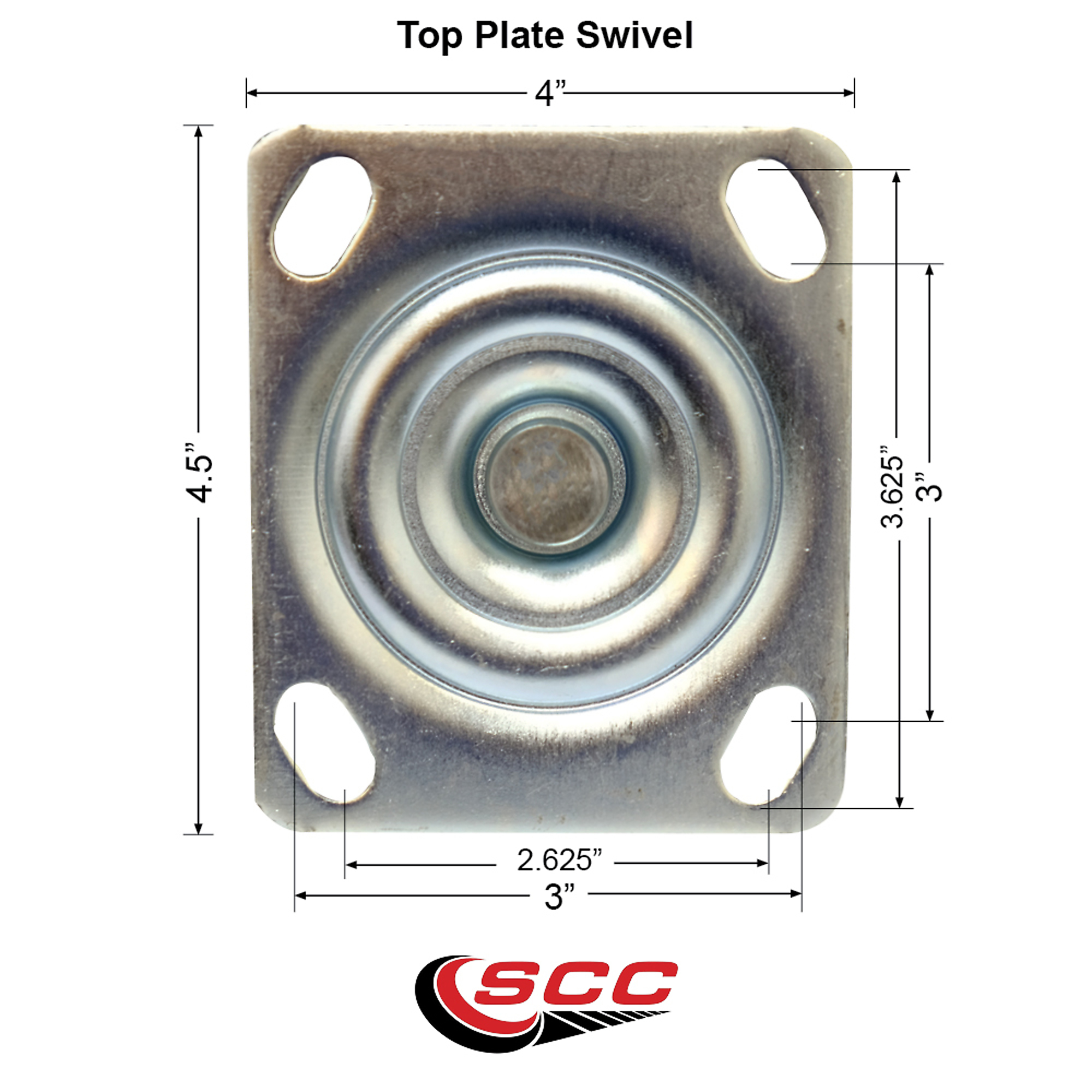

  • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.

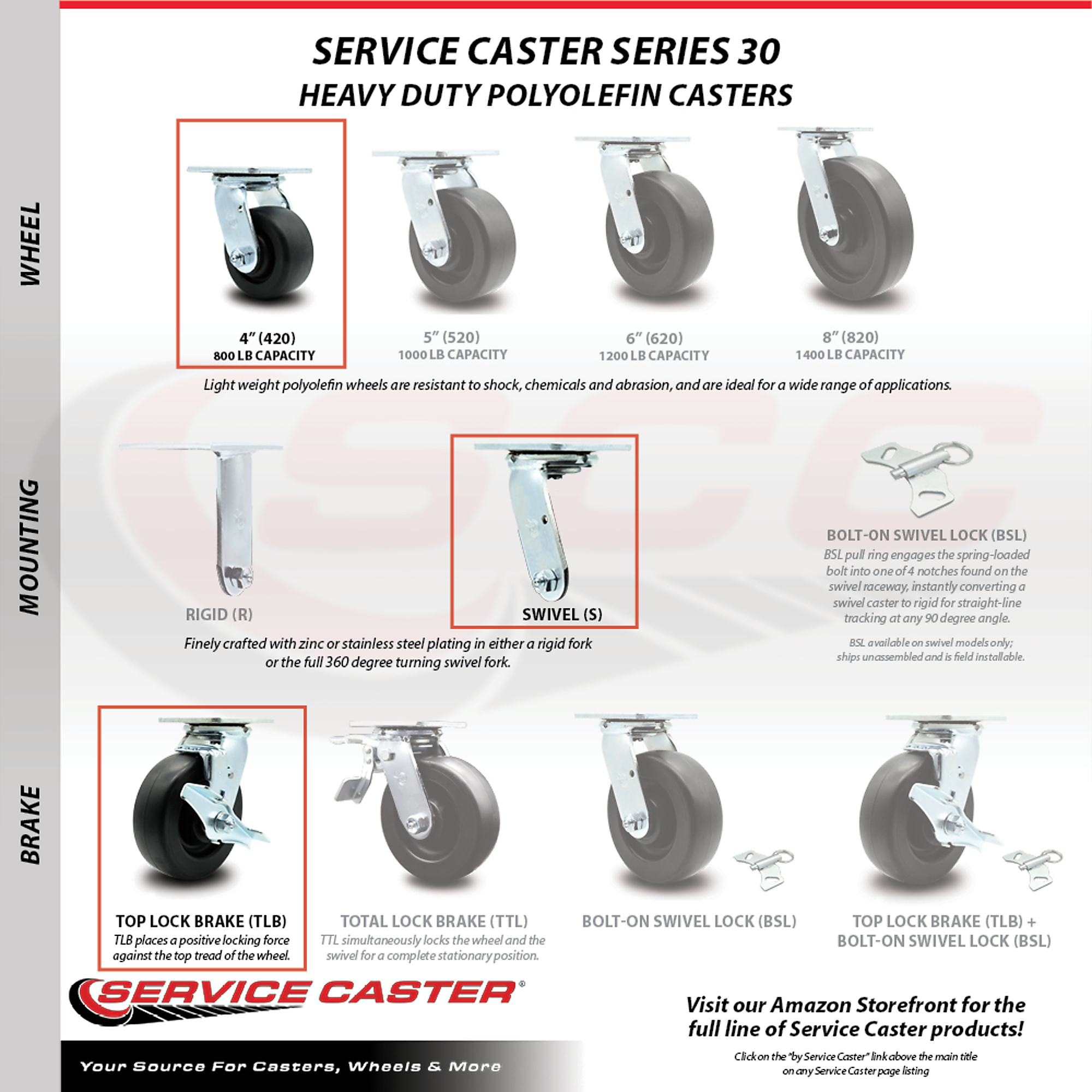

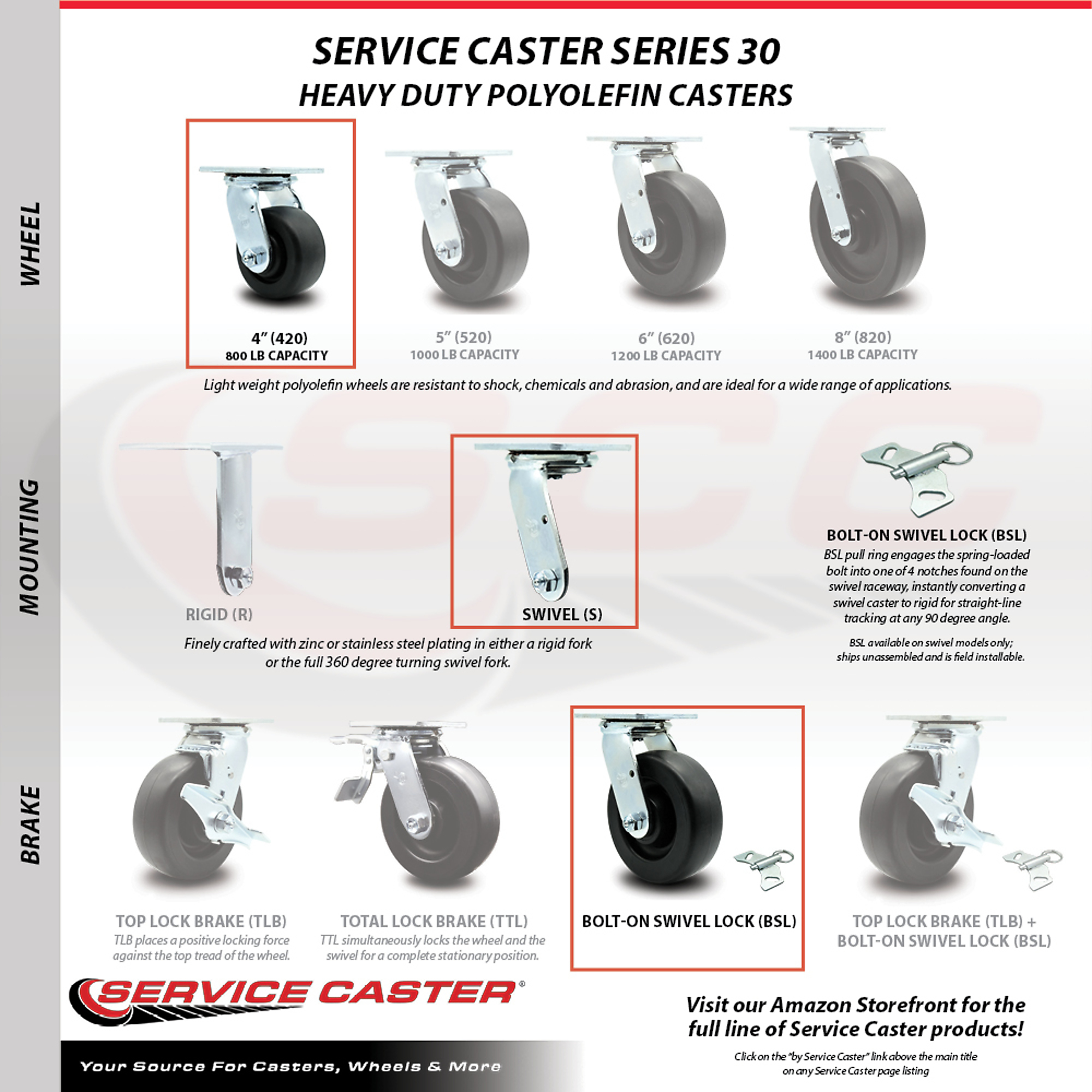

  • Brake options include a top lock brake (TLB) and a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

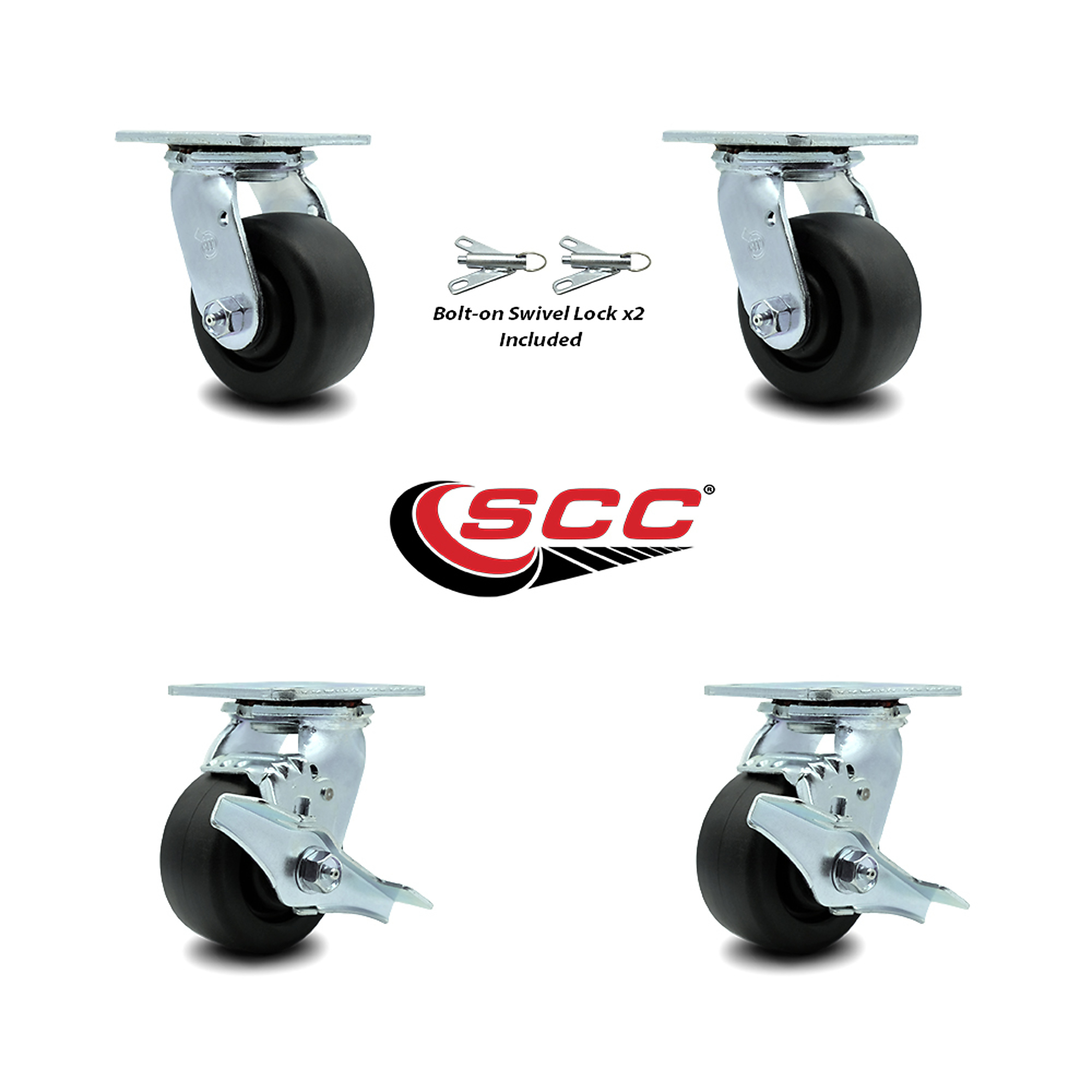

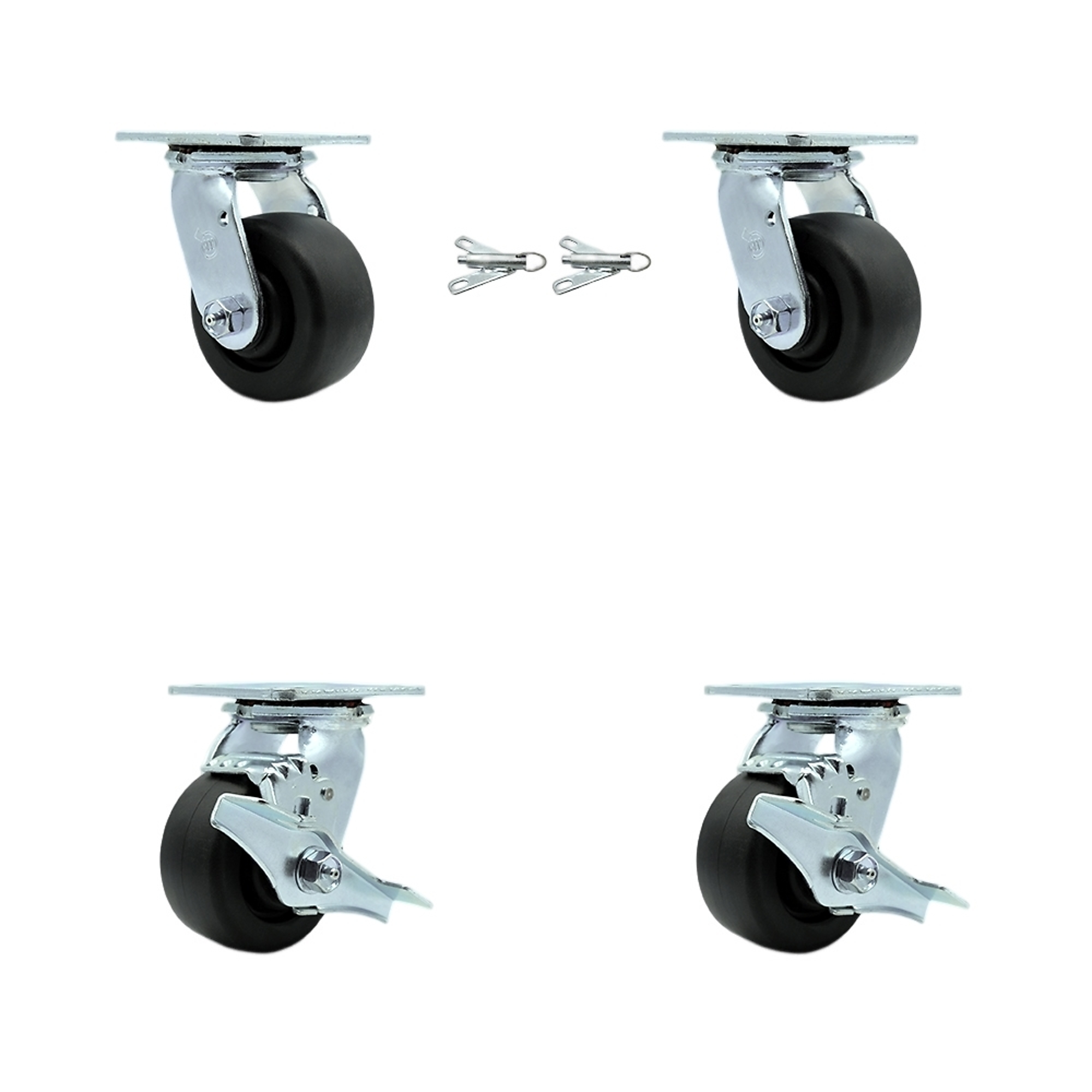

Listing is for a set of four (4) Service Caster Series #30 casters, two (2) Swivel casters with bolt on swivel locks and two (2) Swivel casters with side lock brakes, with 4in. diameter by 2in. wide polyolefin wheel and maintenance free precision ball wheel bearings capable of supporting a total weight of 2000 lbs. (500 lbs./caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster Series 30 polyolefin wheel casters. The Service Caster Series #30 features light weight polyolefin wheels that are resistant to shock, chemicals and abrasion, and finely crafted with a bright zinc plated finish and heat-treated ball bearing raceway. These versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for food service carts, hotel housekeeping carts, and industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 30, keeping you moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.

What's Included

    (1) Plate Caster

Features + Benefits

  • These Service Caster Series #30 Polyolefin casters offer various wheel sizes and mounting heights: 4” wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8” wheel: 9-1/2” mounting height.
  • Weight Capacity: 4": 500 lbs Capacity/Caster, 5": 650 lbs Capacity/Caster, 6": 700 lbs. Capacity/Caster, and 8": 900 lbs Capacity/Caster
  • Top plate measures at 4" x 4-1/2" with a bolt hole pattern of 2-5/8" x 3-5/8" to 3" x 3" and can either be bolted or welded on.
  • Brake options include a top lock brake (TLB) and a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.

Key Specs

AttributeSpecification

item#

5408291

Brand

Service Caster

Ship Weight

18.0 LB

Wheel Diameter

4 in

Caster Type

Swivel

Package (qty.)

1

Wheel Material

Polyolefin

Mount Type

Plate

Load Capacity per Caster

500 lb
AttributeSpecification

Wheel Width

2 in

Finish Type

Bright Zinc Plated Finish

Plate Dimensions

4 x 4.5

Bolt Hole Spacing

2.625 x 3.625 to 3 x 3

Foot Brake

Yes

Overall Height

5.625 in

Bearing Type

Sealed

Product Weight

18.0000 lb

Dimensions L x W x H (in.)

12.0 x 12.0 x 7.5 in

Reviews

Questions & Answers

Questions

Compare with Most Popular in 500 - 999 Lbs.

See All 500 - 999 Lbs.

See All Service Caster 500 - 999 Lbs.

Specifications

Specifications
Service Caster, 4in. x 2in. Plate Caster, Wheel Diameter 4 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-30CS420-POB-BSL-2-TLB-2
Vestil Rubber Swivel With Total Brake Caster 8 In. Diameter x 2 In. Width 881 Lb. Capacity Black/Gold
Vestil Rubber Swivel Caster - 5in. x 2in., 551-Lb. Capacity, Thermoplastic Rubber, Gray, Model# CST-VE-5X2TPR-S
Vestil Rubber Swivel Caster - 8in. x 2in., 705-Lb. Capacity, Thermoplastic Rubber, Gray, Model# CST-VE-8X2TPR-S
Wheel Diameter
Same

4 in

8 in

5 in

8 in

Caster Type
Same

Swivel

Swivel

Swivel

Swivel

Package (qty.)
Same

1

1

1

1

Wheel Material
Same

Polyolefin

Rubber

Thermoplastic Rubber

Thermoplastic Rubber

Mount Type
Same

Plate

Plate

Plate

Plate

Load Capacity per Caster
Same

500 lb

881 lb

551 lb

705 lb

Wheel Width
Same

2 in

8 in

5 in

8 in

Finish Type
Same

Bright Zinc Plated Finish

Zinc Plated

Zinc Plated

Zinc Plated

Plate Dimensions
Same

4 x 4.5

4 X 4 1/2

4 X 4 1/2

4 X 4 1/2

Bolt Hole Spacing
Same

2.625 x 3.625 to 3 x 3

-

-

-

Foot Brake
Same

Yes

Yes

No

No

Overall Height
Same

5.625 in

9.5 in

6.5 in

9.5 in

Bearing Type
Same

Sealed

Ball

Ball

Ball

Product Weight
Same

18.0000 lb

9.0900 lb

5.0000 lb

7.0000 lb

Dimensions L x W x H (in.)
Same

12.0 x 12.0 x 7.5 in

7.875 x 5.0 x 9.5 in

6.5 x 4.0 x 6.5 in

8.25 x 4.0 x 9.5 in

Non-Marking
Same

-

No

No

Yes

Includes Thread Guards
Same

-

No

No

No
