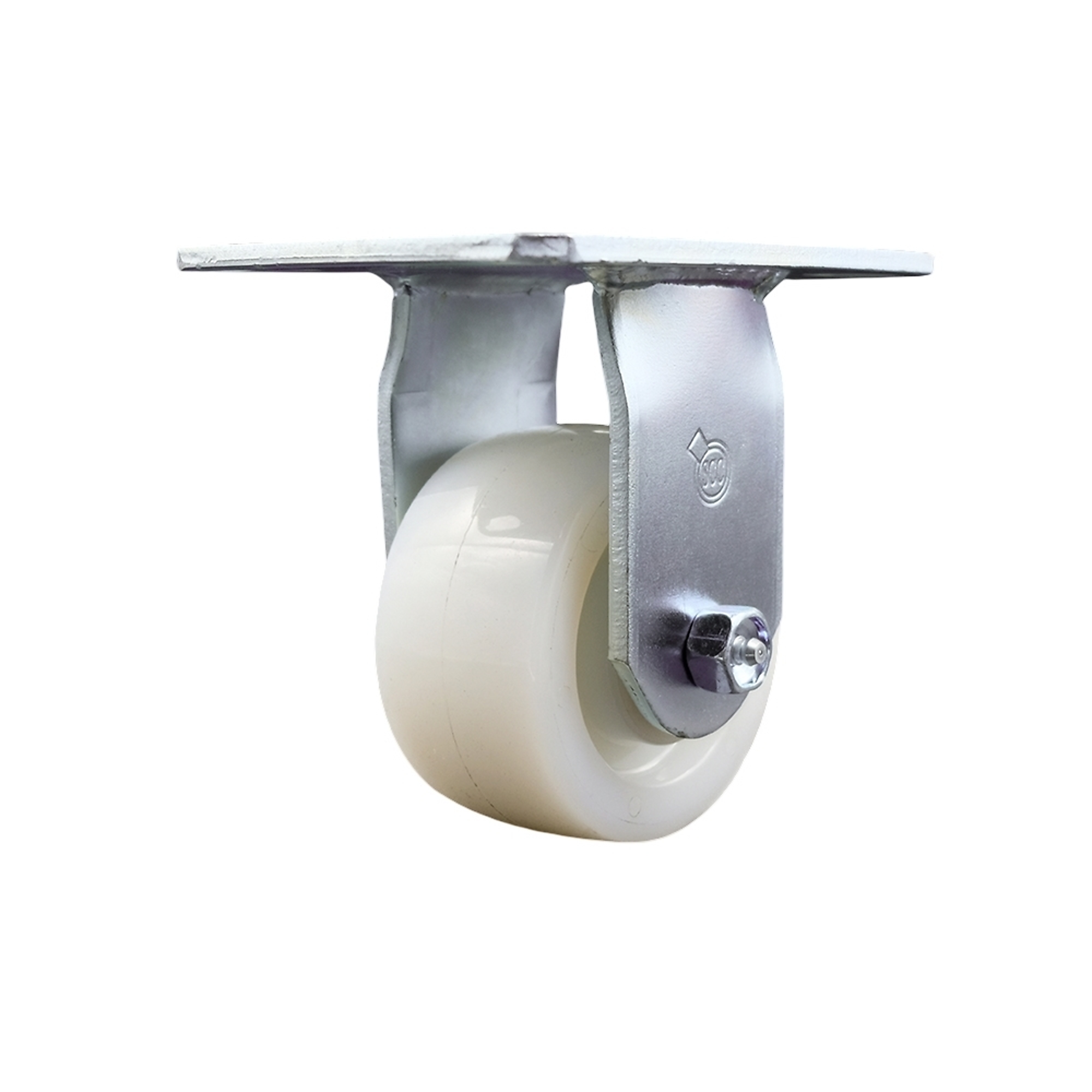

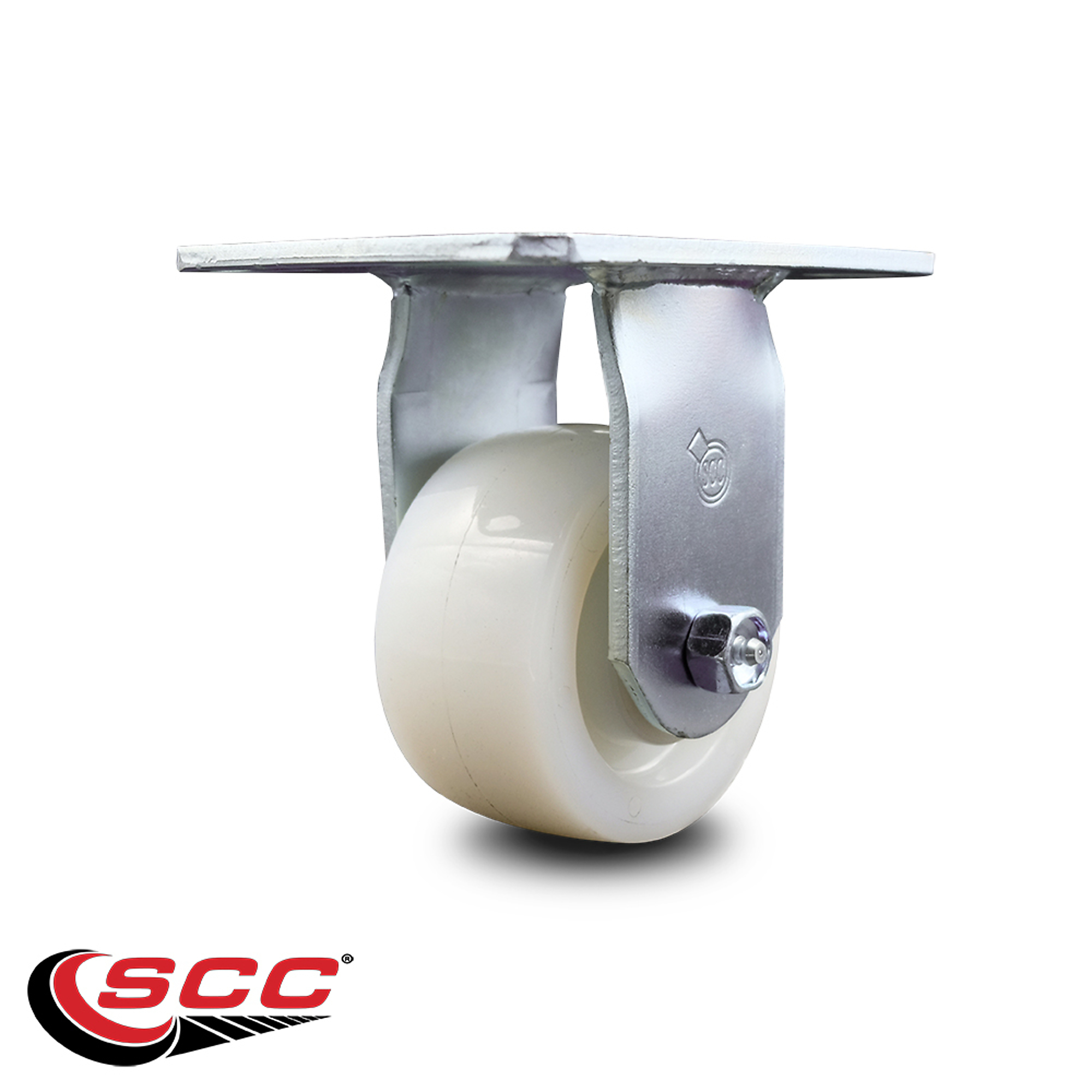

Service Caster, 4in. x 2in. Plate Caster, Wheel Diameter 4 in, Caster Type Rigid, Package (qty.) 1, Model# SCC-35R420-NYB

Item# 5432216
"Service Caster, 4in. x 2in. Plate Caster, Wheel Diameter 4 in, Caster Type Rigid, Package (qty.) 1, Model# SCC-35R420-NYB"
Service Caster, 4in. x 2in. Plate Caster, Wheel Diameter 4 in, Caster Type Rigid, Package (qty.) 1, Model# SCC-35R420-NYB

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Service Caster, 4in. x 2in. Plate Caster, Wheel Diameter 4 in, Caster Type Rigid, Package (qty.) 1, Model# SCC-35R420-NYB

Click or Tap image to Zoom

$57.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only

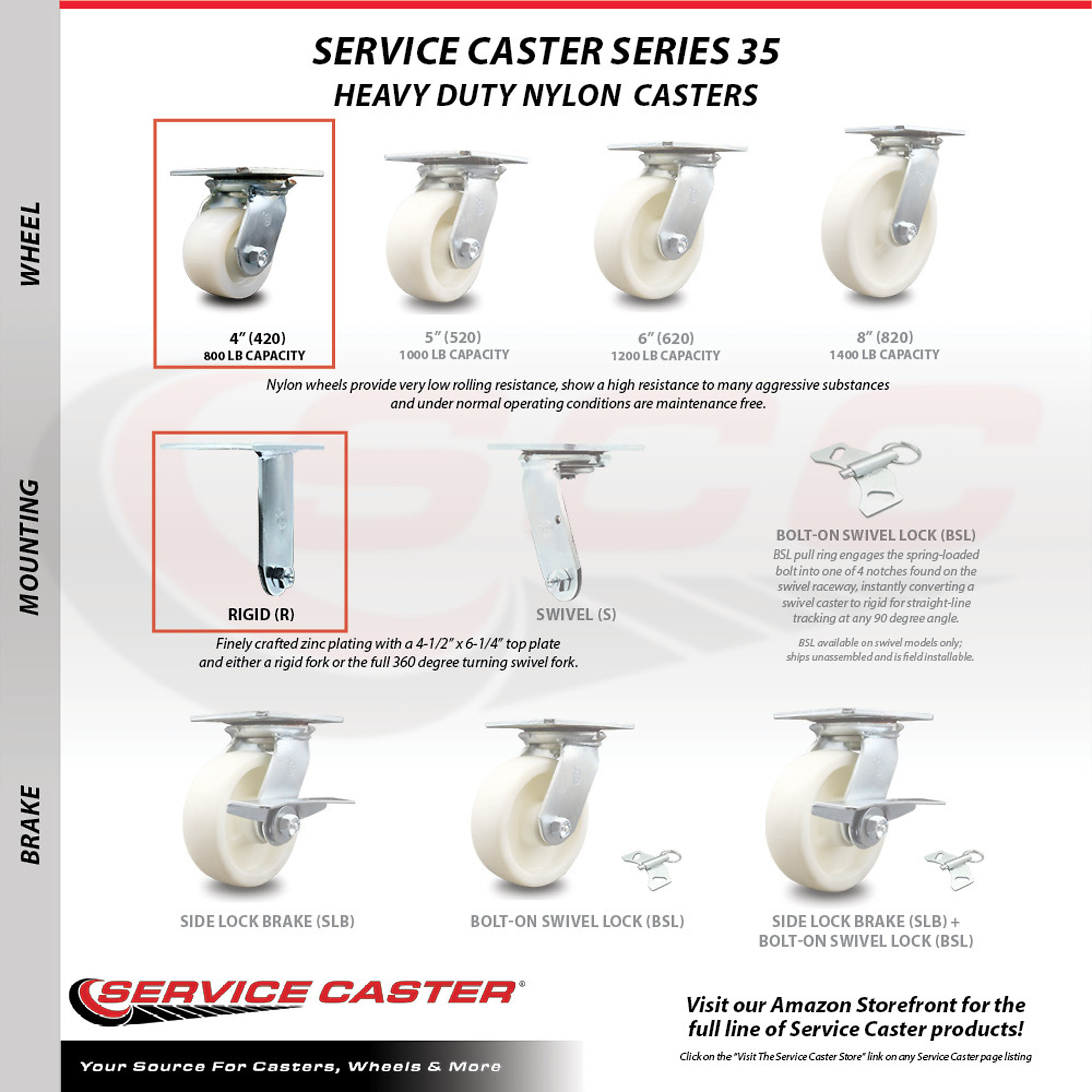

  • These Service Caster Series #35 Nylon casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height.
  • Weight capacity ranges from 800 lbs on the 4” caster, 900 lbs on the 5”, 1250 lbs on the 6” and 1250 lbs. on the 8”.

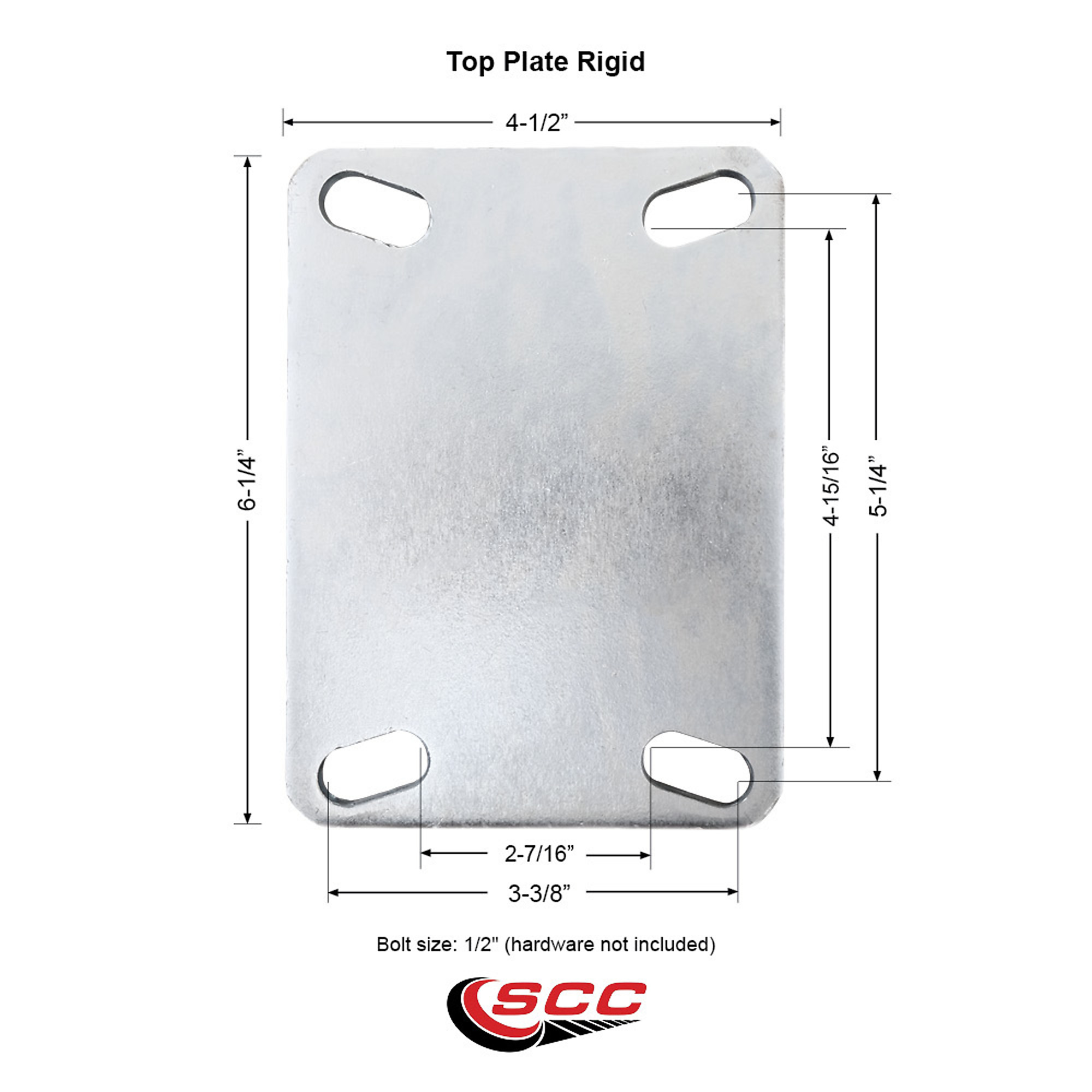

  • Top plate measures at 4-1/2" x 6-1/4" with a bolt hole pattern of 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" and can either be bolted or welded on.
  • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

Listing is for one (1) Service Caster Series #35 rigid caster with a 4in. diameter by 2in. wide nylon wheel and maintenance free precision ball wheel bearings. Capable of supporting 800 lbs./caster. When searching for a reliable and durable heavy duty solution to your caster needs, consider Service Caster’s Series 35 nylon wheel casters. The Service Caster Series #35 is ideal for medium and heavy duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition and the nylon wheels provide very low rolling resistance, show a high resistance to many aggressive substances and under normal operating conditions are maintenance free. Resistant to most chemical and oils, these nylon wheels will keep you safely moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.

What's Included

    (1) Plate Caster

Features + Benefits

  • These Service Caster Series #35 Nylon casters offer various wheel sizes and mounting heights: 4” Wheel: 5-5/8” mounting height; 5” wheel: 6-1/2” mounting height; 6” wheel: 7-1/2” mounting height; 8" wheel: 9-1/2" mounting height.
  • Weight capacity ranges from 800 lbs on the 4” caster, 900 lbs on the 5”, 1250 lbs on the 6” and 1250 lbs. on the 8”.
  • Top plate measures at 4-1/2" x 6-1/4" with a bolt hole pattern of 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" and can either be bolted or welded on.
  • Brake options include a side lock brake (SLB) which applies a positive locking force against the wheel hub which prevents the wheel from moving freely, or a bolt-on swivel lock (BSL) that when inserted into one of 4 notches found on the swivel raceway converts a swivel caster to rigid for straight-line tracking at any 90 degree angle. Combining both brake types ensures complete immobility over both swivel and wheel on the caster.

Key Specs

AttributeSpecification

item#

5432216

Brand

Service Caster

Ship Weight

6.0 LB

Wheel Diameter

4 in

Caster Type

Rigid

Package (qty.)

1

Wheel Material

Nylon

Mount Type

Plate

Load Capacity per Caster

800 lb
AttributeSpecification

Wheel Width

2 in

Finish Type

Bright Zinc Plated Finish

Plate Dimensions

4.5 x 6.25

Bolt Hole Spacing

2.4375 x 4.9375 to 3.375 x 5.25

Foot Brake

No

Overall Height

5.625 in

Bearing Type

Sealed

Product Weight

4.3500 lb

Dimensions L x W x H (in.)

12.0 x 12.0 x 7.5 in

Reviews

Questions & Answers

24 Reviews This action will navigate to reviews.

Questions

Compare with Most Popular in 500 - 999 Lbs.

See All 500 - 999 Lbs.

See All Service Caster 500 - 999 Lbs.

Specifications

Specifications
Service Caster, 4in. x 2in. Plate Caster, Wheel Diameter 4 in, Caster Type Rigid, Package (qty.) 1, Model# SCC-35R420-NYB
Vestil Rubber Swivel With Total Brake Caster 8 In. Diameter x 2 In. Width 881 Lb. Capacity Black/Gold
Vestil Rubber Swivel Caster - 5in. x 2in., 551-Lb. Capacity, Thermoplastic Rubber, Gray, Model# CST-VE-5X2TPR-S
Vestil Rubber Swivel Caster - 8in. x 2in., 705-Lb. Capacity, Thermoplastic Rubber, Gray, Model# CST-VE-8X2TPR-S
Wheel Diameter
Same

4 in

8 in

5 in

8 in

Caster Type
Same

Rigid

Swivel

Swivel

Swivel

Package (qty.)
Same

1

1

1

1

Wheel Material
Same

Nylon

Rubber

Thermoplastic Rubber

Thermoplastic Rubber

Mount Type
Same

Plate

Plate

Plate

Plate

Load Capacity per Caster
Same

800 lb

881 lb

551 lb

705 lb

Wheel Width
Same

2 in

8 in

5 in

8 in

Finish Type
Same

Bright Zinc Plated Finish

Zinc Plated

Zinc Plated

Zinc Plated

Plate Dimensions
Same

4.5 x 6.25

4 X 4 1/2

4 X 4 1/2

4 X 4 1/2

Bolt Hole Spacing
Same

2.4375 x 4.9375 to 3.375 x 5.25

-

-

-

Foot Brake
Same

No

Yes

No

No

Overall Height
Same

5.625 in

9.5 in

6.5 in

9.5 in

Bearing Type
Same

Sealed

Ball

Ball

Ball

Product Weight
Same

4.3500 lb

9.0900 lb

5.0000 lb

7.0000 lb

Dimensions L x W x H (in.)
Same

12.0 x 12.0 x 7.5 in

7.875 x 5.0 x 9.5 in

6.5 x 4.0 x 6.5 in

8.25 x 4.0 x 9.5 in

Non-Marking
Same

-

No

No

Yes

Includes Thread Guards
Same

-

No

No

No
