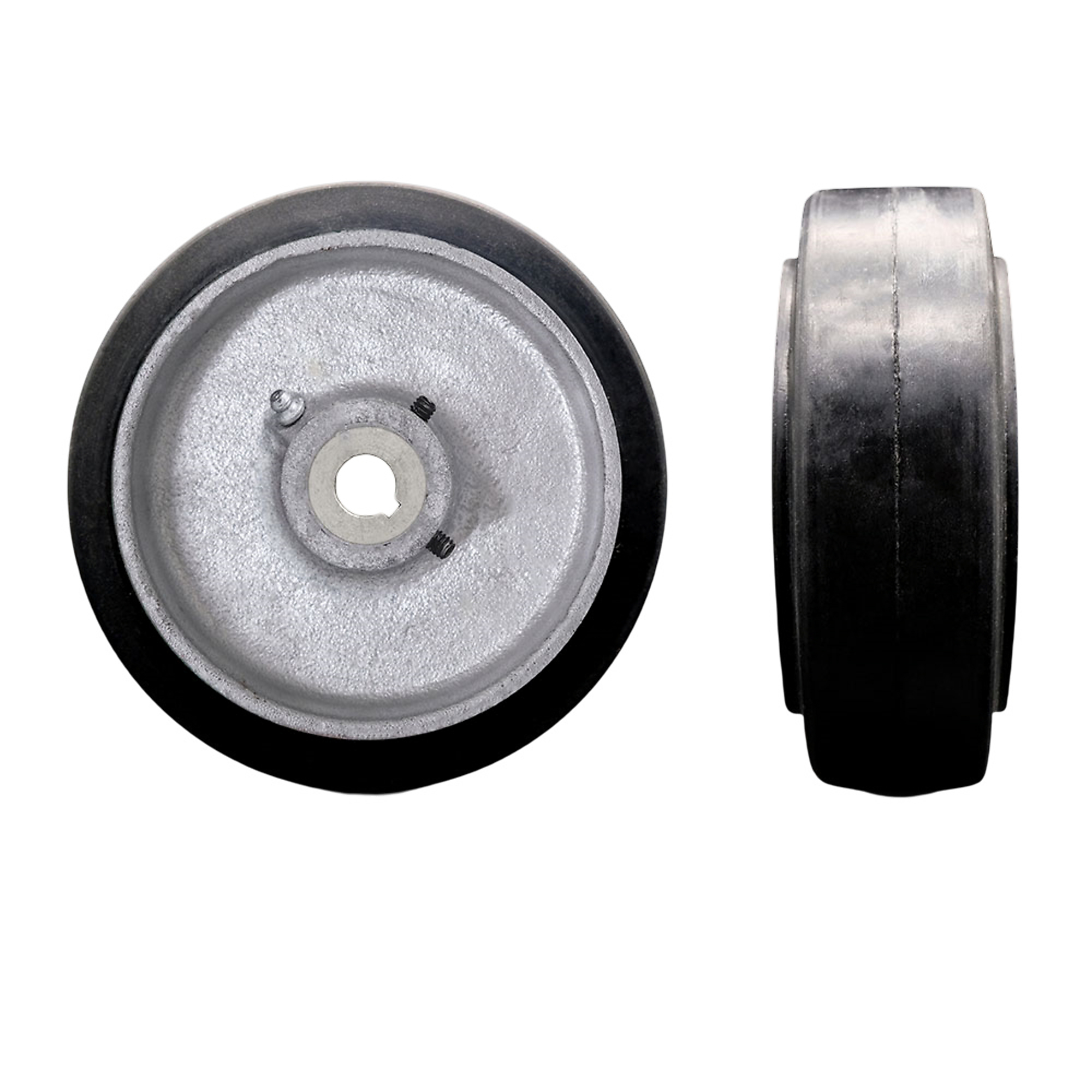

Service Caster, 4in. x 2in. Hardware Wheel, Wheel Diameter 4 in, Caster Type Rigid, Package (qty.) 1, Model# SCC-RSS420-14MM-KW-2SS

Item# 5513374
Service Caster, 4in. x 2in. Hardware Wheel, Wheel Diameter 4 in, Caster Type Rigid, Package (qty.) 1, Model# SCC-RSS420-14MM-KW-2SS

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Service Caster, 4in. x 2in. Hardware Wheel, Wheel Diameter 4 in, Caster Type Rigid, Package (qty.) 1, Model# SCC-RSS420-14MM-KW-2SS

Click or Tap image to Zoom

$154.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Service Caster’s Rubber on Silver Cast Iron core wheels come in four different wheel sizes – 4" x 2", 5” x 2", 6” x 2", and 8" x 2".
  • Weight capacity: 200 lbs. per wheel (Weight capacity can vary depending on load, torque, speed, duty cycle, environment, and coefficient of friction)

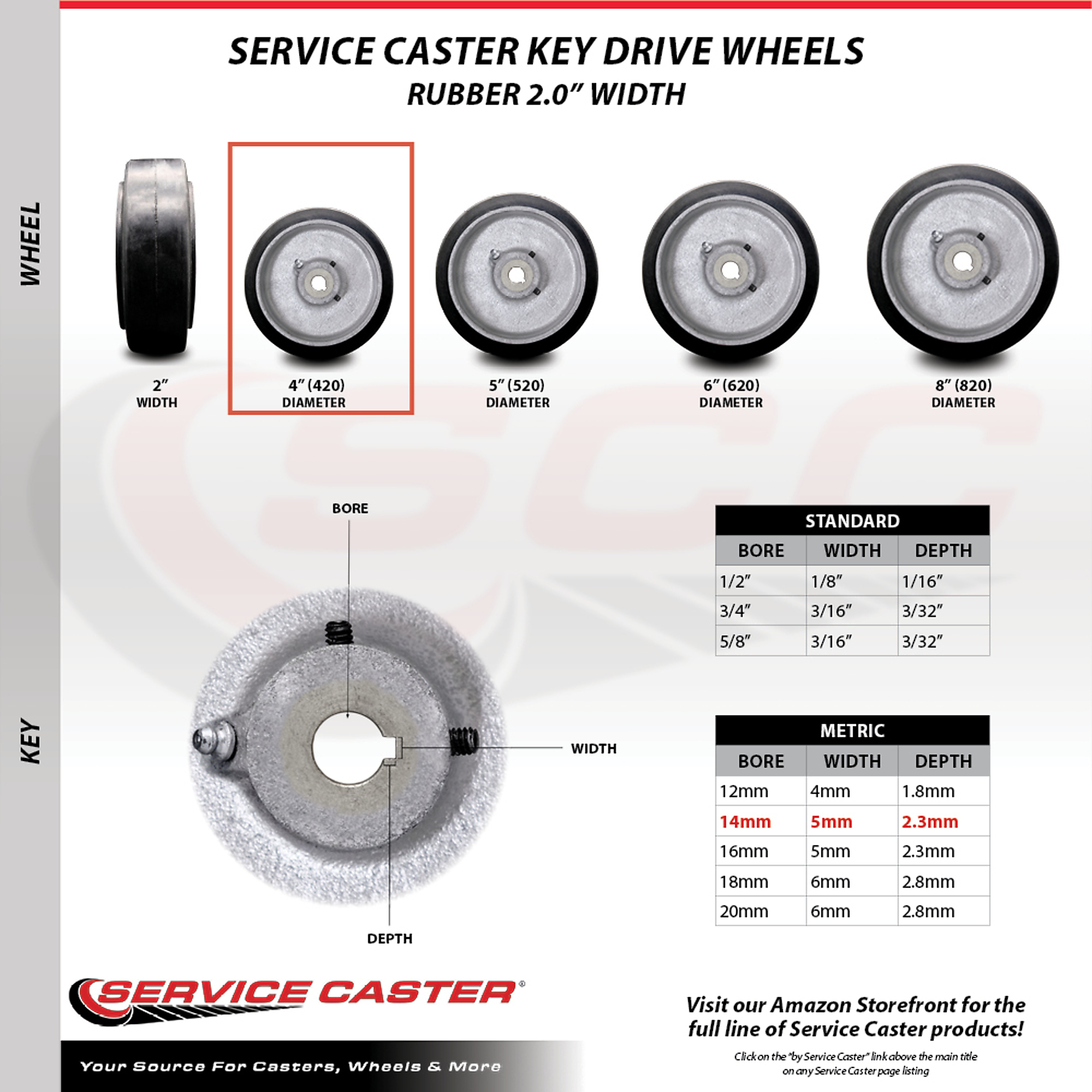

  • Five different bore sizes are available - 12MM (4mm W x 1.8mm D Keyway), 14MM (5mm W x 2.3mm D Keyway), 16MM (5mm W x 2.3mm D Keyway), 18MM (6mm W x 2.8mm D Keyway), and 20MM (6mm W x 2.8mm D Keyway). All wheel sizes have a 2-3/16" hub length. The hub length is the widest point of the wheel, so it is important to ensure you can accommodate this width before purchasing.
  • Rubber on cast iron is the most versatile and cost-effective industrial wheel on the market. The non-marking and non-sparking tread protects floors, rolls quiet and is resistant to most chemicals, while the high capacity load bearing wears like iron. Finally, featuring a 70-80 Shore (A) durometer, this wheel is a great option for anyone looking for a keyed drive wheel.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

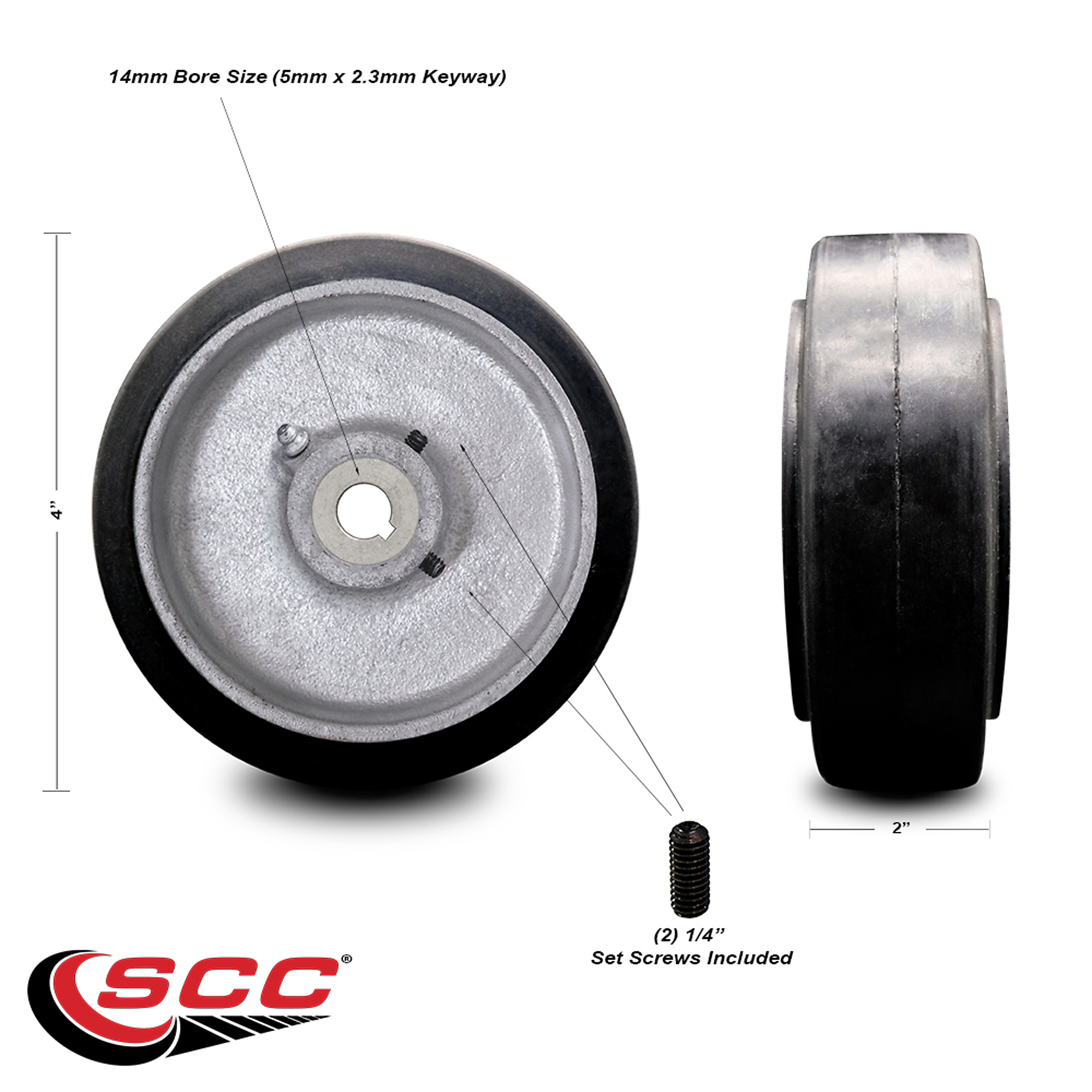

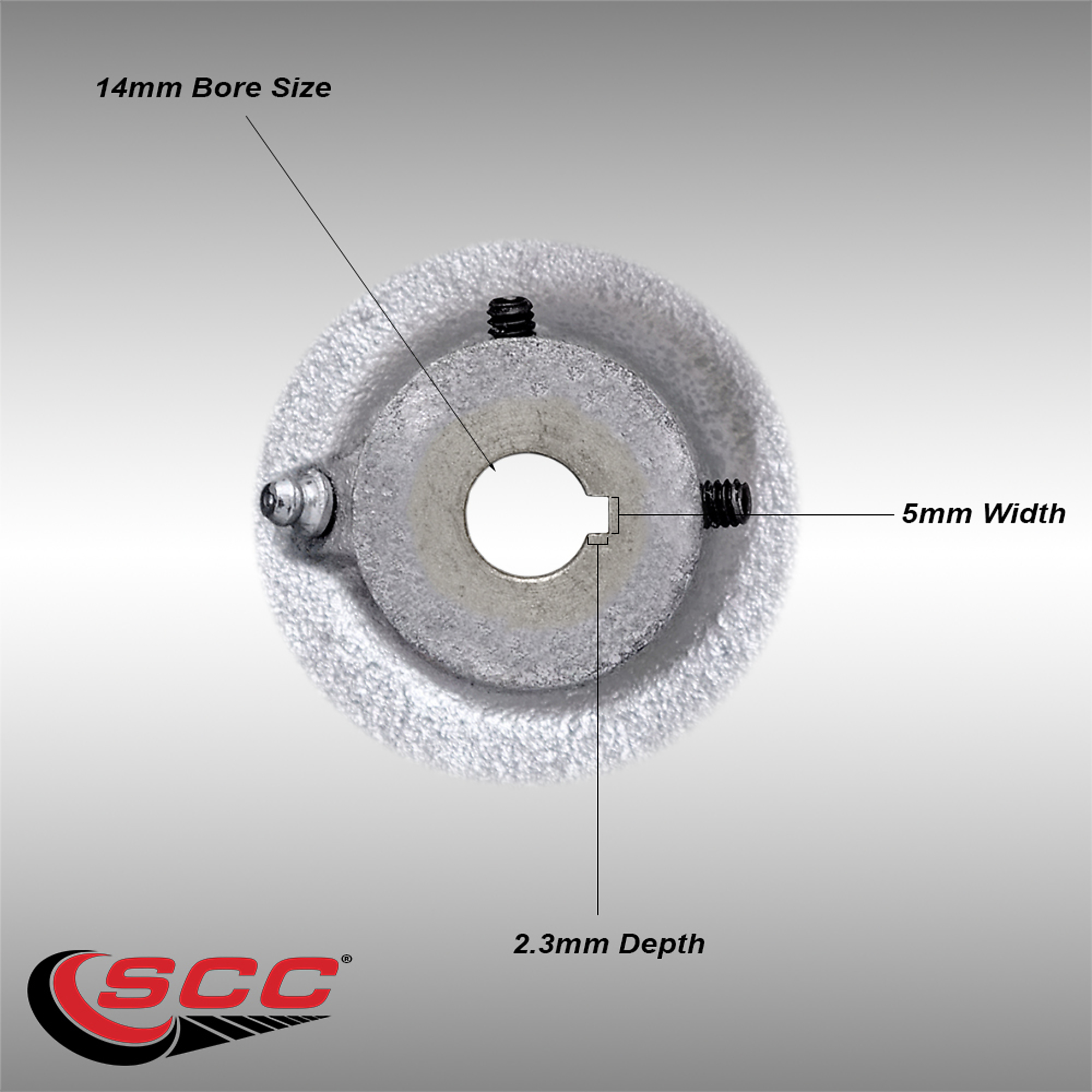

Listing is for one (1) Service Caster 4in. diameter by 2in. tread width keyed drive wheel.When searching for a reliable and durable solution for replacement keyed drive wheels, consider Service Caster’s Polyurethane on Cast Iron wheels. Polyurethane on cast iron is the most versatile and cost-effective industrial wheel on the market. The non-marking and non-sparking tread protects floors, rolls quiet and is resistant to most chemicals, while the high capacity load bearing wears like iron. Featuring a green polyurethane tread and a silver cast iron core, this keyed drive wheel comes with a 14mm plain bore and a 5mm x 2.3mm keyway. This wheel also comes standard with (2) 1/4in. set screws, one on the keyway and one 90 degrees from it. Finally, featuring a 70-80 Shore (A) durometer, this wheel is a great option for anyone looking for a keyed drive wheel. If you do not see the needed size listed, please contact us so we can assist you further. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.

What's Included

    (1) Hardware Wheel

Features + Benefits

  • Service Caster’s Rubber on Silver Cast Iron core wheels come in four different wheel sizes – 4" x 2", 5” x 2", 6” x 2", and 8" x 2".
  • Weight capacity: 200 lbs. per wheel (Weight capacity can vary depending on load, torque, speed, duty cycle, environment, and coefficient of friction)
  • Five different bore sizes are available - 12MM (4mm W x 1.8mm D Keyway), 14MM (5mm W x 2.3mm D Keyway), 16MM (5mm W x 2.3mm D Keyway), 18MM (6mm W x 2.8mm D Keyway), and 20MM (6mm W x 2.8mm D Keyway). All wheel sizes have a 2-3/16" hub length. The hub length is the widest point of the wheel, so it is important to ensure you can accommodate this width before purchasing.
  • Rubber on cast iron is the most versatile and cost-effective industrial wheel on the market. The non-marking and non-sparking tread protects floors, rolls quiet and is resistant to most chemicals, while the high capacity load bearing wears like iron. Finally, featuring a 70-80 Shore (A) durometer, this wheel is a great option for anyone looking for a keyed drive wheel.

Key Specs

AttributeSpecification

item#

5513374

Brand

Service Caster

Ship Weight

1.85 LB

Wheel Diameter

4 in

Caster Type

Rigid

Package (qty.)

1

Wheel Material

Mold-on-Rubber

Mount Type

Bolt-hole
AttributeSpecification

Load Capacity per Caster

200 lb

Wheel Width

2 in

Finish Type

Rubber on Cast Iron

Foot Brake

No

Bearing Type

Plain

Product Weight

1.8500 lb

Dimensions L x W x H (in.)

8.0 x 8.0 x 8.0 in
