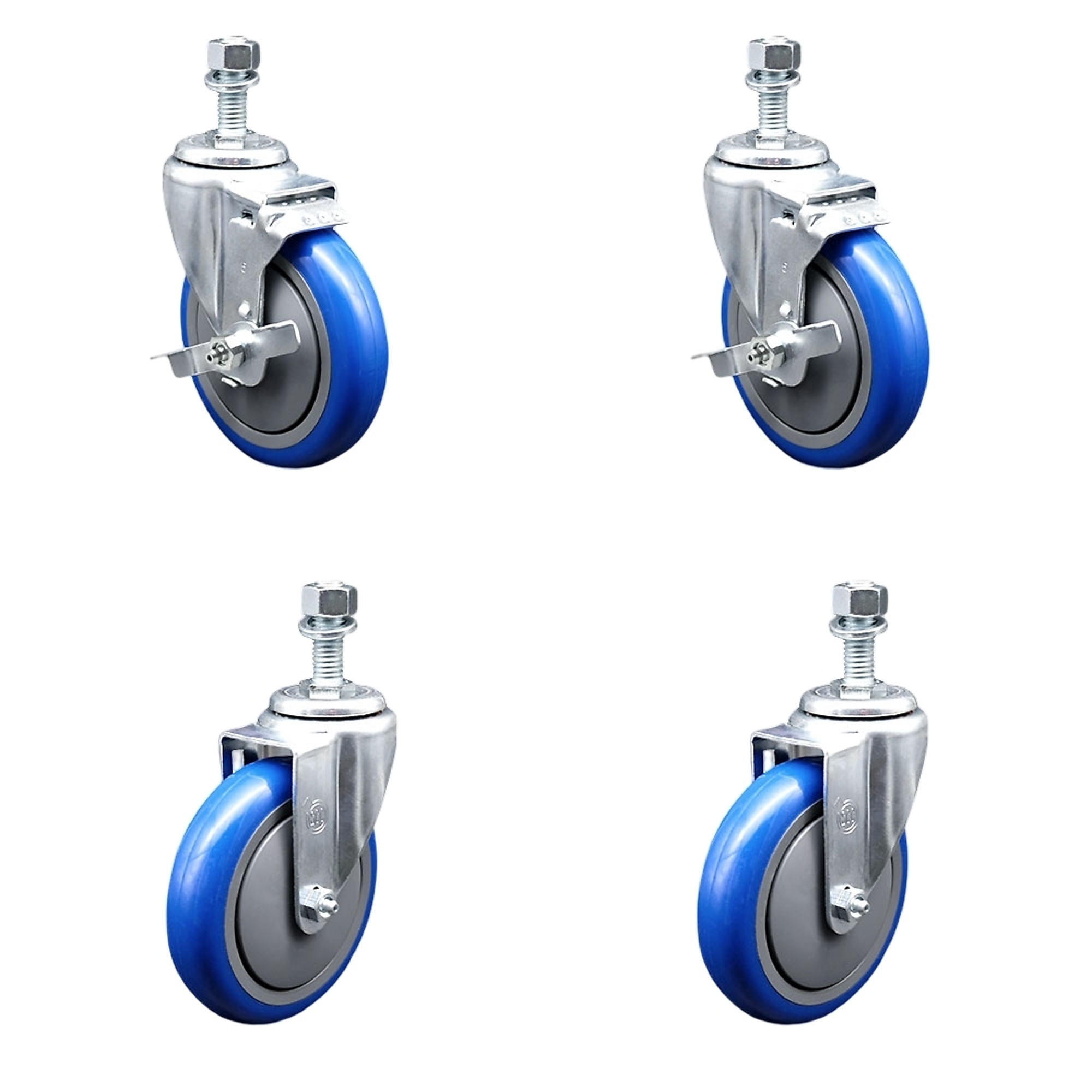

Service Caster, 4in. x 1 1/4in. Stem Casters, Wheel Diameter 5 in, Caster Type Swivel, Package (qty.) 4, Model# TS20S514-PPUB-BLUE-TLB-121315-2-S-2
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom

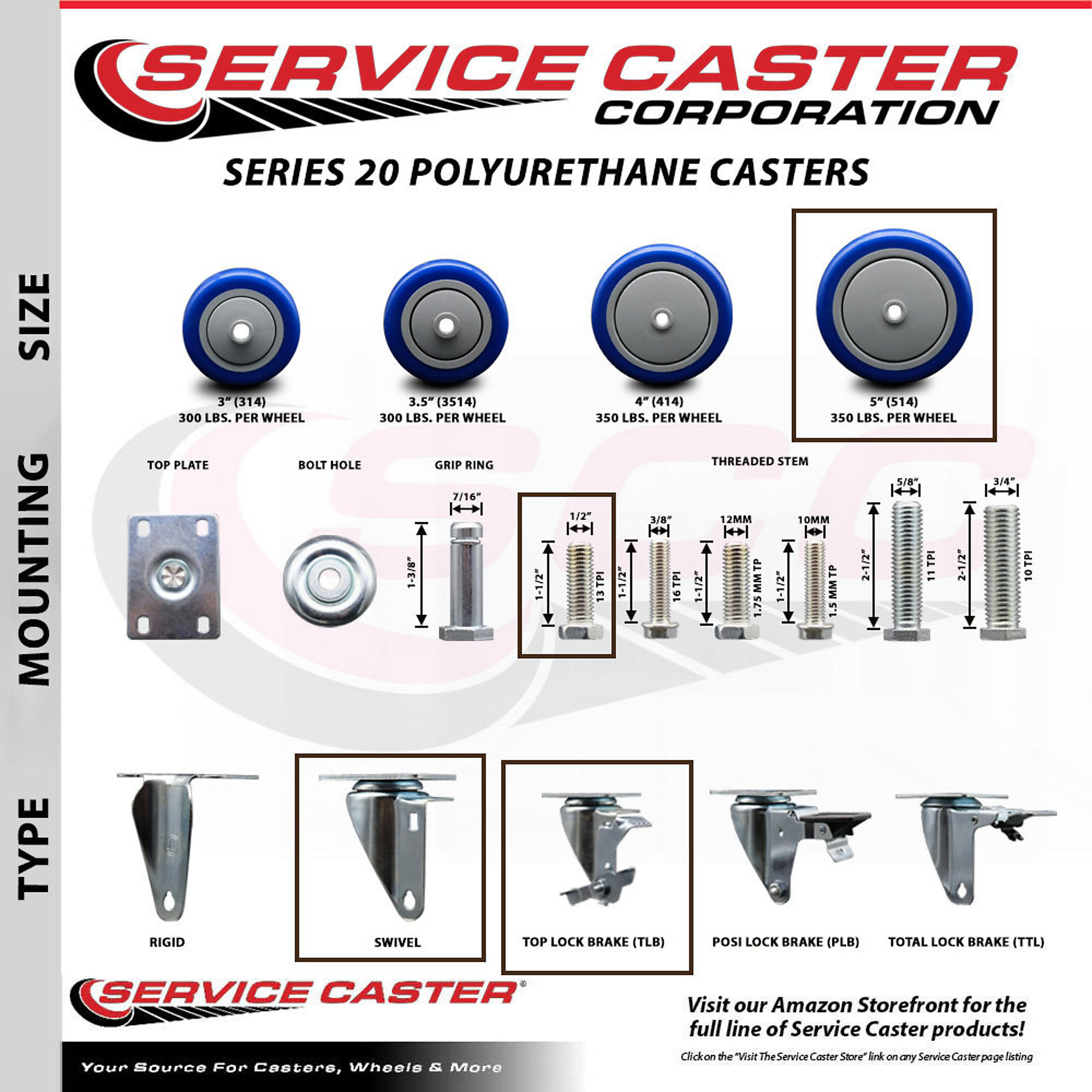

- These Service Caster Series #20 Polyurethane casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height; 6” wheel: 7-1/8” mounting height. Wheels are offered in five different colors – Gray, Blue, Black, Maroon, and Red.
- Weight Capacity: 3" and 3.5": 300 lbs Capacity/Caster; 4", 5", and 6": 350 lbs Capacity/Caster

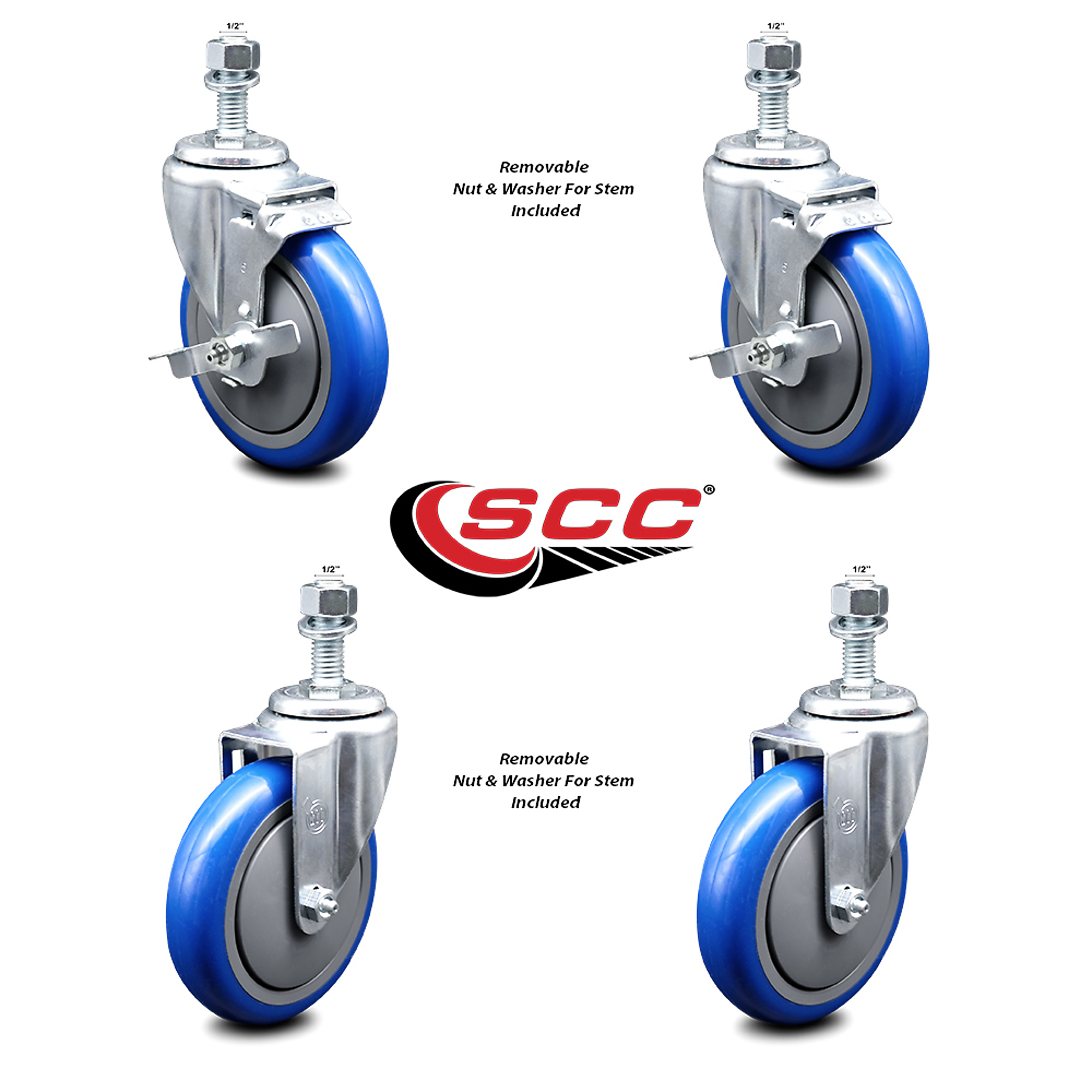

- All casters feature a 1/2” diameter (13 TPI x 1-1/2”) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button.
- Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB), which is featured on 3", 3-1/2", 4", and 5" wheel sizes, places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL), which is featured on all wheel sizes, also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
See full description
See All 300 - 499 Lbs.
See All Service Caster 300 - 499 Lbs.
Currently Viewing This Product
Specifications
5 in
10 in
5 in
10 in
Swivel
Rigid
Rigid
Swivel
4
4
4
4
Non-Marking Poly-on-Poly
Pneumatic
Thermoplastic Rubber
Pneumatic
Stem
Plate
Plate
Plate
350 lb
350 lb
300 lb
350 lb
1.25 in
3.13 in
1.25 in
3.13 in
Bright Zinc Plated Finish
-
-
-
Yes
No
No
No
6.125 in
12 in
6 1/16 in
12 in
1.5 in
-
-
-
0.5 in
-
-
-
Sealed
Ball
Ball
Ball
10.0000 lb
7.1650 lb
1.5058 lb
7.7162 lb
8.0 x 8.0 x 8.0 in
10.2362 x 5.315 x 12.0079 in
0 x 0 x 6.1024 in
10.2362 x 5.315 x 12.0079 in
-
4 x 4-1/2
2-7/8 x 4-1/16
4 x 4-1/2
-
Yes
Yes
Yes
-
No
No
No
See All 300 - 499 Lbs.
See All Service Caster 300 - 499 Lbs.
