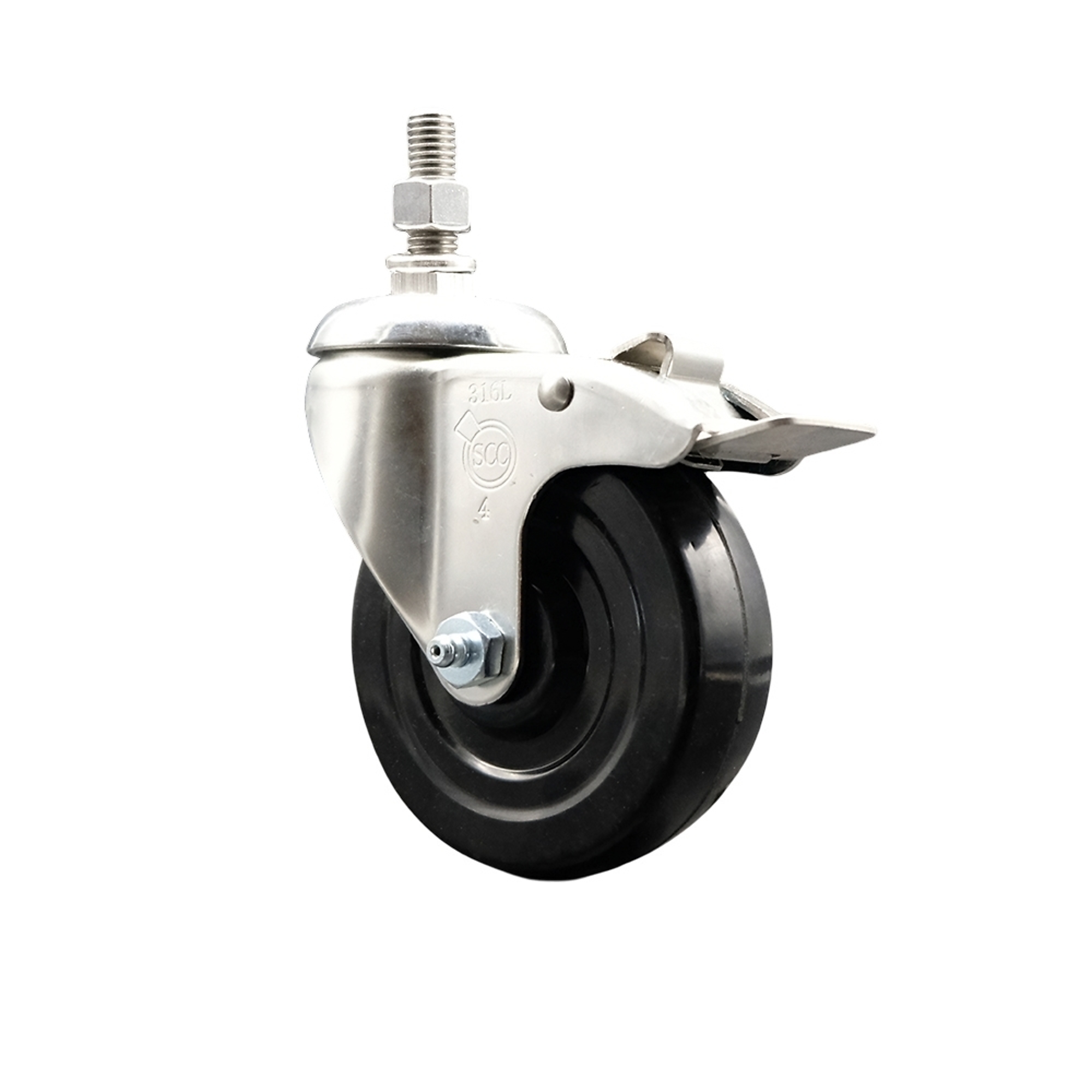

Service Caster, 4in. x 1 1/4in. Stem Caster, Wheel Diameter 4 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-SS316TSTTL20S414-HRS-121315

Item# 5554951
Service Caster, 4in. x 1 1/4in. Stem Caster, Wheel Diameter 4 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-SS316TSTTL20S414-HRS-121315

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Service Caster, 4in. x 1 1/4in. Stem Caster, Wheel Diameter 4 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-SS316TSTTL20S414-HRS-121315

Click or Tap image to Zoom

$309.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • These Service Caster Series #20 Hard Rubber casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height.
  • Weight Capacity: 3": 275 lbs Capacity/Caster; 3.5": 285 lbs Capacity/Caster; 4" and 5": 300 lbs Capacity/Caster

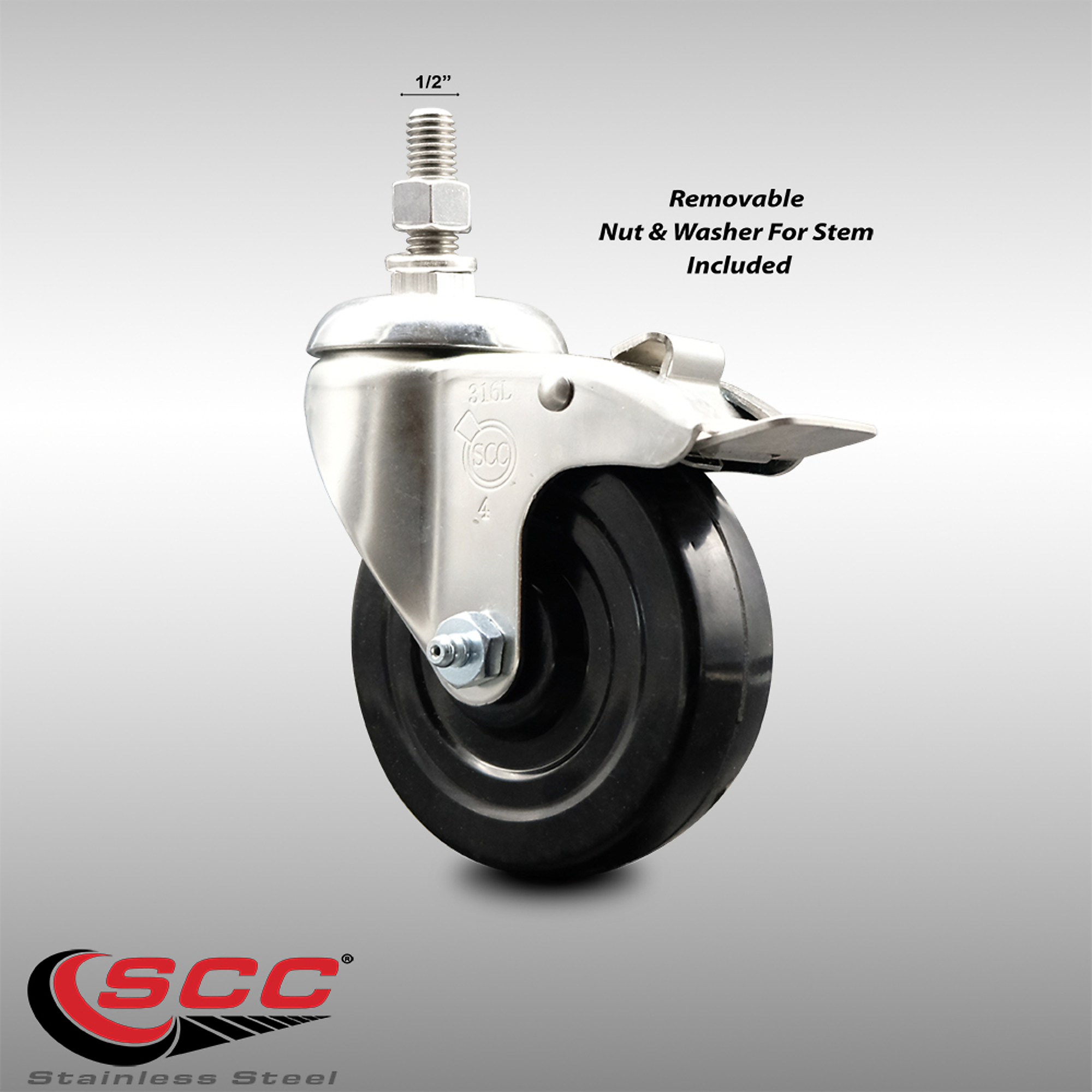

  • All casters feature a 1/2” diameter (13 TPI x 1-1/2”) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button.
  • Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

Listing is for one (1) Service Caster Series #20 stainless steel swivel caster with a 4in. diameter by 1-1/4in. wide hard rubber wheel and a 1/2in.-13 X 1-1/2in. threaded stem with total lock brake capable of supporting 300 lbs./caster. When searching for a reliable and durable solution to your caster needs, consider Service Caster’s 316 stainless steel hard rubber casters. SS316 casters are ideal for light and medium duty material handling, carts, equipment, and shop projects. Built with 316 stainless steel, which contains additional molybdenum and nickel content, making it more corrosion resistant than standard 304 stainless steel. The hard rubber wheels not only provide higher load capacities and impact resistance than comparable wheels, but are also resistant to most chemicals and oils. Mounting options include top plate, bolt hole, expanding stem and standard and metric threaded stem sizes. Service Caster is unsurpassed in quality, reliability and excellent customer service. Count on us to move you forward.

What's Included

    (1) Stem Caster

Features + Benefits

  • These Service Caster Series #20 Hard Rubber casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height.
  • Weight Capacity: 3": 275 lbs Capacity/Caster; 3.5": 285 lbs Capacity/Caster; 4" and 5": 300 lbs Capacity/Caster
  • All casters feature a 1/2” diameter (13 TPI x 1-1/2”) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button.
  • Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.

Key Specs

AttributeSpecification

item#

5554951

Brand

Service Caster

Ship Weight

10.0 LB

Wheel Diameter

4 in

Caster Type

Swivel

Package (qty.)

1

Wheel Material

Rubber

Mount Type

Stem

Load Capacity per Caster

300 lb
AttributeSpecification

Wheel Width

1.25 in

Finish Type

316 Polished Stainless Steel

Foot Brake

Yes

Overall Height

5.125 in

Stem Length

1.5 in

Stem Diameter

0.5 in

Bearing Type

Plain

Product Weight

2.0500 lb

Dimensions L x W x H (in.)

5.0 x 5.0 x 5.0 in

Reviews

Questions & Answers

Questions

Compare with Most Popular in 300 - 499 Lbs.

See All 300 - 499 Lbs.

See All Service Caster 300 - 499 Lbs.

Specifications

Specifications
Service Caster, 4in. x 1 1/4in. Stem Caster, Wheel Diameter 4 in, Caster Type Swivel, Package (qty.) 1, Model# SCC-SS316TSTTL20S414-HRS-121315
Vestil Rubber Swivel Caster - 4in. x 2in., 485-Lb. Capacity, Thermoplastic Rubber, Gray, Model# CST-VE-4X2TPR-S
Vestil Rubber Swivel Caster - 5in. x 2in., 440-Lb. Capacity, Molded Rubber, Aluminum Core, Model# CST-VE-5X2MR-S
Vestil Mold On Rubber Caster - 4in. Wheel Diameter, Aluminum Core, Zinc Plated, Model# CST-VE-4X2MR-S
Wheel Diameter
Same

4 in

4 in

5 in

4 in

Caster Type
Same

Swivel

Swivel

Swivel

Swivel

Package (qty.)
Same

1

1

1

1

Wheel Material
Same

Rubber

Thermoplastic Rubber

Rubber

Rubber

Mount Type
Same

Stem

Plate

Plate

Plate

Load Capacity per Caster
Same

300 lb

485 lb

440 lb

396 lb

Wheel Width
Same

1.25 in

4 in

5 in

4 in

Finish Type
Same

316 Polished Stainless Steel

Zinc Plated

Zinc Plated

Zinc Plated

Foot Brake
Same

Yes

No

No

No

Overall Height
Same

5.125 in

5.5 in

6.5 in

6.5 in

Stem Length
Same

1.5 in

-

-

-

Stem Diameter
Same

0.5 in

-

-

-

Bearing Type
Same

Plain

Ball

Roller

Roller

Product Weight
Same

2.0500 lb

5.0000 lb

7.0000 lb

5.0000 lb

Dimensions L x W x H (in.)
Same

5.0 x 5.0 x 5.0 in

5.625 x 4.0 x 5.5 in

6.5 x 4.0 x 6.5 in

5.0 x 4.0 x 6.5 in

Plate Dimensions
Same

-

4 X 4 1/2

4 X 4 1/2

4 X 4 1/2

Non-Marking
Same

-

No

No

No

Includes Thread Guards
Same

-

No

No

No
