Service Caster, 4in. x 1 1/4in. Plate Casters, Wheel Diameter 4 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-20S414-HRS-TLB-TP2-2-R-2

Item# 5604891
Service Caster, 4in. x 1 1/4in. Plate Casters, Wheel Diameter 4 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-20S414-HRS-TLB-TP2-2-R-2

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Service Caster, 4in. x 1 1/4in. Plate Casters, Wheel Diameter 4 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-20S414-HRS-TLB-TP2-2-R-2

Click or Tap image to Zoom

$129.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • These Service Caster Series #20 Hard Rubber casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height.
  • Weight Capacity: 3": 275 lbs Capacity/Caster; 3.5": 285 lbs Capacity/Caster; 4" and 5": 300 lbs Capacity/Caster

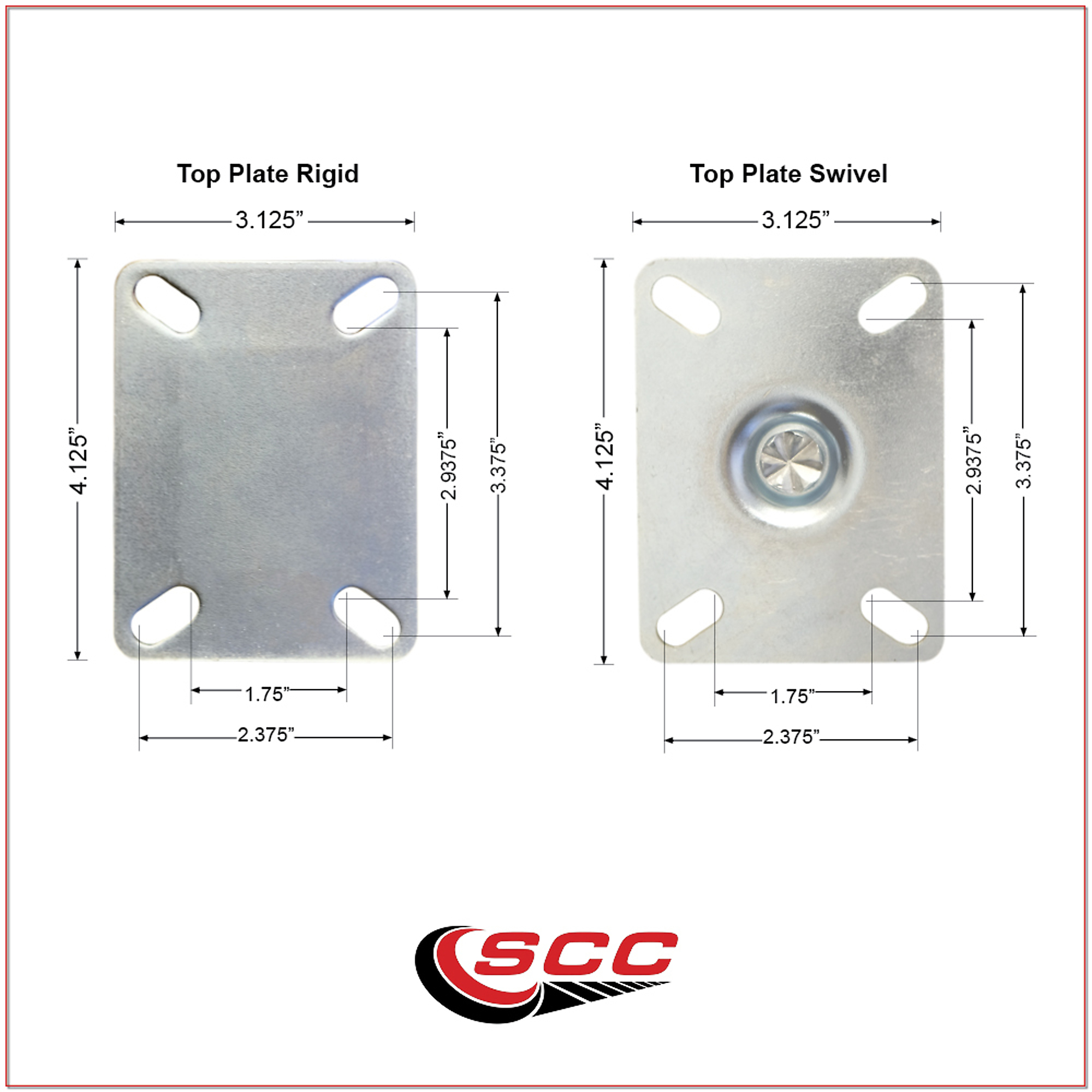

  • Top plate measures at 3-1/8" x 4-1/8" with a bolt hole pattern of 1-3/4" x 2-15/16" to 2-3/8" x 3-3/8" and can either be bolted or welded on.
  • Brake options include a top lock brake (TLB). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

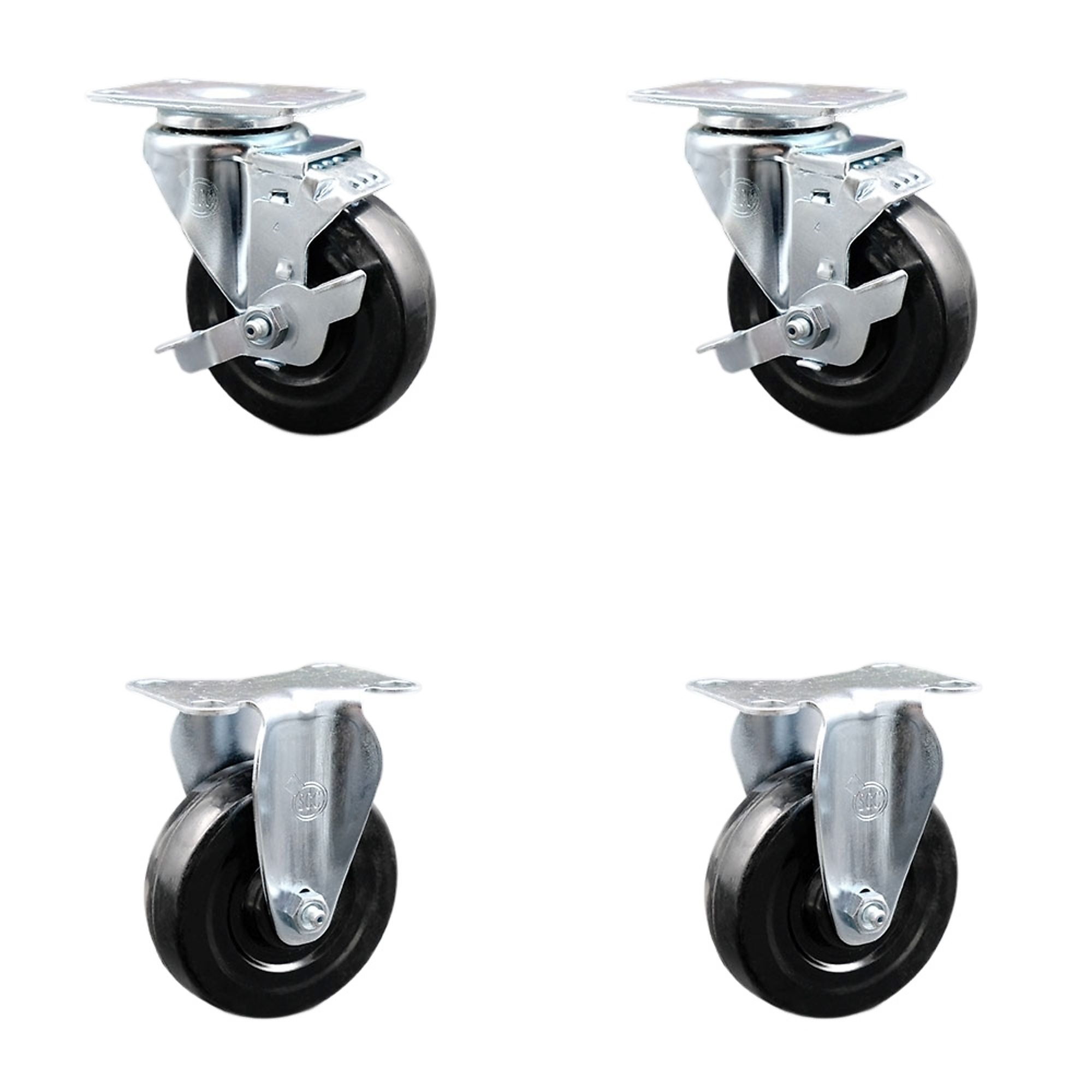

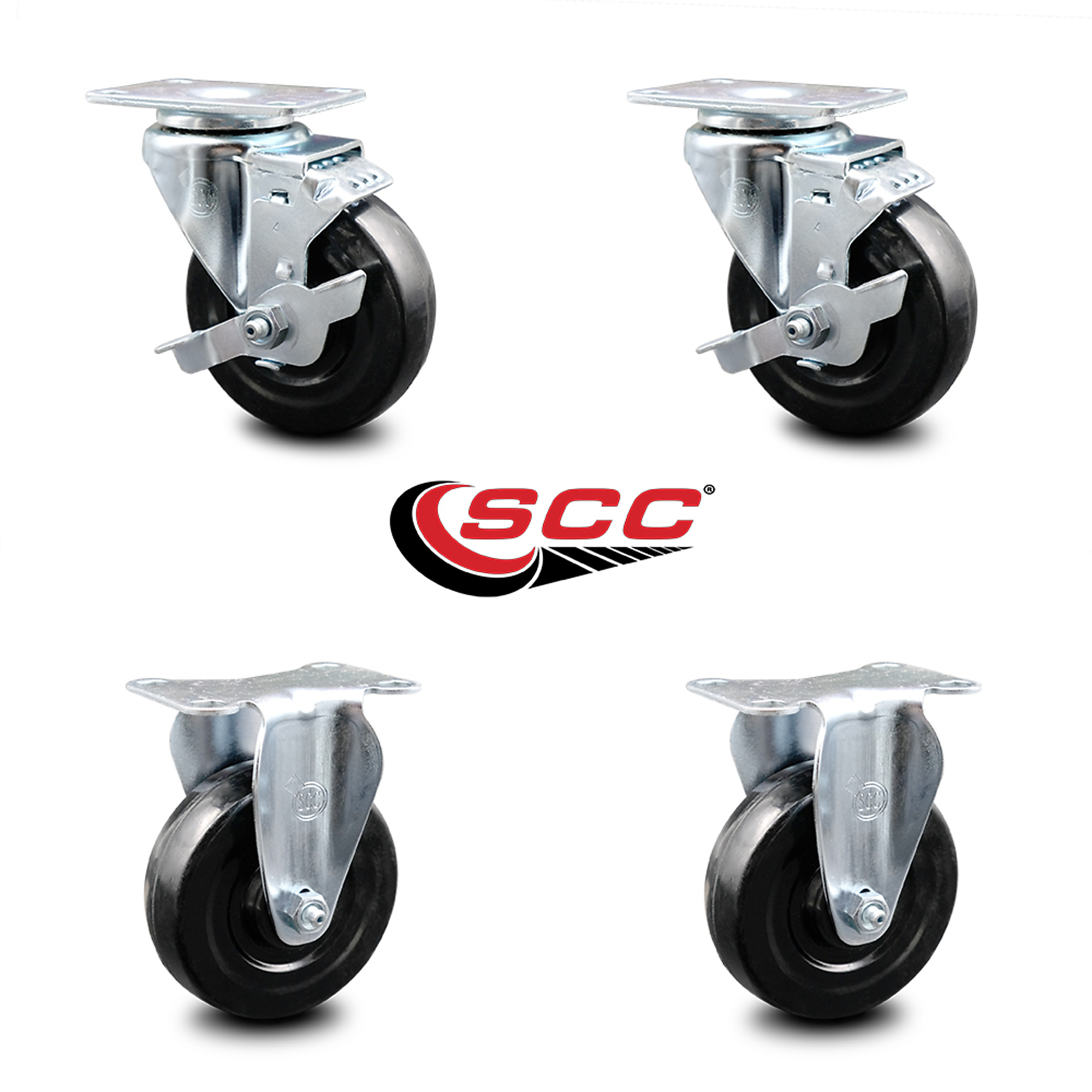

Listing is for a set of four (4) Service Caster Series #20 casters, two (2) Rigid and two (2) Swivel casters with top locking brakes, with 4in. diameter by 1-1/4in. wide hard rubber wheels capable of supporting a total weight of 1200 lbs. (300 lbs./caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 hard rubber casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The hard rubber wheels not only provide higher load capacities and impact resistance than comparable wheels, but are also resistant to most chemicals and oils. Mounting options include top plate, bolt hole and standard and metric threaded stem sizes. All rolling on a finely crafted ball bearing design and zinc plated finish that provides durability under any condition and keeps you safely moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.

What's Included

    (4) Plate Casters

Features + Benefits

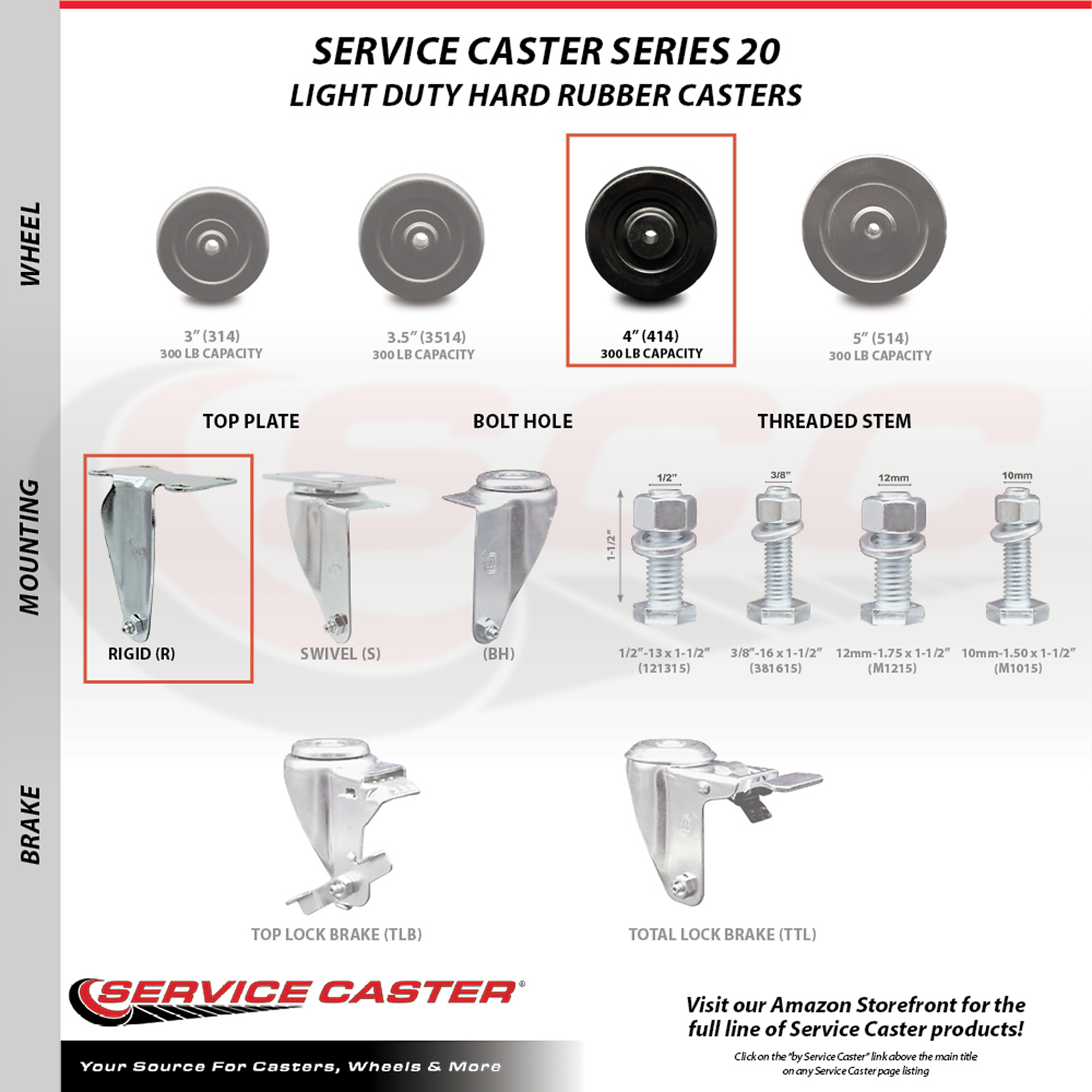

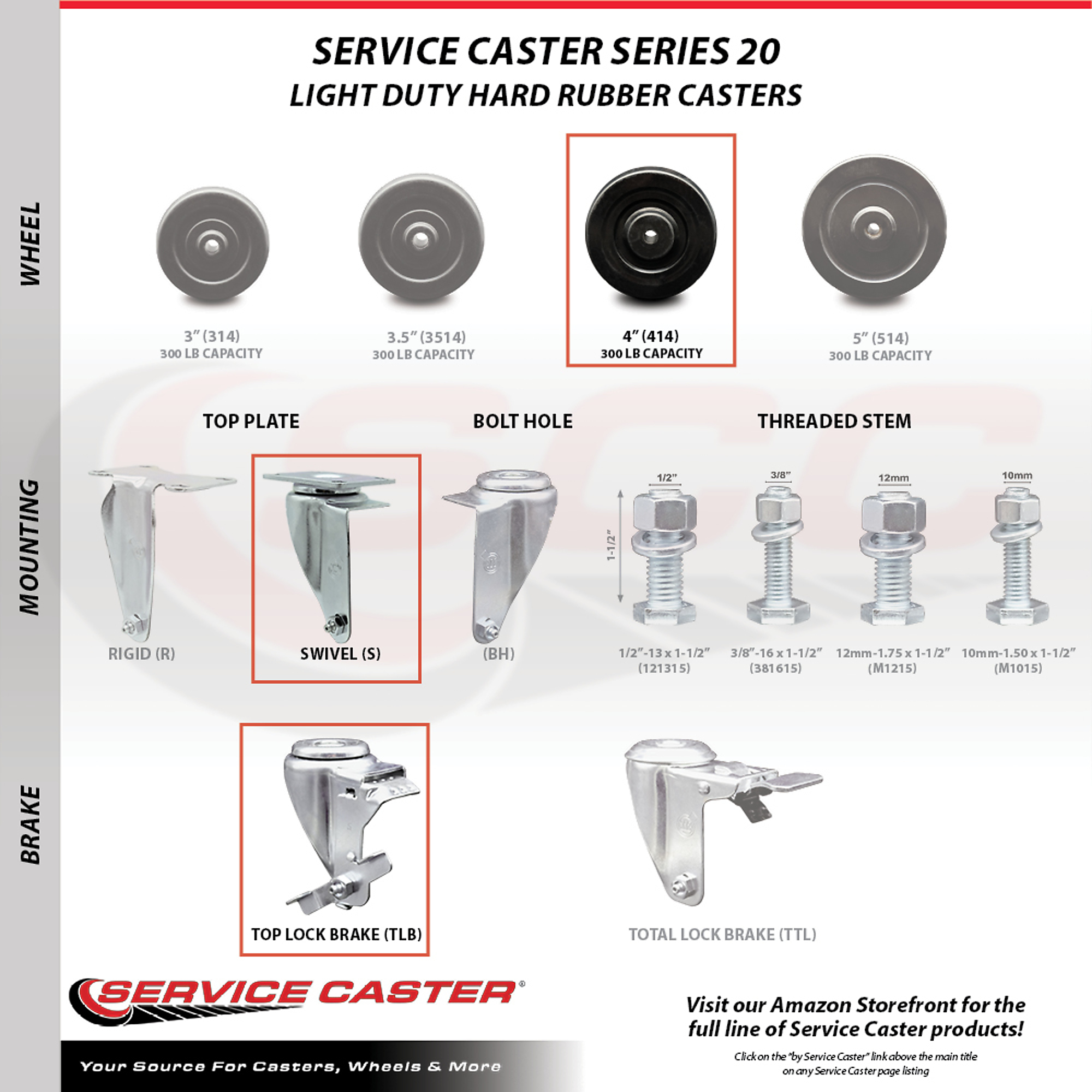

  • These Service Caster Series #20 Hard Rubber casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height.
  • Weight Capacity: 3": 275 lbs Capacity/Caster; 3.5": 285 lbs Capacity/Caster; 4" and 5": 300 lbs Capacity/Caster
  • Top plate measures at 3-1/8" x 4-1/8" with a bolt hole pattern of 1-3/4" x 2-15/16" to 2-3/8" x 3-3/8" and can either be bolted or welded on.
  • Brake options include a top lock brake (TLB). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only.

Key Specs

AttributeSpecification

item#

5604891

Brand

Service Caster

Ship Weight

11.0 LB

Wheel Diameter

4 in

Caster Type

Swivel

Package (qty.)

4

Wheel Material

Rubber

Mount Type

Plate

Load Capacity per Caster

1,200 lb
AttributeSpecification

Wheel Width

1.25 in

Finish Type

Bright Zinc Plated Finish

Plate Dimensions

3.125 x 4.125

Bolt Hole Spacing

1.75 x 2.9375 to 2.375 x 3.375

Foot Brake

Yes

Overall Height

5.125 in

Bearing Type

Plain

Product Weight

8.7000 lb

Dimensions L x W x H (in.)

8.0 x 8.0 x 8.0 in

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

Compare with Most Popular in 1,000 - 1,499 Lbs.

See All 1,000 - 1,499 Lbs.

See All Service Caster 1,000 - 1,499 Lbs.

Specifications

Specifications
Service Caster, 4in. x 1 1/4in. Plate Casters, Wheel Diameter 4 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-20S414-HRS-TLB-TP2-2-R-2
Service Caster, 4in. x 2in. Plate Casters, Wheel Diameter 4 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-30CS420-TPRRF-TLB-4
Service Caster, 4in. x 2in. Plate Casters, Wheel Diameter 4 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-30CS420-TPRRD-TLB-4
Service Caster, 5in. x 2in. Plate Casters, Wheel Diameter 5 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-30CS520-TPRRF-TLB-4
Wheel Diameter
Same

4 in

4 in

4 in

5 in

Caster Type
Same

Swivel

Swivel

Swivel

Swivel

Package (qty.)
Same

4

4

4

4

Wheel Material
Same

Rubber

Thermoplastic Rubber

Thermoplastic Rubber

Thermoplastic Rubber

Mount Type
Same

Plate

Plate

Plate

Plate

Load Capacity per Caster
Same

1,200 lb

1,200 lb

1,200 lb

1,400 lb

Wheel Width
Same

1.25 in

2 in

2 in

2 in

Finish Type
Same

Bright Zinc Plated Finish

Bright Zinc Plated Finish

Bright Zinc Plated Finish

Bright Zinc Plated Finish

Plate Dimensions
Same

3.125 x 4.125

4 x 4.5

4 x 4.5

4 x 4.5

Bolt Hole Spacing
Same

1.75 x 2.9375 to 2.375 x 3.375

2.625 x 3.625 to 3 x 3

2.625 x 3.625 to 3 x 3

2.625 x 3.625 to 3 x 3

Foot Brake
Same

Yes

Yes

Yes

Yes

Overall Height
Same

5.125 in

5.625 in

5.625 in

6.5 in

Bearing Type
Same

Plain

Roller

Roller

Roller

Product Weight
Same

8.7000 lb

18.4000 lb

18.4000 lb

21.0000 lb

Dimensions L x W x H (in.)
Same

8.0 x 8.0 x 8.0 in

12.0 x 12.0 x 7.5 in

12.0 x 12.0 x 7.5 in

12.0 x 12.0 x 7.5 in
