Service Caster, 4in. x 1 1/2in. Stem Casters, Wheel Diameter 4 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-GR20S415-SSR-PLB-716138-2-S-2

Item# 5631240
Service Caster, 4in. x 1 1/2in. Stem Casters, Wheel Diameter 4 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-GR20S415-SSR-PLB-716138-2-S-2

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Service Caster, 4in. x 1 1/2in. Stem Casters, Wheel Diameter 4 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-GR20S415-SSR-PLB-716138-2-S-2

Click or Tap image to Zoom

$299.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • These Service Caster Series #20 Semi Steel Cast Iron casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 4” Wheel: 5-1/8” mounting height; 5” Wheel: 6-1/8” mounting height.
  • Weight Capacity: 3", 4", and 5": 300 lbs Capacity/Caster

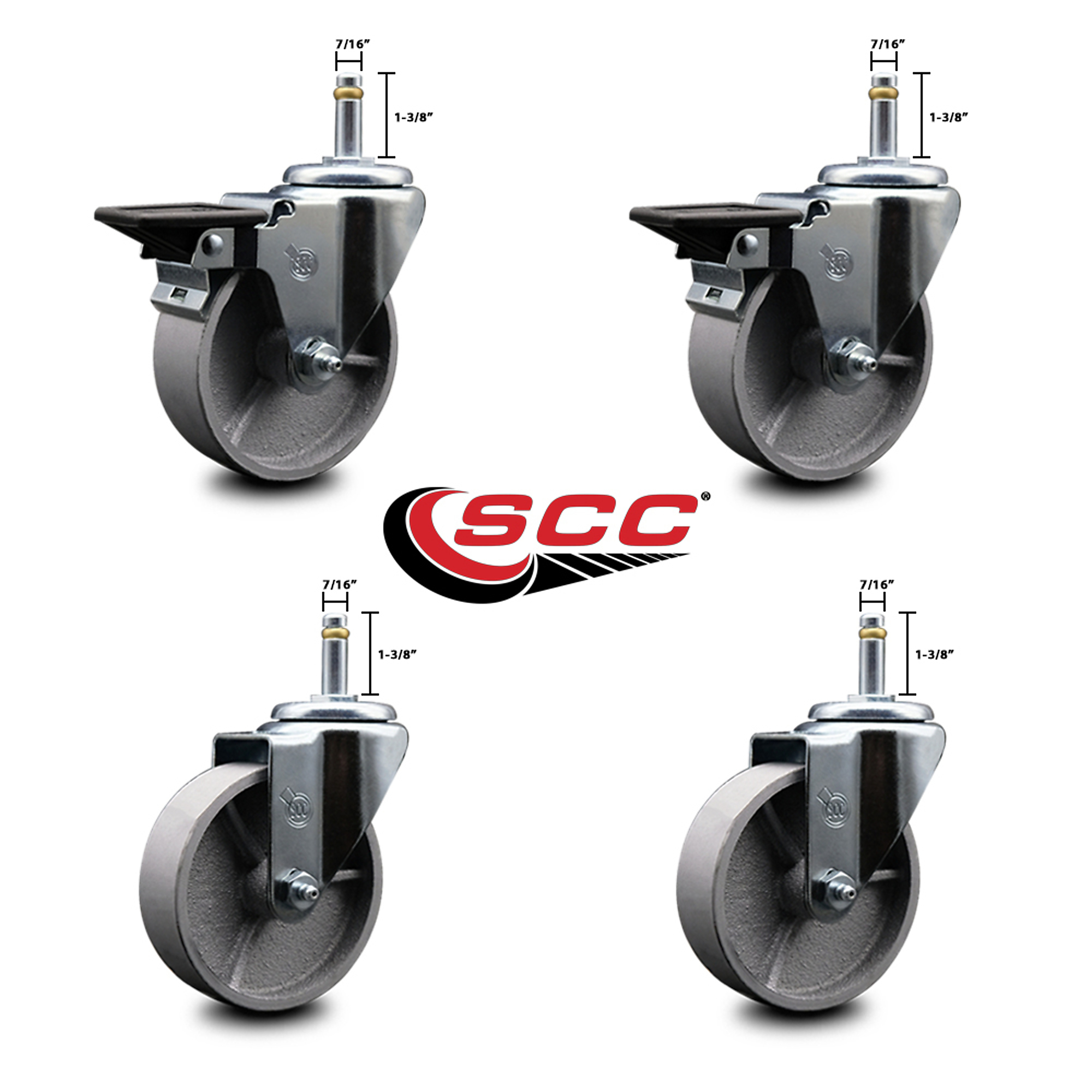

  • All casters feature a 7/16” diameter by 1-3/8” long grip ring stem. Service Caster recommends using a drill or hardware gauge, a 7/16” wrench, or our paper wrap method to ensure the grip ring stem diameter needed is 7/16”. Paper Wrap Method: take a small strip of paper and wrap it around the stem. Mark the paper with a pen where it overlaps, keep the wrap tight. Measure the strip from the start of the wrap to the mark. The ruler should measure 1-3/8". Don’t see the size you need? Call us!
  • Brake options include a top lock brake, a total lock brake, or a posi lock brake. The top lock brake places a positive locking force against the wheel tread locking the wheel only. The total lock brake simultaneously locks the wheel and the swivel for a complete stationary position. The posi lock brake places a positive locking force against the wheel tread similar to the top lock brake, but the pedal is located above the wheel tread rather than on the side of the wheel.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

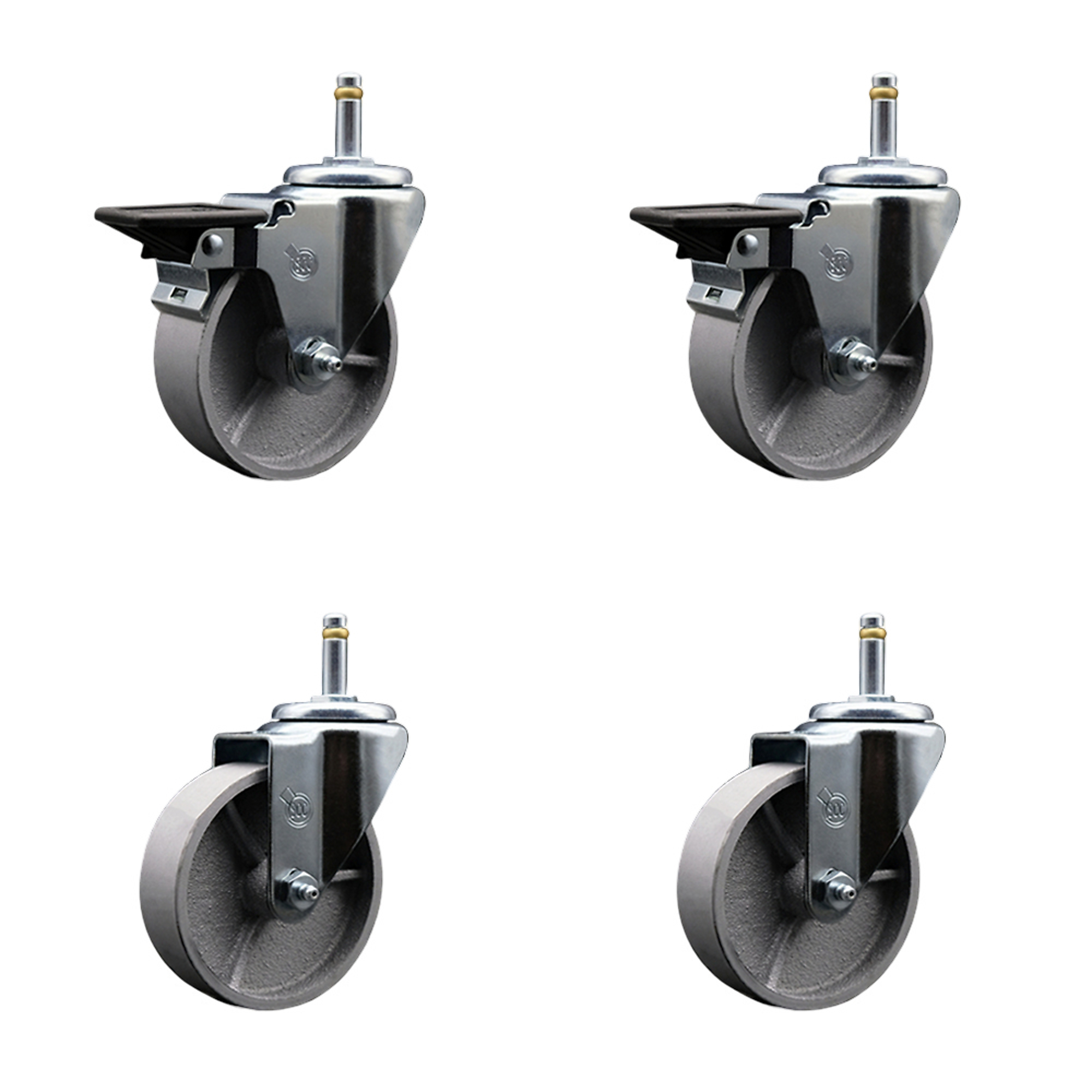

Listing is for a set of four (4) Service Caster Series #20 casters, two (2) Swivel 7/16in. grip ring stem with brake casters and two (2) Swivel casters, with 4” diameter by 1-1/2” wide semi steel cast iron wheels. Supports a total weight of 1200lbs (300lbs/per caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series 20 roller bearing semi-steel cast iron casters. The Service Caster Series #20 is ideal for light and medium duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition, while the semi-steel wheels are abrasion resistant and rugged, maintaining effortless rolling under heavier loads, and provides a cost-effective solution over steel wheels. The roller bearing is capable of carrying greater loads while also providing smoother rolling motion. It has a split outer race shell into which the roller assembly is inserted. Combination seal/thrust retainer washers protect the bearing from dirt, water, and chemicals. They also help absorb thrust friction (Note: roller bearing must be used with hardened spanner bushing or hardened shaft). Mounting options include top plate, bolt hole, grip ring stem, standard and metric threaded stem sizes. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.

What's Included

    (4) Stem Casters

Features + Benefits

  • These Service Caster Series #20 Semi Steel Cast Iron casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 4” Wheel: 5-1/8” mounting height; 5” Wheel: 6-1/8” mounting height.
  • Weight Capacity: 3", 4", and 5": 300 lbs Capacity/Caster
  • All casters feature a 7/16” diameter by 1-3/8” long grip ring stem. Service Caster recommends using a drill or hardware gauge, a 7/16” wrench, or our paper wrap method to ensure the grip ring stem diameter needed is 7/16”. Paper Wrap Method: take a small strip of paper and wrap it around the stem. Mark the paper with a pen where it overlaps, keep the wrap tight. Measure the strip from the start of the wrap to the mark. The ruler should measure 1-3/8". Don’t see the size you need? Call us!
  • Brake options include a top lock brake, a total lock brake, or a posi lock brake. The top lock brake places a positive locking force against the wheel tread locking the wheel only. The total lock brake simultaneously locks the wheel and the swivel for a complete stationary position. The posi lock brake places a positive locking force against the wheel tread similar to the top lock brake, but the pedal is located above the wheel tread rather than on the side of the wheel.

Key Specs

AttributeSpecification

item#

5631240

Brand

Service Caster

Ship Weight

15.0 LB

Wheel Diameter

4 in

Caster Type

Swivel

Package (qty.)

4

Wheel Material

Cast Iron

Mount Type

Stem

Load Capacity per Caster

1,200 lb
AttributeSpecification

Wheel Width

1.5 in

Finish Type

Bright Zinc Plated Finish

Foot Brake

Yes

Overall Height

5.125 in

Stem Length

1.375 in

Stem Diameter

0.4375 in

Bearing Type

Roller

Product Weight

12.5000 lb

Dimensions L x W x H (in.)

8.0 x 8.0 x 8.0 in

Reviews

Questions & Answers

Questions

Compare with Most Popular in 1,000 - 1,499 Lbs.

See All 1,000 - 1,499 Lbs.

See All Service Caster 1,000 - 1,499 Lbs.

Specifications

Specifications
Service Caster, 4in. x 1 1/2in. Stem Casters, Wheel Diameter 4 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-GR20S415-SSR-PLB-716138-2-S-2
Vestil Poly Swivel Caster with Total Brake - 8in. x 2in., 1474-Lb. Capacity, Thermoplastic Rubber, Zinc Plated, Model# CST-VE-8X2PU-SWTB
Vestil Polyurethane Swivel Caster with Total Brake - 6in. x 2in., 1210 lbs. Capacity, Zinc Plated, Model# CST-VE-6X2PUA-SWTB
Vestil Polyurethane Swivel Caster with Brake - 8in. x 2in., 1474-Lb. Capacity, Non-Marking, Model# CST-VE-8X2PU-SWB
Wheel Diameter
Same

4 in

8 in

6 in

8 in

Caster Type
Same

Swivel

Swivel

Swivel

Swivel

Package (qty.)
Same

4

1

1

1

Wheel Material
Same

Cast Iron

Polyurethane

Polyurethane

Polyurethane

Mount Type
Same

Stem

Plate

Plate

Plate

Load Capacity per Caster
Same

1,200 lb

1,474 lb

1,210 lb

1,474 lb

Wheel Width
Same

1.5 in

8 in

6 in

8 in

Finish Type
Same

Bright Zinc Plated Finish

Zinc Plated

White Zinc

Zinc Plated

Foot Brake
Same

Yes

Yes

Yes

Yes

Overall Height
Same

5.125 in

9.5 in

7.5 in

9.5 in

Stem Length
Same

1.375 in

-

-

-

Stem Diameter
Same

0.4375 in

-

-

-

Bearing Type
Same

Roller

Ball

Ball

Ball

Product Weight
Same

12.5000 lb

11.0000 lb

9.0000 lb

10.0000 lb

Dimensions L x W x H (in.)
Same

8.0 x 8.0 x 8.0 in

8.75 x 4.0 x 9.5 in

8.0 x 4.0 x 7.5 in

8.75 x 5.0 x 9.5 in

Plate Dimensions
Same

-

4 X 4 1/2

4 X 4 1/2

4 X 4 1/2

Non-Marking
Same

-

No

No

No

Includes Thread Guards
Same

-

No

No

No

Bolt Hole Spacing
Same

-

-

3 x 3

-
