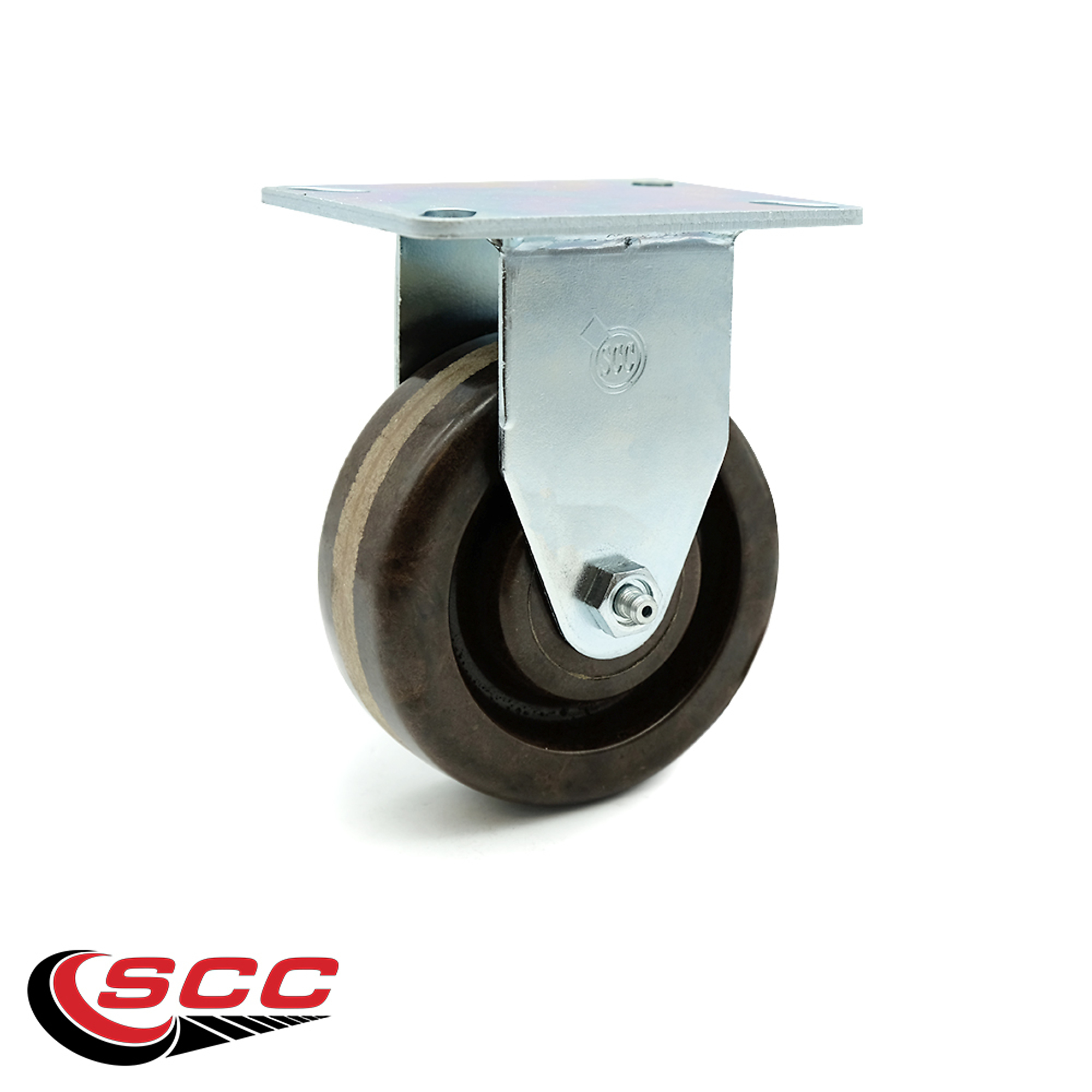

Service Caster, 4in. x 1 1/2in. Plate Caster, Wheel Diameter 4 in, Caster Type Rigid, Package (qty.) 1, Model# SCC-20R415-PHSHT-TP2

Item# 5463240
Service Caster, 4in. x 1 1/2in. Plate Caster, Wheel Diameter 4 in, Caster Type Rigid, Package (qty.) 1, Model# SCC-20R415-PHSHT-TP2

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Service Caster, 4in. x 1 1/2in. Plate Caster, Wheel Diameter 4 in, Caster Type Rigid, Package (qty.) 1, Model# SCC-20R415-PHSHT-TP2

Click or Tap image to Zoom

$57.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Wheel: 4" x 1-1/2" High Temperature Phenolic
  • Capacity: 300 lbs./caster

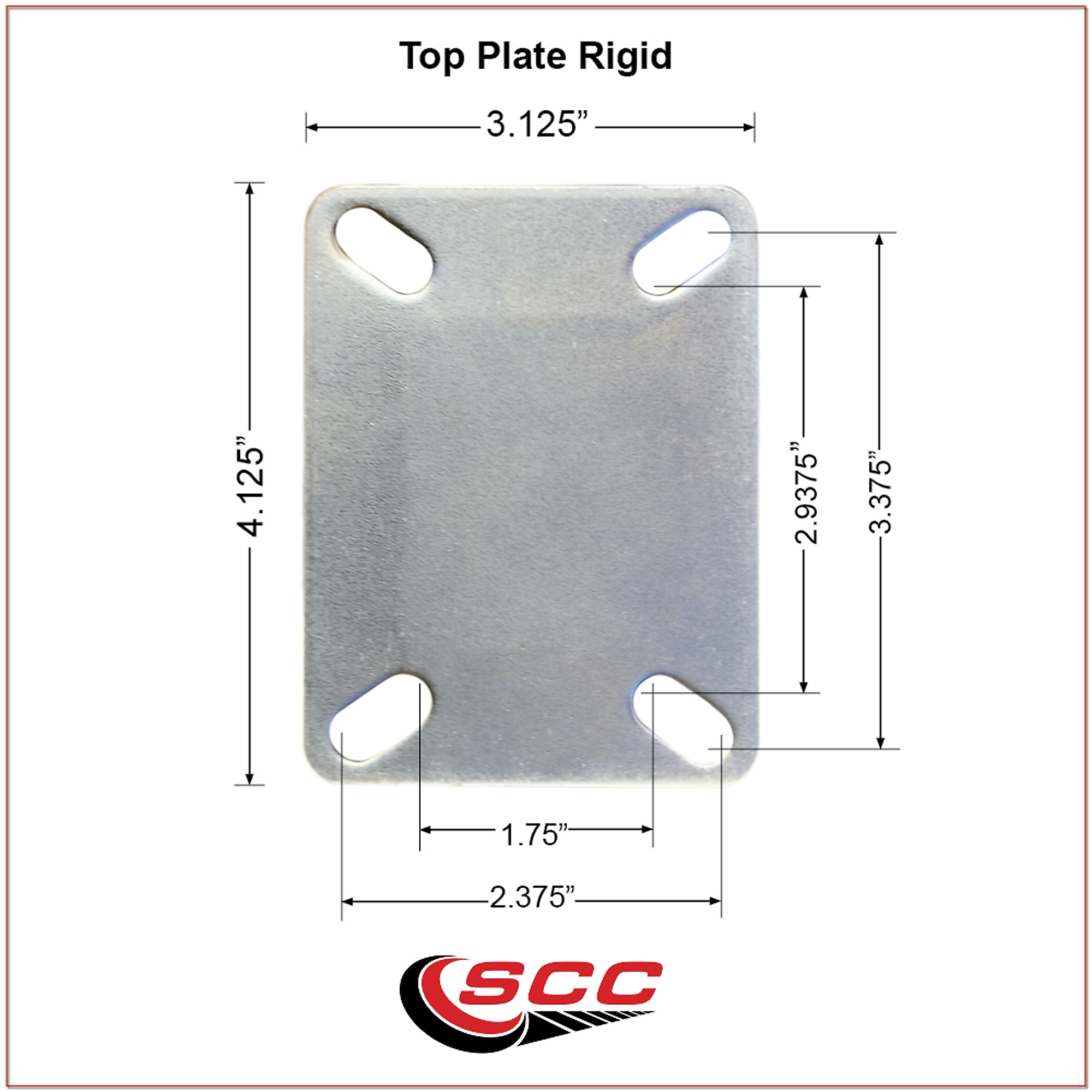

  • Top Plate Size: 3-1/8" x 4-1/8"
  • Bolt Hole Pattern: 1-3/4" x 2-15/16" to 2-3/8" x 3-3/8"

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

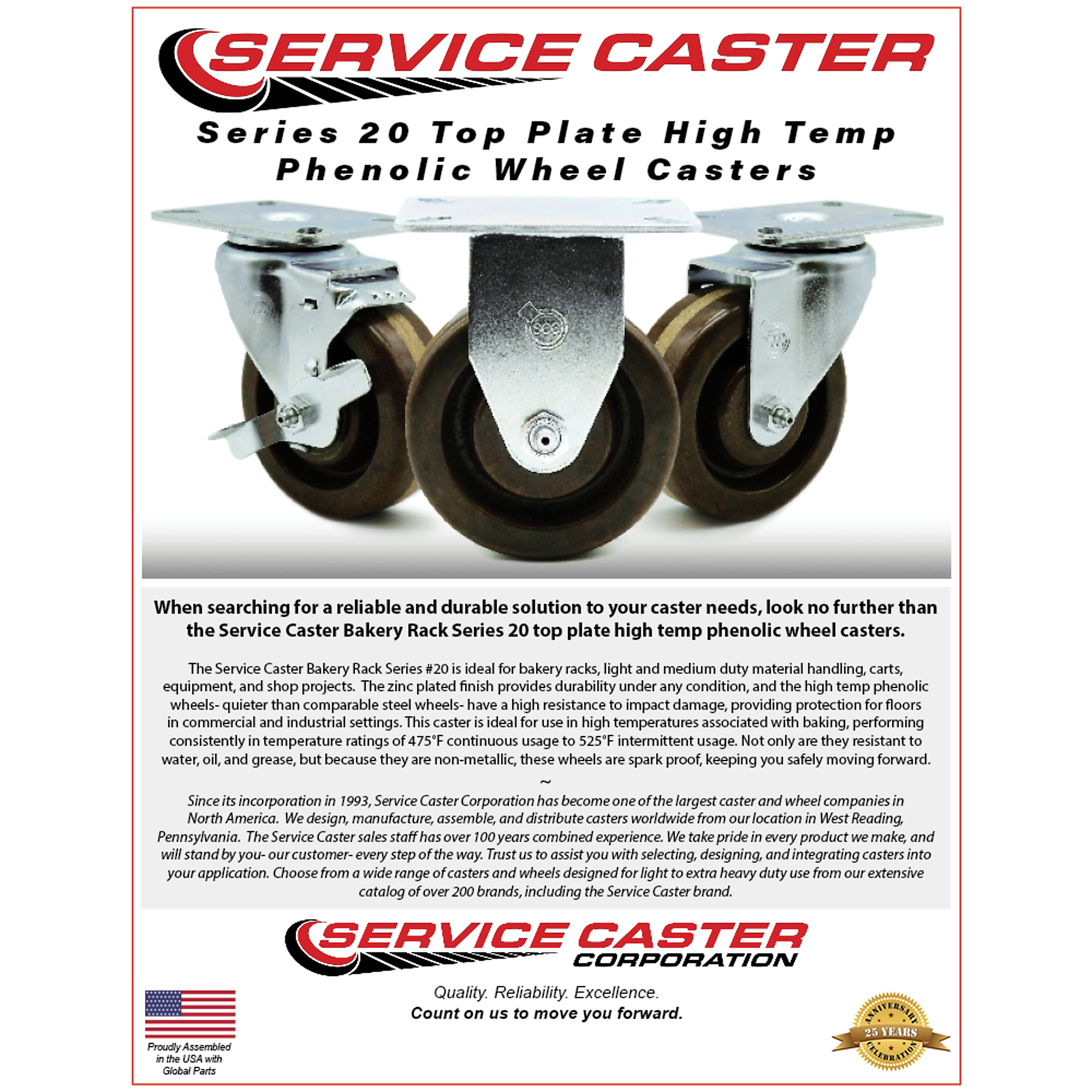

Listing is for one (1) Service Caster Bakery Rack Series #20 rigid caster with a 4in. diameter by 1-1/2in. wide high temperature phenolic wheel capable of supporting 300 lbs./caster.When searching for a reliable and durable solution to your caster needs, look no further than the Service Caster Bakery Rack Series 20 top plate high temp phenolic wheel casters. The Service Caster Bakery Rack Series #20 is ideal for bakery racks, light and medium duty material handling, carts, equipment, and shop projects. The zinc plated finish provides durability under any condition, and the high temp phenolic wheels- quieter than comparable steel wheels- have a high resistance to impact damage, providing protection for floors in commercial and industrial settings. This caster is ideal for use in high temperatures associated with baking, performing consistently in temperature ratings of 475°F continuous usage to 525°F intermittent usage. Not only are they resistant to water, oil, and grease, but because they are non-metallic, these wheels are spark proof, keeping you safely moving forward. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.

What's Included

    (1) Plate Caster

Features + Benefits

  • Wheel: 4" x 1-1/2" High Temperature Phenolic
  • Capacity: 300 lbs./caster
  • Top Plate Size: 3-1/8" x 4-1/8"
  • Bolt Hole Pattern: 1-3/4" x 2-15/16" to 2-3/8" x 3-3/8"

Key Specs

AttributeSpecification

item#

5463240

Brand

Service Caster

Ship Weight

4.0 LB

Wheel Diameter

4 in

Caster Type

Rigid

Package (qty.)

1

Wheel Material

Phenolic

Mount Type

Plate

Load Capacity per Caster

300 lb
AttributeSpecification

Wheel Width

1.5 in

Finish Type

Bright Zinc Plated Finish

Plate Dimensions

3.125 x 4.125

Bolt Hole Spacing

1.75 x 2.9375 to 2.375 x 3.375

Foot Brake

No

Overall Height

5.125 in

Bearing Type

Plain

Product Weight

4.0000 lb

Dimensions L x W x H (in.)

12.0 x 12.0 x 7.5 in

Reviews

Questions & Answers

Questions

Compare with Most Popular in 300 - 499 Lbs.

See All 300 - 499 Lbs.

See All Service Caster 300 - 499 Lbs.

Specifications

Specifications
Service Caster, 4in. x 1 1/2in. Plate Caster, Wheel Diameter 4 in, Caster Type Rigid, Package (qty.) 1, Model# SCC-20R415-PHSHT-TP2
Vestil Rubber Swivel Caster - 4in. x 2in., 485-Lb. Capacity, Thermoplastic Rubber, Gray, Model# CST-VE-4X2TPR-S
Vestil Rubber Swivel Caster - 5in. x 2in., 440-Lb. Capacity, Molded Rubber, Aluminum Core, Model# CST-VE-5X2MR-S
Vestil Mold On Rubber Caster - 4in. Wheel Diameter, Aluminum Core, Zinc Plated, Model# CST-VE-4X2MR-S
Wheel Diameter
Same

4 in

4 in

5 in

4 in

Caster Type
Same

Rigid

Swivel

Swivel

Swivel

Package (qty.)
Same

1

1

1

1

Wheel Material
Same

Phenolic

Thermoplastic Rubber

Rubber

Rubber

Mount Type
Same

Plate

Plate

Plate

Plate

Load Capacity per Caster
Same

300 lb

485 lb

440 lb

396 lb

Wheel Width
Same

1.5 in

4 in

5 in

4 in

Finish Type
Same

Bright Zinc Plated Finish

Zinc Plated

Zinc Plated

Zinc Plated

Plate Dimensions
Same

3.125 x 4.125

4 X 4 1/2

4 X 4 1/2

4 X 4 1/2

Bolt Hole Spacing
Same

1.75 x 2.9375 to 2.375 x 3.375

-

-

-

Foot Brake
Same

No

No

No

No

Overall Height
Same

5.125 in

5.5 in

6.5 in

6.5 in

Bearing Type
Same

Plain

Ball

Roller

Roller

Product Weight
Same

4.0000 lb

5.0000 lb

7.0000 lb

5.0000 lb

Dimensions L x W x H (in.)
Same

12.0 x 12.0 x 7.5 in

5.625 x 4.0 x 5.5 in

6.5 x 4.0 x 6.5 in

5.0 x 4.0 x 6.5 in

Non-Marking
Same

-

No

No

No

Includes Thread Guards
Same

-

No

No

No
