Service Caster, 3in. x 1 1/4in. Stem Casters, Wheel Diameter 3 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-SSEX20S314-HRS-MTG47-4

Item# 5469238
Service Caster, 3in. x 1 1/4in. Stem Casters, Wheel Diameter 3 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-SSEX20S314-HRS-MTG47-4

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Service Caster, 3in. x 1 1/4in. Stem Casters, Wheel Diameter 3 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-SSEX20S314-HRS-MTG47-4

Click or Tap image to Zoom

$319.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

  • These Service Caster Series #20 Expanding Stem Hard Rubber casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height.
  • Weight Capacity: 3": 275 lbs Capacity/Caster; 3.5”: 285 lbs Capacity/Caster; 4" and 5": 300 lbs Capacity/Caster

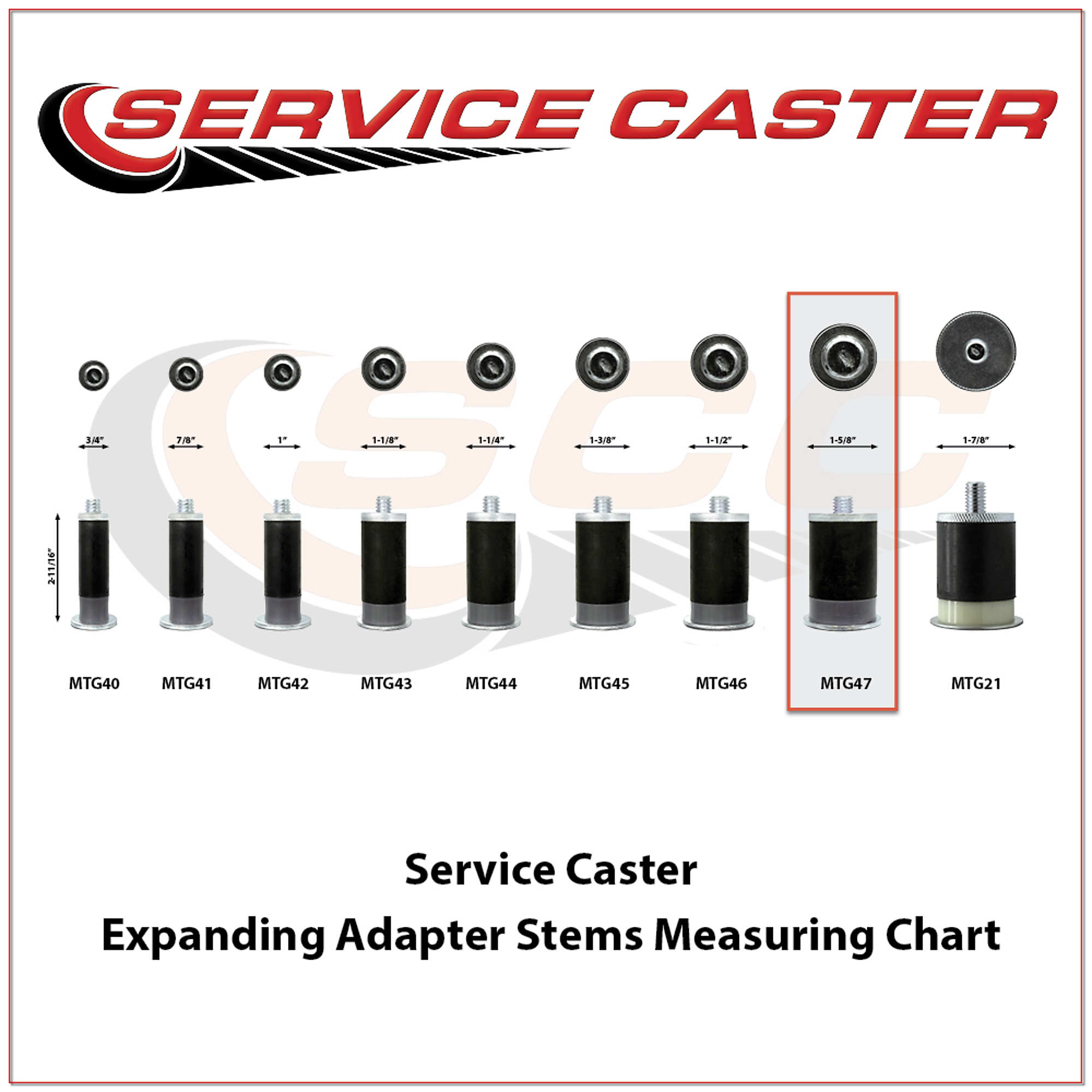

  • All casters feature an expanding stem that is 2-11/16” in length. The expanding stem comes in 10 different diameters: (3/4”, 7/8”, 1”, 1-1/8”, 1-1/4”, 1-3/8”, 1-1/2”, 1-5/8”, 1-3/4”, and 1-7/8”). Before ordering, Service Caster recommends measuring the inside diameter of your tubing- this measurement will determine the corresponding expanding stem diameter needed. Not sure how to measure or don't see the size you need? Call us or send us a message.
  • Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB), which is featured on 3", 3-1/2", 4", and 5" wheel sizes, places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL), which is featured on all wheel sizes, also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

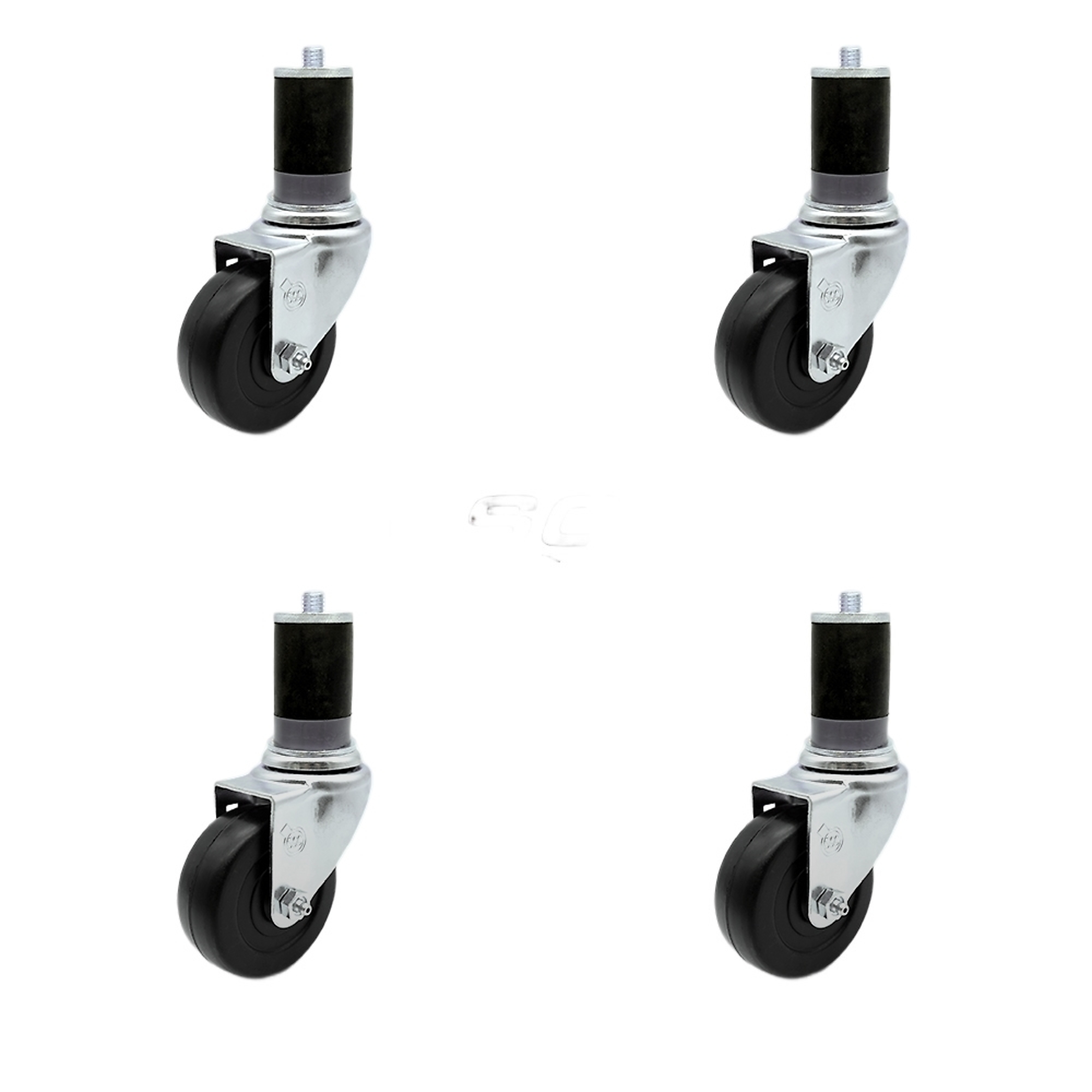

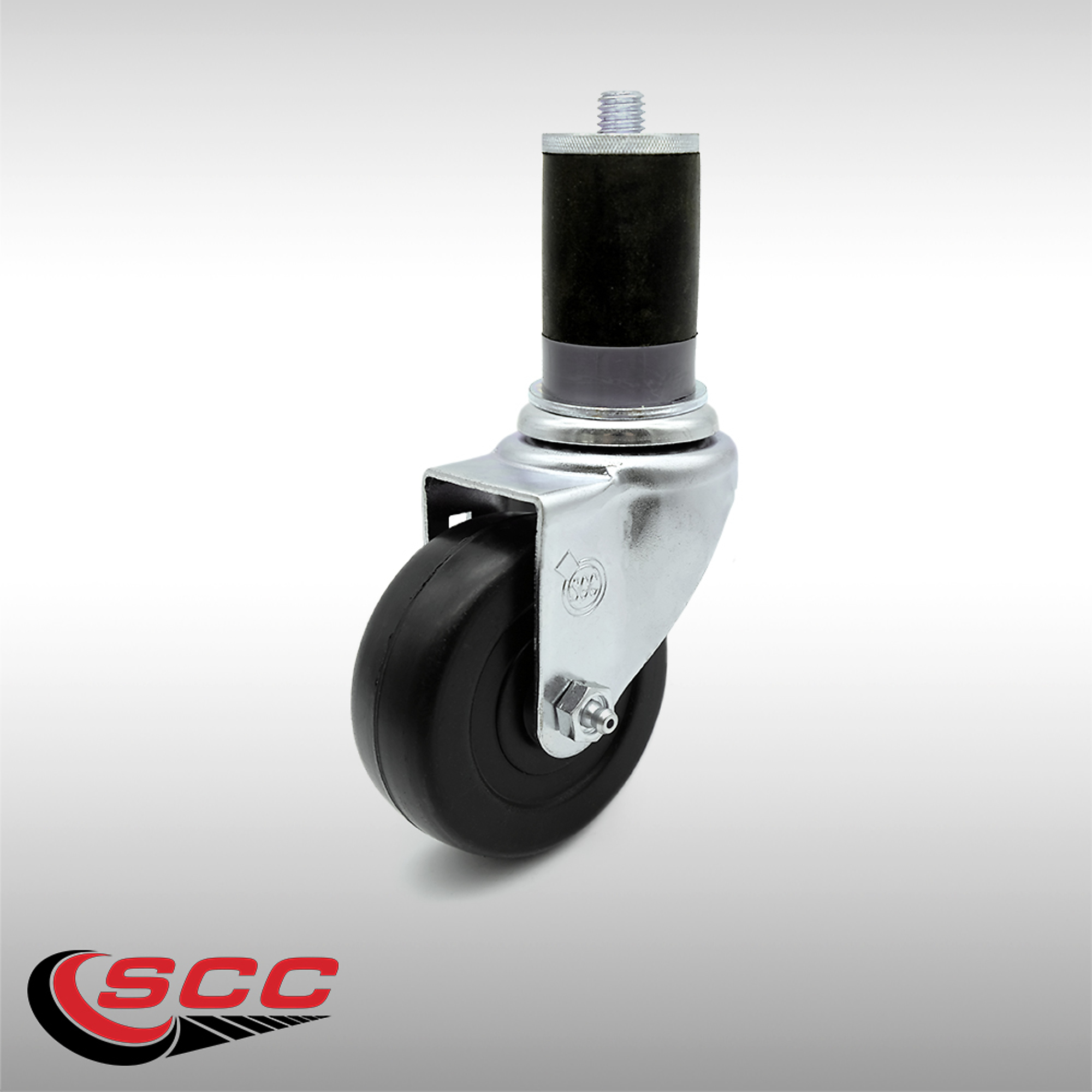

Listing is for a a set of four (4) Service Caster Series #20 1-5/8in. expanding stem stainless steel swivel casters with 3in. diameter by 1-1/4in. wide black hard rubber wheels capable of supporting a total weight of 1100 lbs. (275 lbs./caster.).When searching for a reliable and durable solution to your caster needs, look no further than the Service Caster Series 20 stainless steel expanding stem hard rubber wheel casters. The Series #20 features an innovative expanding stem that can easily adapt to the inside diameter of the opening, allowing for a secure fit in round or square tubes. Simply tighten the topmost knurled nut to compress the rubber for a snug fit. For added security, further compress the rubber with a wrench via the nut under the swivel raceway. In contrast to the zinc plated caster, the luxuriously polished stainless steel finish resists rust and corrosion in indoor or outdoor applications where moisture is a factor. Finely crafted with a heat-treated ball bearing raceway and a hard rubber wheel, this versatile caster is ideal for work tables, shop projects, or any equipment with round or square tube legs. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.

What's Included

    (4) Stem Casters

Features + Benefits

  • These Service Caster Series #20 Expanding Stem Hard Rubber casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height.
  • Weight Capacity: 3": 275 lbs Capacity/Caster; 3.5”: 285 lbs Capacity/Caster; 4" and 5": 300 lbs Capacity/Caster
  • All casters feature an expanding stem that is 2-11/16” in length. The expanding stem comes in 10 different diameters: (3/4”, 7/8”, 1”, 1-1/8”, 1-1/4”, 1-3/8”, 1-1/2”, 1-5/8”, 1-3/4”, and 1-7/8”). Before ordering, Service Caster recommends measuring the inside diameter of your tubing- this measurement will determine the corresponding expanding stem diameter needed. Not sure how to measure or don't see the size you need? Call us or send us a message.
  • Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB), which is featured on 3", 3-1/2", 4", and 5" wheel sizes, places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL), which is featured on all wheel sizes, also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.

Key Specs

AttributeSpecification

item#

5469238

Brand

Service Caster

Ship Weight

9.0 LB

Wheel Diameter

3 in

Caster Type

Swivel

Package (qty.)

4

Wheel Material

Rubber

Mount Type

Stem

Load Capacity per Caster

275 lb
AttributeSpecification

Wheel Width

1.25 in

Finish Type

Polished stainless steel

Foot Brake

No

Overall Height

4.125 in

Stem Length

2.6875 in

Stem Diameter

1.625 in

Bearing Type

Plain

Product Weight

9.0000 lb

Dimensions L x W x H (in.)

8.0 x 8.0 x 8.0 in
