Service Caster, 10in. x 3 1/2in. Plate Casters, Wheel Diameter 10 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-100S3504-PNB-BSL-2-S-2

Item# 5497239
Service Caster, 10in. x 3 1/2in. Plate Casters, Wheel Diameter 10 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-100S3504-PNB-BSL-2-S-2

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Service Caster, 10in. x 3 1/2in. Plate Casters, Wheel Diameter 10 in, Caster Type Swivel, Package (qty.) 4, Model# SCC-100S3504-PNB-BSL-2-S-2

Click or Tap image to Zoom

$349.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only

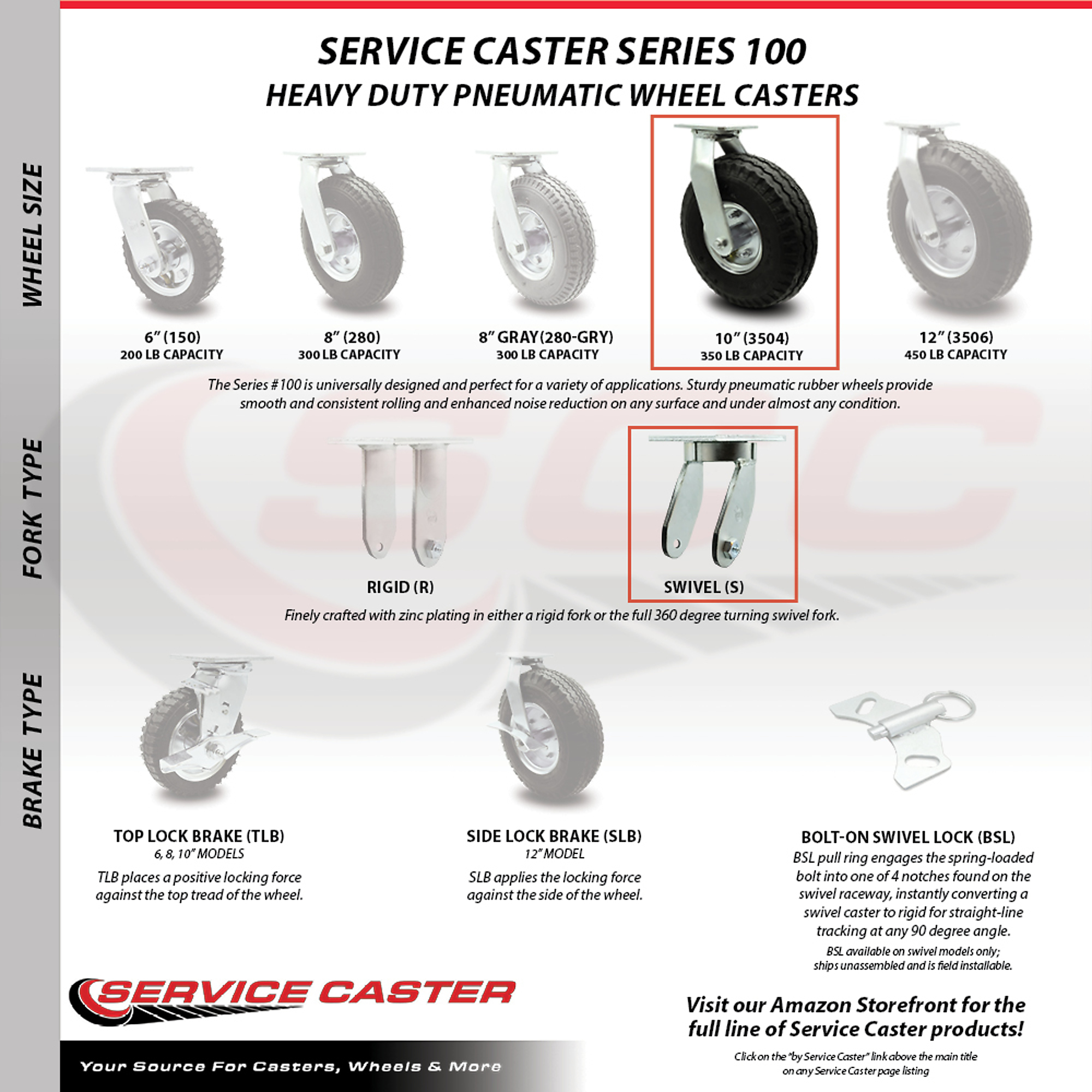

  • The Series 100 pneumatic casters come in 6” (mounting height 7.5”), 8” (mounting height 10”), 8” gray, 10” (mounting height 12.1875”) and 12” (mounting height 13.75”) and are made of pneumatic tread and an inner core filled with pressurized air which remains inflated even with the weight of a vehicle resting on it.
  • Weight capacity ranges from 200 lbs on the 6” caster, 300 lbs on the 8”, 350 lbs on the 10” and 450 lbs. on the 12”.

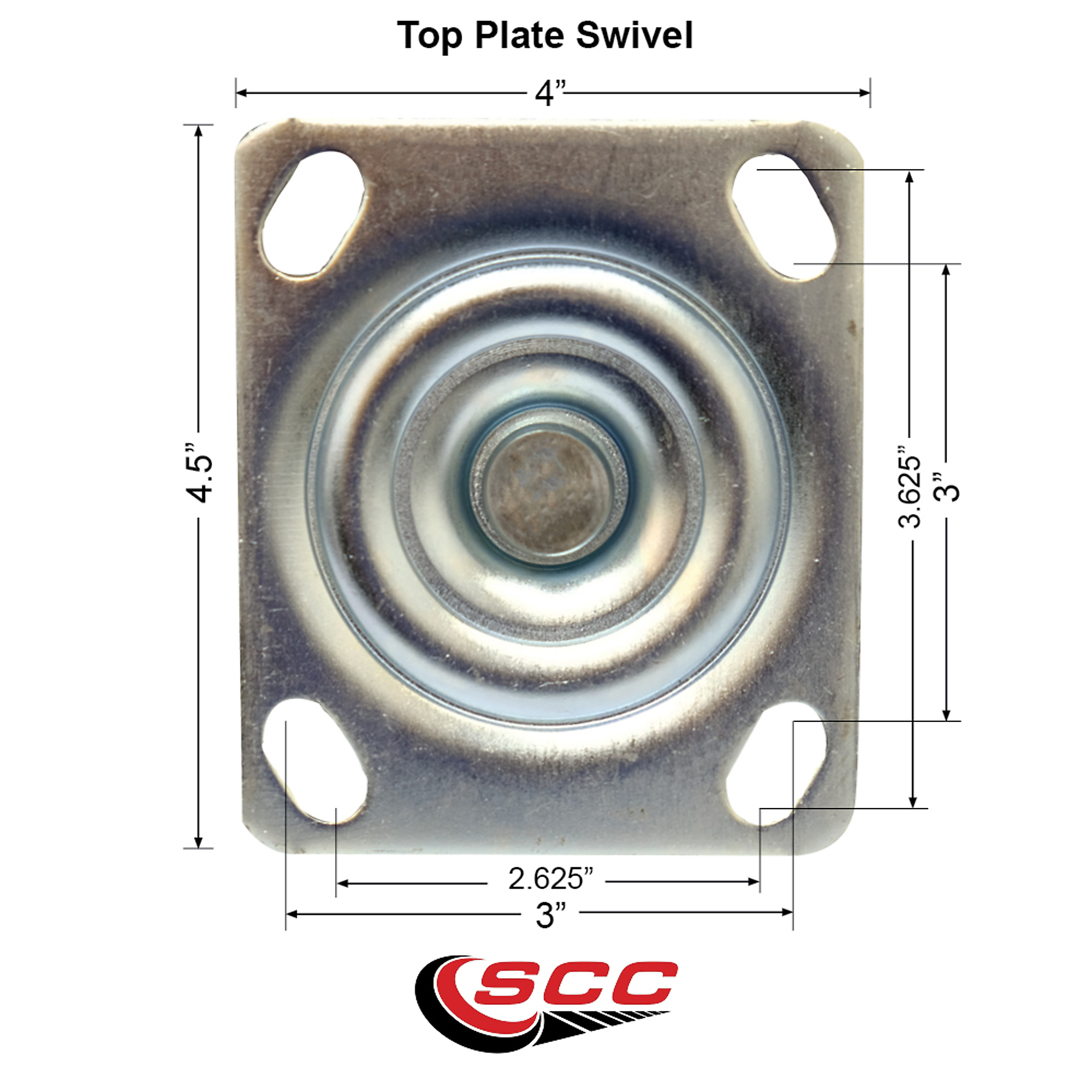

  • Top plate measures at 4" x 4 1/2" with a bolt hole pattern of 2.625" x 3.625" to 3" x 3" and can either be bolted or welded on.

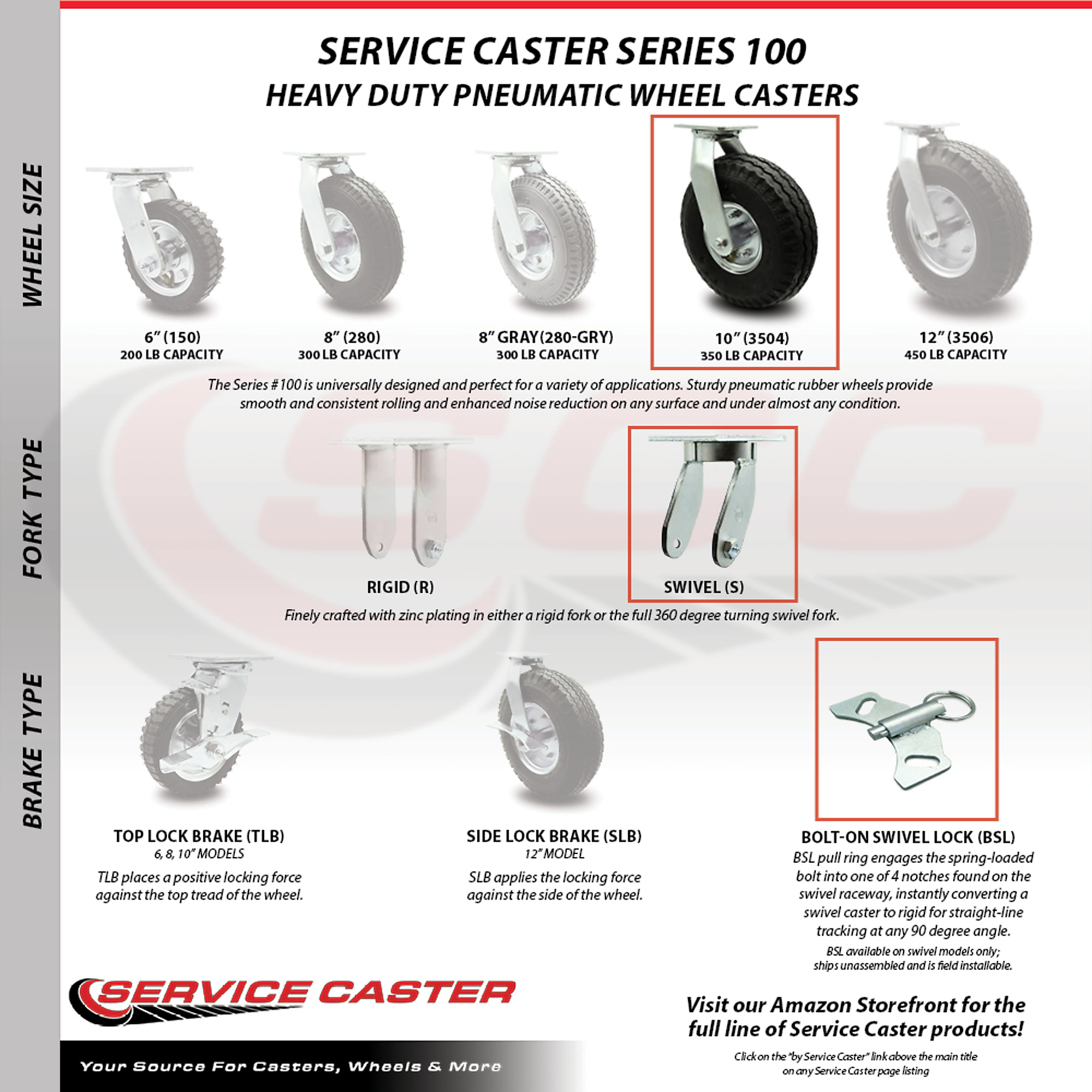

  • Brake options include top lock brake (TLB), side lock brake (SLB), bolt-on swivel lock (BSL), or combinations of each. The TLB (6, 8, and 10” casters) places a positive locking force against the wheel top, whereas the SLB (12” caster) places the force against the wheel side. The bolt-on swivel lock (BSL) is field installable and converts a swivel caster to rigid for straight-line tracking at any 90 degree angle via a spring-loaded bolt inserted into one of 4 notches found on the swivel raceway.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

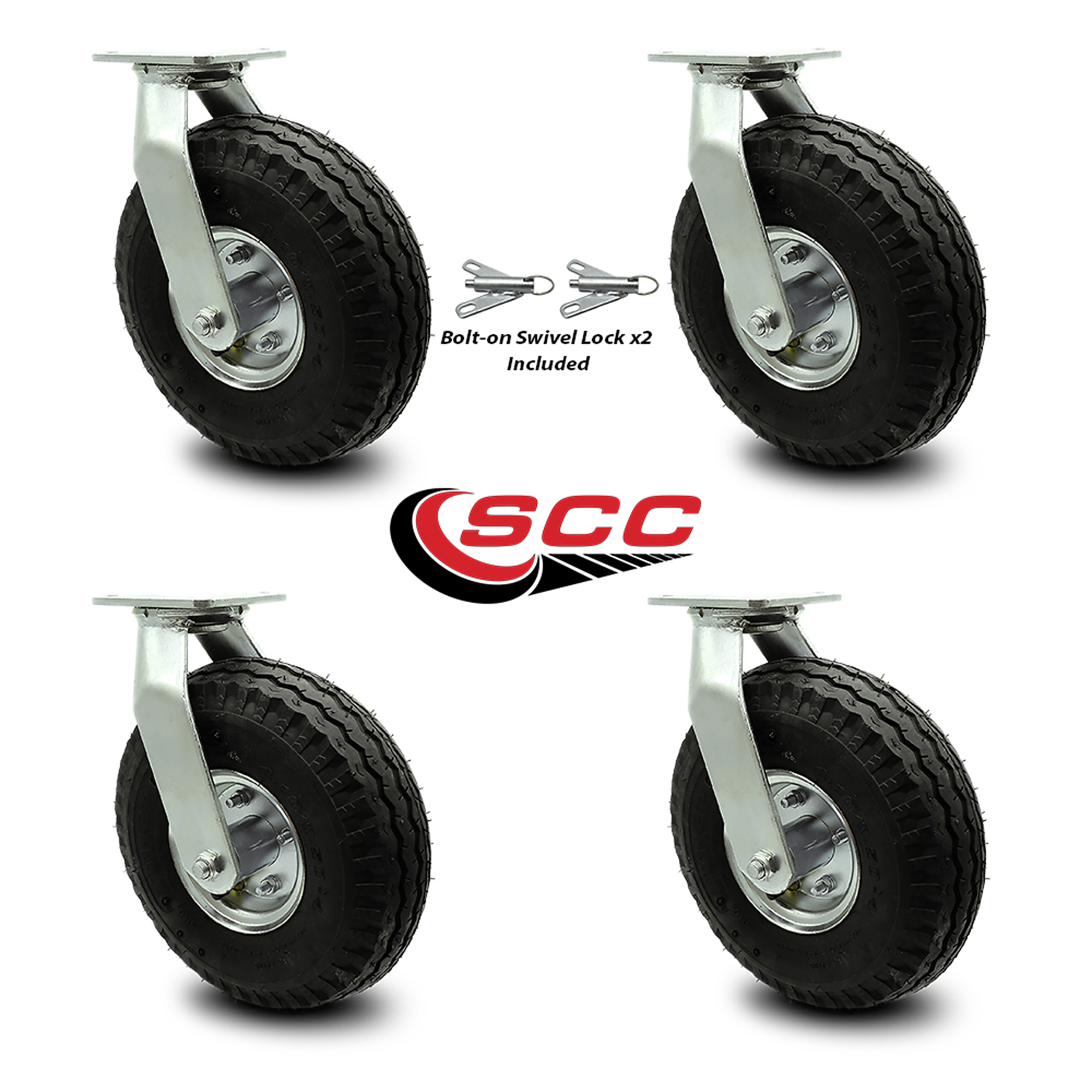

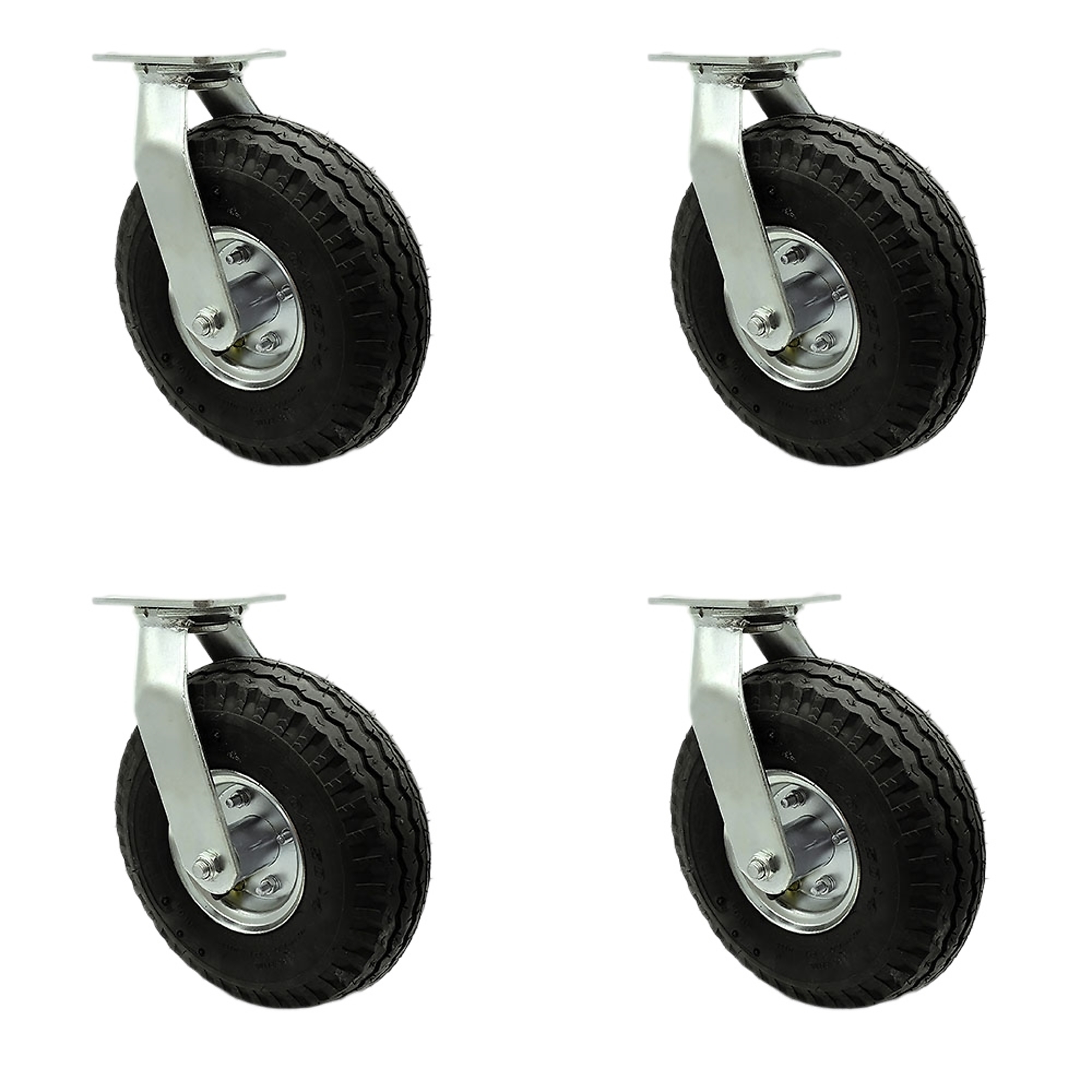

Listing is for a set of four (4) Service Caster Series #100 swivel casters, two (2) With bolt on swivel locks, with 10” diameter by 3.5” wide black pneumatic rubber wheels. Supports a total weight of 1400lbs (350lbs/caster). When searching for a reliable and durable solution to your caster needs, look no further than the Service Caster Series #100 casters. The universal design provides an excellent OEM and replacement part for luggage carts, food carts, or any application your business requires. With it’s zinc plated finish and pneumatic rubber wheels all rolling on finely crafted ball bearings, the Service Caster Series #100 provides enhanced noise reduction and consistent roll on any surface, for an overall superior ride under any condition. Note: this caster is NOT intended for highway use! Manual speed only. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.

What's Included

    (4) Plate Casters

Features + Benefits

  • The Series 100 pneumatic casters come in 6” (mounting height 7.5”), 8” (mounting height 10”), 8” gray, 10” (mounting height 12.1875”) and 12” (mounting height 13.75”) and are made of pneumatic tread and an inner core filled with pressurized air which remains inflated even with the weight of a vehicle resting on it.
  • Weight capacity ranges from 200 lbs on the 6” caster, 300 lbs on the 8”, 350 lbs on the 10” and 450 lbs. on the 12”.
  • Top plate measures at 4" x 4 1/2" with a bolt hole pattern of 2.625" x 3.625" to 3" x 3" and can either be bolted or welded on.
  • Brake options include top lock brake (TLB), side lock brake (SLB), bolt-on swivel lock (BSL), or combinations of each. The TLB (6, 8, and 10” casters) places a positive locking force against the wheel top, whereas the SLB (12” caster) places the force against the wheel side. The bolt-on swivel lock (BSL) is field installable and converts a swivel caster to rigid for straight-line tracking at any 90 degree angle via a spring-loaded bolt inserted into one of 4 notches found on the swivel raceway.

Key Specs

AttributeSpecification

item#

5497239

Brand

Service Caster

Ship Weight

36.0 LB

Wheel Diameter

10 in

Caster Type

Swivel

Capacity Class

1,000-1,499 Pounds

Load Capacity per Caster

1,400 lb

Wheel Material

Rubber

Package (qty.)

4

Wheel Width

3.5 in
AttributeSpecification

Mount Type

Plate-Mount

Finish Type

Bright Zinc Plated Finish

Foot Brake

Yes

Overall Height

12.1875 in

Plate Dimensions

4 x 4.5

Bolt Hole Spacing

2.625 x 3.625 to 3 x 3

Bearing Type

Sealed

Product Weight

36.0000 lb

Dimensions L x W x H (in.)

12.0 x 12.0 x 12.0 in
