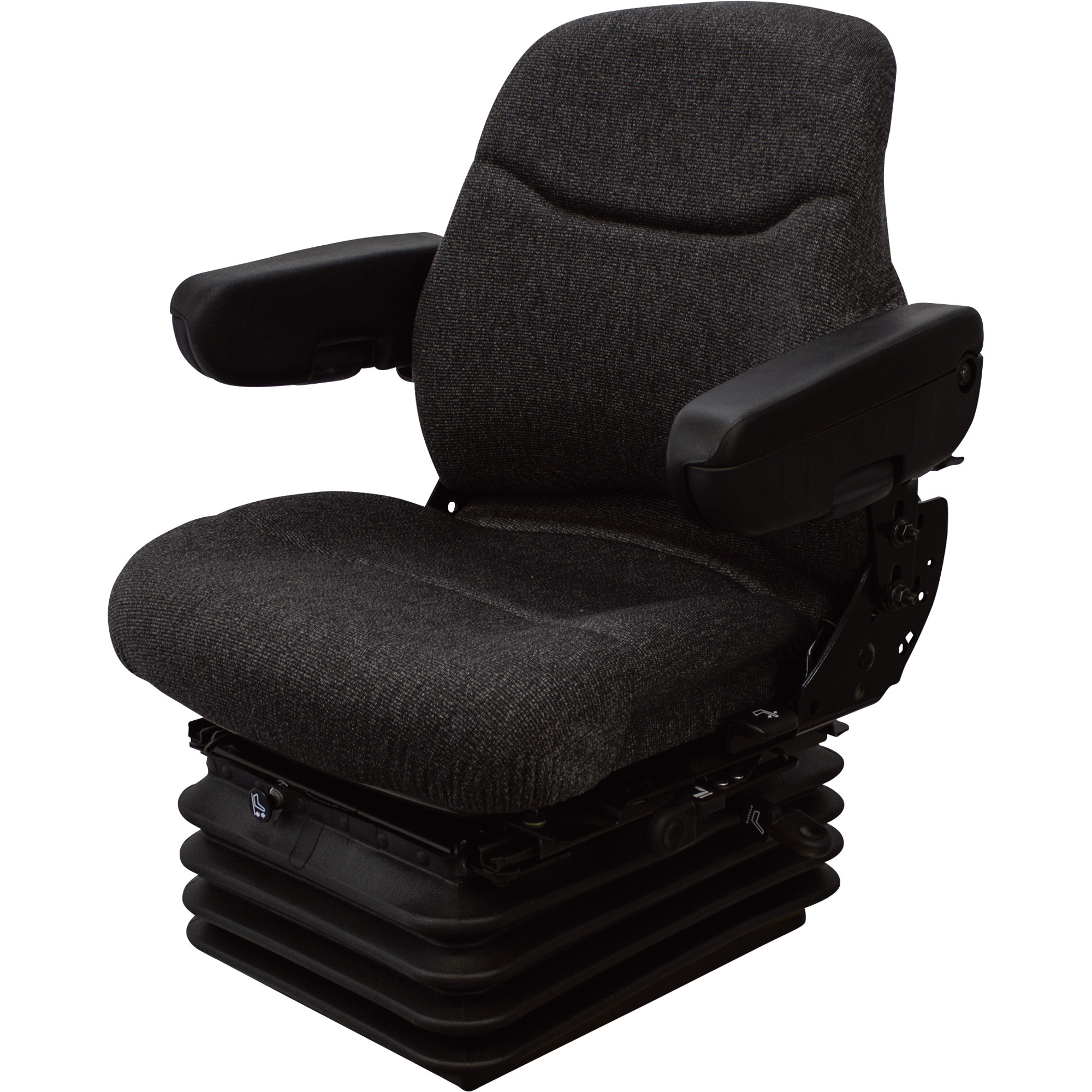

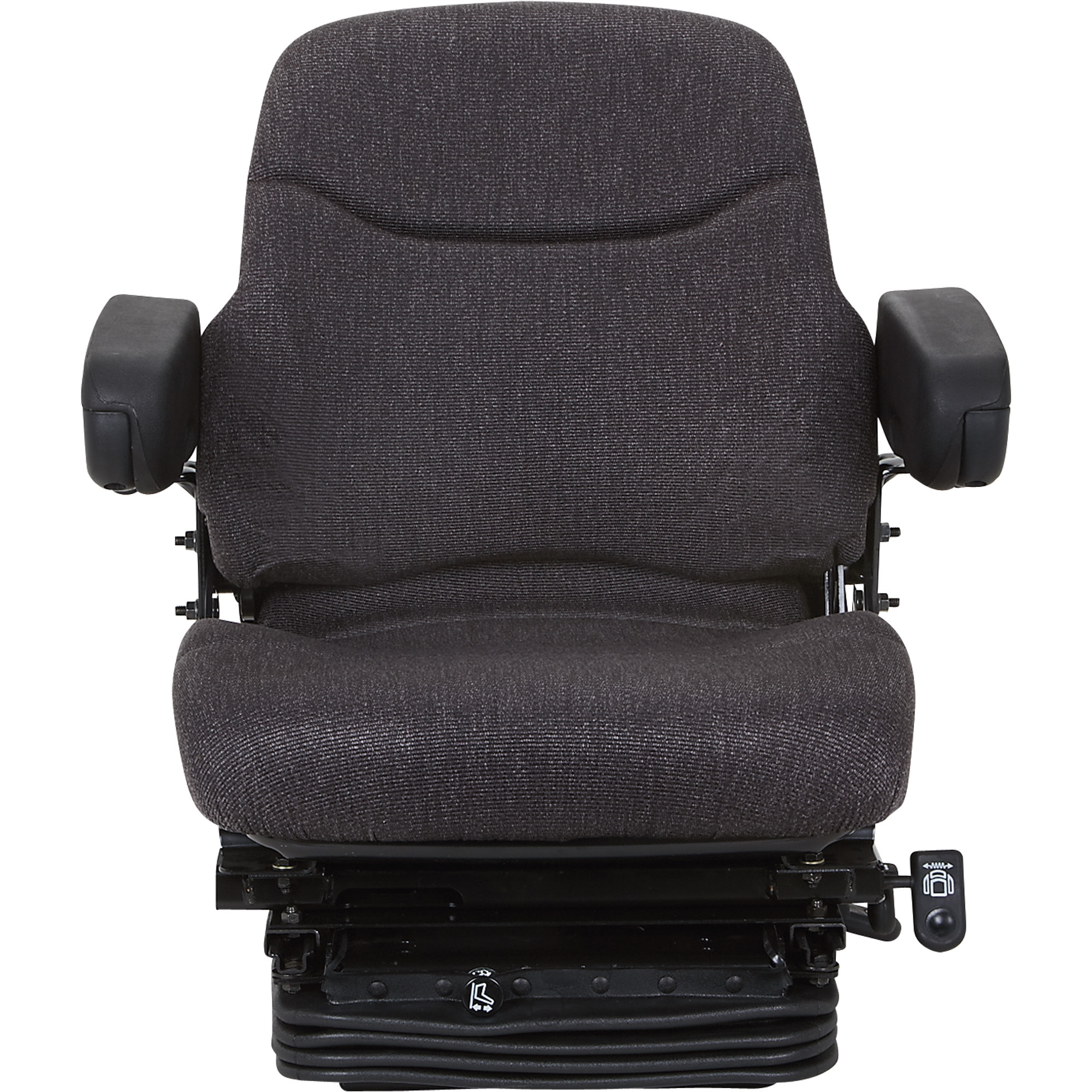

Uni Pro K & M Magnum Air Seat — Case/IH, Model# 6684

Item# 23436
Uni Pro K & M Magnum Air Seat — Case/IH, Model# 6684

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Uni Pro K & M Magnum Air Seat — Case/IH, Model# 6684

Click or Tap image to Zoom

$1629.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Air suspension for smother, more comfortable ride
  • Made with durable gray Tufftex fabric
  • Replaces original suspension seat
  • All hardware included
  • Self-contained 12-volt compressor is wired to the tractor's electrical system to provide power to the suspension compressor

See full description

Complete Your Solution

  • Uni Pro K & M Magnum Air Seat — Case/IH, Model# 6684
  • Uni Pro K & M Swivel for Sears Suspension Seats, Model# 5003
Price for all two:

$1889.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The K & M Magnum Air Seat is a complete suspension and seat system designed specifically for Case IH Magnum tractors, including the 7100, 7200, and 8900 Series. This premium seat features a self-contained 12 Volt compressor, ensuring optimal comfort and support during long hours of operation. Built in the U.S.A., the Magnum Air Seat offers superior durability and reliability, making it an essential upgrade for tractor operators seeking enhanced comfort and reduced fatigue. Please note that an oversize shipping charge applies due to the seat's substantial size and weight.

What's Included

    (1) Seat

Features + Benefits

  • Air suspension for smother, more comfortable ride
  • Made with durable gray Tufftex fabric
  • Replaces original suspension seat
  • All hardware included
  • Self-contained 12-volt compressor is wired to the tractor's electrical system to provide power to the suspension compressor
  • Durable suspension cover keeps suspension components free of dirt and dust
  • Fore-aft isolater absorbs jarring for extra comfort
  • Isolater can also be disabled
  • Adjustable slide rails with 5in. of travel
  • Adjustable lumbar supports your lower back with multiple settings
  • Padded armrests fold up and out of the way allowing easy access to the seat
  • Fits the following Case IH tractors: 7110, 7120, 7130, 7140, 7150, 7210, 7220, 7230, 7240, 7250, 8910, 8920, 8930, 8940, 8950

Key Specs

AttributeSpecification

item#

23436

Brand

Uni Pro

Manufacturer's Warranty

1 year limited warranty

Ship Weight

127.0 LB

Adjustable

Yes
AttributeSpecification

Suspension

Yes

Color

Gray

Material

Fabric

Arm Rests

Yes

Universal Fit

No

Reviews

Questions & Answers

7 Reviews This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. What is the difference between model 6684 and model 7915 seats.

    1 answer

    1. Model 7915 and model 6684 are both the Uni Pro KM 1003 Seat & Suspension assembly. Model 6684 includes the complete plug and play wiring for easy installation.

      Helpful?

  2. I want to know the bolt pattern for the 4 bolts that bolt the seat to the floor of the cab. My tractor shows two bolts at the front of the seat 10.25 inches apart and then 2 more bolts about 10 inches back,

    1 answer

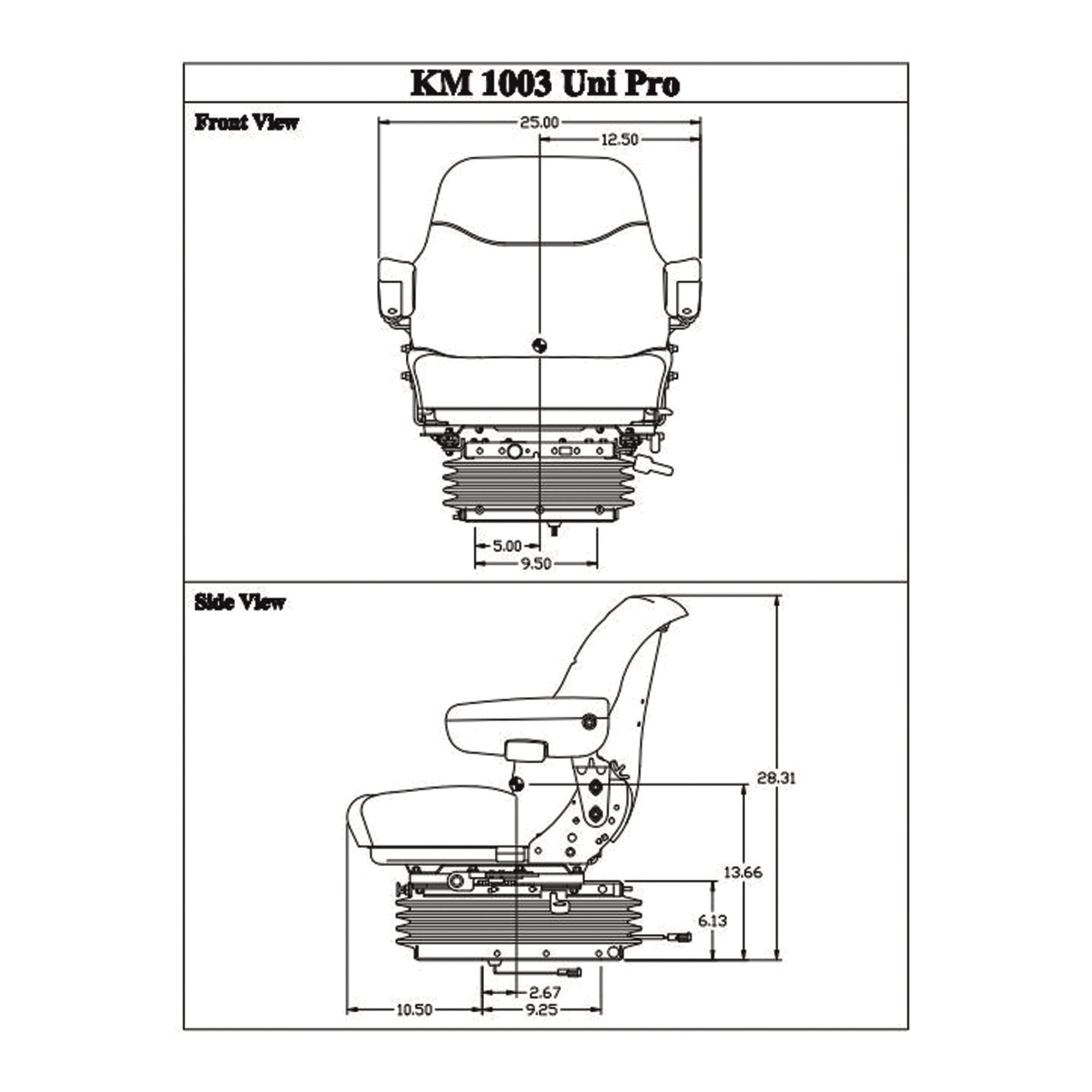

    1. The bolts from side to side would be 9.50" apart and 9.25" apart front to back. See the diagrams with the measurements on our web in the additional pictures.

      Helpful?

  3. What are the heights of the top front edge of the seat cushion in the lowest collapsed/deflated position and the highest fully inflated position?

    1 answer

    1. The seat is measured by the center stroke of 15". At the lowest setting of the center stroke you would be at approximately 13 1/2" and still have suspension. Any lower than that you could bottom out and would not have any suspension. At the highest, it would be approximately 16 1/2".

      Helpful?

  4. Does the seat swivle?

    1 answer

    1. This seat does not swivel on its own. Click the link below to view a compatible swivel.

      Helpful?

  5. Does the seat have a lateral (side to side) isolator?

    I noticed that a lateral isolator is not mentioned in the description but that the pictures show a lateral isolator "lock-out" handle. Does this particular model actually have a lateral isolator (in addition to the fore/aft isolator) or are the pictures inaccurate?

    1 answer

    1. This seat does not have the lateral isolator. It only has the fore and aft isolator.

      Helpful?

  6. How many inches will the air adjustment go to?

    1 answer

    1. The air adjustments will go from 4"-5" on this K & M Replacement Air Suspension Seat.

      Helpful?
