K & M, KM BACKHOE MECH SEAT 7814 Model# 7814

Item# 60998
"K & M, KM BACKHOE MECH SEAT 7814 Model# 7814"
K & M, KM BACKHOE MECH SEAT 7814 Model# 7814

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

K & M, KM BACKHOE MECH SEAT 7814 Model# 7814

Click or Tap image to Zoom

$1429.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Guardian mechanical suspension system features a 3.5in. suspension stroke
  • Suspension weight adjustment system accommodates operators weighing up to 285 lbs.
  • Ergonomic contoured cushions with durable black vinyl covering for lasting comfort
  • Reclining metal shell backrest with a foam and vinyl front cushion for individual fit and comfort
  • Lumbar support helps promote lower back comfort

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

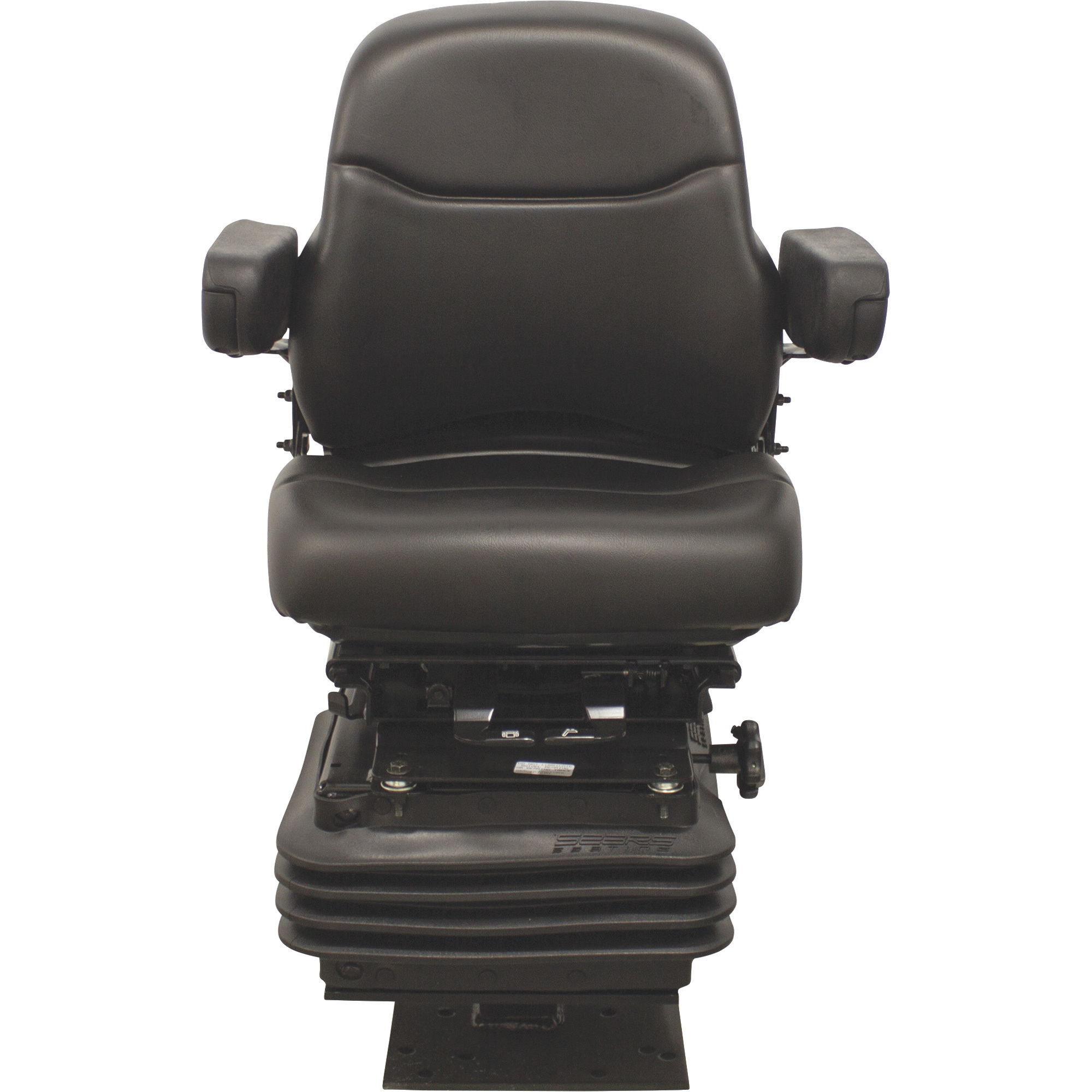

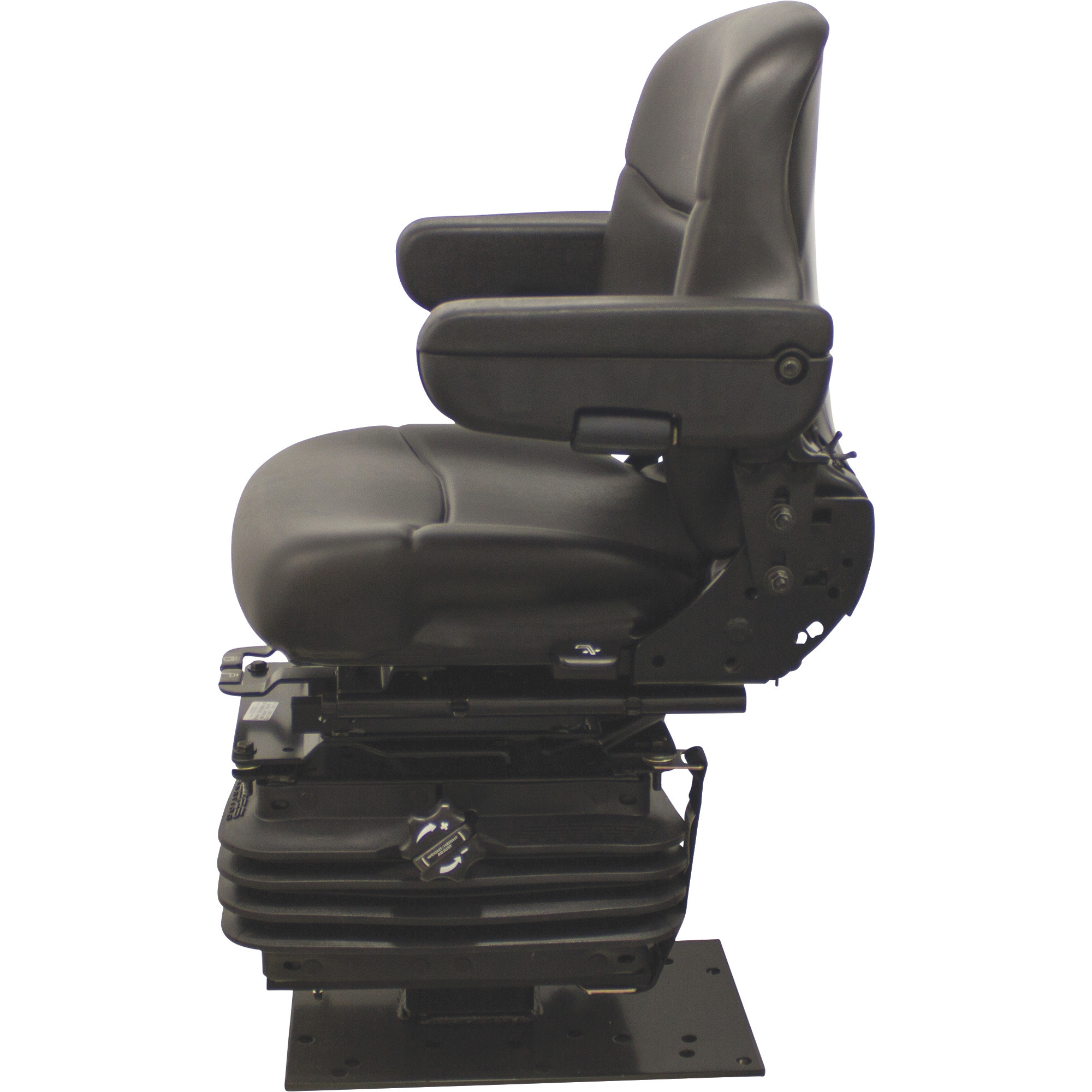

The Sears Brand Backhoe Mechanical Seat and Suspension assembly with pedestal base has multiple mounting patterns to fit backhoe loaders plus multiple construction and industrial applications. Designed for maximum comfort. Suspension weight adjustment system supports operators up to 285 lbs.

What's Included

    (1) Seat with mechanical suspension

Features + Benefits

  • Guardian mechanical suspension system features a 3.5in. suspension stroke
  • Suspension weight adjustment system accommodates operators weighing up to 285 lbs.
  • Ergonomic contoured cushions with durable black vinyl covering for lasting comfort
  • Reclining metal shell backrest with a foam and vinyl front cushion for individual fit and comfort
  • Lumbar support helps promote lower back comfort
  • Adjustable foldup armrests for easy seat entrance/exit
  • Internal height adjustment of 2in. gets you sitting in the right position for optimum view
  • Heavy-duty slide rails provide 6in. of travel
  • Integrated swivel with 180 degree rotation for the perfect angle
  • Durable rubber molded suspension cover keeps components free of dirt and dust
  • Pedestal base has multiple mounting patterns for use in a wide variety of applications

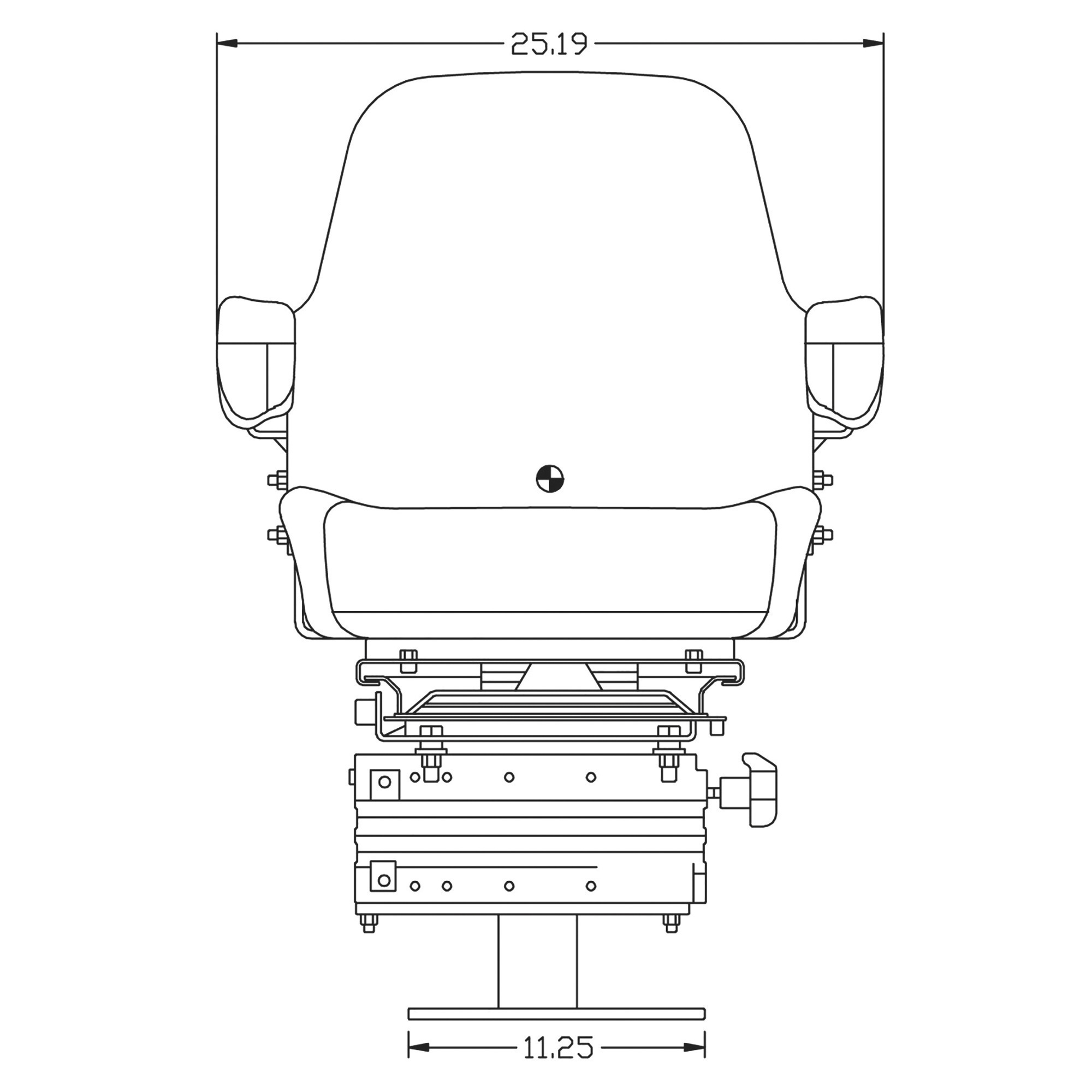

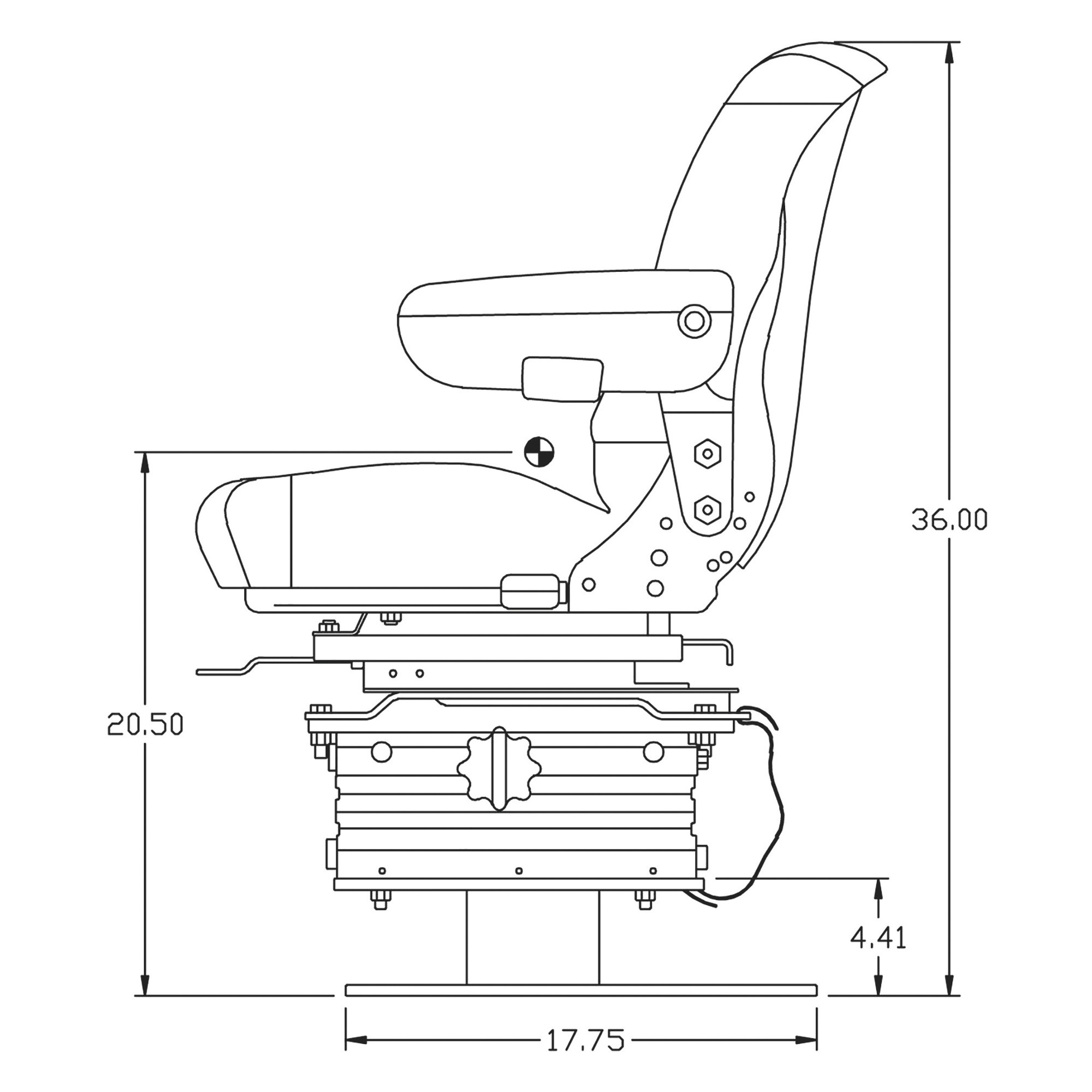

  • 25.19inW x 31in.D x 36in.H overall size

Key Specs

AttributeSpecification

item#

60998

Brand

Uni Pro

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

195.0 LB

Adjustable

Yes
AttributeSpecification

Suspension

Yes

Color

Black

Material

Vinyl

Arm Rests

Yes

Universal Fit

No

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

  1. Will the seat replace the seat on a Case 580K backhoe?

    1 answer

    1. This unit will replace the seat on the Case 580K backhoe.

      Helpful?

Warranty

Manufacturer's Warranty

12 months parts/12months labor
