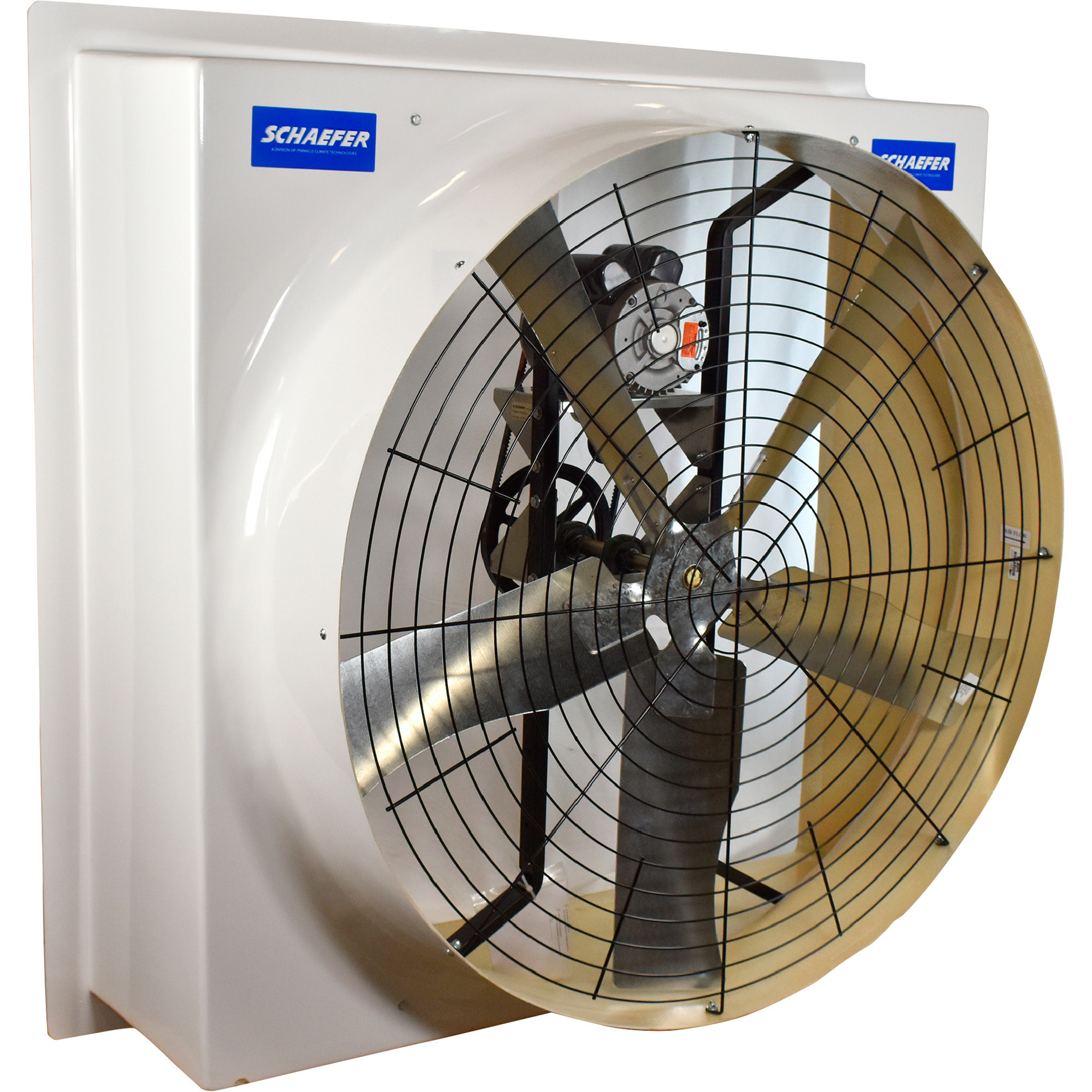

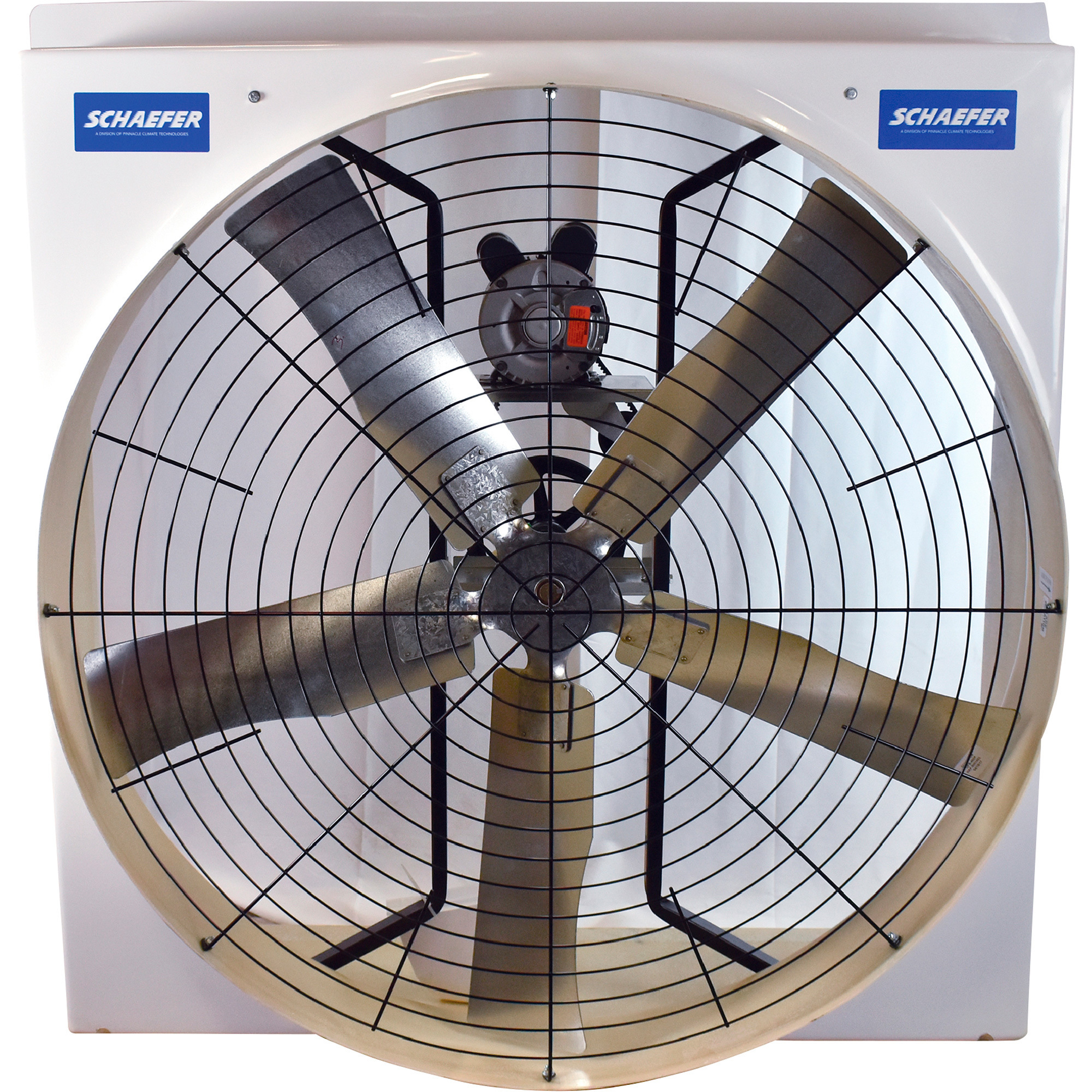

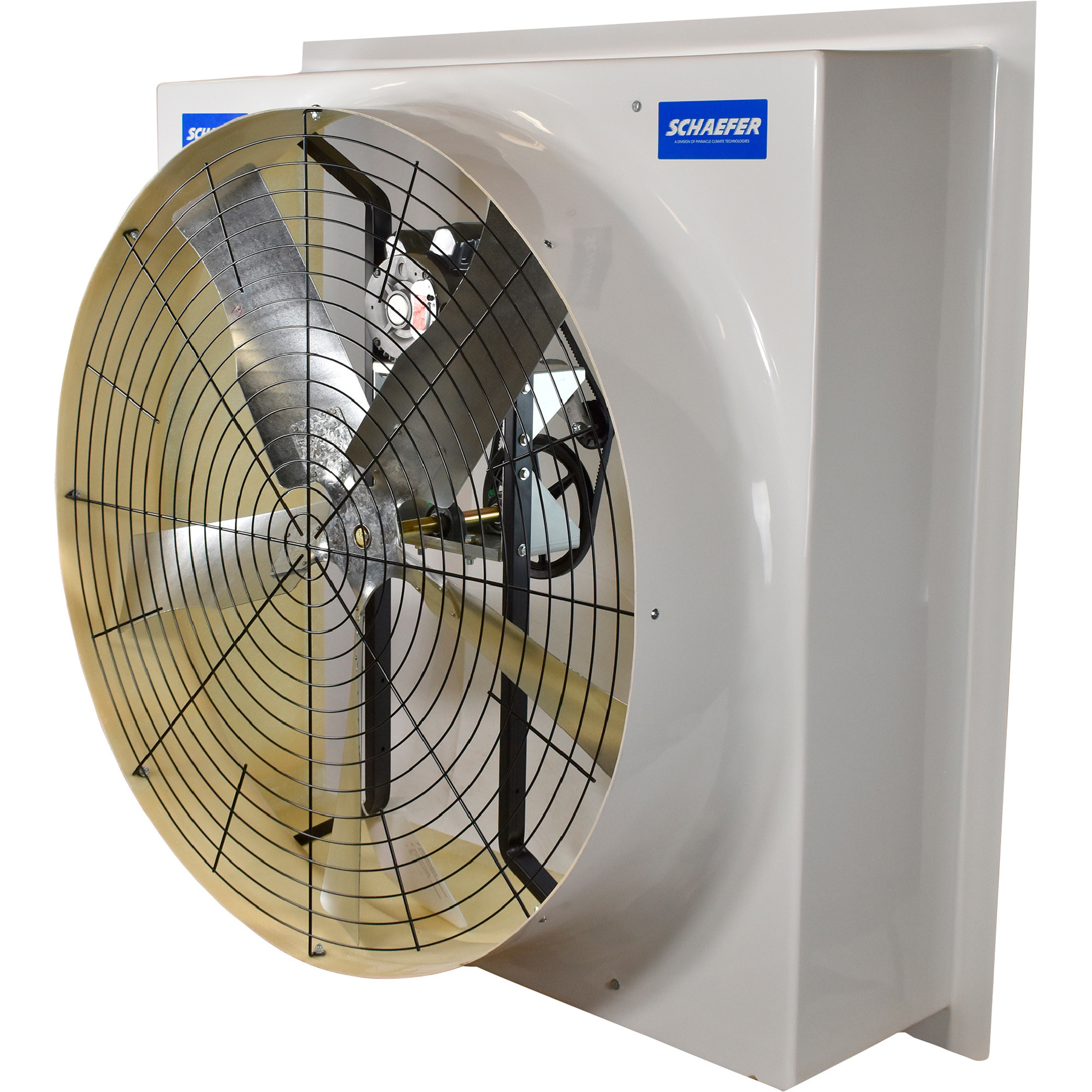

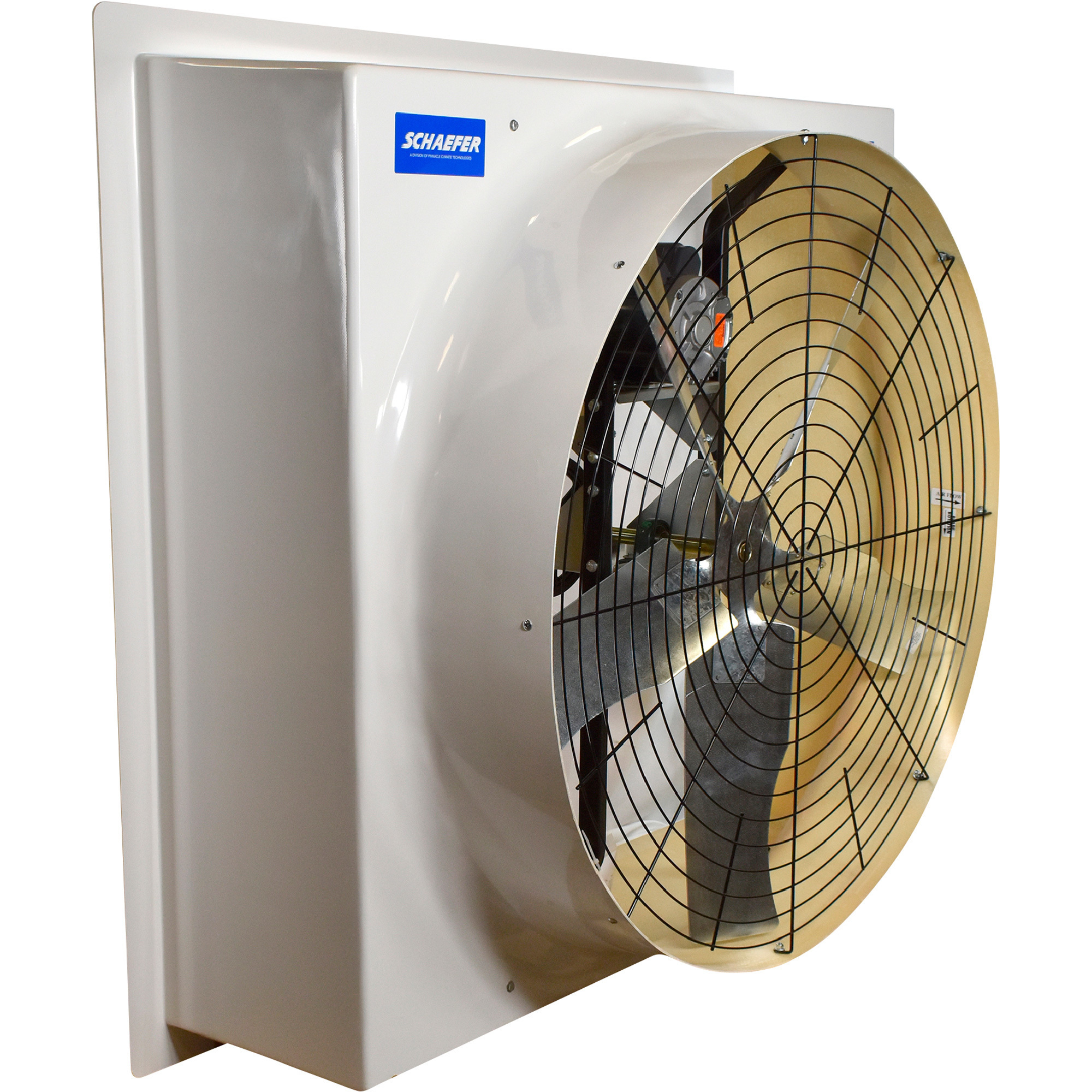

Schaefer Fiberglass Exhaust Fan, 48in., 22,365 CFM, 1 HP, 115/230 Volts, Model# FFM485G1

Item# 31517
Schaefer Fiberglass Exhaust Fan, 48in., 22,365 CFM, 1 HP, 115/230 Volts, Model# FFM485G1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Schaefer Fiberglass Exhaust Fan, 48in., 22,365 CFM, 1 HP, 115/230 Volts, Model# FFM485G1

Click or Tap image to Zoom

$2329.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Narrow profile design
  • Static balanced galvanized fan blade
  • Large radius fiberglass venturi
  • Heavy-duty, totally enclosed maintenance-free motor
  • Requires hardwired electrical connection

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

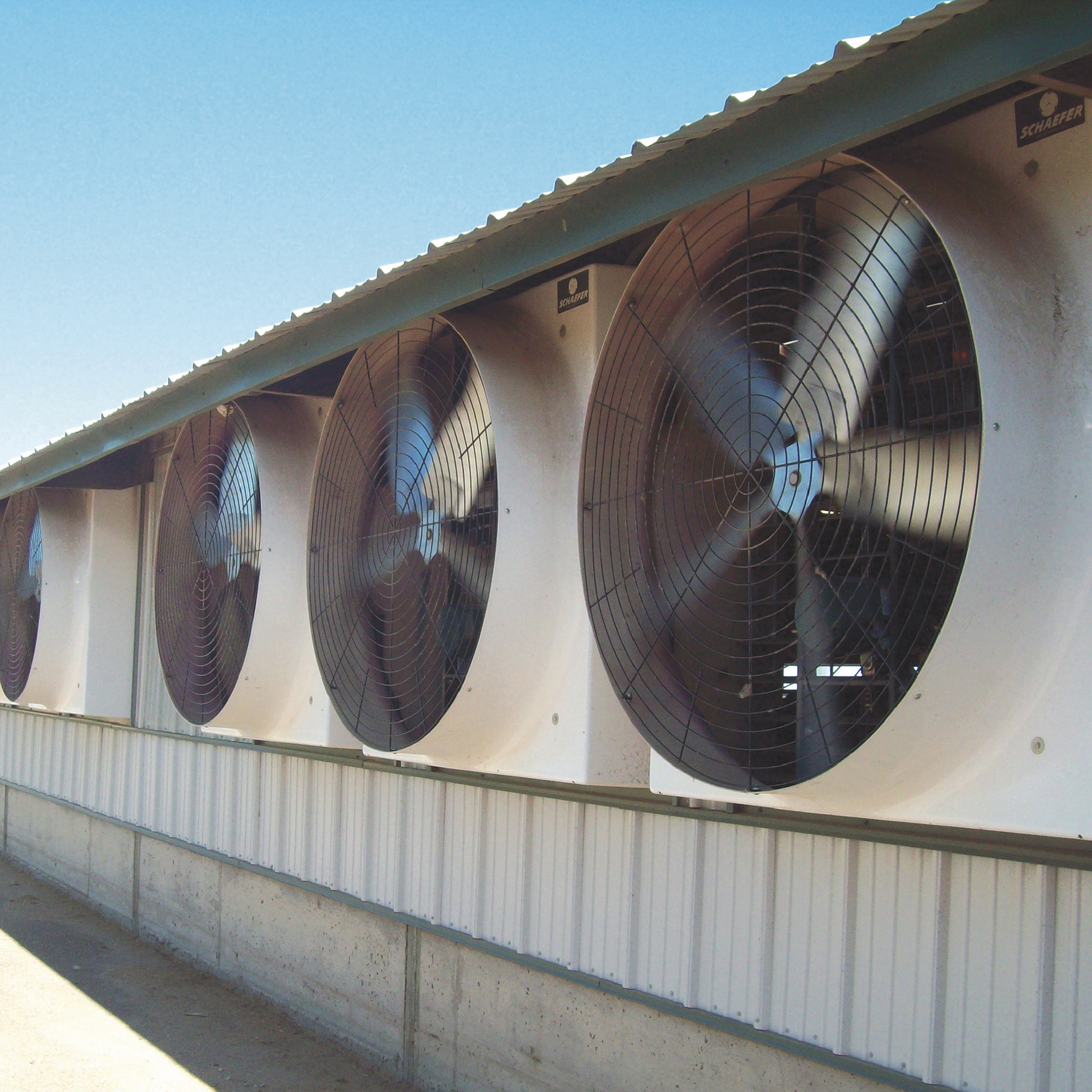

The Schaefer 48in. Fiberglass Exhaust Fan is engineered to deliver exceptional air movement and efficiency in demanding environments. With a 48-inch fan diameter and belt drive type, this exhaust fan is capable of delivering an impressive 22,365 cubic feet per minute (cfm) of air, making it ideal for large spaces requiring substantial ventilation. Its narrow profile design ensures it can fit into tight spaces without sacrificing performance. Constructed from durable fiberglass, this fan is built to withstand harsh conditions and provide long-lasting service. Whether used in agricultural, industrial, or commercial settings, the Schaefer Fiberglass Exhaust Fan offers reliable and efficient air exhaust solutions to maintain optimal air quality and comfort.

What's Included

    (1) Fan

Features + Benefits

  • Narrow profile design
  • Static balanced galvanized fan blade
  • Large radius fiberglass venturi
  • Heavy-duty, totally enclosed maintenance-free motor
  • Requires hardwired electrical connection

Key Specs

AttributeSpecification

item#

31517

Brand

Schaefer

Manufacturer's Warranty

2 year limited warranty

Ship Weight

245.0 LB

Drive Type

Belt

Fan Diameter

48 in

Air Delivery

22,365 cfm
AttributeSpecification

Volts

115/230

Hardwired

Yes

Speeds (qty.)

1

Max. Fan Speed

1,725 rpm

Horsepower

1 HP

Dimensions L x W x H (in.)

26 x 55.25 x 55.5 in
