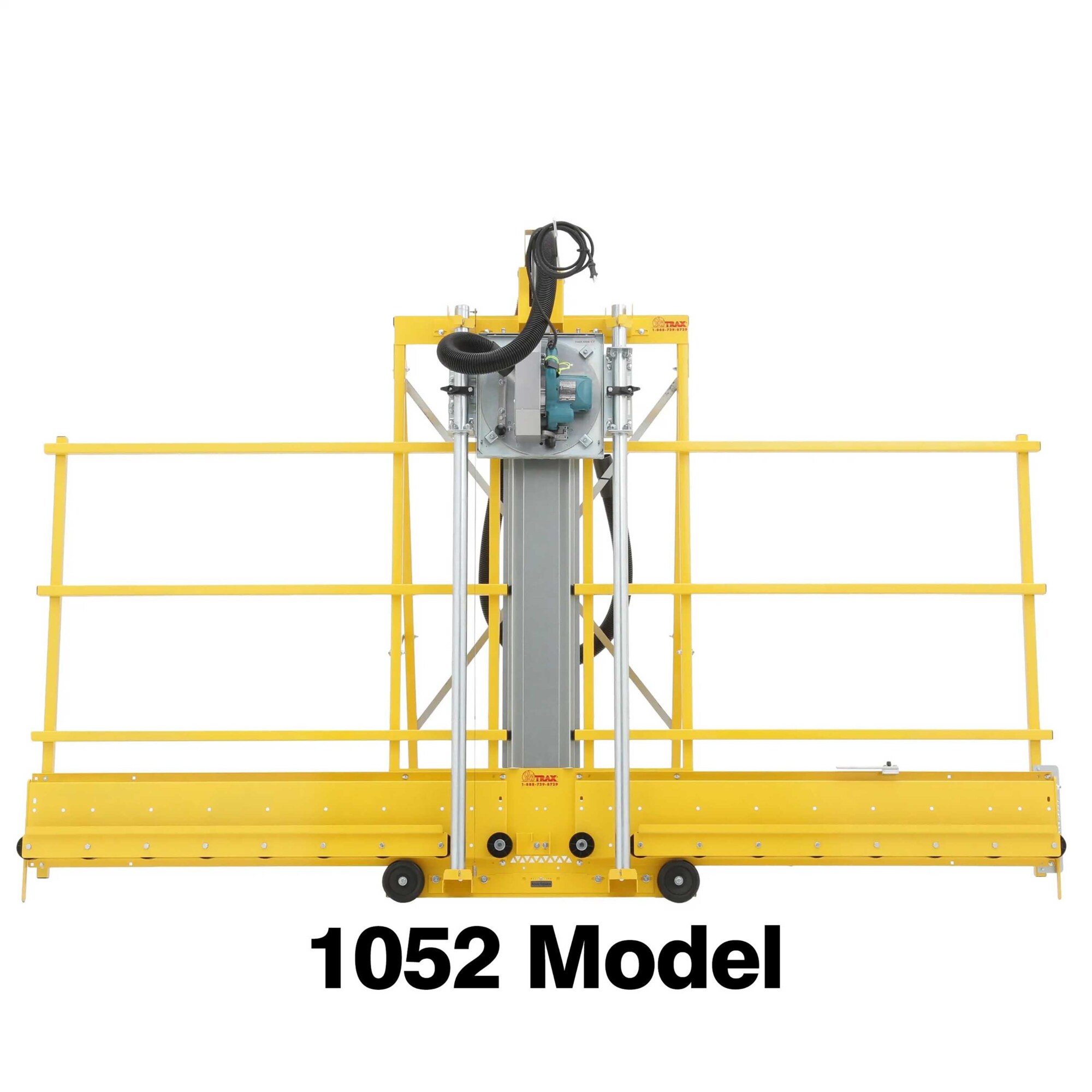

Saw Trax Heavy-Duty 1000 Series Panel Saw, 52in. Cross Cut Capacity, Model# 1052

Item# 334003
Top Seller
Saw Trax Heavy-Duty 1000 Series Panel Saw, 52in. Cross Cut Capacity, Model# 1052

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Saw Trax Heavy-Duty 1000 Series Panel Saw, 52in. Cross Cut Capacity, Model# 1052

Click or Tap image to Zoom

$3780.05

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only

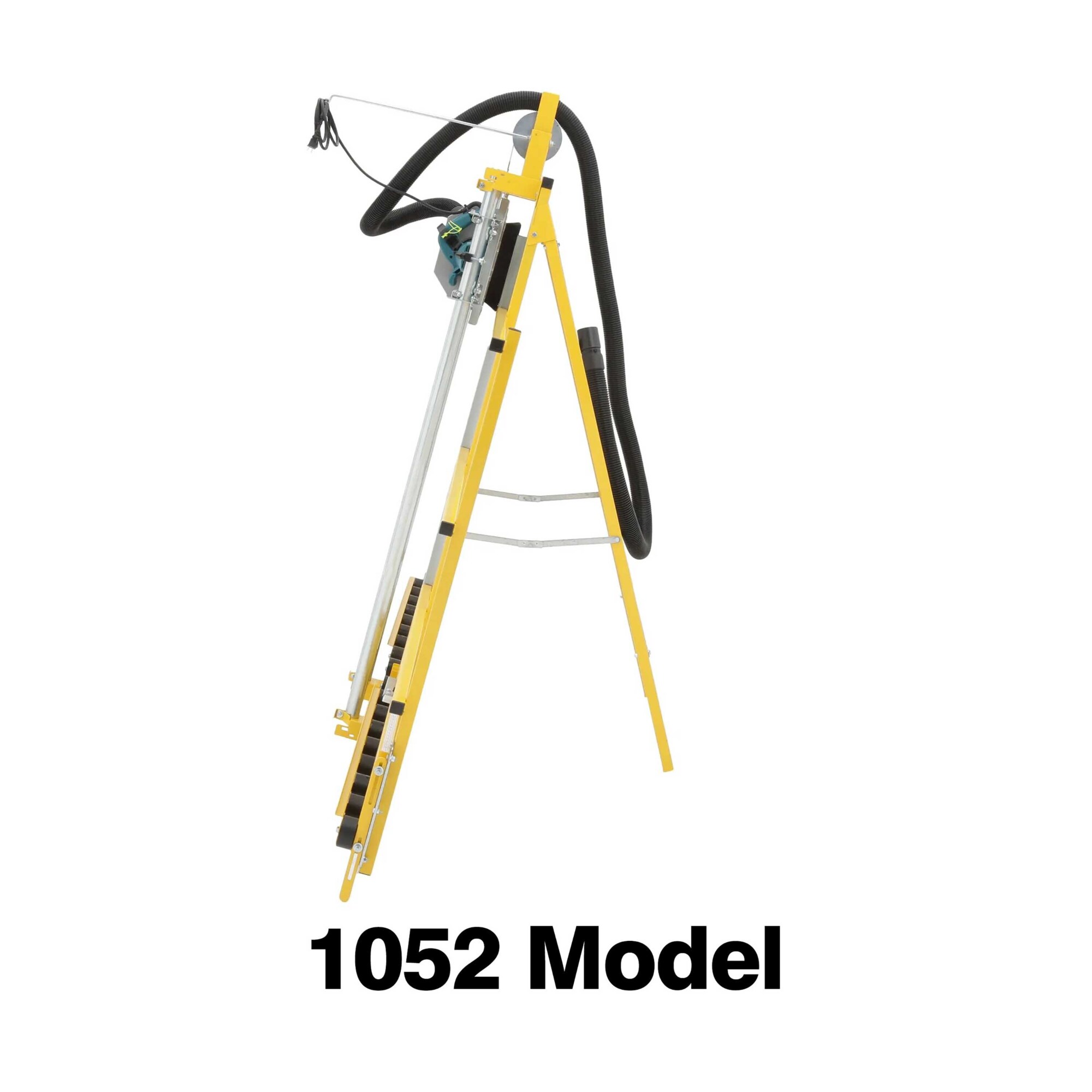

  • Folding stand is easy to open and close, and provides complete stability while in operation
  • Transport wheels included for portability
  • Frame size cross cuts up to 52in. and provides an unlimited rip cut
  • Vertical and horizontal measuring systems help ensures accurate cuts
  • Stop bar provides the capability to make repetitive cuts

See full description

Complete Your Solution

  • Saw Trax Heavy-Duty 1000 Series Panel Saw, 52in. Cross Cut Capacity, Model# 1052
  • Saw Trax Mid-Fence for All Saw Trax Vertical Panel Saw, Model# MDFC
  • 3M Sanding/Drywall/Fiberglass Respirator with Valve, N95, NIOSH Approved, Model# 8511HA1-A
  • 3M SecureFit Safety Glasses, Clear Lens, Model# SF400C-LV-4-PS
Price for all four:

$4274.08

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

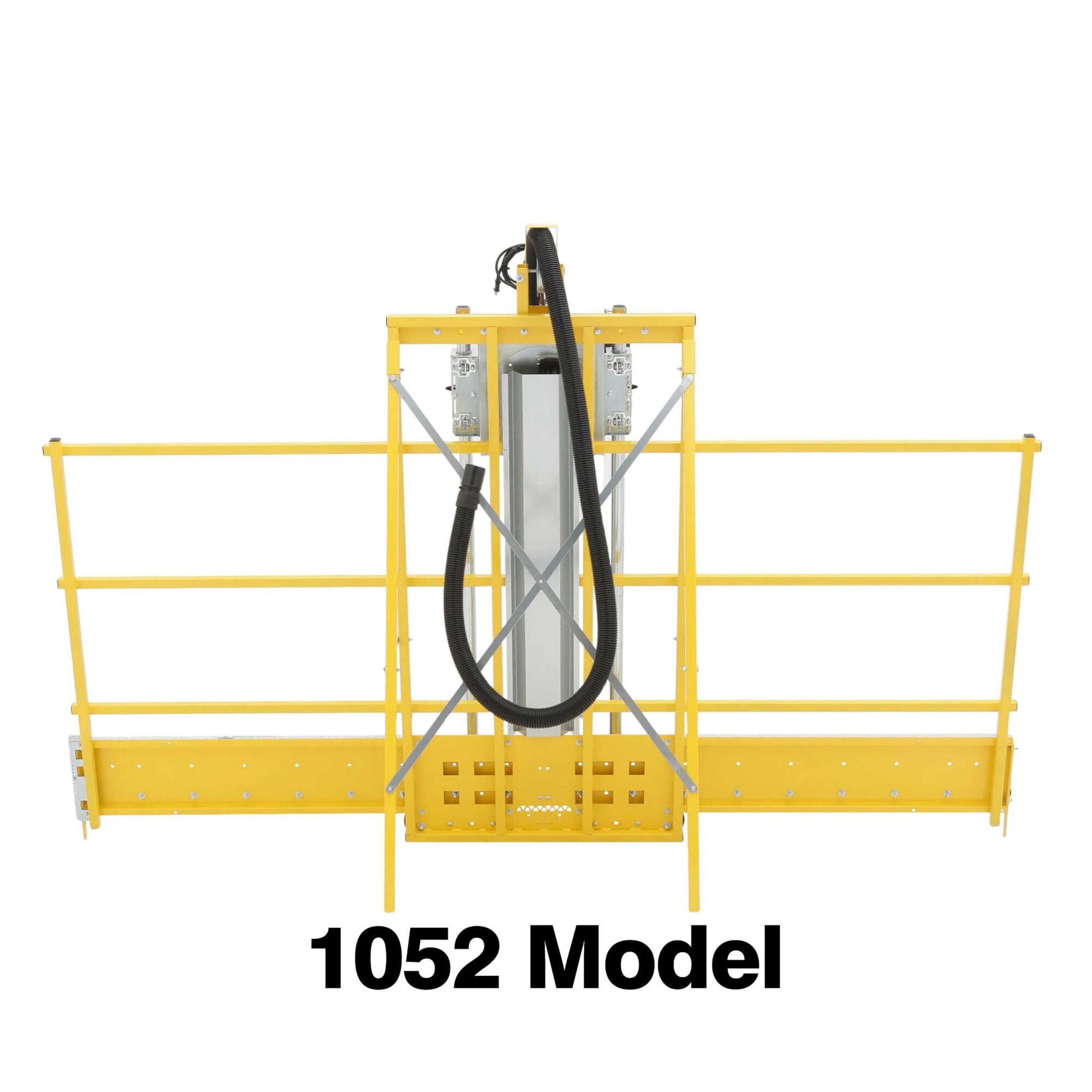

The Saw Trax 1000 Series Panel Saw is a Full-Size unit that offers 10ft. of material support. It includes standard features plus an accessory package we would recommend to most woodworkers. This 1052 model is ideal for customers who need to break down 4ft. sheet goods that are less than 1 3/4in. thick with precision cuts. A Makita 5007N circular saw and the best dust collection hookups possible are provided with this machine. U.S.A.

What's Included

    (1) Saw Trax Heavy-Duty 1000 Series Panel Saw, 52in. Cross Cut Capacity, Model# 1052
Play Item Video

Features + Benefits

  • Folding stand is easy to open and close, and provides complete stability while in operation
  • Transport wheels included for portability
  • Frame size cross cuts up to 52in. and provides an unlimited rip cut
  • Vertical and horizontal measuring systems help ensures accurate cuts
  • Stop bar provides the capability to make repetitive cuts
  • Patented Accu-Square alignment system assures that machine will never go out of square

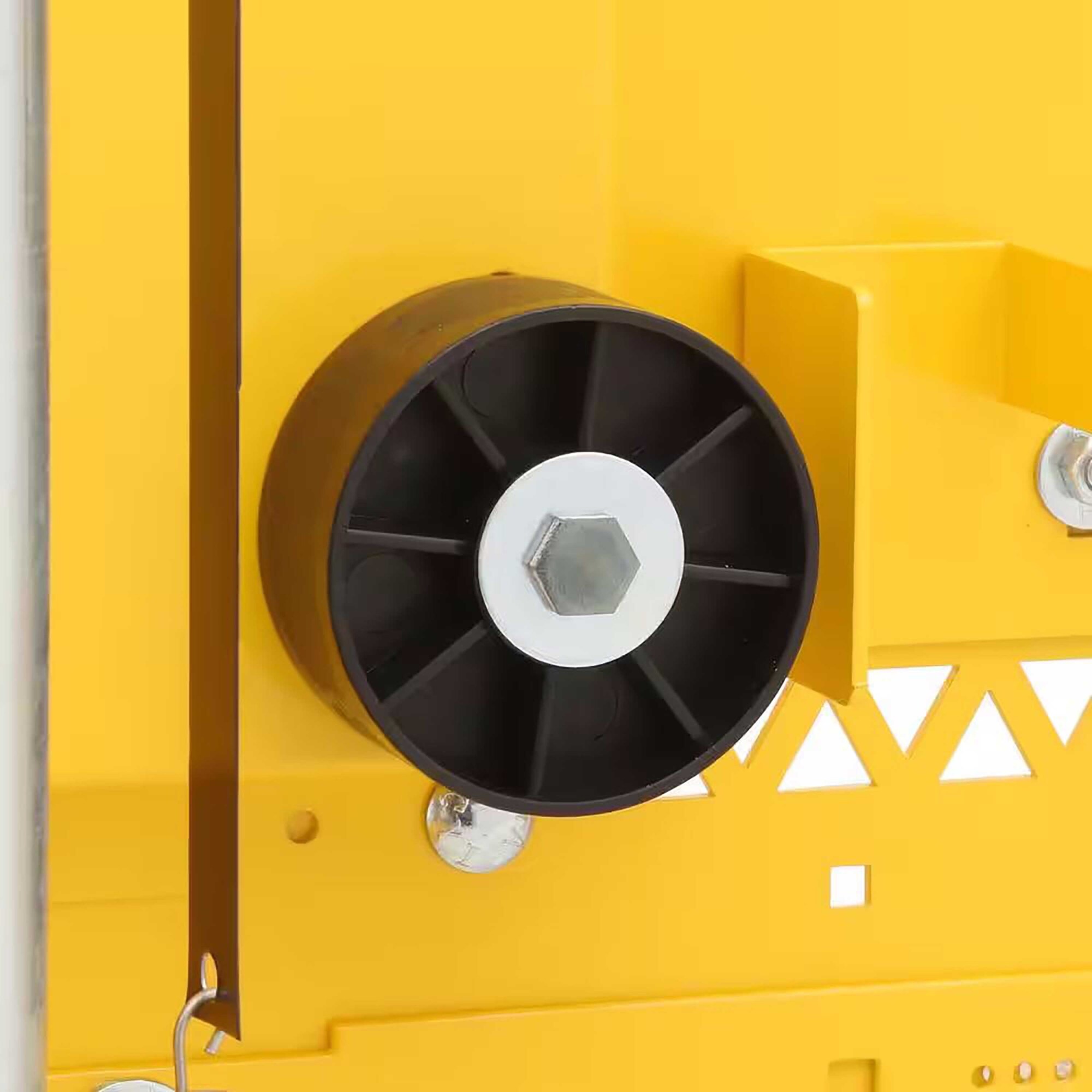

  • Unique sealed roller bearing system provides for smoother carriage action and tighter tolerances
  • Powder-coated frame
  • Nickel-chromed guide tubes
  • Accu-Glide sealed linear bearing system
  • Carriage system retraction mechanism
  • Cord holder

Key Specs

AttributeSpecification

item#

334003

Brand

Saw Trax

Manufacturer's Warranty

1 year limited warranty

Ship Weight

417.0 LB
AttributeSpecification

Blade Size

7.25 in

Amps

15

Max. Crosscut

52 in

Product Type

Panel Saws

Reviews

Questions & Answers

Questions

1–5 of 5 Questions
Sort by:

  1. will this be able to cut 1-3/8" ballistic board? basically solid fiberglass

    1 answer

    1. This panel saw can cut 1 3/8" ballistic board.

      Helpful?

  2. Good afternoon. Does this machine require 220 or 110?

    1 answer

    1. The saw included with this kit requires 110V electricity.

      Helpful?

  3. dose it come with everything in the picture

    1 answer

    1. It would include the panel saw, folding stand and wheels, dual rip gauge and stop bar, tapes and dust brush.

      Helpful?

  4. Is this compatible with a Router?

    1 answer

    1. A router is not compatible for use with this panel saw.

      Helpful?

  5. Accuracy

    Is this item accurate enough for repeated cabinet panel cuts please?

    1 answer

    1. This panel saw is perfect for cutting 4 foot sheet goods that are less than 1 3/4in. thick with precision cuts.
      Frame size cross cuts up to 52in. and provides an unlimited rip cut.
      Vertical and horizontal measuring systems help ensures accurate cuts.
      Stop bar provides the capability to make repetitive cuts.
      Patented Accu-Square alignment system assures that machine will never go out of square.
      So as long as your cabinet cuts are within the measurements this panel saw can cut, it can make repetitive cuts with accuracy.

      Helpful?
