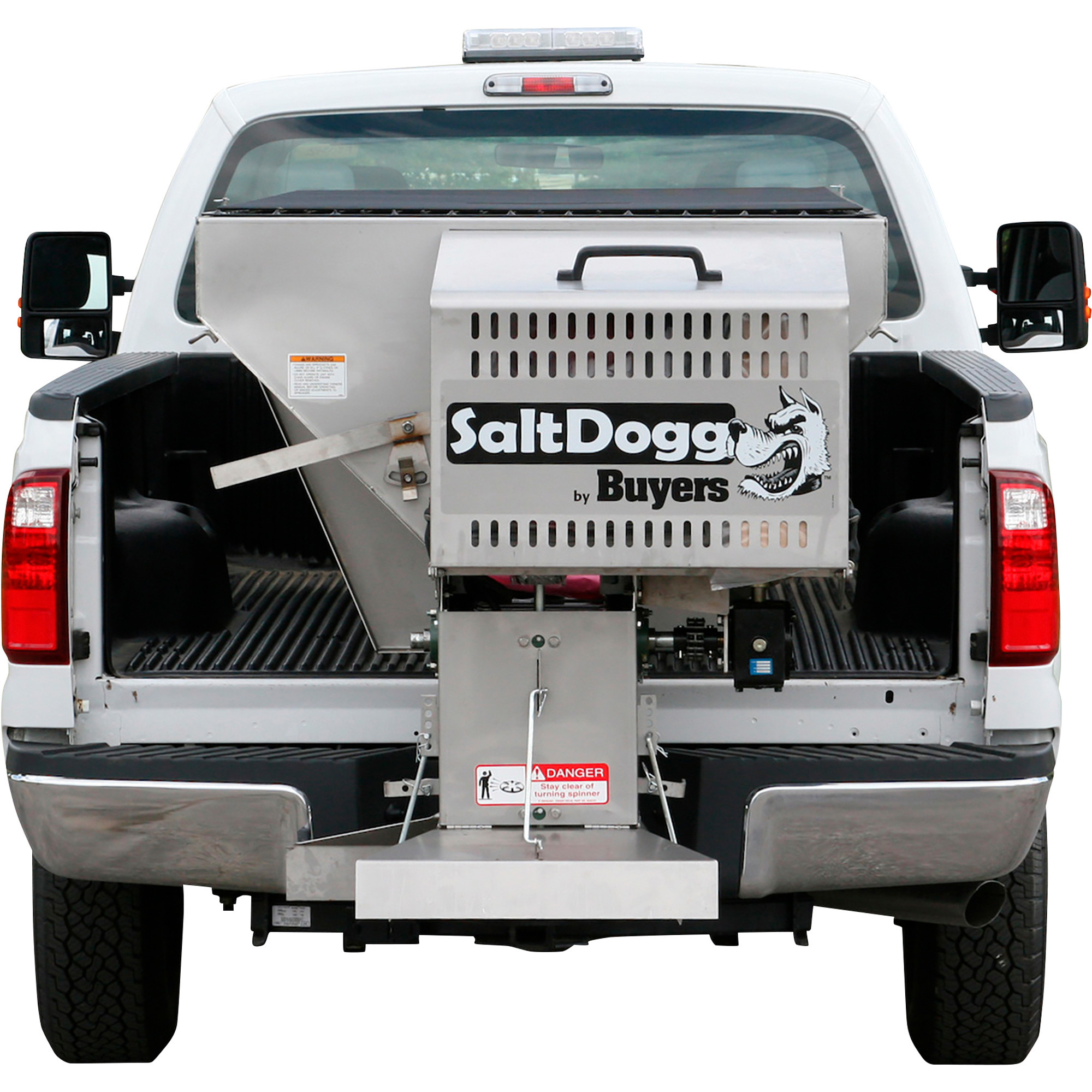

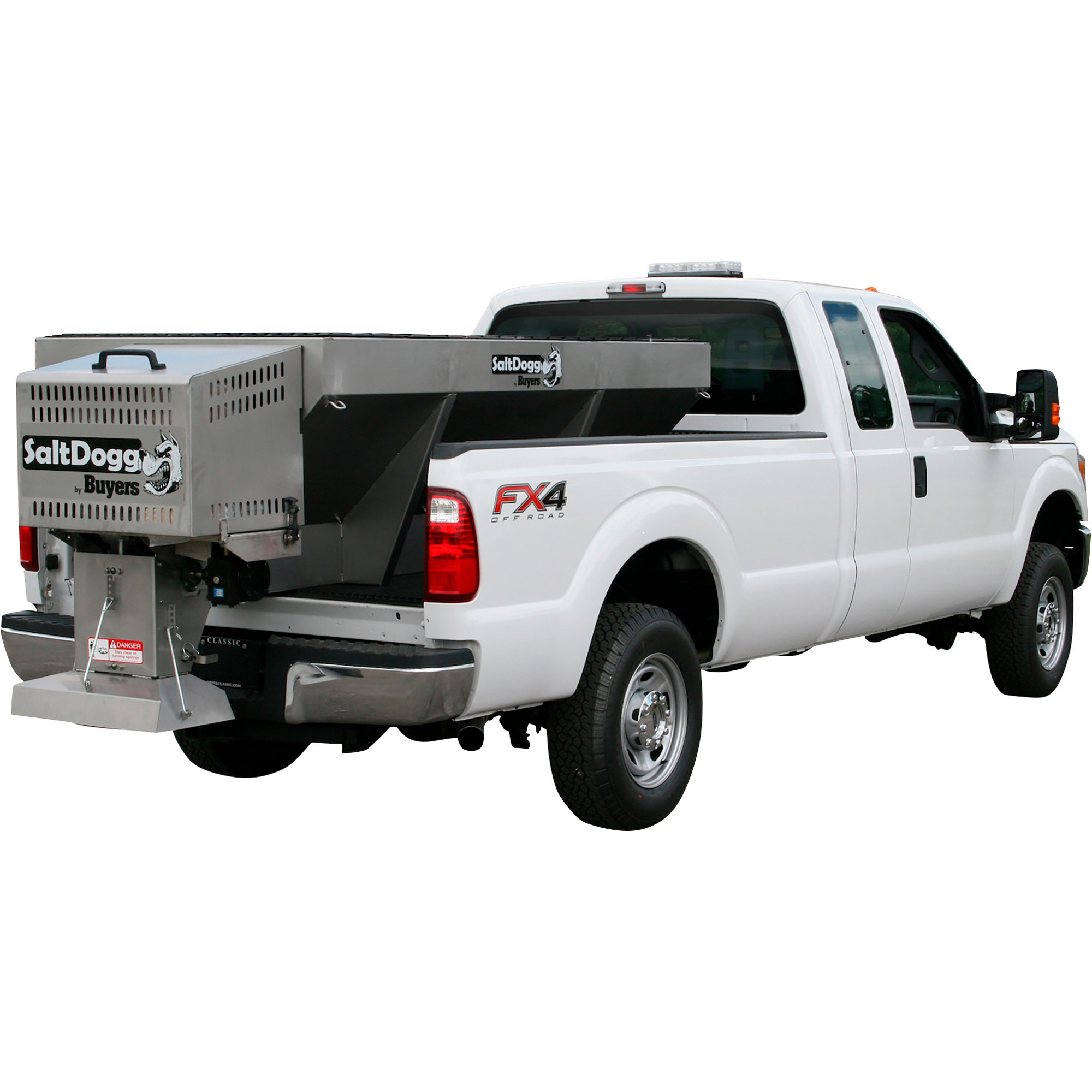

Buyers Salt Dogg, Gas Stainless Hopper Spreader with Pintle Chain Conveyor, Max. Spread Width 30 ft, Model# 1400100SS

Item# 103896S
Buyers Salt Dogg, Gas Stainless Hopper Spreader with Pintle Chain Conveyor, Max. Spread Width 30 ft, Model# 1400100SS

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Buyers Salt Dogg, Gas Stainless Hopper Spreader with Pintle Chain Conveyor, Max. Spread Width 30 ft, Model# 1400100SS

Click or Tap image to Zoom

$6815.00

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Hopper length: 96in.
  • Overall length: 115 3/4in.
  • Capacity struck: 2.0 cu. yds.
  • Width: 47in.; height: 32 1/2in.
  • Complete assembly mounts easily on pickup, dump and platform trucks

See full description

Complete Your Solution

  • Buyers Salt Dogg, Gas Stainless Hopper Spreader with Pintle Chain Conveyor, Max. Spread Width 30 ft, Model# 1400100SS
  • SureCan 5-Gallon Type II Safety Gas Can, Red, Model# SUR5SFG2

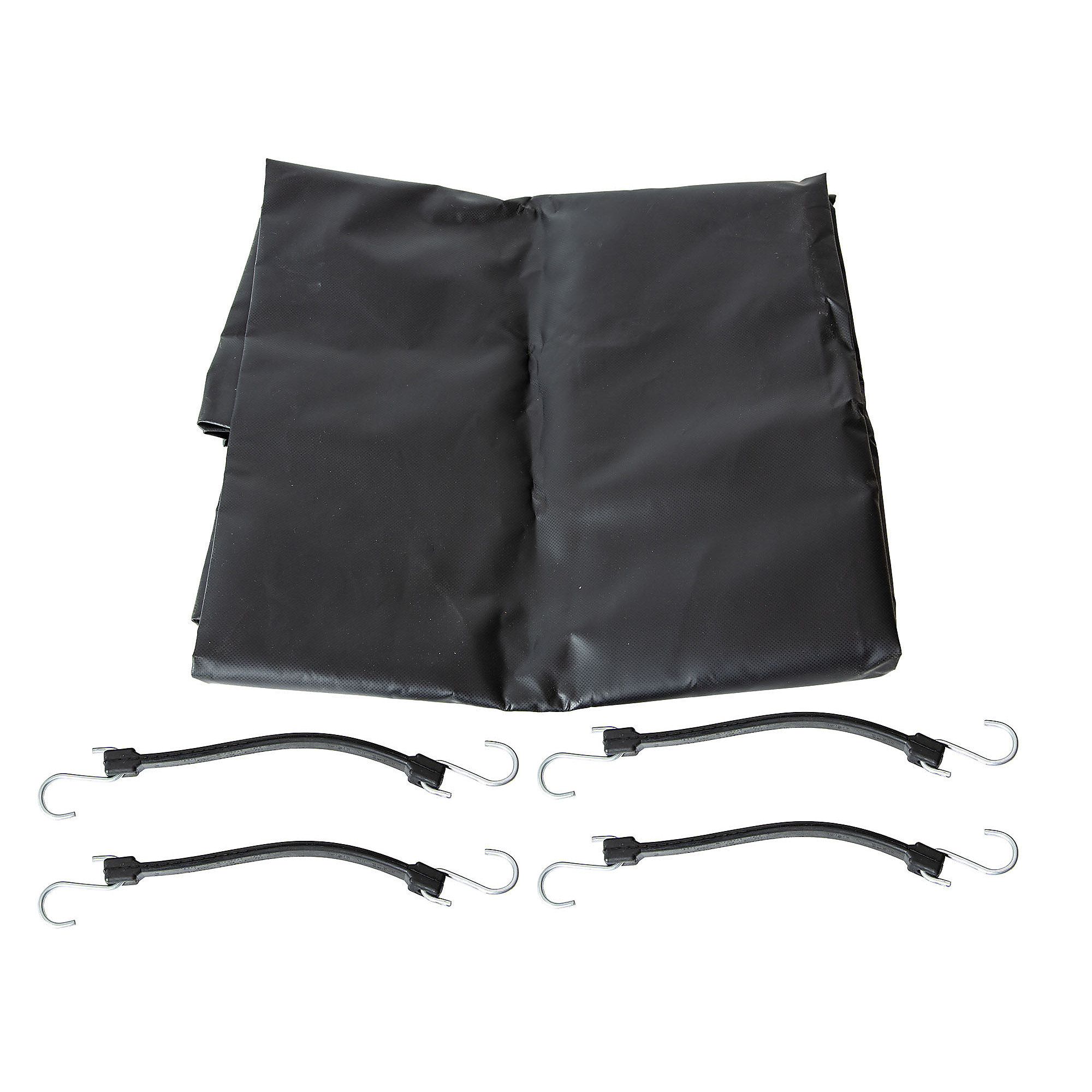

  • Buyers Products, Hopper Tarp Kit, Included (qty.) 1 Model# 1491701

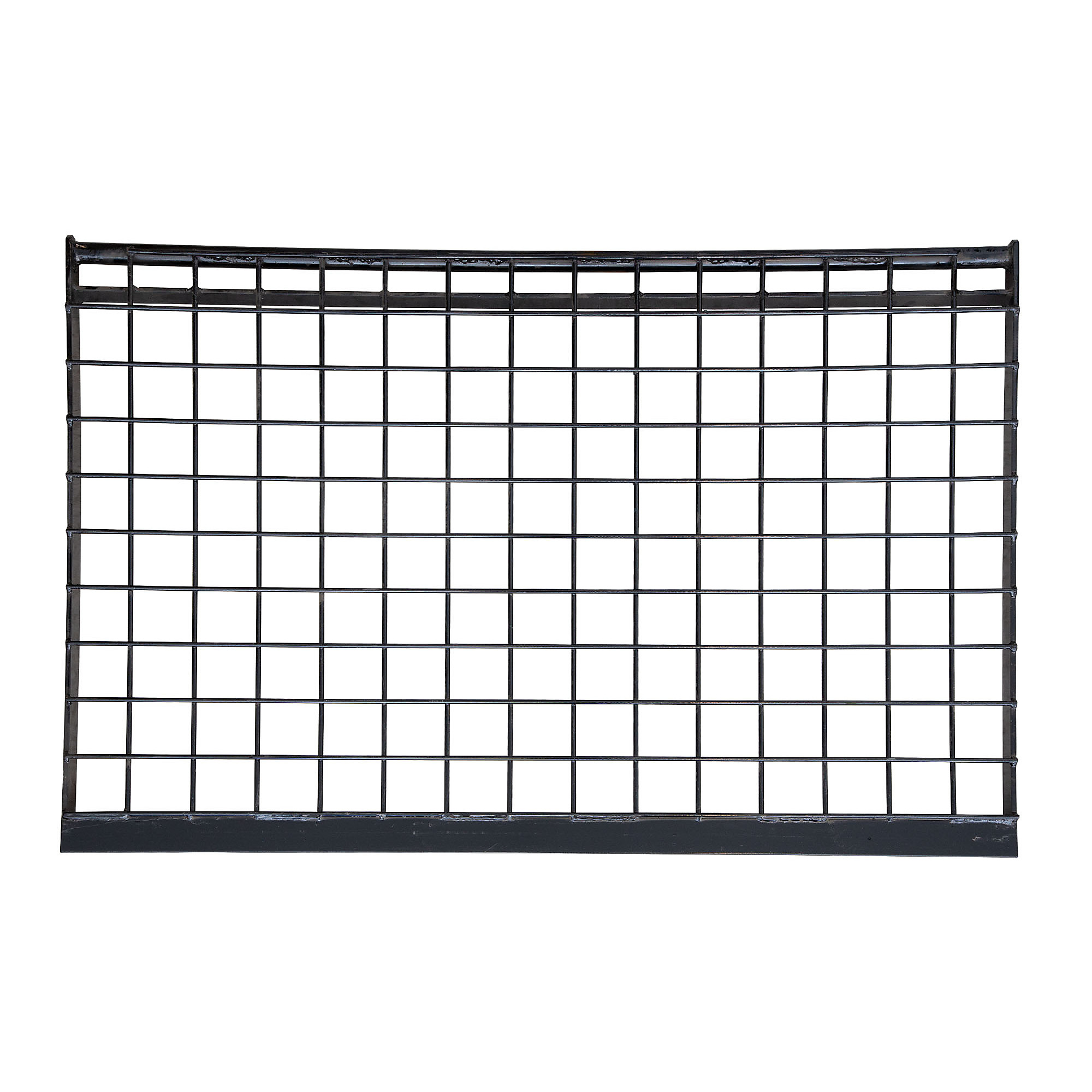

  • Buyers Products, Top Screen, Included (qty.) 1 Model# 1498561
Price for all four:

$7346.48

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Ideal for medium and heavy-duty commercial applications. Ideal for municipalities, shopping malls, industries, hospitals and private contractors. Recommended for 3/4- or 1-ton trucks. U.S.A.

What's Included

    (1) Spreader kit including hopper, inverted "V" and top screen

Downloads

Product Manual

Features + Benefits

  • Hopper length: 96in.
  • Overall length: 115 3/4in.
  • Capacity struck: 2.0 cu. yds.
  • Width: 47in.; height: 32 1/2in.
  • Complete assembly mounts easily on pickup, dump and platform trucks
  • High-quality grade 304 stainless steel components, including hopper, hopper supports, hopper floor, gussets, spinner chute assembly, deflectors and engine hood
  • Vertical supports add extra strength to the unit
  • Single lift point on the cross support beam is located at the unit's center of gravity to allow for easy loading and unloading

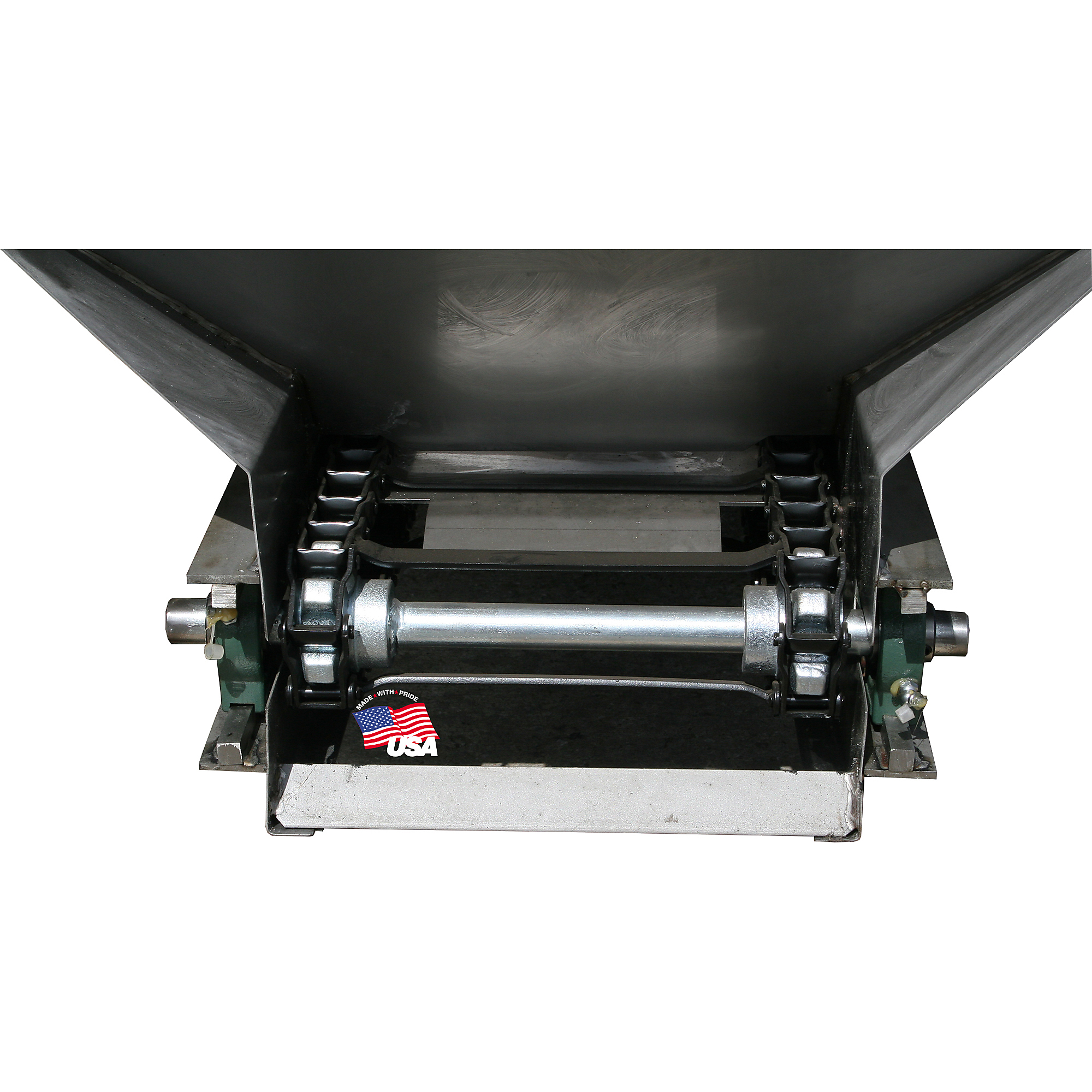

  • Conveyor is made of 12in. wide all-steel pintle chain with 3/16in. x 3/4in. cross bars
  • Chain strength is 11,000 lbs. per strand; 22,000 lbs. total weight
  • Drive sprockets are 6-tooth cast iron, on a 1 1/8in. diameter shaft
  • Conveyor chain has an adjustment range of 3 1/2in.
  • Drive shaft has heavy-duty, sealed, self-aligning ball bearings with grease fittings
  • Idler drum has heavy-duty 1in. diameter ball bearings

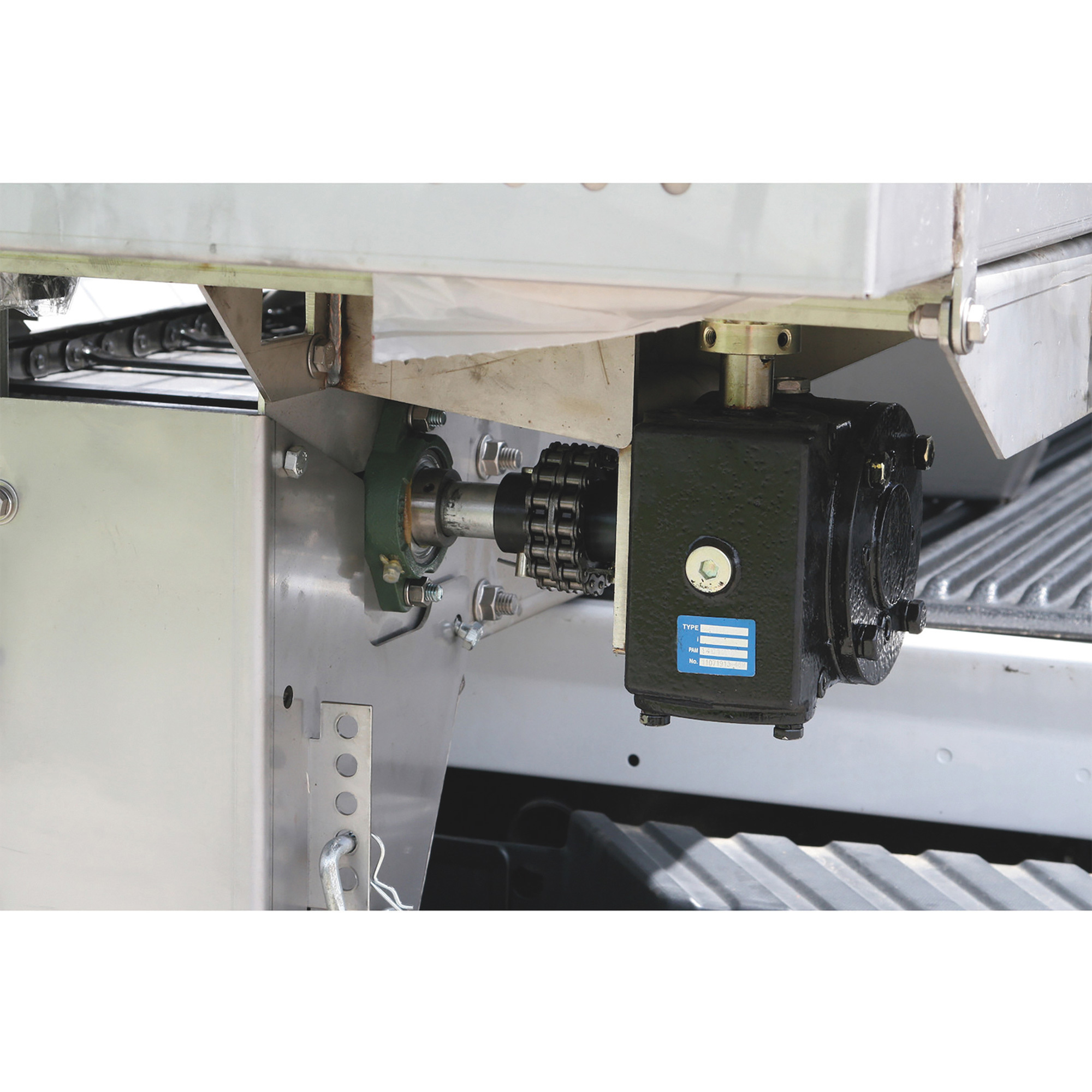

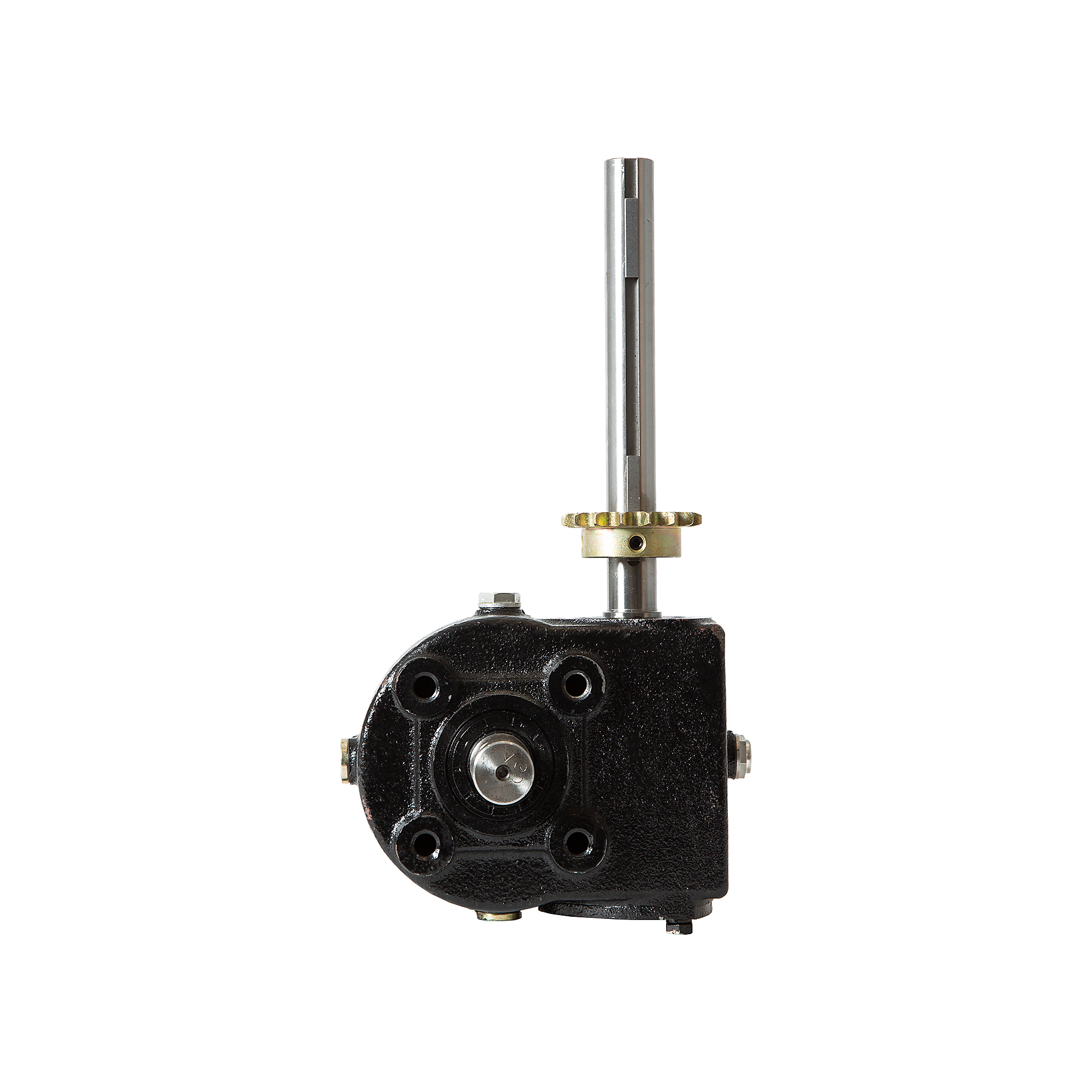

  • Gear is constructed of aluminum bronze, worm gear is hardened steel and ground
  • Housing is made of durable cast iron
  • Gear ratio is 20:1 with 1in. input shaft and 1 1/8in. output shaft on tapered roller bearings
  • Feed gate lever operated with a friction lock for accurate adjustment
  • Polymer disc with four fins is connected to a 3/4in. diameter shaft secured on 2 pillow block bearings
  • Spreading material is guided from the conveyor to the spinner plate through an enclosed chute with internal and external deflectors

Key Specs

AttributeSpecification

item#

103896S

Brand

Buyers Salt Dogg

Manufacturer's Warranty

1 year limited warranty

Ship Weight

903.0 LB

Max. Spread Width

30 ft

Hopper Material

Stainless Steel
AttributeSpecification

Frame Material

Stainless Steel

Min. Spread Width

5 ft

Recommended Media

Salt, Sand, Salt/sand Mix, Free-flowing Granular Material

Spinner Material

Stainless Steel

Variable Speed

Yes

Reviews

Questions & Answers

Questions

  1. Can one of these units be used to spread screened compost or topdressing?

    1 answer

    1. This product cannot be used to spread screened compost or topdressing.

      Helpful?
