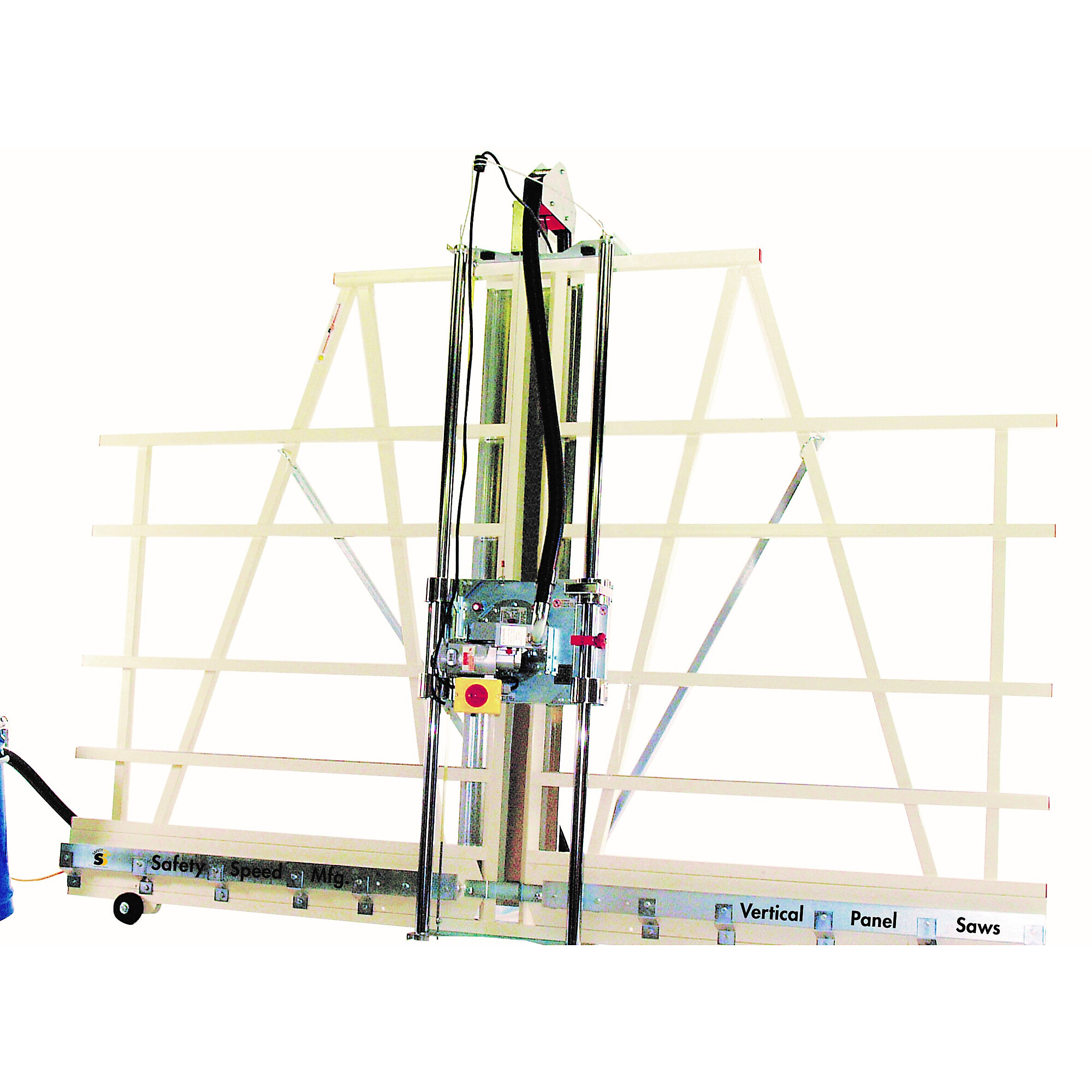

Safety Speed Manufacturing, Medium Usage Panel Saw with 74in. Maximum Crosscut, Blade Size 8 in, Amps 13 Max. Crosscut 74 in, Model# 6800

Item# 5805748
Safety Speed Manufacturing, Medium Usage Panel Saw with 74in. Maximum Crosscut, Blade Size 8 in, Amps 13 Max. Crosscut 74 in, Model# 6800

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Safety Speed Manufacturing, Medium Usage Panel Saw with 74in. Maximum Crosscut, Blade Size 8 in, Amps 13 Max. Crosscut 74 in, Model# 6800

Click or Tap image to Zoom

$7529.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • 1/64" Cut tolerance
  • 74" Maximum cutting height

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Upgrades on the 6400 6800 model panel saws compared to our H-Series Panel Saws include: An upgraded, worm drive motor providing greater longevity. 1/64in. straight and square cutting tolerance compared to 1/32in. on our H-Series Machines that's made possible by additional bearings. Additional steel welded at a diagonal plane adding significant weight to the frame. A weighted pulley system for pulling the saw motor up and down the guide tubes vs a spring loaded counter balance. Additional bearings within the motor providing a tighter cutting tolerance. Aluminum material rollers  instead of red material rollers . The 6800 provides a 74in. maximum crosscut while the 6400 provides a 64in. maximum crosscut. The maximum ripcut (horizontal) is dependent on pushing the panel through.Featuring a heavy duty worm drive motor, additional steel frame supports, aluminum wheels and double bearings, this machine will deliver an accuracy of 1/64in. The 6800 can cut sheets up to 74in. without blinking an eye. Standard Equipment 3 Hp worm driven heavy-duty saw motor. 10ft. welded steel frame. Chrome-plated 1 3/4in. guide tubes. 8 Nylatron roller bearing systems. Adjustable vertical and horizontal rulers. Quick change from vertical to horizontal cutting. Thin material pressure guard. Solid aluminum material rollers. Enclosed counterweight system. Integrated dust collection bonnet. TUV certified to UL/CSA standards.

What's Included

    (1) 6800 Panel Saw

Features + Benefits

  • 1/64" Cut tolerance
  • 74" Maximum cutting height

Key Specs

AttributeSpecification

item#

5805748

Brand

Safety Speed Manufacturing

Manufacturer's Warranty

1 year limited warranty

Ship Weight

600.0 LB

Blade Size

8 in

Amps

13

Max. Crosscut

74 in

Max. RPM

4,300

Horsepower

3

Product Type

Panel Saws
AttributeSpecification

Blade Change Type

Keyless

Motor Voltage

110/220

Material

Steel

Color

Beige

Power Source

Corded

Corded

Yes

Power Cord Length

20 ft

Dimensions L x W x H (in.)

120.0 x 36.0 x 98.0 in

Product Weight

600.0000 lb

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
