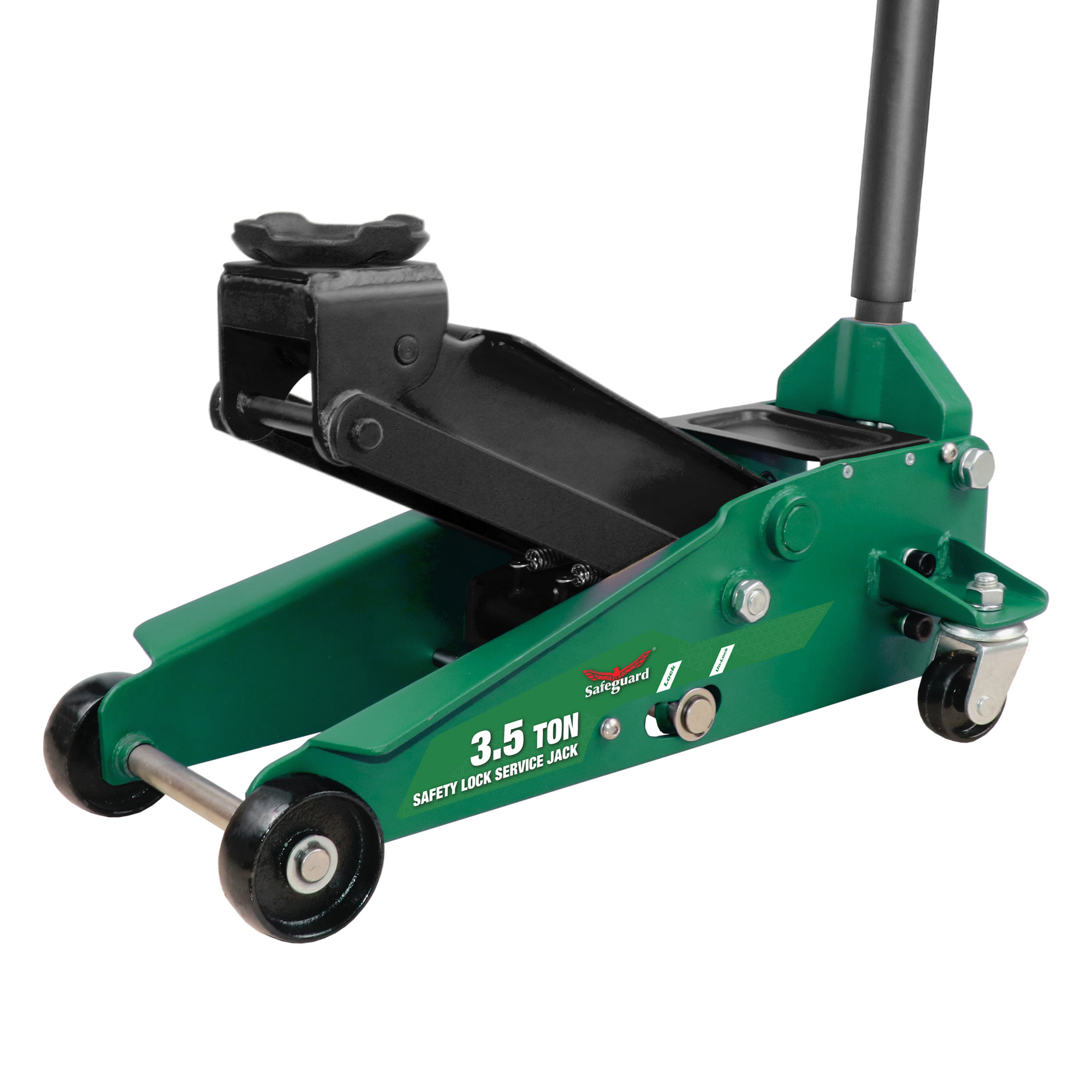

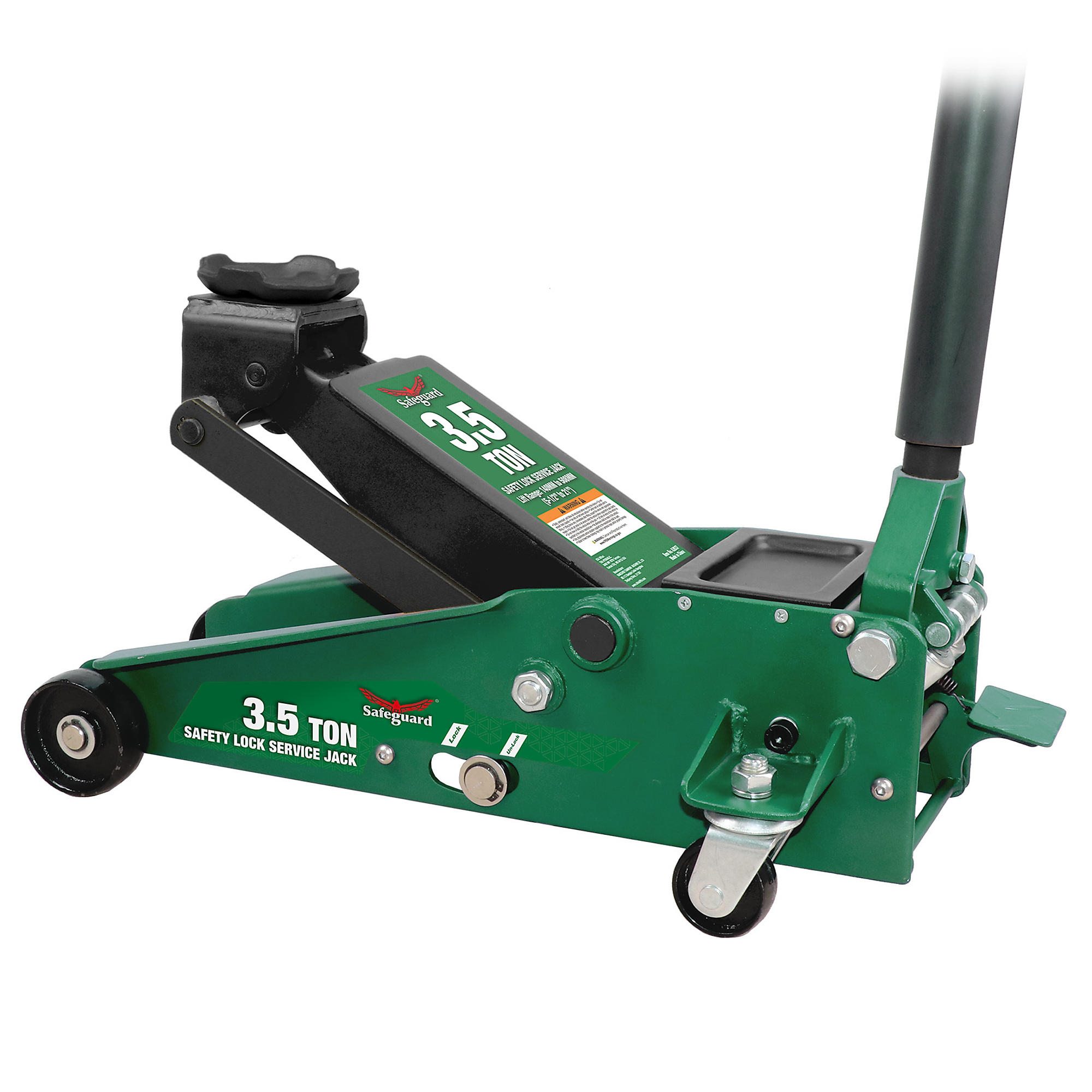

Safeguard Safety Lock Service Jack — 3.5-Ton Capacity, 5.5in. to 20in. Lift Range, Heavy-Duty Chassis, Model# 62037

Item# 6711196
Safeguard Safety Lock Service Jack — 3.5-Ton Capacity, 5.5in. to 20in. Lift Range, Heavy-Duty Chassis, Model# 62037

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Safeguard Safety Lock Service Jack — 3.5-Ton Capacity, 5.5in. to 20in. Lift Range, Heavy-Duty Chassis, Model# 62037

Click or Tap image to Zoom

$399.90

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Patented Safety lock on lift arm in 3 positions: 12-3/4”, 15-15/16”, 18-1/2”. Industrial grade of castors provide smooth and easy transportation. Reinforced and heavy-duty lift arm for exceptional lifting strength. Quick start double pump decreases the required pumps needed to reach contact with the chassis. Universal joint mechanism safety bypass system provides cylinder protection. Lifts up to 7000 lbs. Handle with foam sleeve covering to add vehicle protection

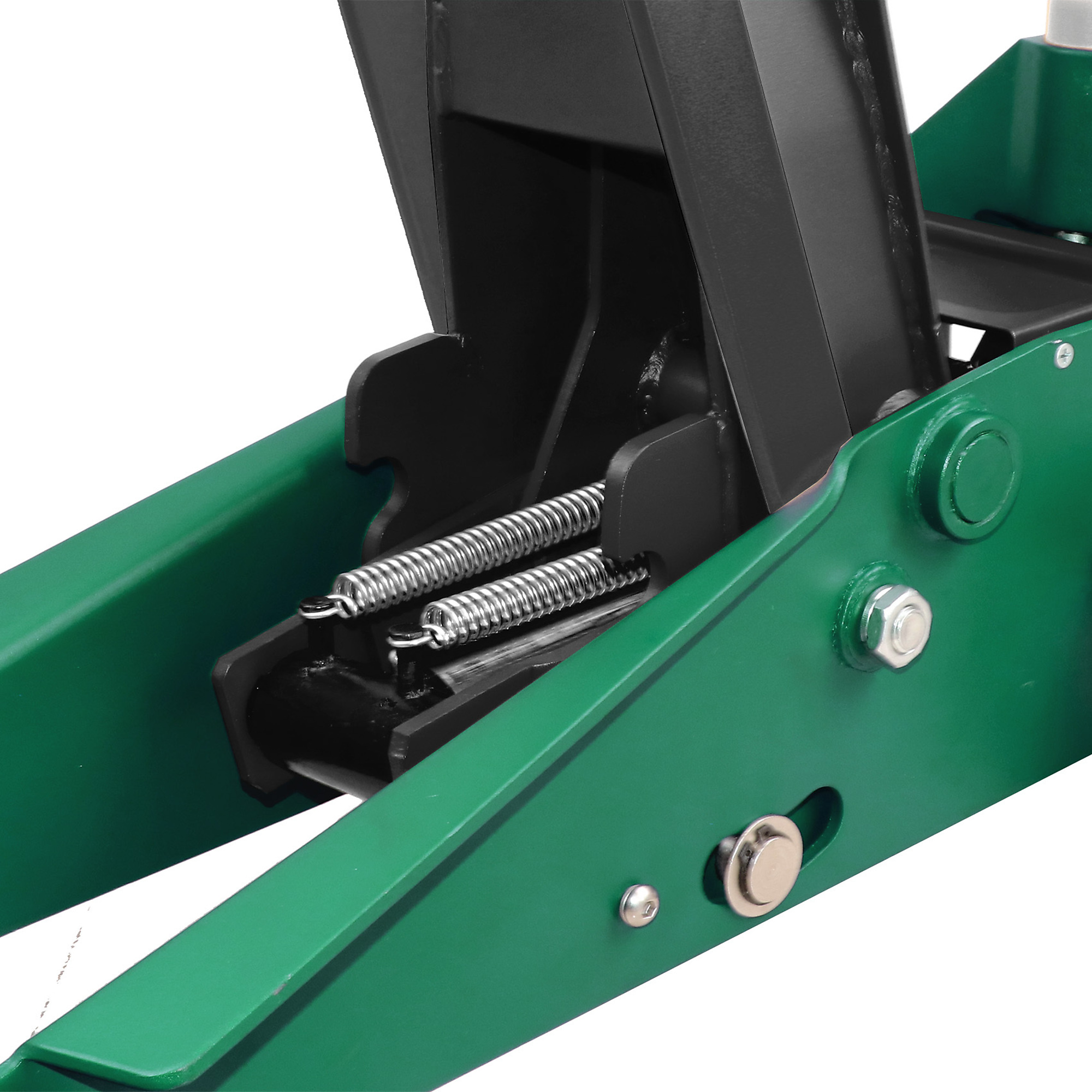

  • Patented Safety lock on lift arm in 3 positions: 12-3/4”, 15-15/16”, 18-1/2”. Offers greater user safety and convenience.
  • Industrial grade of castors provides smooth and easy rolling and positioning and extended durability and service life.
  • QUICK START double pump mechanism decreases required pumps to reach contact with the chassis.
  • Universal joint mechanism safety bypass system provides cylinder protection.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This professional Safeguard 3-1/2-Ton QUICK START service floor Jack is ideal for a broad range of vehicles. The innovative and patented SAFETY LOCK system provides additional safety and convenience. Features a universal joint system for each of raising and lowering a load and safety bypass system for cylinder protection. Heavy-duty chassis for increased strength and durability. 3-1/2-ton capacity; 5-1/2in. to 20in. lift range. This Safeguard service jack provides a secure and reliable lifting solution.

What's Included

    (1) Service jack

Features + Benefits

  • Patented Safety lock on lift arm in 3 positions: 12-3/4”, 15-15/16”, 18-1/2”. Industrial grade of castors provide smooth and easy transportation. Reinforced and heavy-duty lift arm for exceptional lifting strength. Quick start double pump decreases the required pumps needed to reach contact with the chassis. Universal joint mechanism safety bypass system provides cylinder protection. Lifts up to 7000 lbs. Handle with foam sleeve covering to add vehicle protection
  • Patented Safety lock on lift arm in 3 positions: 12-3/4”, 15-15/16”, 18-1/2”. Offers greater user safety and convenience.
  • Industrial grade of castors provides smooth and easy rolling and positioning and extended durability and service life.
  • QUICK START double pump mechanism decreases required pumps to reach contact with the chassis.
  • Universal joint mechanism safety bypass system provides cylinder protection.

Key Specs

AttributeSpecification

item#

6711196

Brand

Safeguard

Manufacturer's Warranty

1 year limited warranty

Ship Weight

88.0 LB

Lift Capacity

3.5 Tons

Max. Lift Height

20 in

Power Source

Hydraulic

Low Profile

No
AttributeSpecification

Material

Steel

Product Type

Service Jack

Min. Lift Height

5.5 in

Ram Travel

14.5 in

Handle Included

Yes

Safety Valve

Yes

Product Weight

83.0000 lb

Dimensions L x W x H (in.)

27.125 x 14.5 x 7.4375 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
