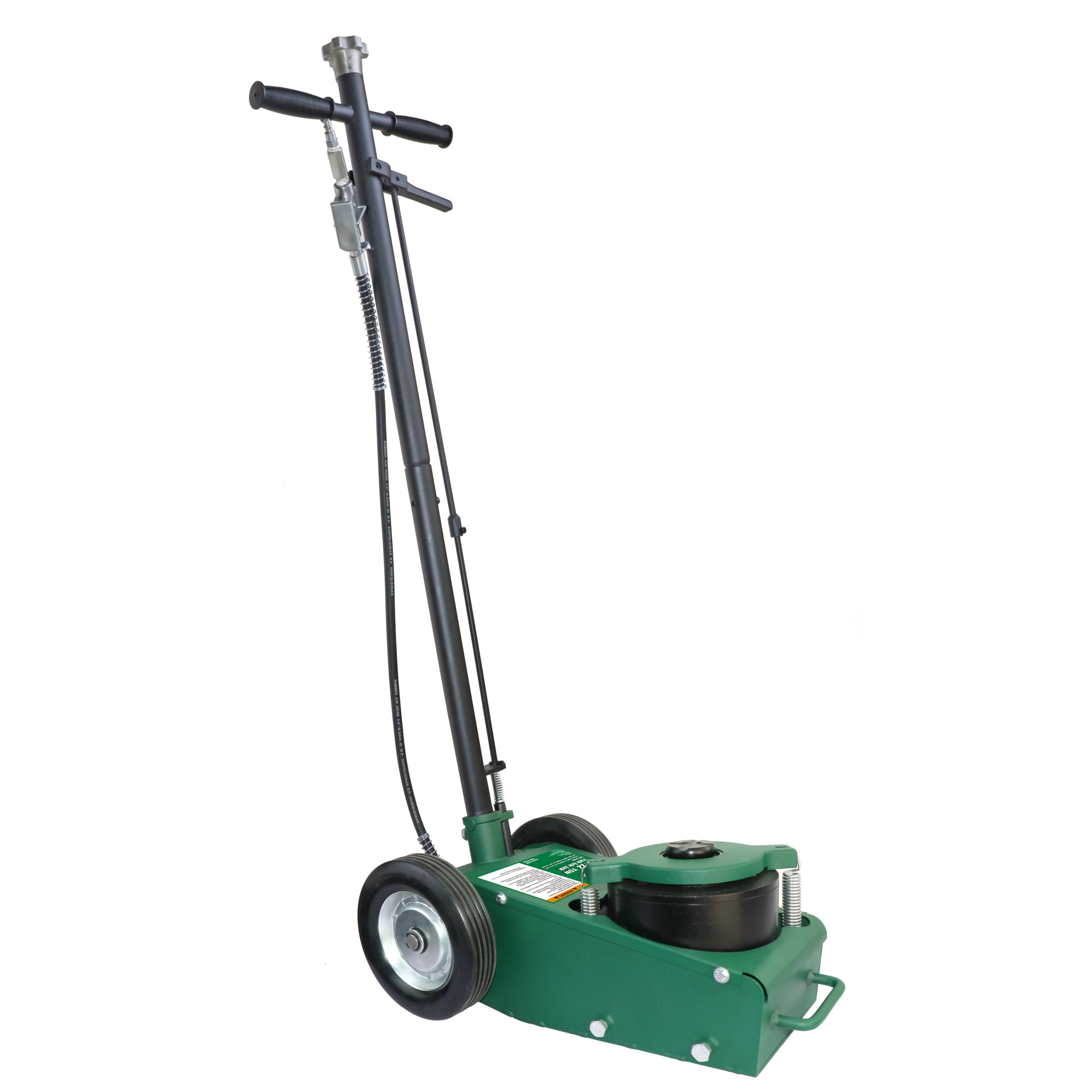

Safeguard 20/35 ton 2-stage truck axle jack with air motor, #62350

Item# 7053210
Safeguard 20/35 ton 2-stage truck axle jack with air motor, #62350

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Safeguard 20/35 ton 2-stage truck axle jack with air motor, #62350

Click or Tap image to Zoom

$899.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • First ram piston has a capacity of 35 tons and second ram piston has a capacity of 20 tons.
  • Built-in By-Pass device to protect hydraulic system from over pumping damage.
  • High speed turbo air motor for efficient effortless operation
  • Built-in muffler to promote quiet operation.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The SAFEGUARD 20/35 Ton 2 Stage Truck Axle Jack comes with double ram design allows jack to have an extremely low saddle height of 8-1/16in., first ram piston has a capacity of 35 tons, maintaining the same maximum lifting height, second ram piston has a capacity of 20 tons. Built-in by-pass device to protect hydraulic system from over pumping damage. Built-in muffler to promote quiet operation. High speed turbo air motor for efficient effortless operation. Mechanical spring ram return automatically resets the ram back to the minimum starting height. Welded cylinder and reservoir for added strength and durability. Chrome plated rams to resist rust and wear. Meets 2024 ASME/PASE standards.

What's Included

    (1) Truck Axle Jack (1) 2-piece T handle

Features + Benefits

  • First ram piston has a capacity of 35 tons and second ram piston has a capacity of 20 tons.
  • Built-in By-Pass device to protect hydraulic system from over pumping damage.
  • High speed turbo air motor for efficient effortless operation
  • Built-in muffler to promote quiet operation.

Key Specs

AttributeSpecification

item#

7053210

Brand

Safeguard

Manufacturer's Warranty

1 year limited warranty

Ship Weight

109.0 LB

Lift Capacity

35 Tons

Max. Lift Height

18 in
AttributeSpecification

Low Profile

Yes

Product Type

Axle Jack

Min. Lift Height

8.06 in

Product Weight

104.0000 lb

Dimensions L x W x H (in.)

21.875 x 13.125 x 8.125 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
