Ruffneck Pipe Mounting Kit for use w/Ruffneck™ FX Series Heaters (FX5/FX6) 12" Frame, Model# 9727

Item# 5736800
1 Included
Ruffneck Pipe Mounting Kit for use w/Ruffneck™ FX Series Heaters (FX5/FX6) 12" Frame, Model# 9727

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ruffneck Pipe Mounting Kit for use w/Ruffneck™ FX Series Heaters (FX5/FX6) 12" Frame, Model# 9727

Click or Tap image to Zoom

$314.50

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Model: Ruffneck™ FX Series Pipe Mounting Kit (PMK) 12" Frame

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

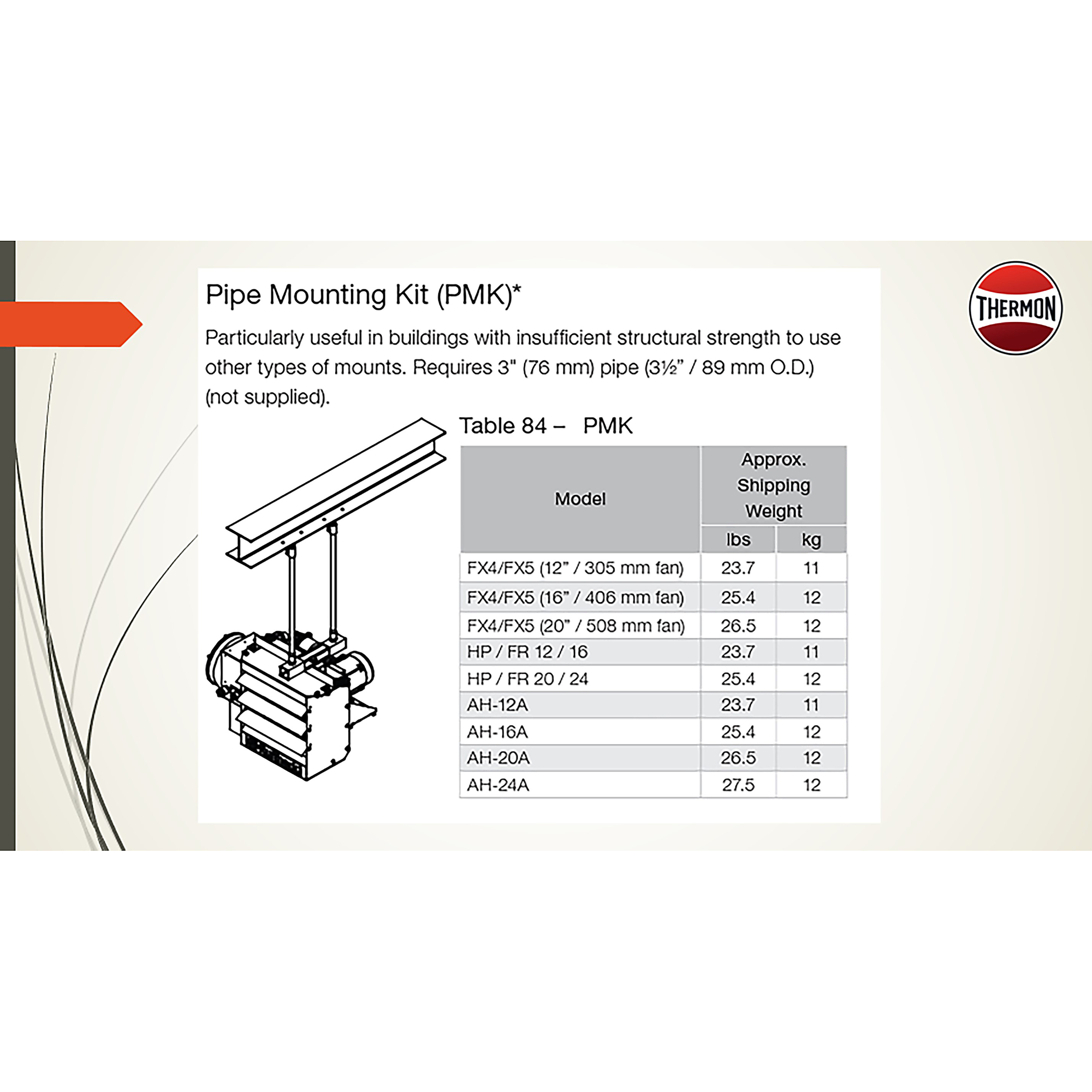

Pipe Mounting Kit (PMK) 12in. Frame - Particularly useful in buildings with insufficient structural strength to use other types of mounts. Requires 3in. (76 mm) pipe (31/2” / 89 mm O.D.) (not supplied). Mounting kits are made of steel with wet-applied enamel paint. If the heater is installed on a structure that is to be transported, provide additional support for the heater during transit. The suspended weight should not exceed 300 lbs (136 kg). Although Ruffneck Unit Heaters are designed to be installed in an upright and level position, they may be installed in other positions. However, for steam service, the inlet must be above the outlet and the bottom of the core must drain toward the outlet. They are designed to be suspended from the top of the cabinet either with two or four (depending on model) 5/8in. NC bolts screwed into internally threaded holes provided in the cabinet top panel. It is essential that adequate structural support be provided for installation. Where heaters are installed in applications that are of a relocating or transportable nature such as land or offshore drilling rigs, an adequate mounting structure should be supplied to withstand all probable load conditions. Such load conditions should recognize abuse situations such as truck offloading impacts, etc. It is recommended that lock washers be used beneath the bolt heads for these installations. Heaters may be mounted at any reasonable height above floor level depending on the purpose of the heater. When equipment is placed in a seldom occupied building, the heaters may be placed at a low level. When heaters are required to ensure personnel comfort, they should be mounted overhead. Typical mounting heights range from 7.5ft. to 12ft. CSA-certified heaters must be mounted at a minimum height of 7.9ft. (2.4 m) above the floor. All Ruffneck heaters have louvers installed that allows airflow to be directed from horizontal to 60° or greater downward deflection. Louvers should never be set to within less than 15° of the closed position. Clearances for Maintenance - It is important to provide adequate clearance around the heater for servicing. Allow enough space to permit easy fan or motor replacement. Do not position the back of the fan motor against a surface, as air for the cooling fan will be blocked. It is advisable to leave at least 2in. of clearance between the rear of the motor and the nearest obstruction.

What's Included

    (1) Pipe Mounting Kit for use w/Ruffneck™ FX Series Heaters (FX5/FX6) 12" Frame

Features + Benefits

  • Model: Ruffneck™ FX Series Pipe Mounting Kit (PMK) 12" Frame

Key Specs

AttributeSpecification

item#

5736800

Brand

Ruffneck

Manufacturer's Warranty

1 year limited warranty

Ship Weight

34.0 LB

Included (qty.)

1

Material

Steel
AttributeSpecification

Compatible With

Ruffneck™ Explosion-Proof FX Series Forced Air Heaters

Length

32 in

Height

7 in

Dimensions L x W x H (in.)

32.0 x 7.0 x 7.0 in

Product Weight

34.0000 lb

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
