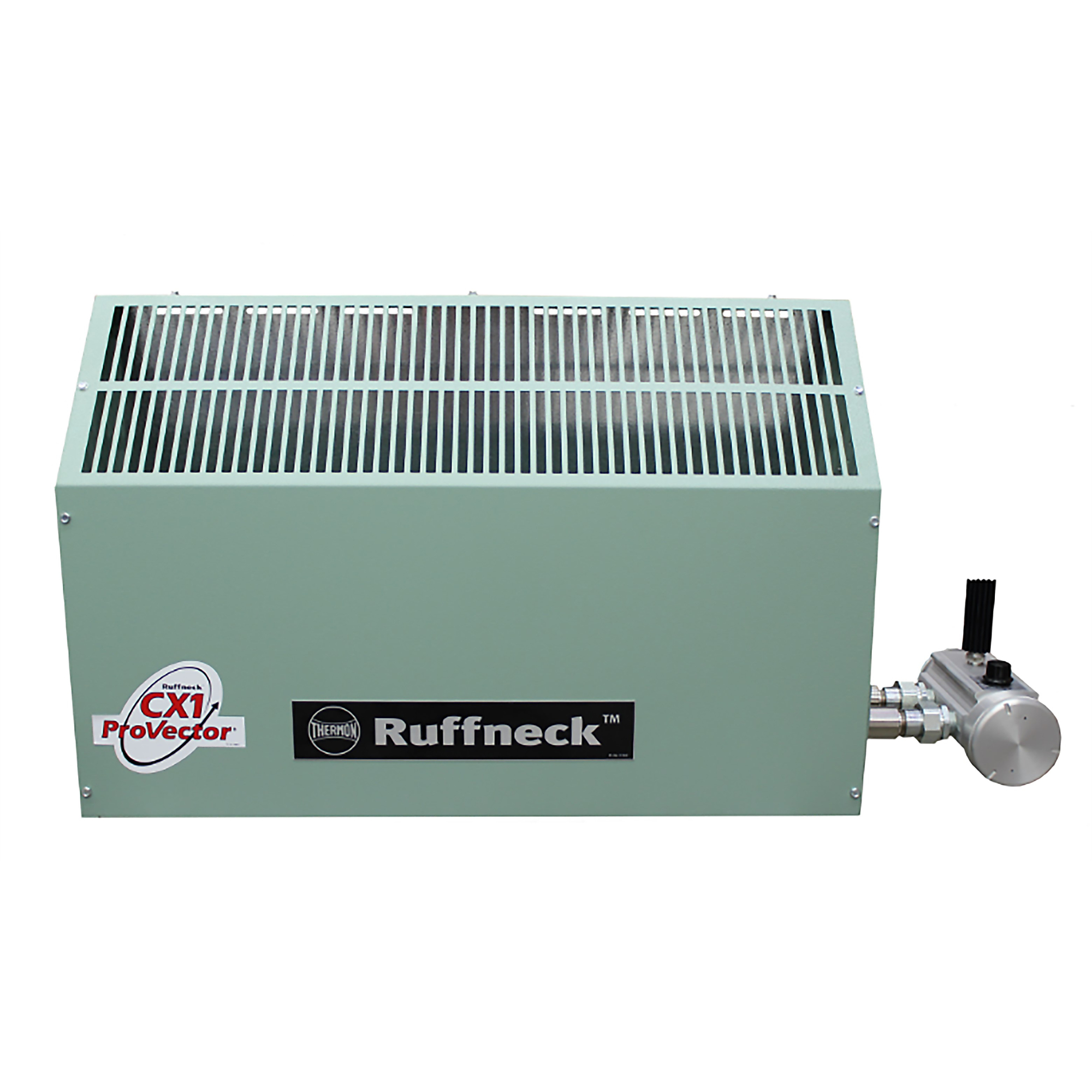

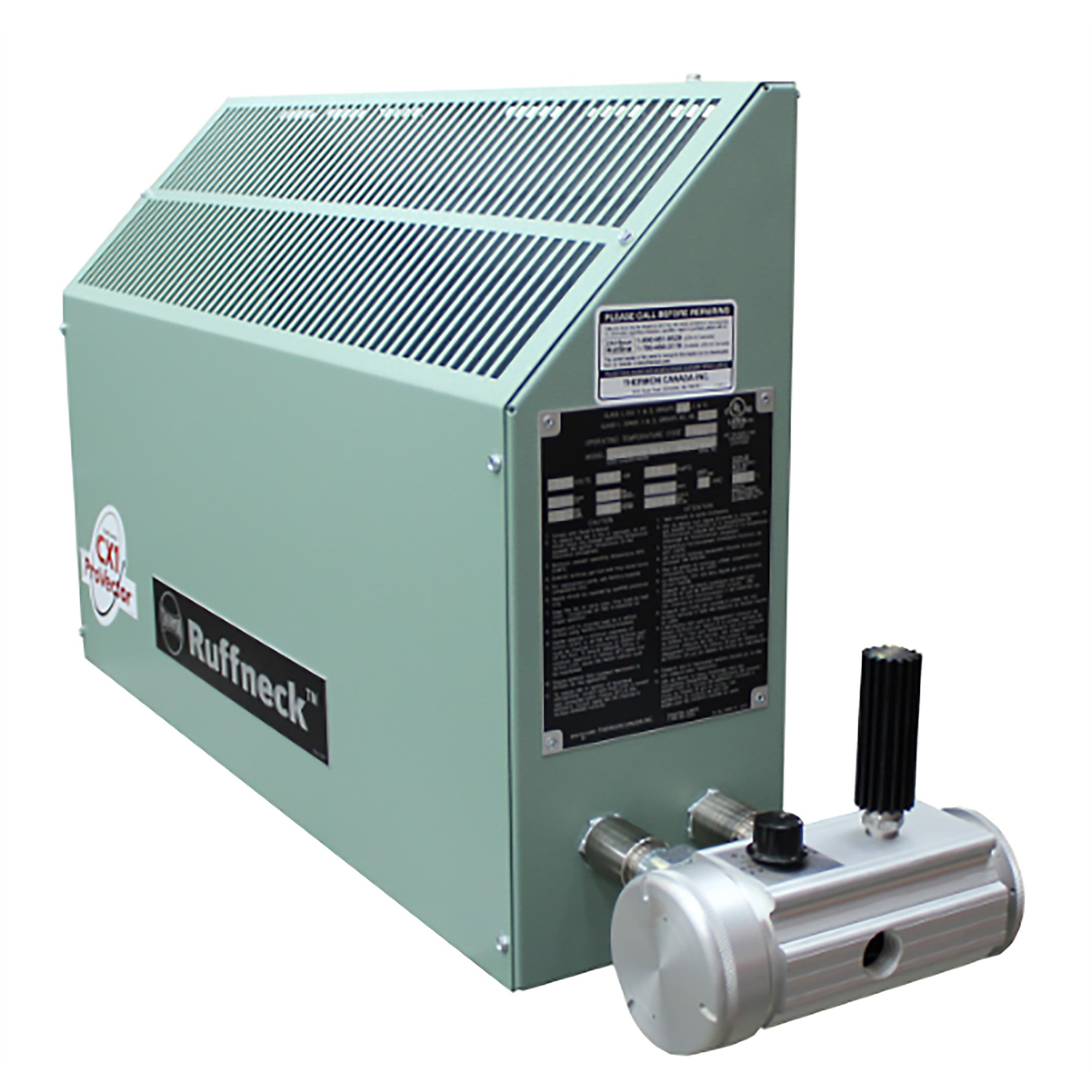

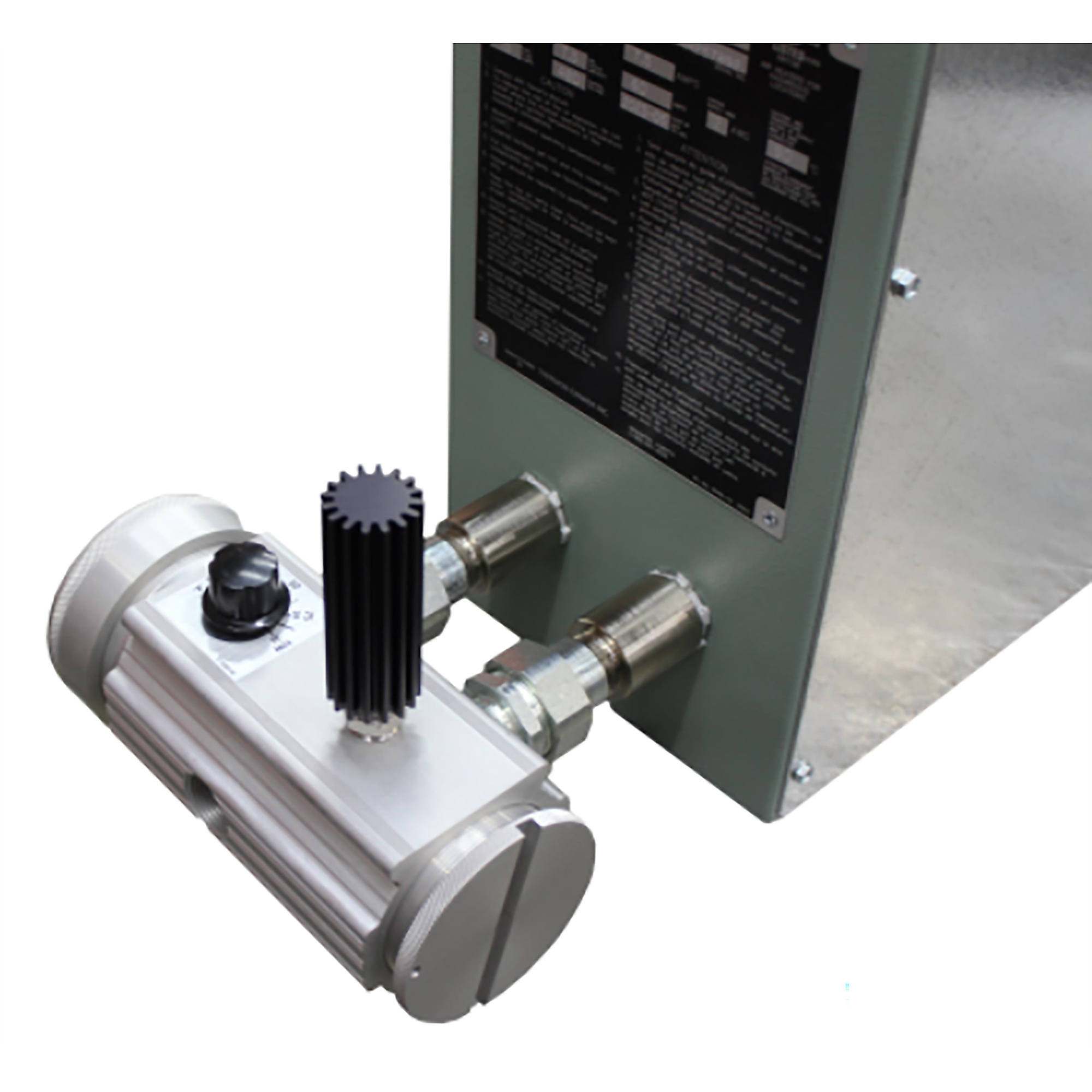

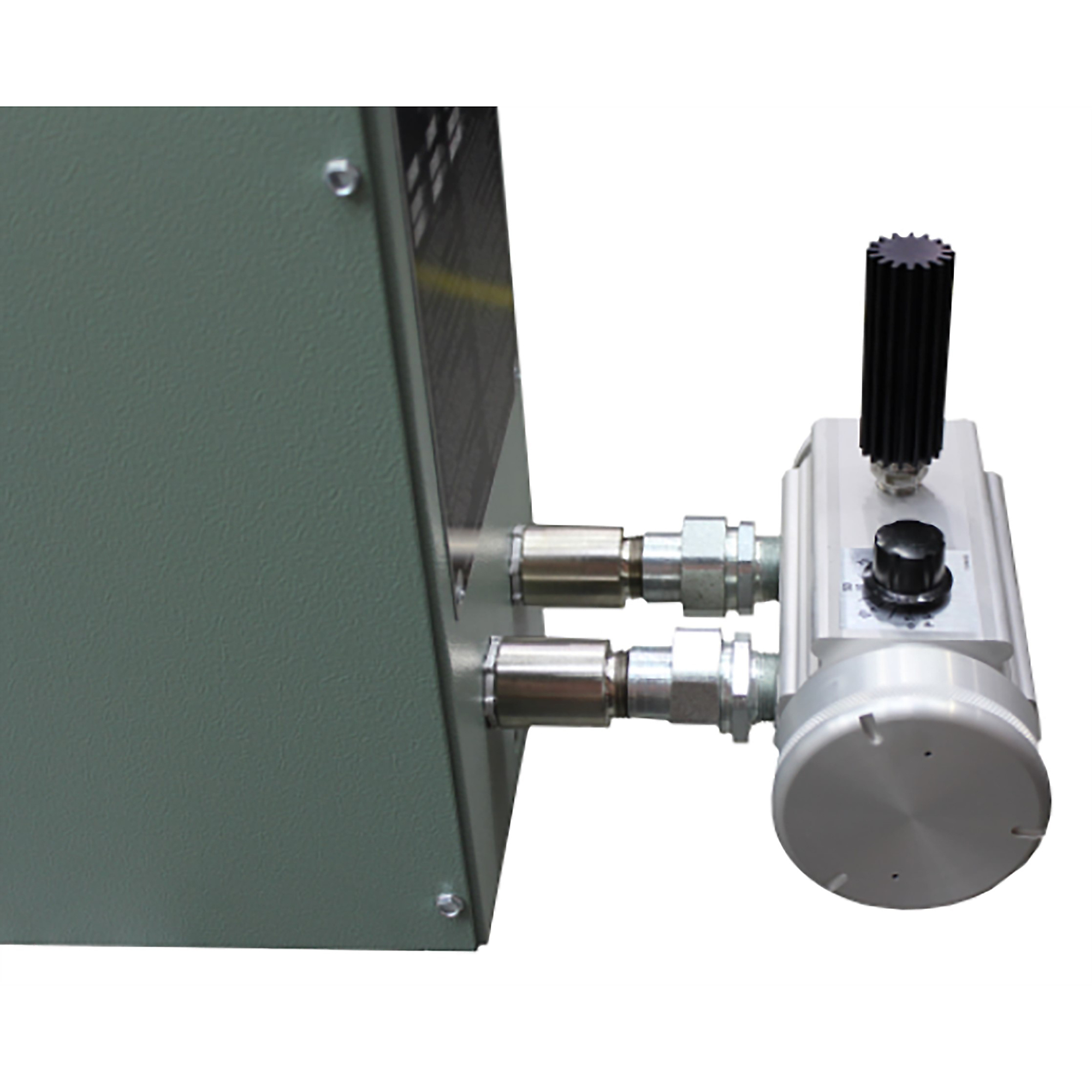

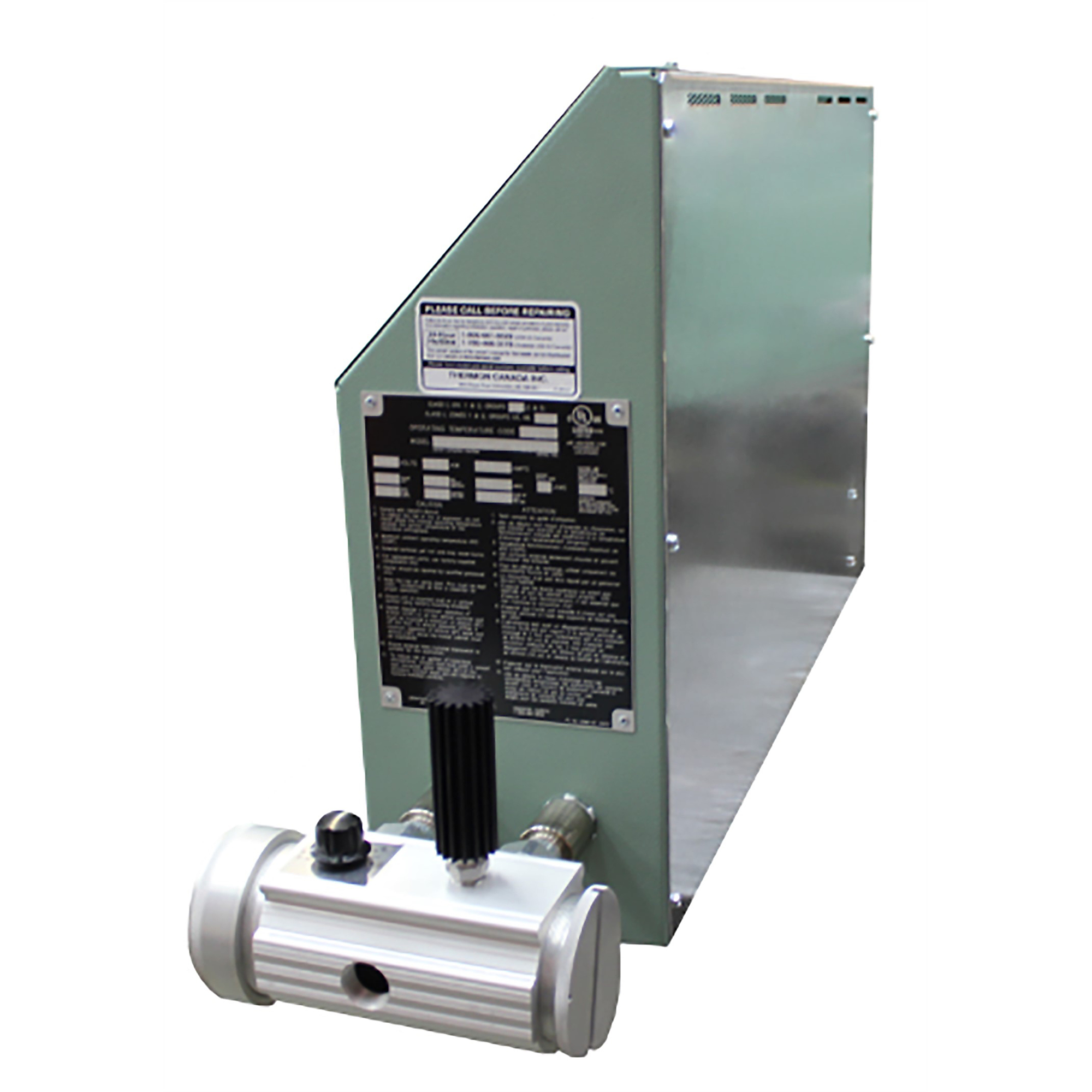

Ruffneck, CX1 ProVectorEP Convection Heater 3600W, Model# CX1480160036T2AIIBT

Item# 5091626
Top Seller
Ruffneck, CX1 ProVectorEP Convection Heater 3600W, Model# CX1480160036T2AIIBT

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ruffneck, CX1 ProVectorEP Convection Heater 3600W, Model# CX1480160036T2AIIBT

Click or Tap image to Zoom

$2605.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Benefits - Prevents objects from being set on top which restricts airflow, Corrosion resistant, suitable for H2S environments, Heats up area faster with better heat distribution, Rugged reliability and unsurpassed corrosion resistance available with stainless-steel construction, Smaller profile utilizes less wall and floor space, Reduced field installation costs, Longer life expectancy, Reduced fin warping for better heat transfer capabilities, Quick installation, Industry-first approvals for built-in thermostat with Groups A, B, C, D; IIA, IIB, IIC ratings
  • Certification Approvals - Groups A, B, C, D; IIA, IIB & IIC; available IP55 moisture ingress protection
  • Available in 1-phase or 3-phase
  • Available up to an industry leading 10 kW
  • Sloped-top cabinet

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

CX1 ProVector Series Explosion-Proof Heaters. For hazardous locations heating, rely on the Ruffneck CX1 ProVector for the most dependable, trouble-free service available. Thermon Heating Systems, Inc. manufactures explosion-proof air heaters to satisfy the demanding requirements of the oil and gas well drilling industry. The harsh operating conditions of this application require the utmost in heater reliability. The unique design features and rugged, quality construction details that have made Ruffneck heaters the choice of the oil and gas industry are also appreciated by other heavy-duty industries throughout the world.

What's Included

    (1) ProVector® Explosion-Proof Convection Heater with T'stat - 3600W, 480V, 1Ø - Temp Code T2A

Downloads

Additional Product Info

Features + Benefits

  • Benefits - Prevents objects from being set on top which restricts airflow, Corrosion resistant, suitable for H2S environments, Heats up area faster with better heat distribution, Rugged reliability and unsurpassed corrosion resistance available with stainless-steel construction, Smaller profile utilizes less wall and floor space, Reduced field installation costs, Longer life expectancy, Reduced fin warping for better heat transfer capabilities, Quick installation, Industry-first approvals for built-in thermostat with Groups A, B, C, D; IIA, IIB, IIC ratings
  • Certification Approvals - Groups A, B, C, D; IIA, IIB & IIC; available IP55 moisture ingress protection
  • Available in 1-phase or 3-phase
  • Available up to an industry leading 10 kW
  • Sloped-top cabinet
  • No exposed copper or brass
  • High-velocity airflow
  • 14-gauge steel cabinet, available with stainless-steel construction
  • One of the shortest cabinet lengths available
  • Optional built-in thermostat
  • Incoloy® 840 heating elements
  • Radial-embossed aluminum plate fins
  • Galvanized steel mounting brackets

Key Specs

AttributeSpecification

item#

5091626

Brand

Ruffneck

Manufacturer's Warranty

1 year limited warranty

Ship Weight

65.0 LB

Heat Type

Convection

Heat Output

12,283 Btu/hour

Indoor Outdoor Use

Indoor
AttributeSpecification

Volts

480

Watts

3,600

Amps

7.5

Hardwired

Yes

Product Weight

55.0000 lb

Dimensions L x W x H (in.)

8.25 x 37.0 x 20.5 in

Reviews

Questions & Answers

Warranty

Manufacturer's Warranty

1 year limited warranty
